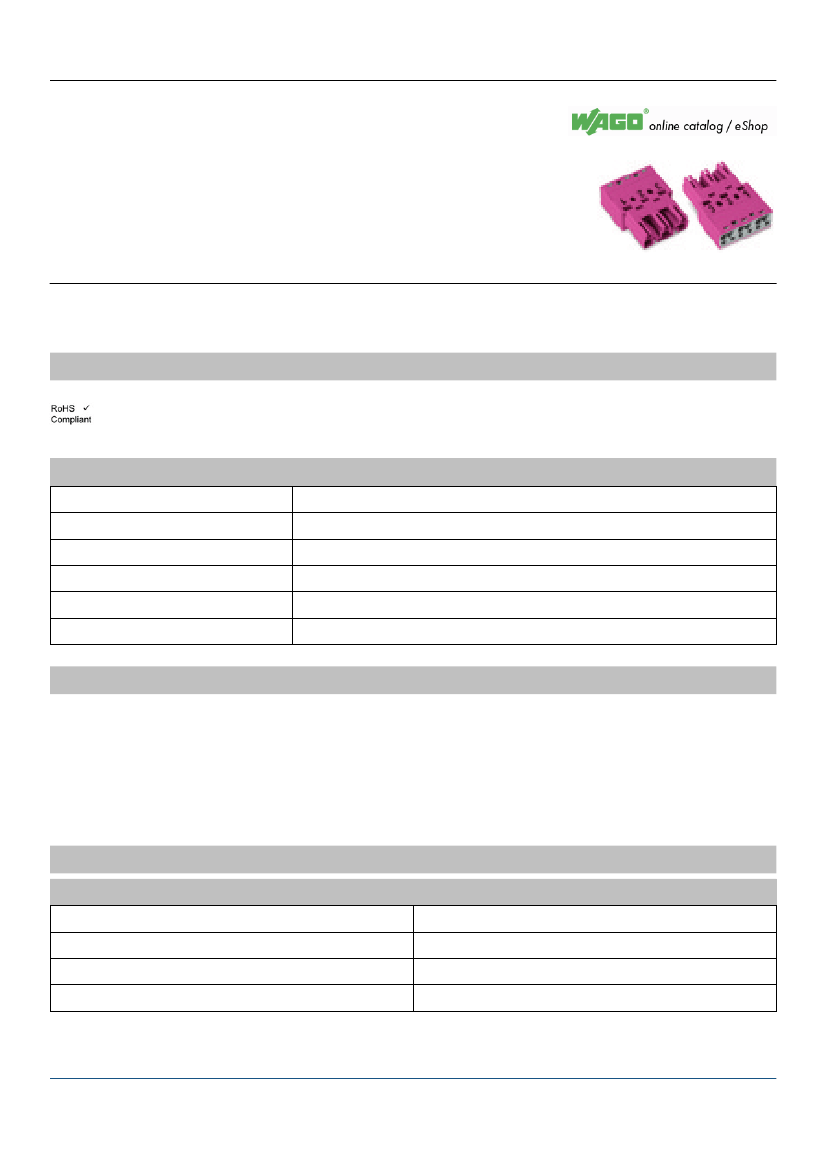

Printview: Plug; without strain relief housing; 3-pole; 100% protected against mismating; 2-conductor
connection; Pin spacing 10 mm / 0.394 in - Item No.: 770-293/081-000
.
Plug; without strain relief housing; 3-pole; 100% protected against
mismating; 2-conductor connection; Pin spacing 10 mm / 0.394 in
Item No.: 770-293/081-000
.
Plug; without strain relief housing; 3-pole; 100% protected against mismating; 2-conductor connection; Pin spacing
10 mm / 0.394 in
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
770-293/081-000
4050821553472
1
100
Note:All connectors for fixed installations (snap-in versions for lighting fixtures, devices or all types of PCBs and
distribution cabinets) are factory-equipped with locking levers to ensure plugs and sockets are securely locked.
Additional locking levers are only required for “flying leads” (plug/socket).Note on Continuous Service Temperature:-
35 °C … +85 °CPVC cable for temperatures 70 °C (including halogen-free)Insulating parts for temperatures 105
°CMating cycles: 100, with resistive load IN = 25 A, tested (4 mm2/AWG 12)
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
Total number of potentials
3
10 mm / 0.394 in %
6
3
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Plug; without strain relief housing; 3-pole; 100% protected against mismating; 2-conductor
connection; Pin spacing 10 mm / 0.394 in - Item No.: 770-293/081-000
Technical data
Potential marking
Color
Coding
Rated voltage (III / 3) [V]
Rated surge voltage (III / 3) [kV]
Nominal current [A]
Mating cycles
Connection technology
Number of connection points
Actuation type
Nominal cross section
Solid sizes
solid, directly pluggable
stranded, connectable
Fine-stranded wires
Fine-stranded wires with insulated ferrule
Fine-stranded wires with uninsulated ferrule
1 2 5
pink
B
250 [V]
4 [kV]
25 [A]
200, without resistive load
Push-in CAGE CLAMP®
2
Betätigungswerkzeug
4 mm² / 12 AWG
0.5 … 4 mm² / 20 … 12 AWG
1.5 … 4 mm² / 16 … 12 AWG
0.5 … 2.5 mm² / 20 … 14 AWG
0.5 … 4 mm² / 20 … 12 AWG
0.25 … 1.5 mm² / 20 … 16 AWG
0.25 … 2.5 mm² / 20 … 14 AWG
min. fine-stranded with insulated ferrule, push-in terminati 1.5 mm² / 16 AWG
Strip length
Mating force of a plug-in connection
Unmating force of a plug-in connection
Retention force of a plug-in connection
Insulating material
Flammability rating per UL 94
Clamping spring material
Contact material
Processing temperature
Fire load [MJ]
Weight [g]
Width
Height
Length
Marking
9 mm / 0.35 in
approx. 20 … 70 N (depending on pole number)
when unlocked: approx. 20 … 70 N (depending on pole
number)
when locked: > 80N
Polyamide 66 (PA 66)
V0
Chrome nickel spring steel (CrNi)
Copper or copper alloy, surface-treated
-5°C ... +40°C
0.196 [MJ]
9.956 [g]
30 mm / 1.181 in
12.9 mm / 0.508 in
37.5 mm / 1.476 in
1 2 5
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: Plug; without strain relief housing; 3-pole; 100% protected against mismating; 2-conductor
connection; Pin spacing 10 mm / 0.394 in - Item No.: 770-293/081-000

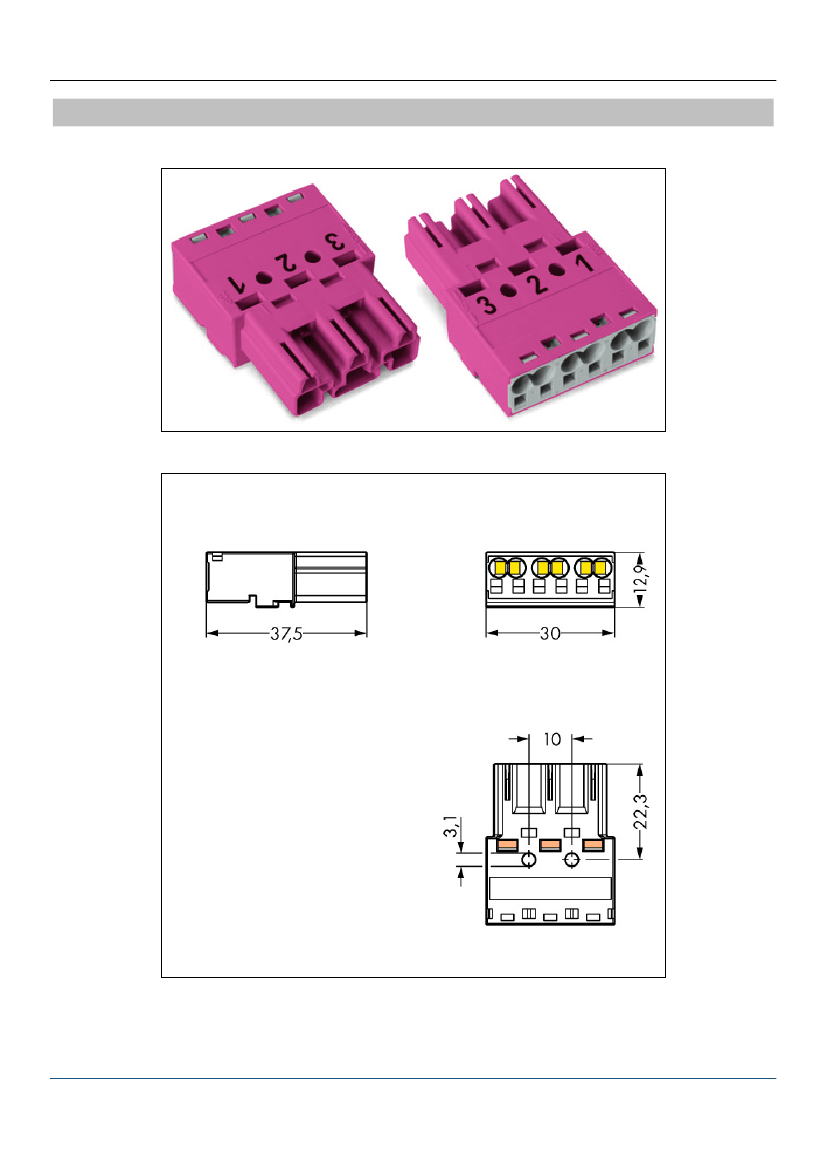

Images & drawings
.
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: Plug; without strain relief housing; 3-pole; 100% protected against mismating; 2-conductor
connection; Pin spacing 10 mm / 0.394 in - Item No.: 770-293/081-000
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
WAGO Kontakttechnik GmbH & Co. KG
4
