Part Number

Search

M80-4023201

Description
Board Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, M2x0.4, Black Insulator, Plug,
CategoryThe connector    The connector
File Size158KB,1 Pages
ManufacturerHarwin
Websitehttp://www.harwin.com/

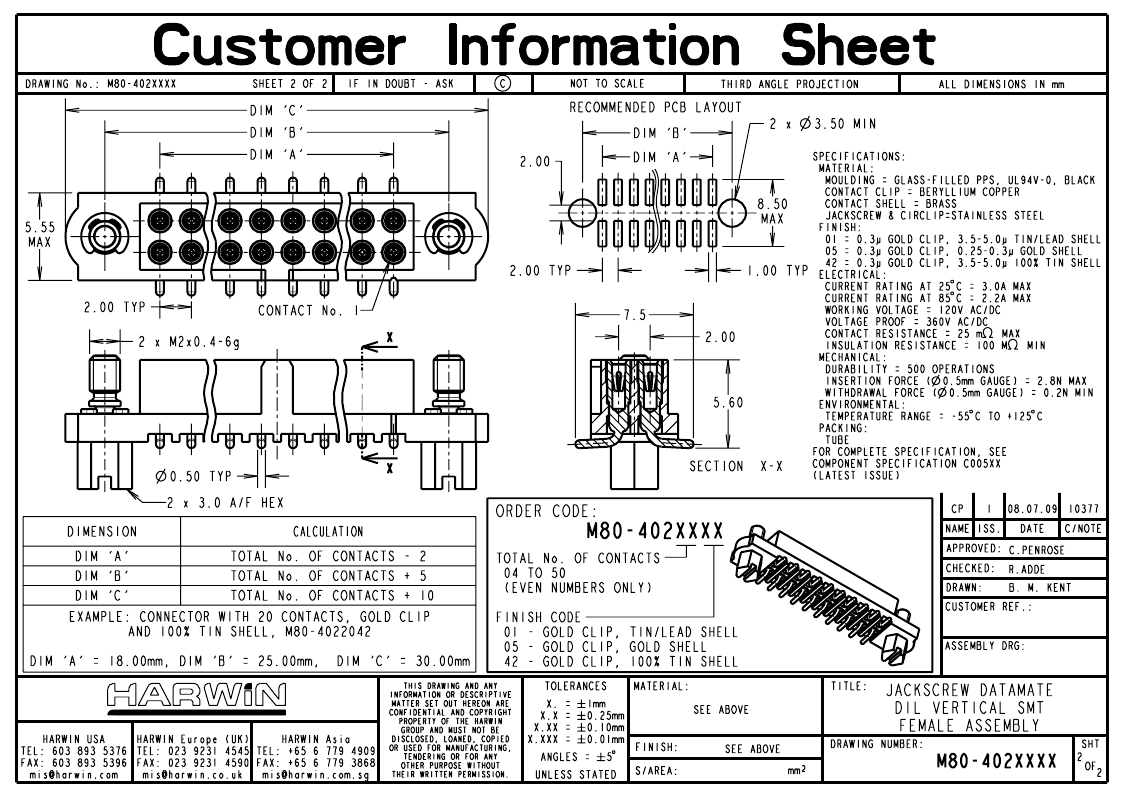

Download Datasheet Parametric View All

M80-4023201 Overview

Board Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, M2x0.4, Black Insulator, Plug,

M80-4023201 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerHarwin
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresPANEL MOUNTABLE
body width0.219 inch
subject depth0.22 inch
body length1.654 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin/Lead (Sn/Pb)
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance25 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force2.78 N
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 codee0
MIL complianceNO
Manufacturer's serial numberM80-4
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1M2X0.4
Installation option 2JACKSCREW
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing5.2578 mm
Plating thickness12u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2 mm
Termination typeSURFACE MOUNT
Total number of contacts32
