M80-4024842,P: DescriptionCONNECTOR, 48 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, ROHS COMPLIANT; CategoryThe connector The connector; File Size646KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric View All

M80-4024842,P Overview

CONNECTOR, 48 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT, ROHS COMPLIANT

M80-4024842,P Parametric

Parameter Name	Attribute value
Maker	Harwin
Reach Compliance Code	unknown
Other features	PANEL MOUNTABLE
body width	0.219 inch
subject depth	0.22 inch
body length	2.283 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	M80-4
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	M2X0.4
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.2578 mm
Plating thickness	12u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	48

Preview

Download Datasheet

View All

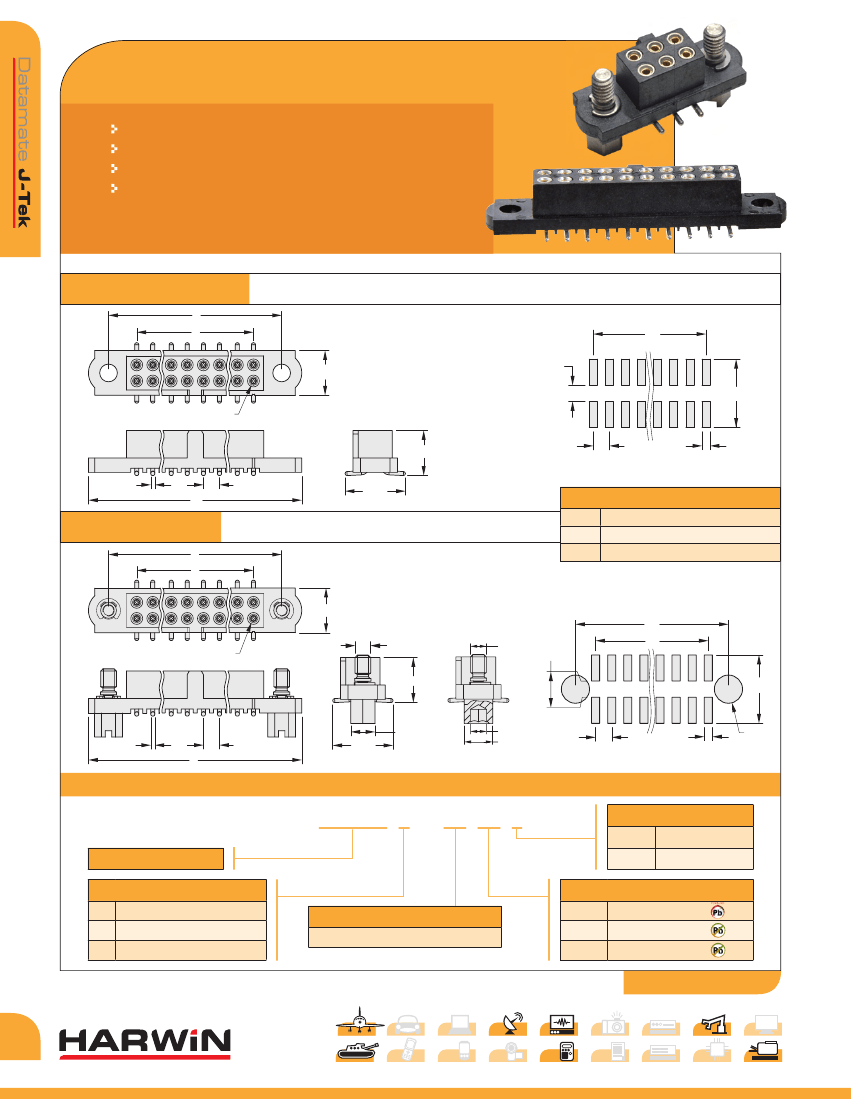

Datamate Connectors

Female Vertical surface Mount

Optional pick and place cap.

Contact datamate@harwin.com for tape and reel options.

Gull wing SMT tails simplify inspection process.

Mates with male connectors shown on pages 34-40 and 42-43.

WitHout JaCKsCreWs

C

B

5.55

2.00

8.50

No. 1 contact

5.60

2.00

1.00

B

recommended PC board Pattern

ø

0.50

A

2.00

7.50

caLcULatioN

a

B

c

B + 12

Total No. of contacts – 2

B+7

WitH JaCKsCreWs

C

B

5.55

C

No. 1 contact

M2

5.60

M2

B

2.00

8.50

ø

0.50

A

3.00 A/F

2.00

7.50

M80-402

M80-422

2.00 A/F

ø

3.50

2.00

1.00

ø

3.50

recommended PC board Pattern

HoW to orDer

m80 – 4 X 2 XX XX P

SerieS coDe

tyPe

0

1

2

With Hex slotted jackscrews

Without Jackscrews

With Hex Socket jackscrews

Pick aND PLace caP

BLaNk

P

No cap

Pick and place cap

FiNiSh

totaL No. oF coNtactS

04 to 50

Even numbers only

01

05

42

Gold + Tin/Lead

Gold

Gold + Tin

All dimensions in mm.

www.harwin.com
