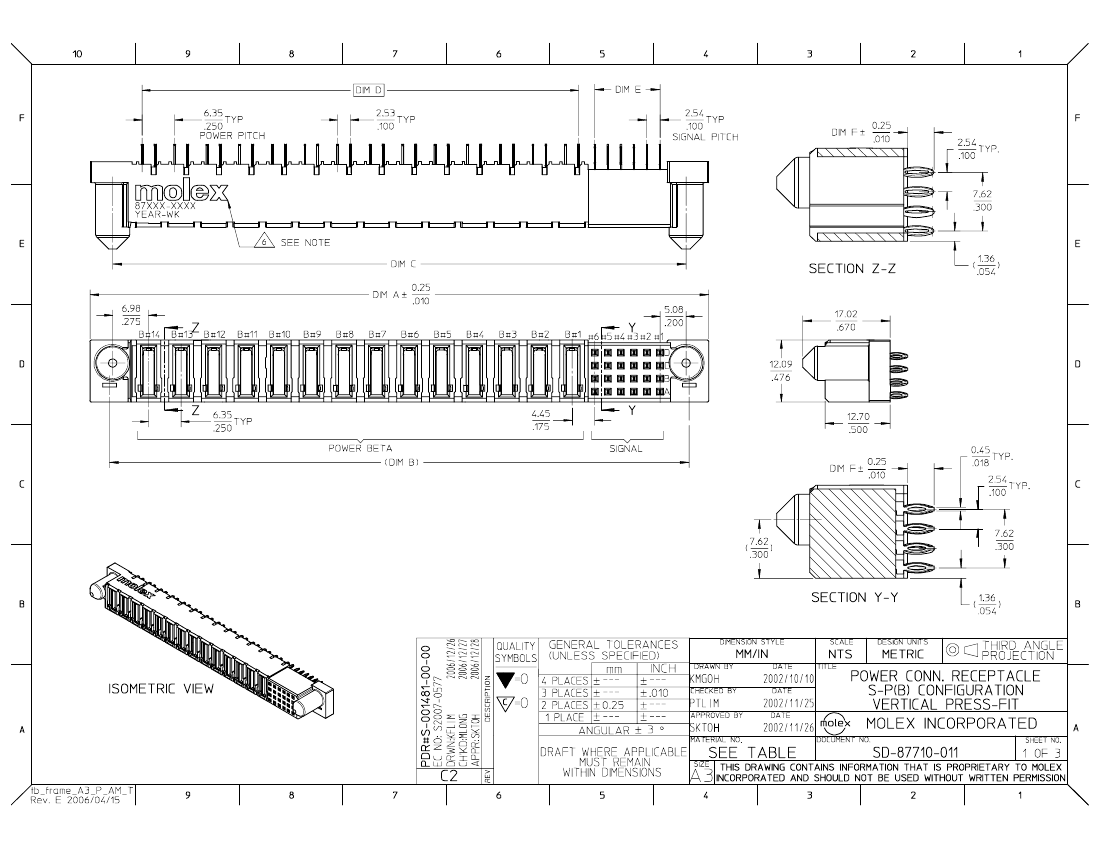

Preview

87710-2011: DescriptionRectangular Power Connector, 20 Contact(s), Female, Press Fit Terminal, Receptacle,; CategoryThe connector The connector; File Size216KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

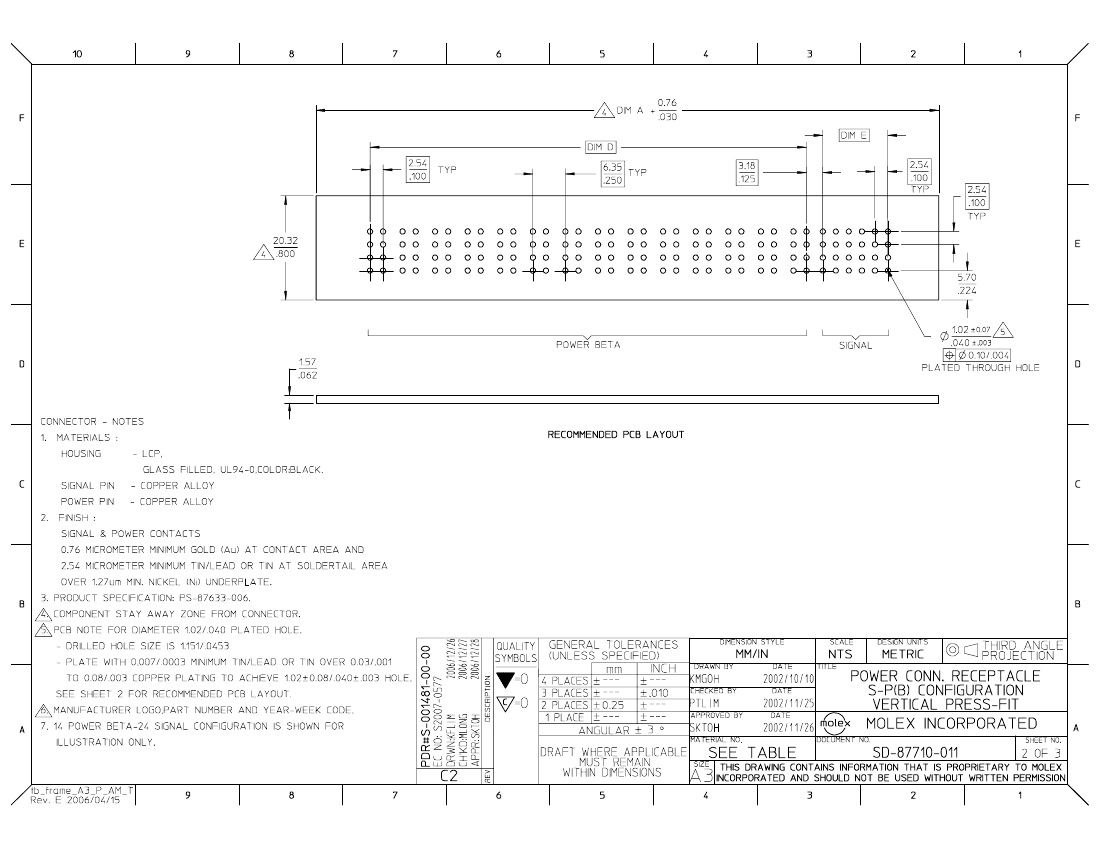

87710-2011 Overview

Rectangular Power Connector, 20 Contact(s), Female, Press Fit Terminal, Receptacle,

87710-2011 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	YES
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell material	GLASS FILLED LIQUID CRYSTAL POLYMER
Termination type	PRESS FIT
Total number of contacts	20
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

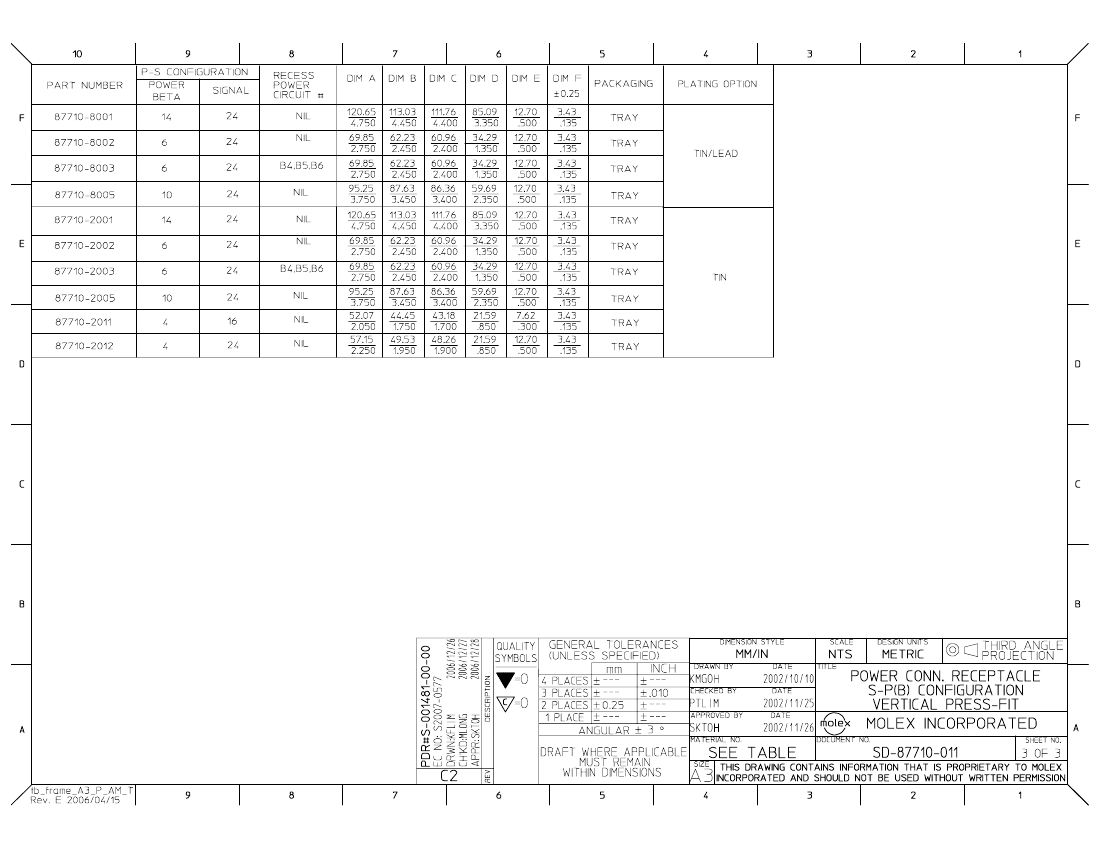

87710-2011 Related Products

	87710-2011	87710-8001	87710-8003	87710-2003	87710-8002	87710-8005
Description	Rectangular Power Connector, 20 Contact(s), Female, Press Fit Terminal, Receptacle,	Rectangular Power Connector, 38 Contact(s), Female, Press Fit Terminal, Receptacle,	Rectangular Power Connector, 30 Contact(s), Female, Press Fit Terminal, Receptacle	Rectangular Power Connector, 30 Contact(s), Female, Press Fit Terminal, Receptacle,	Rectangular Power Connector, 30 Contact(s), Female, Press Fit Terminal, Receptacle,	Rectangular Power Connector, 34 Contact(s), Female, Press Fit Terminal, Receptacle
Maker	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	compliant	compliant	unknown	compliant	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (3) OVER NICKEL	GOLD (30) OVER NICKEL	GOLD (30)	GOLD (30) OVER NICKEL	GOLD (30) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	YES	YES	YES	YES	YES	YES
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	20	38	30	30	30	34
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Contact completed and terminated	Tin (Sn)	-	TIN LEAD (100) OVER NICKEL	Tin (Sn)	TIN LEAD (100) OVER NICKEL	TIN LEAD (100) OVER NICKEL
JESD-609 code	e3	-	e0	e3	e0	e0
Other features	-	TERMINAL PITCH FOR POWER CONTACT: 6.35	TERMINAL PITCH FOR POWER CONTACT: 6.35	TERMINAL PITCH FOR POWER CONTACT: 6.35	TERMINAL PITCH FOR POWER CONTACT: 6.35	TERMINAL PITCH FOR POWER CONTACT: 6.35
