QS74LCX16H646PA datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> QS74LCX16H646PA

Preview

QS74LCX16H646PA: DescriptionRegistered Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56,; Categorylogic logic; File Size587KB，11 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric Compare View All

QS74LCX16H646PA Overview

Registered Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56,

QS74LCX16H646PA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Quality Semiconductor Inc
package instruction	TSSOP, TSSOP56,.3,20
Reach Compliance Code	unknown
Other features	WITH DIRECTION CONTROL
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G56
JESD-609 code	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.024 A
Number of digits	8
Number of functions	2
Number of ports	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP56,.3,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Prop。Delay @ Nom-Sup	5 ns
propagation delay (tpd)	7 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
Trigger type	POSITIVE EDGE

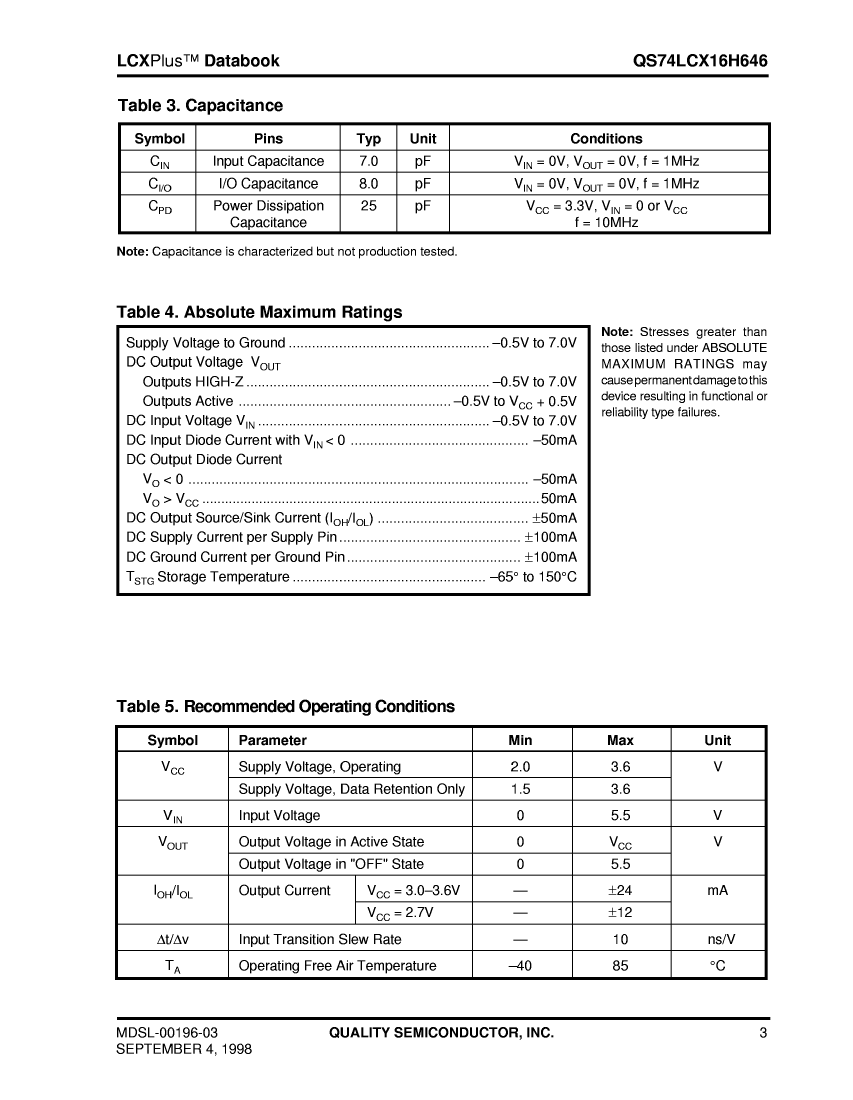

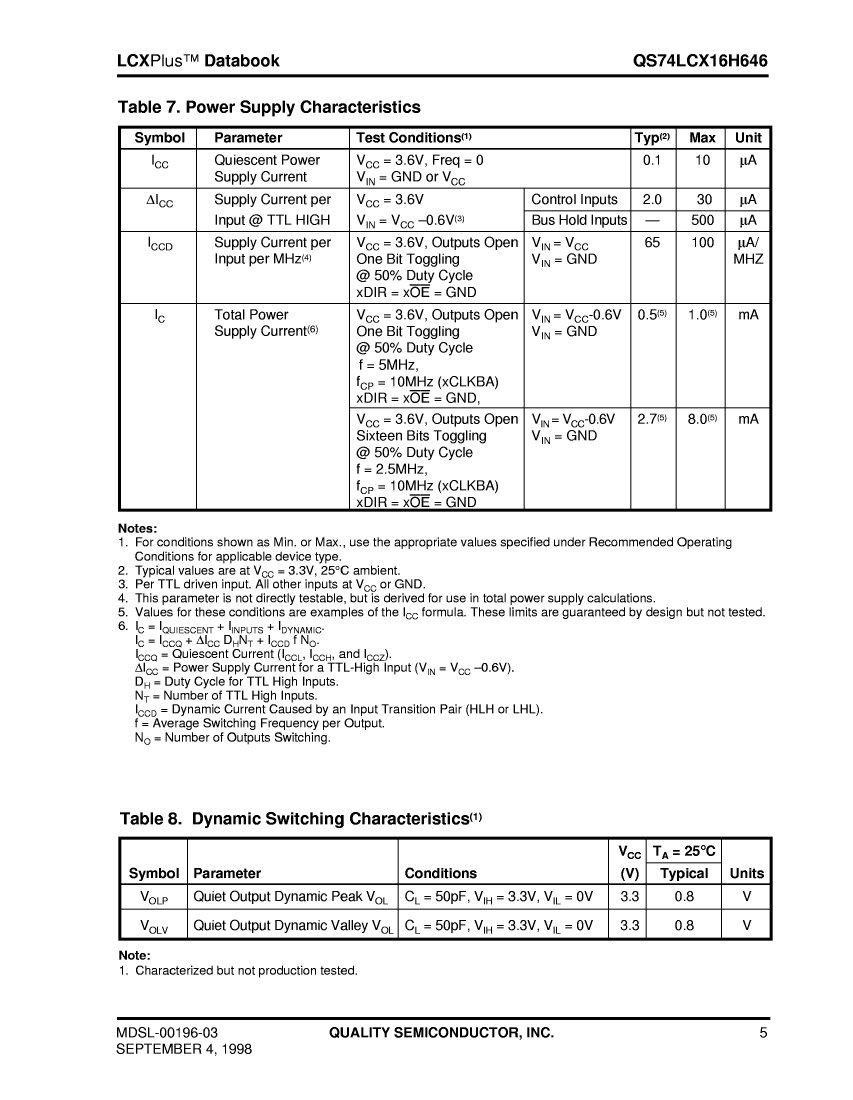

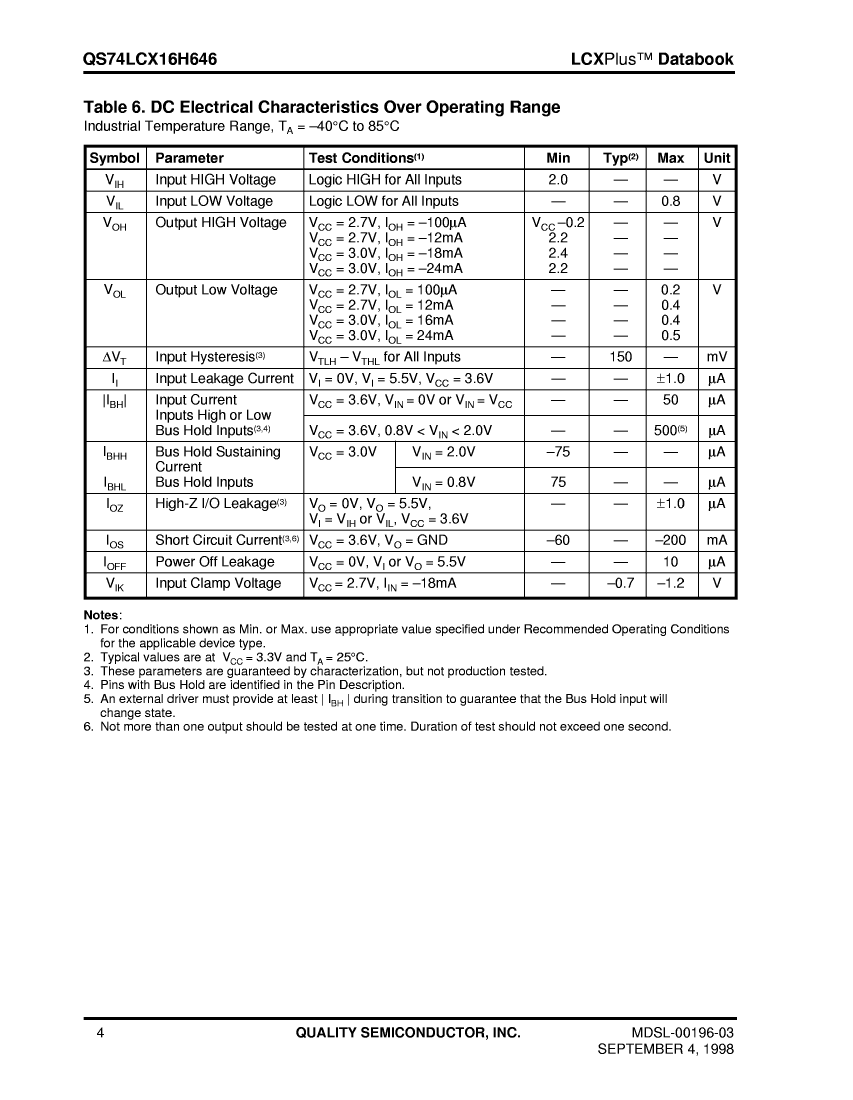

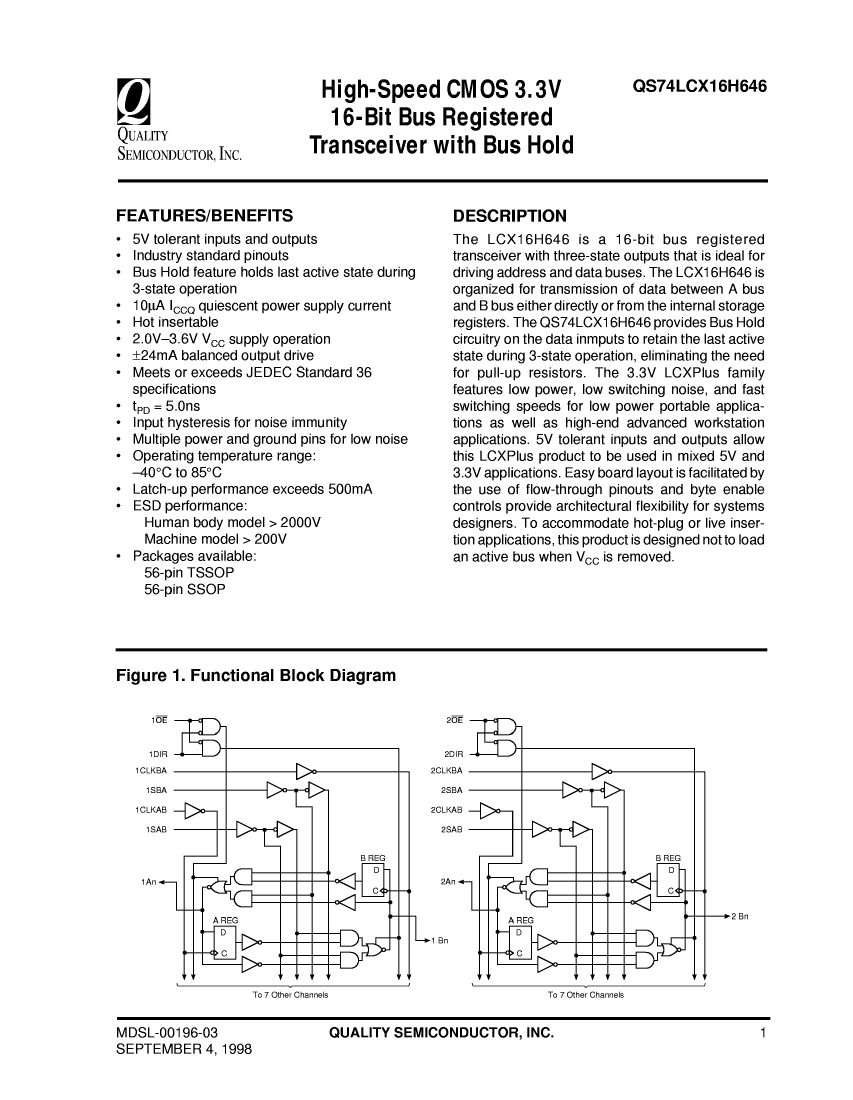

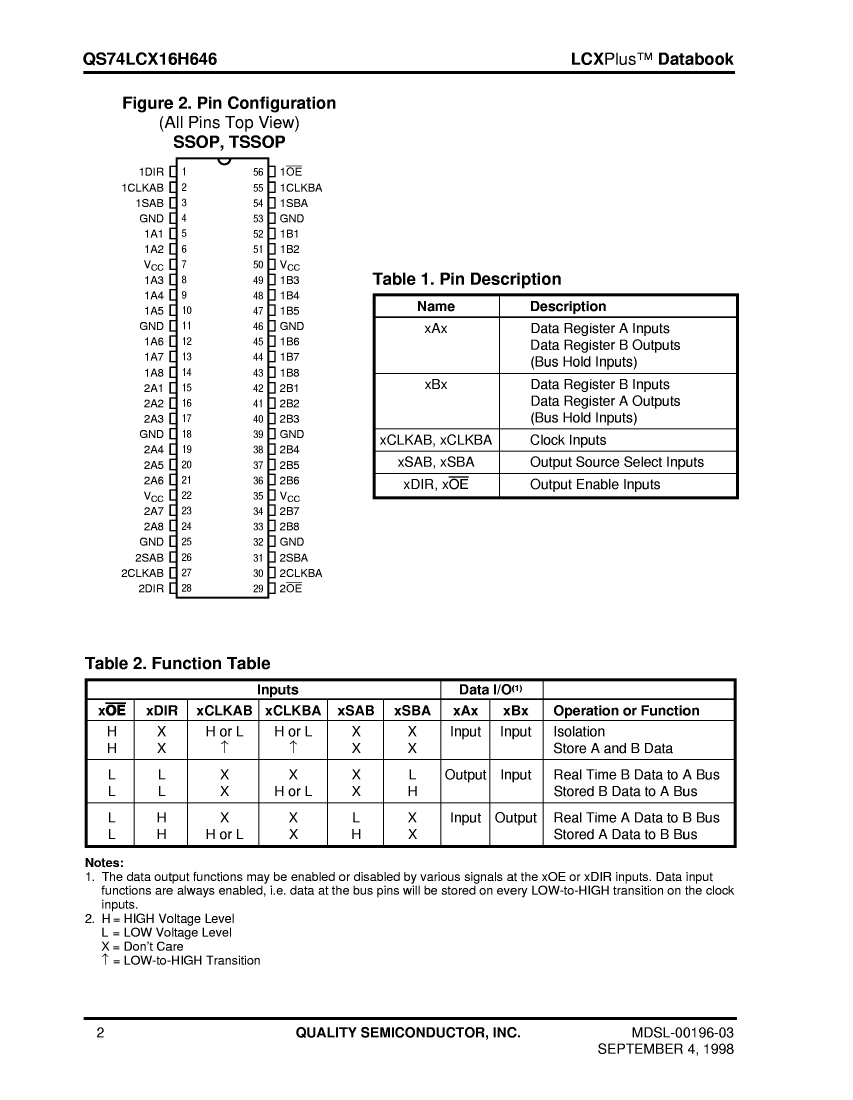

QS74LCX16H646PA Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

QS74LCX16H646PA Related Products

	QS74LCX16H646PA	QS74LCX16H646PV
Description	Registered Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56,	Registered Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56,
Is it Rohs certified?	incompatible	incompatible
Maker	Quality Semiconductor Inc	Quality Semiconductor Inc
package instruction	TSSOP, TSSOP56,.3,20	SSOP, SSOP56,.4
Reach Compliance Code	unknown	unknown
Other features	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL
series	LVC/LCX/Z	LVC/LCX/Z
JESD-30 code	R-PDSO-G56	R-PDSO-G56
JESD-609 code	e0	e0
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.024 A	0.024 A
Number of digits	8	8
Number of functions	2	2
Number of ports	2	2
Number of terminals	56	56
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP
Encapsulate equivalent code	TSSOP56,.3,20	SSOP56,.4
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	5 ns	5 ns
propagation delay (tpd)	7 ns	7 ns
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2 V	2 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.635 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
translate	N/A	N/A
Trigger type	POSITIVE EDGE	POSITIVE EDGE
