CMHZ4681TRLEADFREE datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> CMHZ4681TRLEADFREE

CMHZ4681TRLEADFREE: DescriptionZener Diode, 2.4V V(Z), 5%, 0.5W, Silicon, Unidirectional, SOD-123, 2 PIN; CategoryDiscrete semiconductor diode; File Size368KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CMHZ4681TRLEADFREE Overview

Zener Diode, 2.4V V(Z), 5%, 0.5W, Silicon, Unidirectional, SOD-123, 2 PIN

CMHZ4681TRLEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
package instruction	R-PDSO-G2
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	R-PDSO-G2
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.5 W
Nominal reference voltage	2.4 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	5%
Working test current	0.05 mA

Preview

Download Datasheet

View All

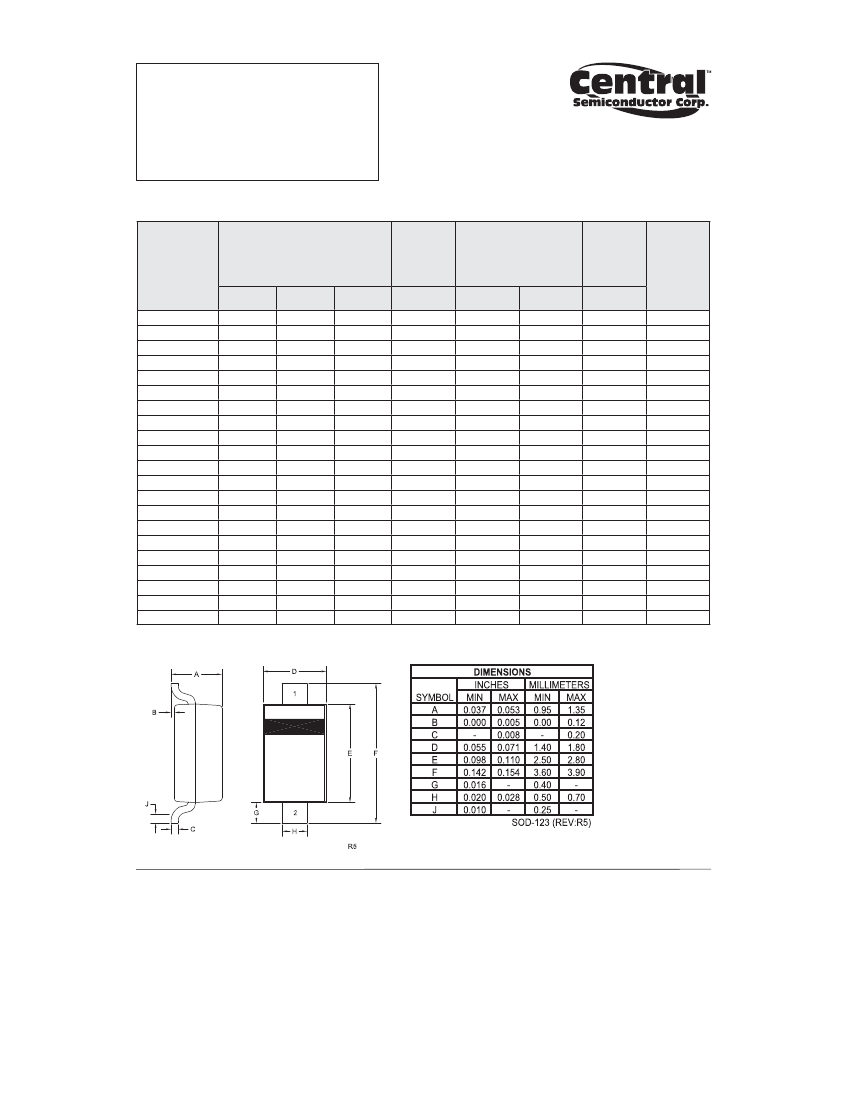

CMHZ4678 THRU CMHZ4717

SURFACE MOUNT

LOW LEVEL SILICON ZENER DIODE

1.8 VOLTS THRU 43 VOLTS

500mW, 5% TOLERANCE

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMHZ4678

Series Silicon Low Level Zener Diode is a high quality

voltage regulator designed for applications requiring an

extremely low operating current and low leakage.

MARKING CODE: SEE MARKING CODE ON

ELECTRICAL CHARACTERISTIC TABLE

SOD-123 CASE

MAXIMUM RATINGS:

(TA=25°C)

Power Dissipation

Operating and Storage Junction Temperature

SYMBOL

TJ, Tstg

500

-65 to +200

UNIT

°C

ELECTRICAL CHARACTERISTICS:

(TA=25°C), VF=1.5V MAX @ IF=100mA (for all types)

TEST

CURRENT

IZT

MAX

1.890

2.100

2.310

2.520

2.835

3.150

3.465

3.780

4.095

4.515

4.935

5.355

5.880

6.510

7.140

7.875

8.610

9.135

9.555

µA

MAXIMUM

REVERSE

CURRENT

µA

7.5

5.0

4.0

2.0

1.0

0.8

7.5

5.0

4.0

1.0

1.5

2.0

3.0

4.0

5.0

5.1

5.7

6.2

6.6

6.9

MAXIMUM

ZENER

CURRENT

IZM

120.0

110.0

100.0

95.0

90.0

85.0

80.0

75.0

70.0

65.0

60.0

55.0

50.0

45.0

35.0

31.8

29.0

27.4

26.2

CCC

CCD

CCE

CCF

CCH

CCJ

CCK

CCM

CCN

CCP

CCT

CCU

CCV

CCA

CCX

CCY

CCZ

CDC

CDD

ZENER VOLTAGE

TYPE

VZ @ IZT

MIN

1.710

1.900

2.090

2.280

2.565

2.850

3.135

3.420

3.705

4.085

4.465

4.845

5.320

5.890

6.460

7.125

7.790

8.265

8.645

NOM

1.8

2.0

2.2

2.4

2.7

3.0

3.3

3.6

3.9

4.3

4.7

5.1

5.6

6.2

6.8

7.5

8.2

8.7

9.1

MARKING

CODE

CMHZ4678

CMHZ4679

CMHZ4680

CMHZ4681

CMHZ4682

CMHZ4683

CMHZ4684

CMHZ4685

CMHZ4686

CMHZ4687

CMHZ4688

CMHZ4689

CMHZ4690

CMHZ4691

CMHZ4692

CMHZ4693

CMHZ4694

CMHZ4695

CMHZ4696
