DCMD25H3SJA197 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DCMD25H3SJA197

DCMD25H3SJA197: DescriptionD Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DCMD25H3SJA197 Overview

D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Receptacle,

DCMD25H3SJA197 Parametric

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	compliant
Other features	COMPATIBLE CONTACT: DM53744-92, EMI/RFI SHIELDED, PANEL MOUNT
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER
MIL compliance	NO
Manufacturer's serial number	DCMD
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

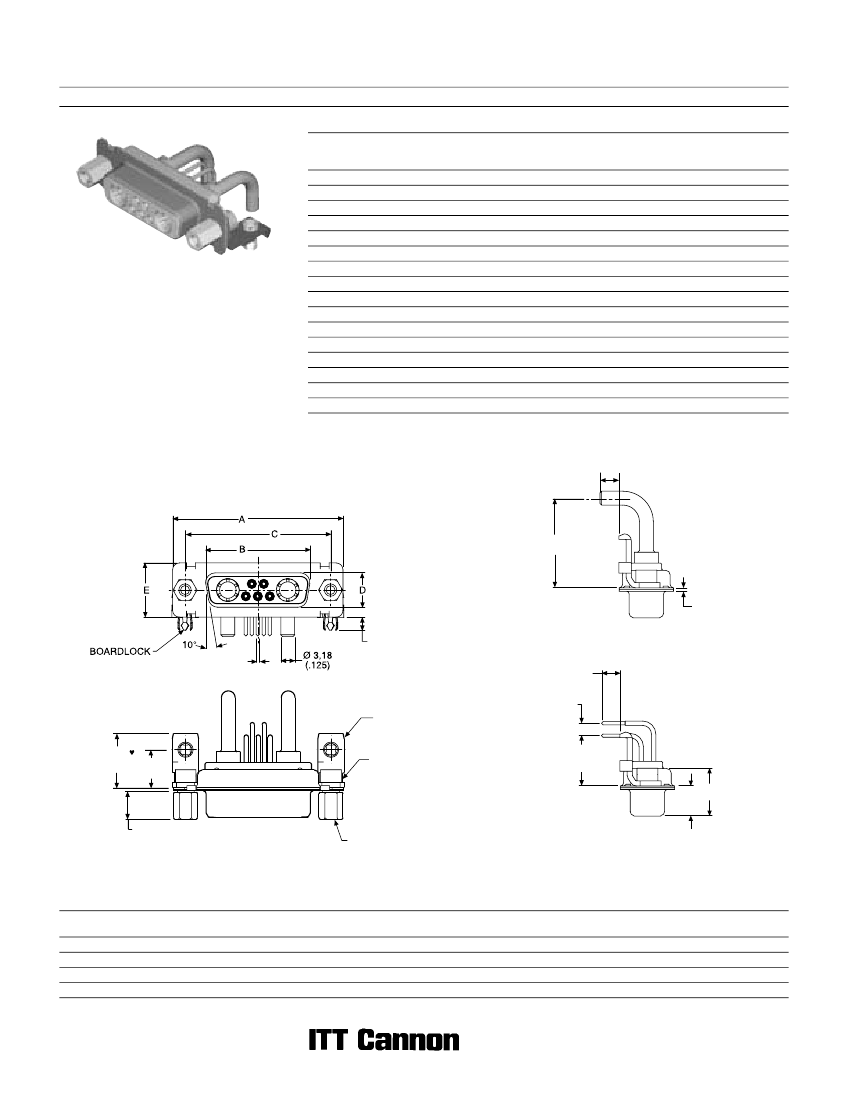

D Subminiature

40 A High Power 90° — Standard Footprint .489 or .454 inch

Receptacle

Combo D



(Sizes DE-DC)

Part Number

Without Screw Locks

With Boardlocks

DEMC5H1SJA197

DAMC7H2SJA197

DAMC11H1SJA197

DAMC3H3SJA197

DAMC3HK3SJA197TM

DBMC5H5SJA197

DBMC9H4SJA197

DBMC13H3SJA197

DBMC17H2SJA197

DBMC21H1SJA197

DCMC8H8SJA197

DCMC13H6SJA197

DCMC17H5SJA197

DCMC21HA4SJA197

DCMC25H3SJA197

DCMC27H2SJA197

Part Number

With Screw Locks

Without Boardlocks

DEMD5H1SJA197

DAMD7H2SJA197

DAMD11H1SJA197

DAMD3H3SJA197

DAMD3HK3SJA197TM

DBMD5H5SJA197

DBMD9H4SJA197

DBMD13H3SJA197

DBMD17H2SJA197

DBMD21H1SJA197

DCMD8H8SJA197

DCMD13H6SJA197

DCMD17H5SJA197

DCMD21HA4SJA197

DCMD25H3SJA197

DCMD27H2SJA197

Part Number

With Screw Locks

With Boardlocks

DEMG5H1SJA197

DAMG7H2SJA197

DAMG11H1SJA197

DAMG3H3SJA197

DAMG3HK3SJA197TM

DBMG5H5SJA197

DBMG9H4SJA197

DBMG13H3SJA197

DBMG17H2SJA197

DBMG21H1SJA197

DCMG8H8SJA197

DCMG13H6SJA197

DCMG17H5SJA197

DCMG21HA4SJA197

DCMG25H3SJA197

DCMG27H2SJA197

Part Numbers with Metal Bracket and Rivnut #4-40 UNC

Shell Size

Layout

5W1

7W2

11W1

3W3

3WK3

5W5

9W4

13W3

17W2

21W1

8W8

13W6

17W5

21WA4

25W3

27W2

Part Number

Without Screw Locks

Without Boardlocks

DEMP5H1SJA197

DAMP7H2SJA197

DAMP11H1SJA197

DAMP3H3SJA197

DAMP3HK3SJA197TM

DBMP5H5SJA197

DBMP9H4SJA197

DBMP13H3SJA197

DBMP17H2SJA197

DBMP21H1SJA197

DCMP8H8SJA197

DCMP13H6SJA197

DCMP17H5SJA197

DCMP21HA4SJA197

DCMP25H3SJA197

DCMP27H2SJA197

Reader’s Resource

For contact cavity arrangements,

see page 223.

For P.C. hole patterns, see pages 247-248.

For panel cutouts, see page 221.

For alternate bracket configuration (when

connectors are supplied without boardlocks),

see page 226.

Note: For contacts with 30 microinches of gold substitute K126 for A197. Example: DEMP5H1SJK126

For DD shell sizes, see page 63.

Keyed.

Engaging Face

3,89 (.153)

MIN.

20,57

0,38

(.810

.015)

2,92

(.115)

Ø 0,76

(.030)

Screw lock, boardlock, and signal contacts

removed for clarity

4,33

0,38

(.170

.015)

2,84

(.112)

BRACKET,

METAL

12,34

(.486)

RIVNUT

#4-40 UNC

8,64

(.340)

11,53

0,25

(.454

.010)

6,50

0,25

(.256

.010)

SCREW LOCK

#4-40 UNC

Screw lock, boardlock, and high power contact

removed for clarity

Note:

Dimension varies with alternate bracket configuration, see Reader’s Resource page 226.

Dimensions

Shell Size

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

±0,13

(.005)

16,33 (.643)

24,66 (.971)

38,38 (1.511)

54,84 (2.159)

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

±0,13

(.005)

7,90 (.311)

±0,38

(.015)

12,55 (.494)

±0,25

(.010)

10,90 (.429)

±0,38

(.015)

6,94 (.273)

±0,25

(.010)

0,76 (.030)

Connector footprint measured from the front shell.

Connector footprint measured from the rear shell.

Dimensions are shown in mm (inch)
