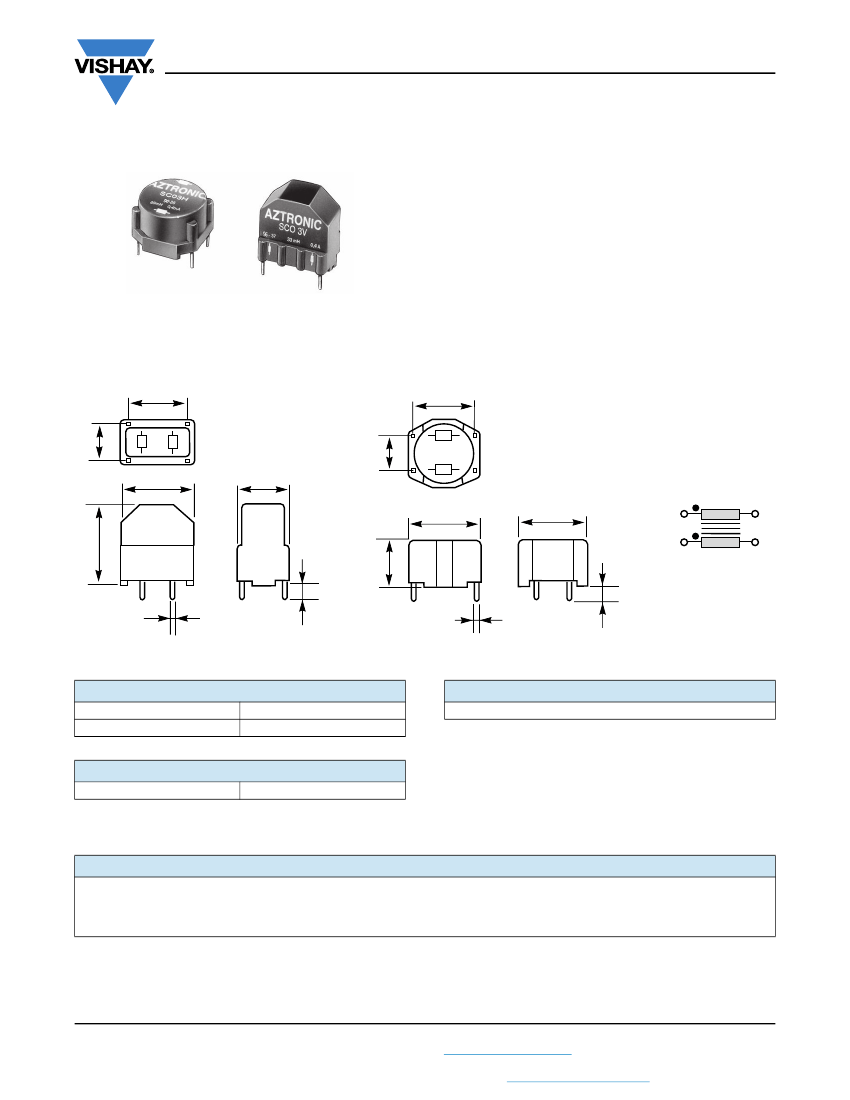

SC03
www.vishay.com
Vishay Aztronic
Common Mode Inductors, Noise Suppression
FEATURES
• Copper winding on ferrite toroid in epoxy case
• Phase opposition winding is an excellent filter for
assymmetrical (common mode) noise
• Efficiency can be increased with Y-capacitors and
X-capacitors to make an EMC filter
• Vertical mounting, style V or horizontal mounting, style H
• Main use is switching power supplies
DIMENSIONS
in millimeters
SC03 V
15
1
10
10
4
18
3
13
1
4
18
1
2
12.5
3.5
3.5
2
2
3
15
SC03 H
ELECTRICAL
DIAGRAM
4
3
18
20
0.7 x 0.7
0.7 x 0.7
ELECTRICAL SPECIFICATIONS
Nominal operating voltage
Limiting voltage
250 V
RMS
1500 V
RMS
50 Hz
PACKAGING
50 pieces in box
MARKING
Print marked:
manufacturer, model, style, inductance value, nominal
current by winding, nominal operating voltage, diagram
windings
ENVIRONMENTAL SPECIFICATIONS
Operating temperature range
- 40 °C + 125 °C
ORDERING INFORMATION
SC
MODEL
03
STYLE
V
VERSION
V: vertical
H: horizontal
6.8 mH
INDUCTANCE VALUE
e3
LEAD FINISH
e3: pure Sn
Revision: 09-Aug-13
Document Number: 59024
1
