SDB1040M3R3T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SDB1040M3R3T

SDB1040M3R3T: DescriptionGeneral Purpose Inductor; CategoryPassive components inductor; File Size238KB，6 Pages; ManufacturerCal-Chip Electronics; Environmental Compliance

Download Datasheet Parametric View All

SDB1040M3R3T Overview

General Purpose Inductor

SDB1040M3R3T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Cal-Chip Electronics
Reach Compliance Code	unknown
ECCN code	EAR99
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDB

Preview

Download Datasheet

View All

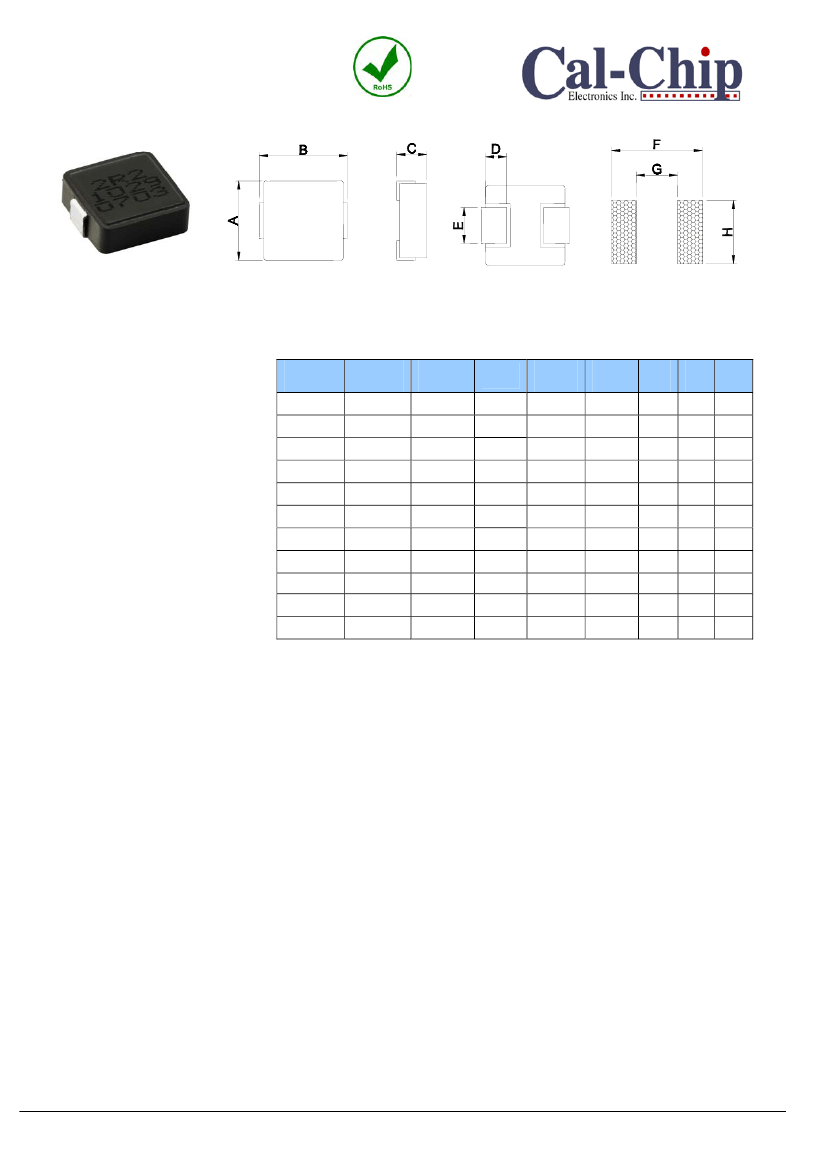

SMD Flat Wire Coils－CDB Series

10.

11.

12.

13.

14.

■Features

－Large

current adaptable

15.

■Dimensions

Type

CDB0420

CDB0520

CDB0530

CDB0620

4.1±0.3

4.7±0.5

6.8 max

10.3 max

12.9 max

4.5±0.3

5.5±0.3

7.5 max

11.5 max

13.8 max

max.

2.0

3.0

2.0

2.5

3.0

5.0

4.0

3.7

5.0

6.5

0.8±0.3

1.2±0.5

1.6±0.5

2.2±0.3

2.3±0.5

1.5±0.3

1.5±0.5

2.9±0.5

3.6±0.5

1.5

2.0

2.5

3.5

2.9

Unit: mm

2.5

3.0

3.7

6.0

7.9

2.2

2.5

3.5

4.0

5.0

－Footprint

compatible with most standard

－Lower

temperature rise at large current

－Low

profile, low DCR

－Available

on tape and reel for auto surface

mounting

■Applications

－Laptop

/ Desktop / Notebook Computers

－Terminals

/ Portable Servers / Workstation

－DC/DC

Converter in Distributed Power

Systems or VRM Applications

－Thin

Type On-board Power Supply Module

for Exchanger

CDB0625

CDB0630

CDB0650

CDB1040

CDB1340

CDB1350

CDB1365

■Characteristics

－Saturation

Rated Current would cause

inductance to drop approximately 25%(0420

drop approximately 30%)).

－Temperature

Rise Current would cause an

approximately

△

T of 40°C

－All

test data is referred to 25°C ambient

■Inductance

and rated current ranges

－CDB0420

－CDB0520

－CDB0530

－CDB0620

－CDB0625

－CDB0630

－CDB0650

－CDB1040

－CDB1340

－CDB1350

－CDB1365

0.10µH½3.3µH

0.10µH½4.7µH

0.10µH½10µH

0.56µH½10µH

0.19µH½10µH

0.10µH½10µH

@Saturation Current: 22½4A

@Saturation Current: 45½5A

@Saturation Current: 27½8.2A

@Saturation Current: 40½8A

@Saturation Current: 50½7A

@Saturation Current: 60½7A

@Saturation Current: 12½4.5A

@Saturation Current: 90½12A

@Saturation Current: 84½14A

@Saturation Current: 118½16A

@Saturation Current: 120½15.5A

－Test

equipment:

L: HP4284A LCR meter

DCR: Milli-ohm meter

－Electrical

specifications at 25°C

－Operating

temperature rang: -20°C½+125°C

Calchip Electronics, INC.

59 Steamwhistle Drive, Ivyland, PA. 18974

www.calchipelectronics.com

Ph(215) 942-8900 / Fx(215) 942-6400
