IRFBC20, SiHFBC20
Power MOSFET
PRODUCT SUMMARY
V
DS
(V)
R
DS(on)
(Ω)
Q
g
(Max.) (nC)
Q
gs
(nC)
Q
gd
(nC)
Configuration
V
GS
= 10 V
18
3.0
8.9
Single
D
FEATURES
600
4.4
• Dynamic dV/dt Rating
• Repetitive Avalanche Rated
• Fast Switching
• Ease of Paralleling
• Simple Drive Requirements
• Lead (Pb)-free Available
Available
RoHS*
COMPLIANT
DESCRIPTION
Third generation Power MOSFETs from Vishay provide the
designer with the best combination of fast switching,
ruggedized device design, low on-resistance and
cost-effectiveness.
The TO-220 package is universally preferred for all
commercial-industrial applications at power dissipation
levels to approximately 50 W. The low thermal resistance
and low package cost of the TO-220 contribute to its wide
acceptance throughout the industry.
TO-220
G
S
G
D
S
N-Channel
MOSFET
ORDERING INFORMATION
Package
Lead (Pb)-free
SnPb
TO-220
IRFBC20PbF
SiHFBC20-E3
IRFBC20
SiHFBC20
ABSOLUTE MAXIMUM RATINGS
T
C
= 25 °C, unless otherwise noted
PARAMETER
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
Pulsed Drain Current
a
Linear Derating Factor
Single Pulse Avalanche Energy
b
Repetitive Avalanche Current
a
Repetitive Avalanche Energy
a
Maximum Power Dissipation
Peak Diode Recovery dV/dt
c
Operating Junction and Storage Temperature Range
Soldering Recommendations (Peak Temperature)
Mounting Torque
for 10 s
6-32 or M3 screw
T
C
= 25 °C
E
AS
I
AR
E
AR
P
D
dV/dt
T
J
, T
stg
V
GS
at 10 V
T
C
= 25 °C
T
C
= 100 °C
SYMBOL
V
DS
V
GS
I
D
I
DM
LIMIT
600
± 20
2.2
1.4
8.0
0.40
84
2.2
5.0
50
3.0
- 55 to + 150
300
d
10
1.1
W/°C
mJ
A
mJ
W
V/ns
°C
lbf · in
N·m
A
UNIT
V
Notes
a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11).
b. V
DD
= 50 V, starting T
J
= 25 °C, L = 31 mH, R
G
= 25
Ω,
I
AS
= 2.2 A (see fig. 12).
c. I
SD
≤
2.2 A, dI/dt
≤
40 A/µs, V
DD
≤
V
DS
, T
J
≤
150 °C.
d. 1.6 mm from case.
www.kersemi.com
1
IRFBC20, SiHFBC20
THERMAL RESISTANCE
PARAMETER
Maximum Junction-to-Ambient
Case-to-Sink, Flat, Greased Surface
Maximum Junction-to-Case (Drain)
SYMBOL
R
thJA
R
thCS
R
thJC
TYP.
-
0.50
-
MAX.
62
-
2.5
°C/W
UNIT
SPECIFICATIONS
T
J
= 25 °C, unless otherwise noted
PARAMETER
Static
Drain-Source Breakdown Voltage
V
DS
Temperature Coefficient
Gate-Source Threshold Voltage
Gate-Source Leakage
Zero Gate Voltage Drain Current
Drain-Source On-State Resistance
Forward Transconductance
Dynamic
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Internal Drain Inductance
Internal Source Inductance
Drain-Source Body Diode Characteristics
Continuous Source-Drain Diode Current
Pulsed Diode Forward
Body Diode Voltage
Body Diode Reverse Recovery Time
Body Diode Reverse Recovery Charge
Forward Turn-On Time
Current
a
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
MOSFET symbol
showing the
integral reverse
p - n junction diode
D
SYMBOL
TEST CONDITIONS
MIN.
TYP.
MAX.
UNIT
V
DS
ΔV
DS
/T
J
V
GS(th)
I
GSS
I
DSS
R
DS(on)
g
fs
C
iss
C
oss
C
rss
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
D
L
S
V
GS
= 0 V, I
D
= 250 µA
Reference to 25 °C, I
D
= 1 mA
V
DS
= V
GS
, I
D
= 250 µA
V
GS
= ± 20 V
V
DS
= 600 V, V
GS
= 0 V
V
DS
= 480V, V
GS
= 0 V, T
J
= 125 °C
V
GS
= 10 V
I
D
= 1.3 A
b
V
DS
= 50 V, I
D
= 1.3 A
b
600
-
2.0
-
-
-
-
1.4
-
0.88
-
-
-
-
-
-
-
-
4.0
± 100
100
500
4.4
-
V
V/°C
V
nA
µA
Ω
S
V
GS
= 0 V,
V
DS
= 25 V,
f = 1.0 MHz, see fig. 5
-
-
-
-
-
-
-
-
-
-
350
48
8.6
-
-
-
10
23
30
25
4.5
7.5
-
-
-
18
3.0
8.9
-
-
-
-
-
nH
-
ns
nC
pF
V
GS
= 10 V
I
D
= 2.0 A, V
DS
= 360 V
see fig. 6 and 13
b
V
DD
= 300 V, I
D
= 2.0 A
R
G
= 18
Ω,
R
D
= 150
Ω
see fig. 10
b
Between lead,
6 mm (0.25") from
package and center of
die contact
D
-
-
G
S
-
-
-
-
-
-
-
-
290
0.67
2.2
A
8.0
2.0
580
1.3
V
ns
µC
G
S
T
J
= 25 °C, I
S
= 2.2 A, V
GS
= 0 V
b
T
J
= 25 °C, I
F
= 2.0 A,
dI/dt = 100 A/µs
b
Intrinsic turn-on time is negligible (turn-on is dominated by L
S
and L
D
)
Notes
a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11).
b. Pulse width
≤
300 µs; duty cycle
≤
2 %.
2
www.kersemi.com
IRFBC20, SiHFBC20
TYPICAL CHARACTERISTICS
25 °C, unless otherwise noted

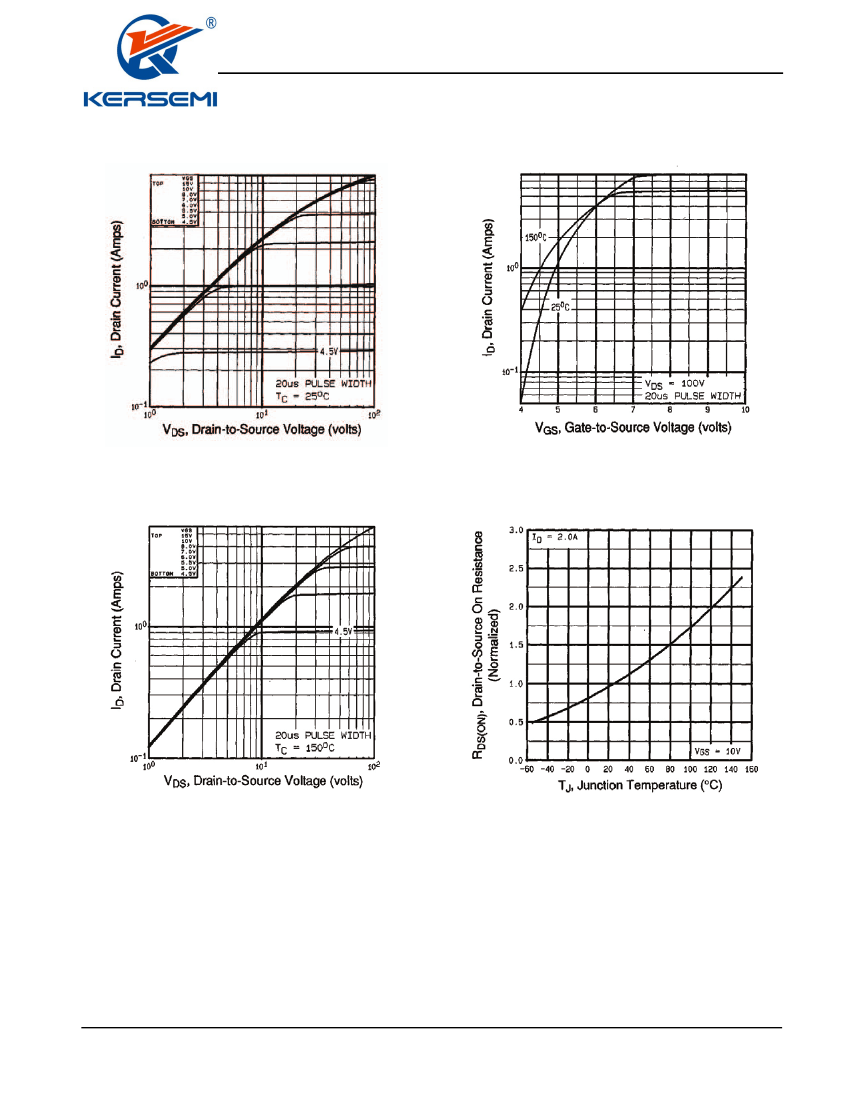

Fig. 1 - Typical Output Characteristics, T
C
= 25 °C
Fig. 3 - Typical Transfer Characteristics
Fig. 2 - Typical Output Characteristics, T
C
= 150 °C
Fig. 4 - Normalized On-Resistance vs. Temperature
www.kersemi.com
3
IRFBC20, SiHFBC20

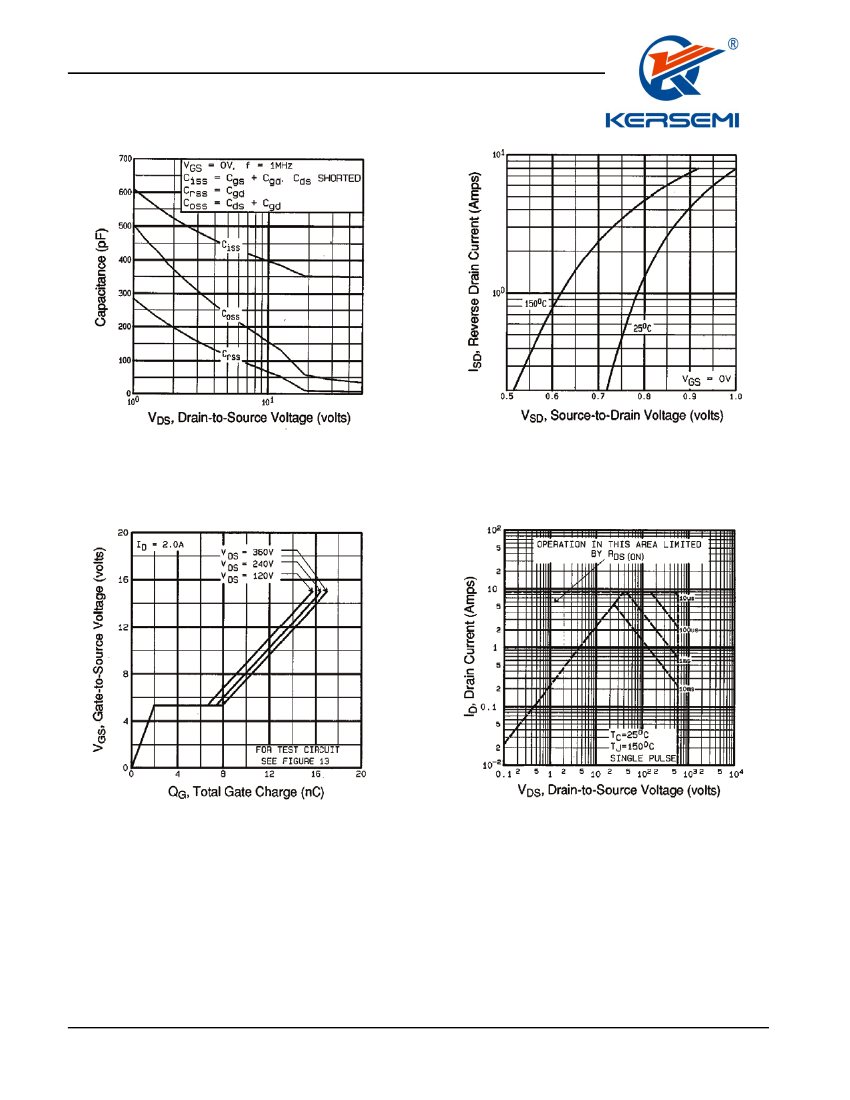

Fig. 5 - Typical Capacitance vs. Drain-to-Source Voltage
Fig. 7 - Typical Source-Drain Diode Forward Voltage
Fig. 6 - Typical Gate Charge vs. Gate-to-Source Voltage
Fig. 8 - Maximum Safe Operating Area
4
www.kersemi.com
IRFBC20, SiHFBC20
R
D
V
DS
V
GS
R
G
D.U.T.
+
-
V
DD
10
V
Pulse
width
≤
1
µs
Duty factor
≤
0.1
%
Fig. 10a - Switching Time Test Circuit
V
DS
90
%
10
%
V
GS
t
d(on)
t
r
t
d(off)
t
f

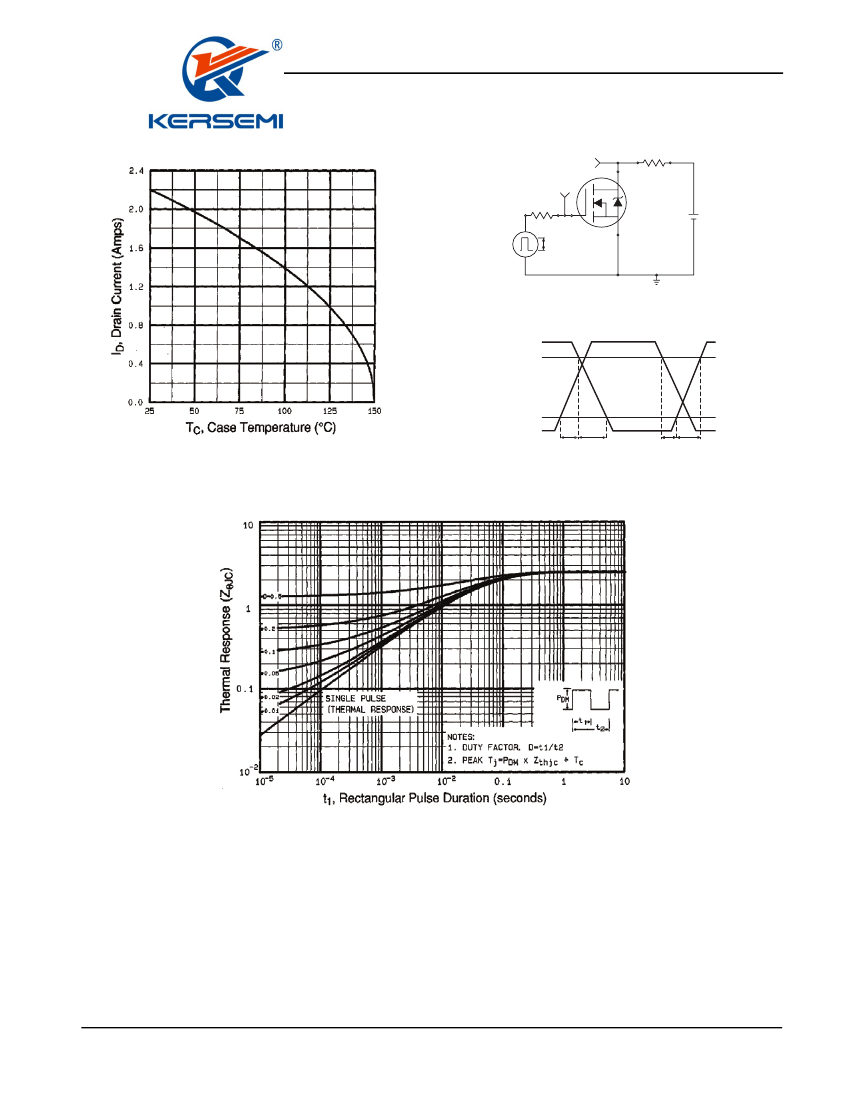

Fig. 9 - Maximum Drain Current vs. Case Temperature
Fig. 10b - Switching Time Waveforms
Fig. 11 - Maximum Effective Transient Thermal Impedance, Junction-to-Case
5
