M60506LXCD20.0000MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> M60506LXCD20.0000MHZ

M60506LXCD20.0000MHZ: DescriptionHCMOS Output Clock Oscillator, 20MHz Nom, ROHS COMPLIANT, HERMETIC, DIP-14/4; CategoryPassive components oscillator; File Size1MB，10 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

M60506LXCD20.0000MHZ Overview

HCMOS Output Clock Oscillator, 20MHz Nom, ROHS COMPLIANT, HERMETIC, DIP-14/4

M60506LXCD20.0000MHZ Parametric

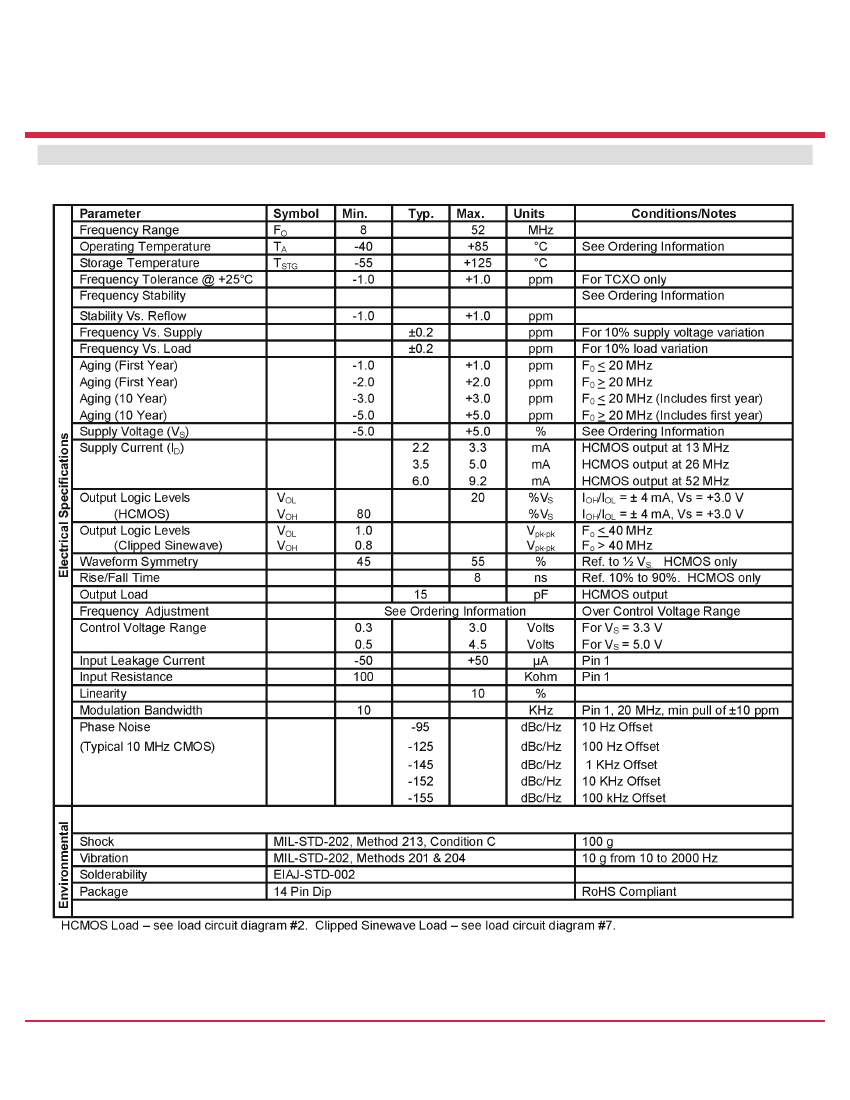

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MtronPTI
Reach Compliance Code	unknown
Ageing	2 PPM/FIRST YEAR
maximum descent time	8 ns
Frequency Adjustment - Mechanical	NO
frequency stability	4.6%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	20 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	20.8mm x 13.2mm x 10.16mm
longest rise time	8 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

Introduces

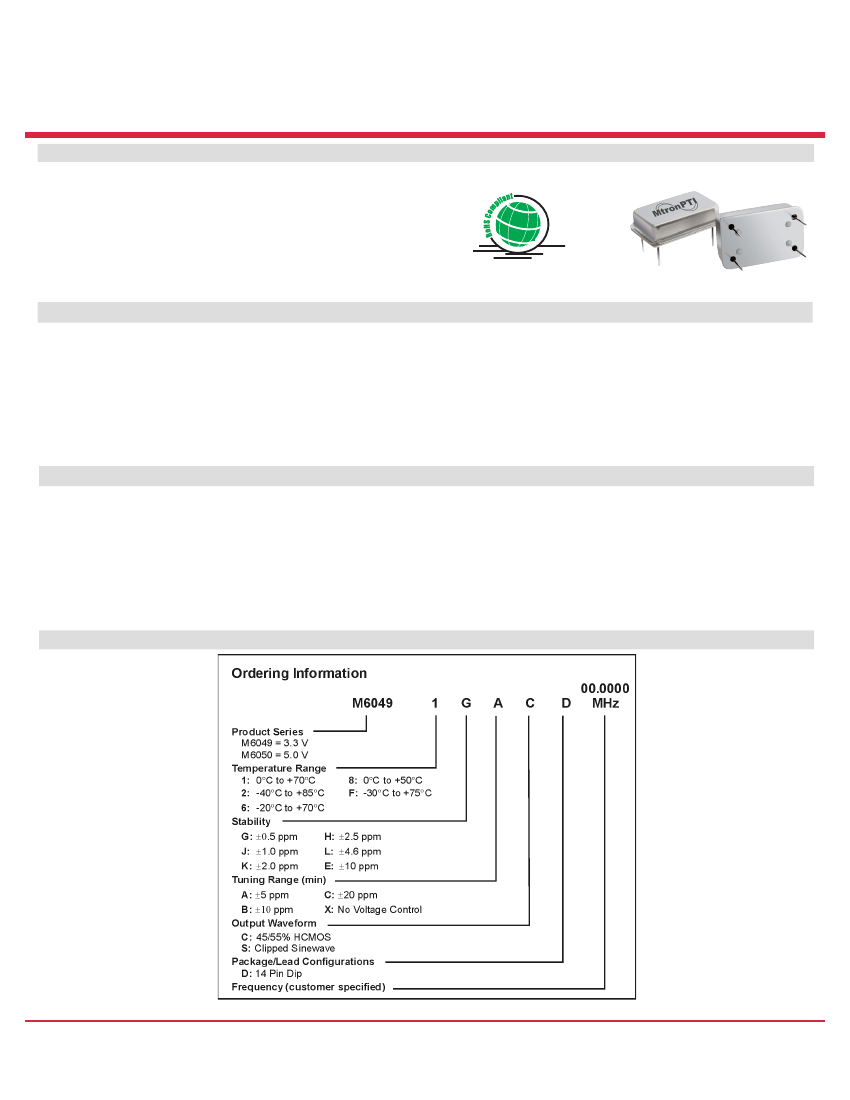

M6049/M6050 Series

HCMOS/Clipped Sinewave

Precision TCXO/TCVCXO

Features:



Tight Stability (0.5 ppm)



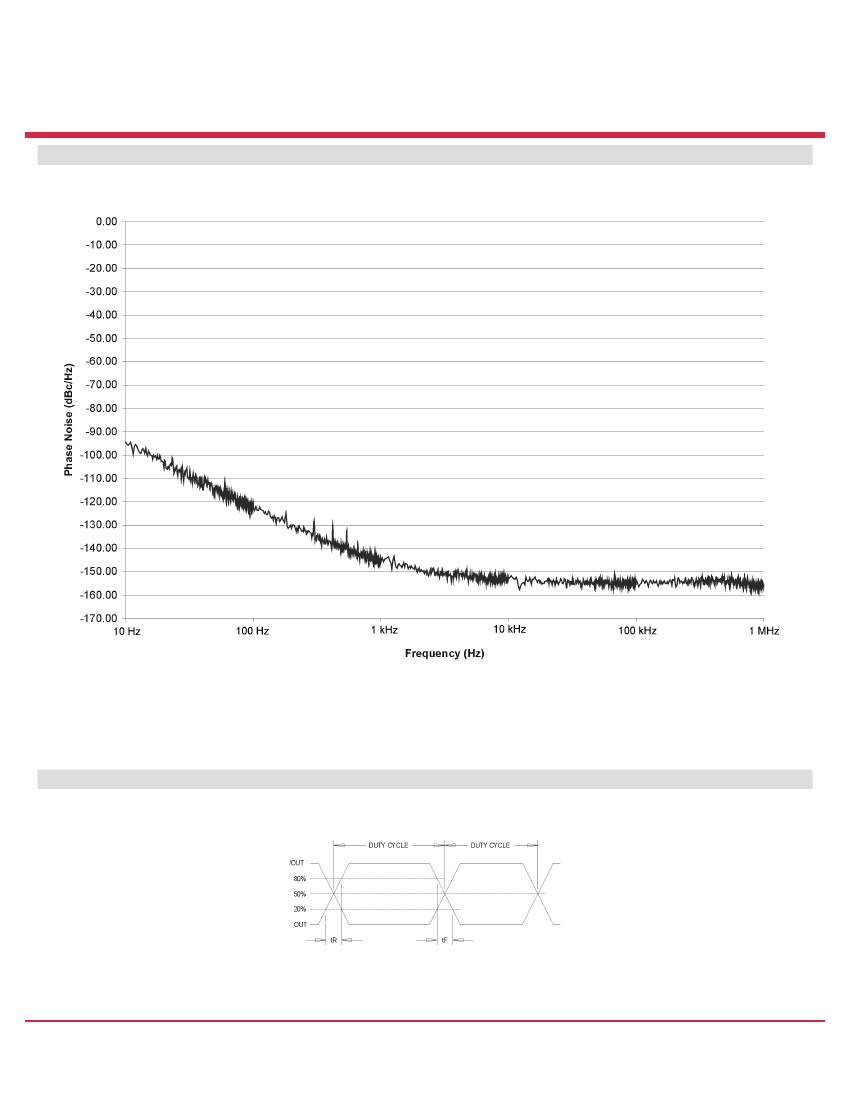

Phase Noise

Low



V and 5.0 V Versions

3.3



Frequencies from 8 to 52 MHz

Applications:



Telecommunications such as SERDES / SONET / WiMAX /

GSM / GPS / CDMA / Gig-E



Military communication equipment



PLL frequency reference



Test and measurement equipment

Corporate Headquarters

100 Douglas Avenue

PO Box 630

Yankton, SD 57078-0630

1-800-762-8800

www.mtronpti.com

MtronPTI

Applications Note:

MtronPTI’s M6049/M6050 series of 14-pin DIP compatible TCXO and TCVCXO products

provide design engineers with a high performance and economically priced frequency con-

trol device. Stability as tight as ± 0.5 ppm is available with excellent aging characteristics.

Frequencies from 8 MHz to 52 MHz are available.

The M6049/M6050 series is well suited for a wide range of precise frequency control ap-

plications such as test and measurement equipment, wireless base stations, HF, VHF and

UHF communications equipment, PLL frequency reference, avionics, and military commu-

nications equipment.

The M6049/M6050 series is available with either an HCMOS or clipped sinewave output

and an operating voltage of 5 volts or 3.3 volts. The devices can be ordered as a fixed (F)

output or with an adjustable frequency (V) output. Precise adjustment utilizing voltage tun-

ing on pin 1 allows the user to easily adjust the device to nominal frequency without the use

of a mechanical trimmer internal to the TCXO. This voltage tuning option means that the

hermeticity of the package is maintained because there is no need for a trimmer adjustment

hole to be placed on the cover of the part. This assures better long term stability, and aging

by preventing the ingress of outside atmosphere or moisture into device due to a trimmer

access hole being present in the cover. The M6049/M6050 is an excellent replacement for

older 14-pin DIP type TCXO/TCVCXO’s that utilize a trimmer access hole in the package.

Voltage tuning also allows the designer to configure different digital methods to adjust the

frequency of the device electronically without actually requiring human interface with the

device.

The low power of the M6049/M6050 devices also makes it a good choice for low power, or

“green” applications requiring a high degree of power management.

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.
