LK-440642H-S1D10(LF)(SN) datasheet, PDF

Datasheet> All Categories > The connector> The connector> LK-440642H-S1D10(LF)(SN)

LK-440642H-S1D10(LF)(SN): DescriptionPCB Connector, ROHS COMPLIANT; CategoryThe connector The connector; File Size232KB，4 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

LK-440642H-S1D10(LF)(SN) Overview

PCB Connector, ROHS COMPLIANT

LK-440642H-S1D10(LF)(SN) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	JST
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	PCB CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact material	COPPER ALLOY
DIN compliance	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	LK
Options	GENERAL PURPOSE

LK-440642H-S1D10(LF)(SN) Preview

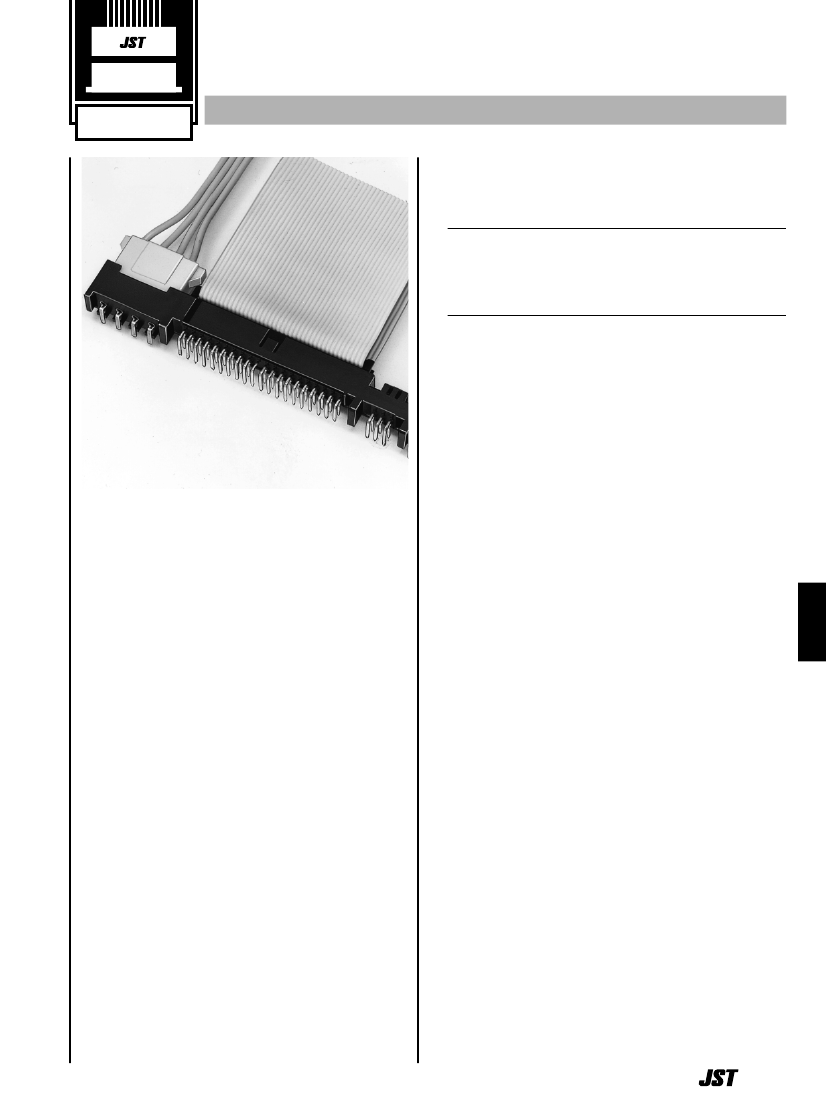

Crimp

CONNECTOR

Connectors with combined signal and power supply circuits

Features ––––––––––––––––––––––––

• Signal and power supply circuits are

integrated in one housing

Because signal and power supply circuits are integrated in one

connector, a smaller space on a PC board is required yet

mating and unmating is easy.

• Interchangeability

The LK header will mate with the following receptacles:

•Power supply circuits ... LC receptacle

•Interface circuits ... RA or RX receptacles

•Address circuits ... JM connector

Signal circuits mate with the receptacles

conforming to MIL-C-83503.

Specifications –––––––––––––––––––

Interface circuits/ 1.0A AC, DC

Power supply circuits/ 5A AC, DC

Address circuits/ 1.0A AC, DC

• Voltage rating: Interface circuits/ 250V AC, DC

Power supply circuits/ 250V AC, DC

Address circuits/ 250V AC, DC

• Temperature range:

20˚C to

85˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/20m

Ω

max.

After environmental testing/30m

Ω

max.

• Insulation resistance:

1,000M

Ω

min.

• Withstanding voltage: 500V AC/minute

• Applicable PC board thickness:

With hook pins ...1.2mm, 1.6mm

Without hook pins ... 1.2 to 1.6mm

* RoHS compliant products are published.

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

• Current rating:

D234

CONNECTOR

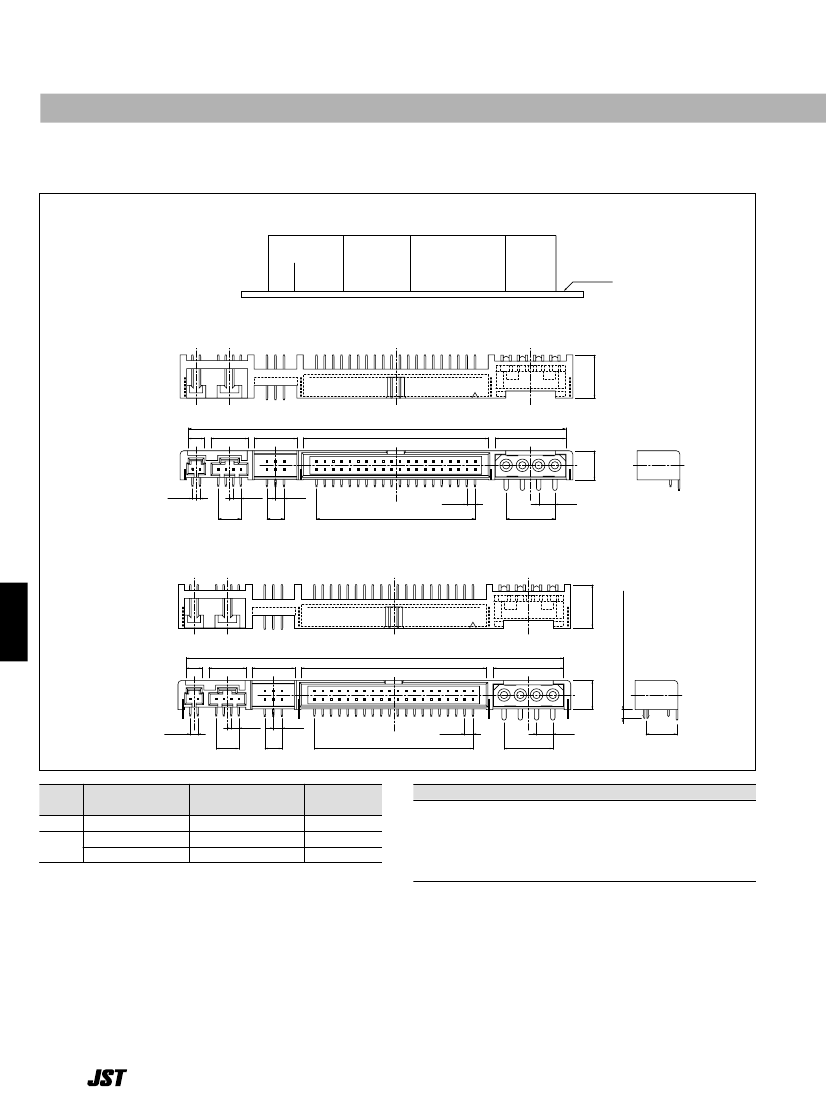

Through-hole type connector <5 in 1> ––––––––––––––––––––––––––––––––––––––––

Connector layout (viewed from mating part)

Audio

Address

Interface

40P

Power

Supply

PC board

Without hook pins

5.33

10.67

13.21

119.14

56.39

21.18

JST

2.54

7.62

2.54

5.08

2.54

48.26

2.54

15.24

5.08

With hook pins

13.0

5.33

10.67

13.21

119.14

56.39

21.18

JST

8.8

LK-440642H-S1D10-1: 2.45

LK-440642H-S1D10-2: 2.85

2.54

7.62

2.54

5.08

2.54

48.26

8.8

13.0

2.54

15.24

5.08

9.23

Hook pin

without

with

Applicable PC board

thinckness (mm)

1.2 to 1.6

1.2

1.6

Model No.

LK-440642H-S1D10

LK-440642H-S1D10-1

LK-440642H-S1D10-2

Q'ty / box

200

Material and Finish

Contact: <Interface circuits/Adress circuits> Copper alloy, nickel-undercoated,

Mating part; gold-plated

Solder tail; tin-plated (reflow treatment)

<Audio circuits> Copper alloy, copper-undercoated, tin-plated (reflow treatmet)

<Power supply circuits> Copper alloy, tin-plated (reflow treatmet)

Housing: Thermoplastic resin, UL94V-0

Hook pin: Copper alloy, tin-plated (reflow treatmet)

RoHS compliance

This product displays (LF)(SN) on a label.

D235

CONNECTOR

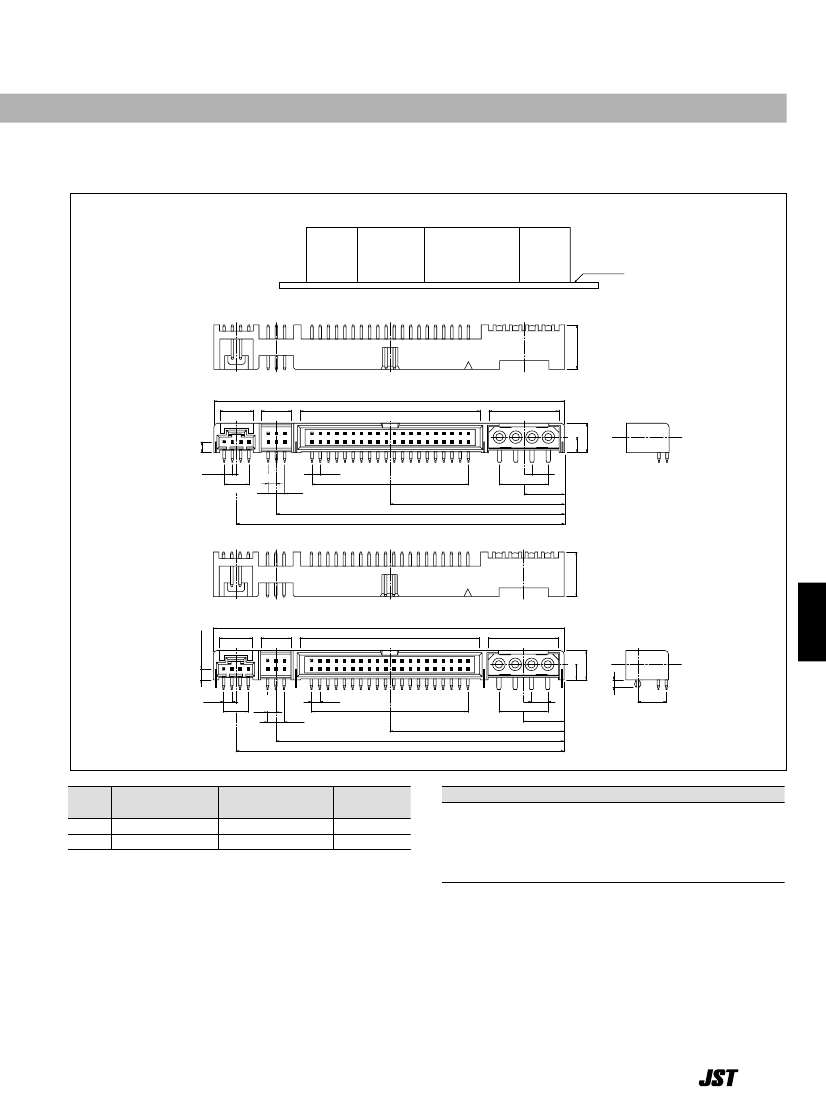

Through-hole type connector <4 in 1> ––––––––––––––––––––––––––––––––––––––––

Connector layout (viewed from mating part)

Audio

Address

Interface

40P

Power

Supply

PC board

Without hook pins

13.0

10.67

9.62

107.54

56.39

21.18

JST

3.28

2.54

7.62

2.54

5.08

2.54

48.26

5.08

15.24

12.6

53.75

88.78

100.575

With hook pins

13.0

10.67

3.28

9.62

107.54

56.39

21.18

JST

4.55

8.8

4.55

8.8

2.45

2.54

7.62

2.54

5.08

2.54

48.26

5.08

15.24

12.6

9.23

53.75

88.78

100.575

Hook

without

with

Applicable PC board

thickness (mm)

1.2 to 1.6

1.2

Material and Finish

Model No.

LK-44064H-S1D10

LK-44064H-S1D10-1

Q'ty / box

200

Contact: <Interface circuits/Adress circuits> Copper alloy, nickel-undercoated,

Mating part; gold-plated

Solder tail; tin-plated (reflow treatment)

<Audio circuits> Copper alloy, copper-undercoated, tin-plated (reflow treatment)

<Power supply circuits> Copper alloy, tin-plated (reflow treatment)

Housing: Thermoplastic resin, UL94V-0

Hook pin: Copper alloy, tin-plated (reflow treatment)

RoHS compliance

This product displays (LF)(SN) on a label.

D236

CONNECTOR

Through-hole type PC board layout

(viewed from component side)

––––––––––––––––––––

<5 in 1>

Without hook pins

7.62

0.1

2.54

0.1

2.54

0.05

5.08

0.1

2.54

0.05

52--- 0.8

0.1

4--- 1.5

0.1

48.26

0.1

2.54

0.05

15.24

0.1

5.08

0.05

2.54

0.05

41.285

0.1

78.115

0.1

92.085

0.1

102.245

0.1

With hook pins

102.245

0.1

92.085

0.1

78.115

0.1

41.285

0.1

7.62

0.1

2.54

0.1

2.54

0.05

5.08

0.1

2.54

0.05

52--- 0.8

0.1

4--- 1.5

0.1

48.26

0.1

2.54

0.05

15.24

0.1

5.08

0.05

2.54

0.05

9.23

0.1

4--- 1.6

0.1

11.82

0.1

23.64

0.1

82.105

0.1

117.735

0.1

<4 in 1>

Without hook pins

7.62

0.1

2.54

0.05

2.54

0.05

5.08

0.1

2.54

0.05

50--- 0.8

0.1

48.26

0.1

2.54

0.05

15.24

0.1

5.08

0.05

4--- 1.5

0.1

11.795

0.1

35.03

0.1

41.15

0.1

With hook pins

11.795

0.1

7.62

0.1

2.54

0.05

5.08

0.1

2.54

0.05

50--- 0.8

0.1

4--- 1.5

0.1

35.03

0.1

48.26

0.1

41.15

0.1

15.24

0.1

2.54

0.05

5.08

0.05

2.54

0.05

9.23

0.1

4--- 1.6

0.1

11.82

0.1

23.64

0.1

82.105

0.1

106.135

0.1

D237

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
