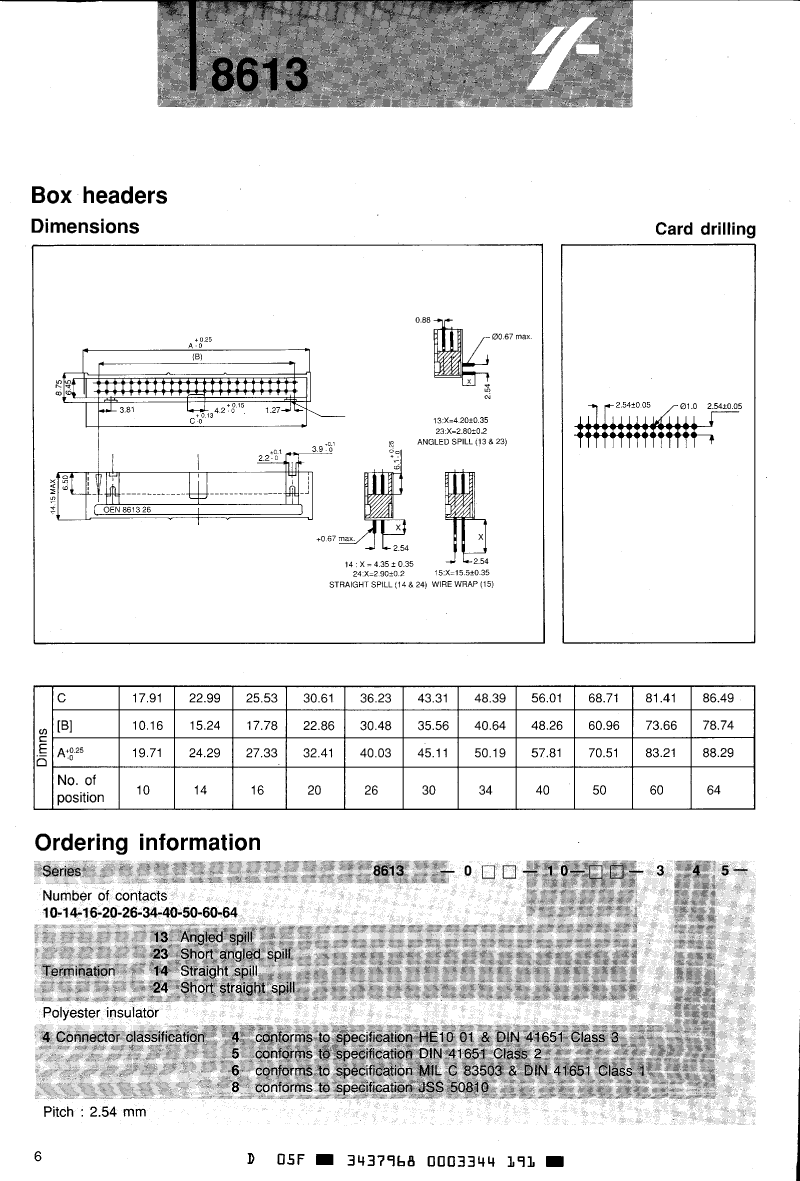

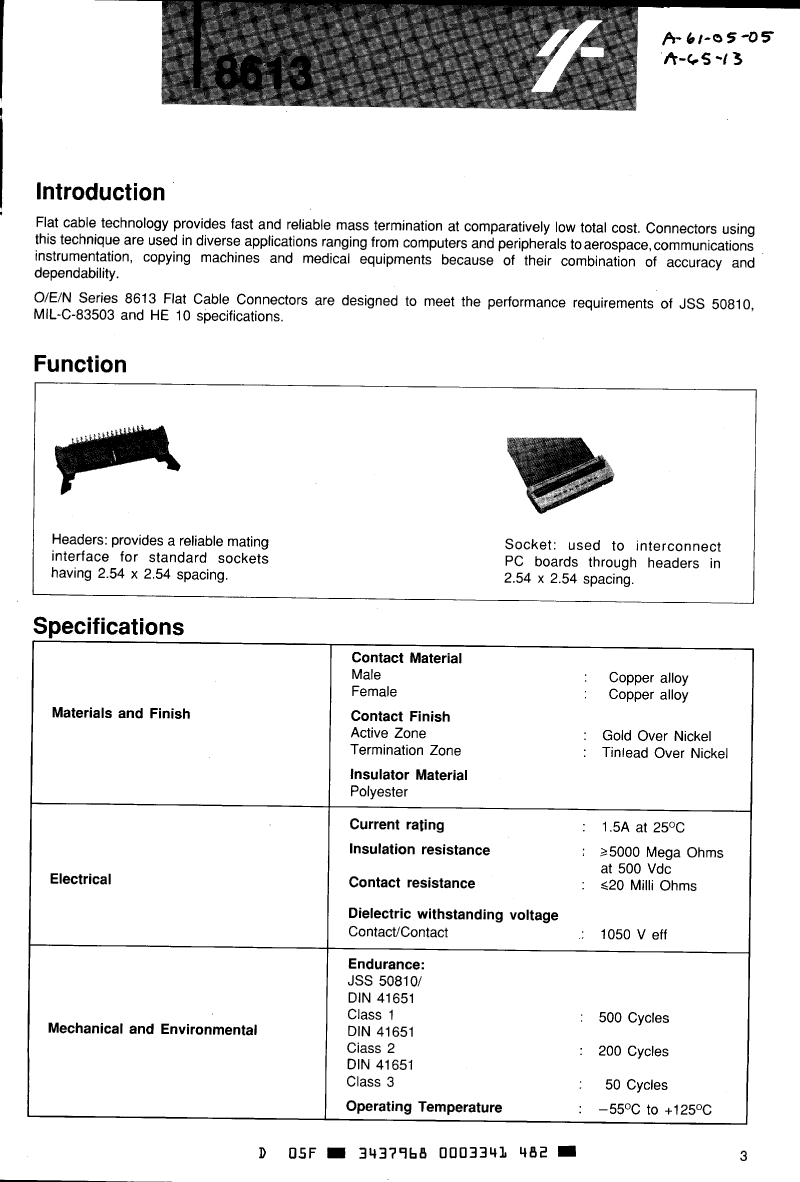

8613-016-10-23-345 datasheet, PDF

8613-016-10-23-345: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size246KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

8613-016-10-23-345 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	HE 1001 & DIN 41651 CLASS 3
body width	0.344 inch
subject depth	0.557 inch
body length	1.076 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1050VAC V
Durability	50 Cycles
Insulation resistance	5000000000 Ω
insulator material	POLYESTER
Manufacturer's serial number	8613
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	HOUSING SIDE
Rated current (signal)	1.5 A
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
