L1904C/5/LPCS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> L1904C/5/LPCS

L1904C/5/LPCS: DescriptionCircular DIN Connector, 5 Contact(s), Female, Panel Mount, Printed Wiring Pin Terminal, Socket; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L1904C/5/LPCS Overview

Circular DIN Connector, 5 Contact(s), Female, Panel Mount, Printed Wiring Pin Terminal, Socket

L1904C/5/LPCS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIALIGHT
Reach Compliance Code	unknown
Other features	STANDARDS: DIN 41524; DIN 45322; 45329; IEC 130-9; IEC/44
Body/casing type	SOCKET
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	YES
DIN standard	45326
Electromagnetic interference shielding	YES
IEC compliance	YES
MIL compliance	NO
Manufacturer's serial number	L1904C
Installation method	STRAIGHT
Installation type	PANEL
Termination type	PRINTED WIRING PIN
Total number of contacts	5

L1904C/5/LPCS Preview

LAST UPDATED: September 13, 2007

L1904C/LPCS DIN

STYLE CONNECTOR

MATERIALS

BODY:

RECEPTACLE INSUALTOR

CONTACTS:

CONTACT TERMINATION:

PINS:

SPACERS:

DESCRIPTION:

Zinc alloy, nickel-plated

Glass, filled nylon

Brass, silver plated

Dip solder

Brass, silver plated

Aluminium alloy (supplied loose)

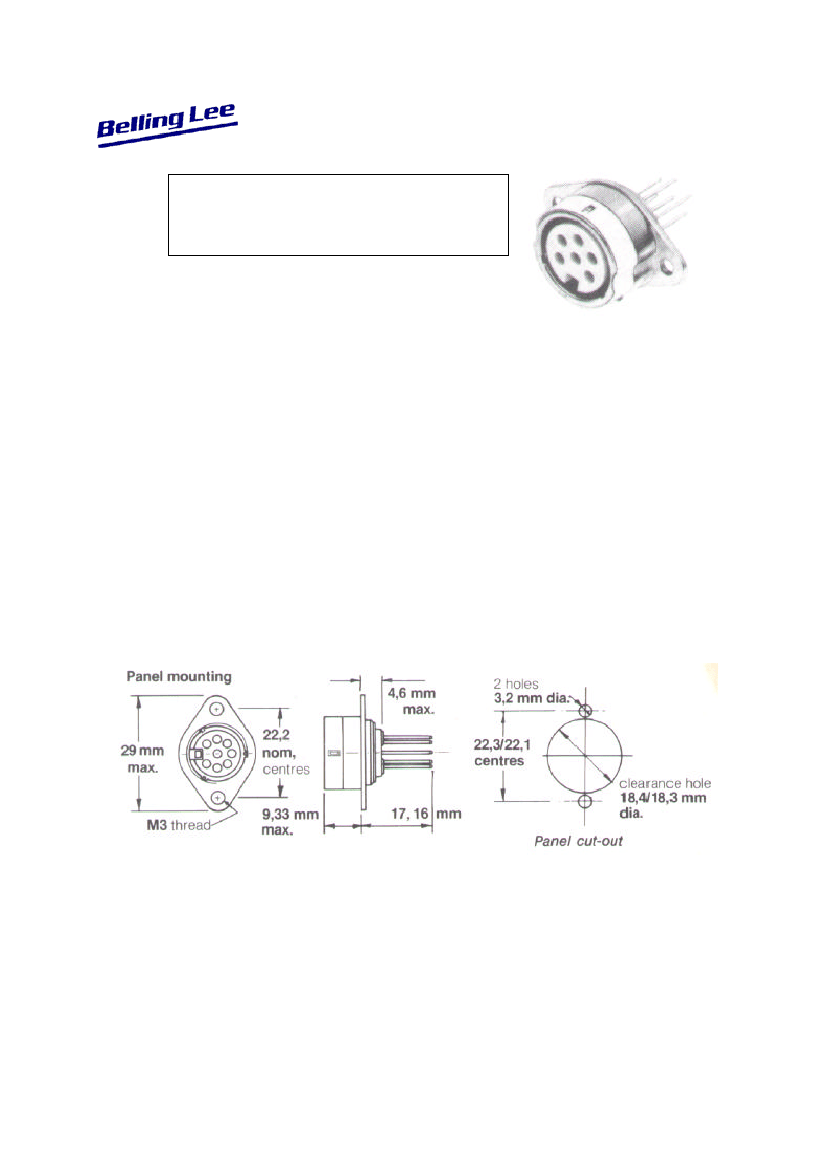

LPCS style is designed for fitting to a panel,

terminating with a PCB mounted behind

ORDERING REFERENCE:

PANEL MOUNTING L1904/*/LPCS

*number of poles

Note: Only available in 5, 6, 7 and 8 way configuration

Dialight BLP reserve the right to change without prior notice the information contained within this leaflet

Dialight BLP Ltd., Exning Road, Newmarket, Suffolk, CB8 0AX, England

Tel: +44 (0)1638 665161 Fax: +44 (0)1638 660718 email: sales@blpcomp.com www.blpcomp.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

L1904C/5/LPCS Related Products

	L1904C/5/LPCS	L1904C/7/LPCS	L1904C/8/LPCS
Description	Circular DIN Connector, 5 Contact(s), Female, Panel Mount, Printed Wiring Pin Terminal, Socket	7 CONTACT(S), PANEL MOUNT, DIN CONNECTOR, SOCKET	Circular DIN Connector, 8 Contact(s), Female, Panel Mount, Printed Wiring Pin Terminal, Socket
Is it Rohs certified?	conform to	conform to	conform to
Maker	DIALIGHT	DIALIGHT	DIALIGHT
Reach Compliance Code	unknown	unknown	unknown
Other features	STANDARDS: DIN 41524; DIN 45322; 45329; IEC 130-9; IEC/44	STANDARDS: DIN 41524; DIN 45322; 45329; IEC 130-9; IEC/44	STANDARDS: DIN 41524; DIN 45322; 45329; IEC 130-9; IEC/44
Body/casing type	SOCKET	SOCKET	SOCKET
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	YES	YES	YES
DIN standard	45326	45326	45326
Electromagnetic interference shielding	YES	YES	YES
IEC compliance	YES	YES	YES
MIL compliance	NO	NO	NO
Manufacturer's serial number	L1904C	L1904C	L1904C
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	PANEL	PANEL	PANEL
Termination type	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN
Total number of contacts	5	7	8
