PHOTOCOUPLER
PS2561A-1,PS2561AL-1,PS2561AL1-1,PS2561AL2-1
HIGH ISOLATION VOLTAGE
SINGLE TRANSISTOR TYPE
MULTI PHOTOCOUPLER SERIES
DESCRIPTION

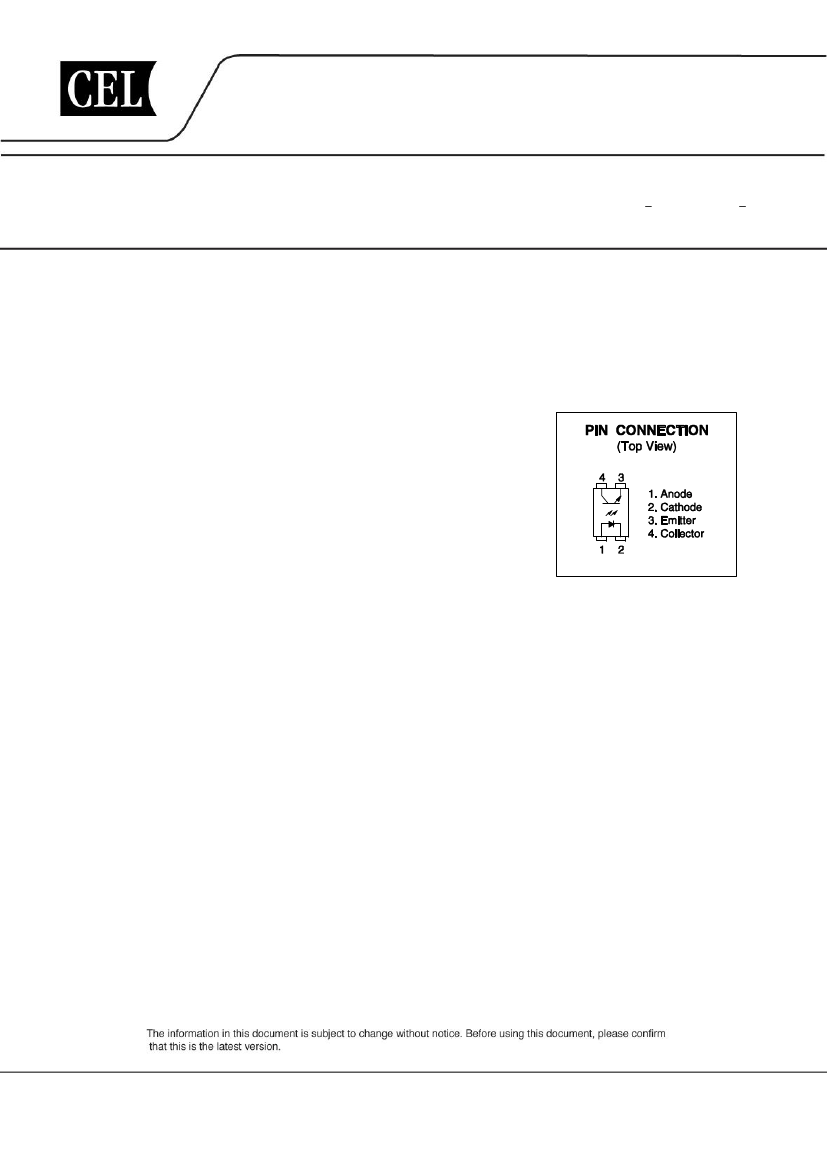

The PS2561A-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon
phototransistor to realize an excellent cost performance.
The PS2561A-1 is in a plastic DIP (Dual In-line Package) and the PS2561AL-1 is lead bending type (Gull-wing) for
surface mount.
The PS2561AL1-1 is lead bending L1 type and the PS2561AL2-1 is lead bending L2 type (Gull-wing).
NEPOC Series
FEATURES
• High isolation voltage (BV = 5 000 Vr.m.s.)
<R>
• Ordering number of taping product: PS2561AL-1-F3 : 2 000 pcs/reel
: PS2561AL2-1-E3: 1 000 pcs/reel
• Pb-Free product
<R>
• Safety standards
• UL approved: No. E72422
• CSA approved: No. CA 101391 (CA5A, CAN/CSA-C22.2 60065, 60950)
• BSI approved: No. 7112/7420
• SEMKO approved: No. 903238
• NEMKO approved: No. P09210868
• DEMKO approved: No. 314999
• FIMKO approved: No. FI 25119
• DIN EN60747-5-2 (VDE0884 Part2) approved: No. 40008862 (Option)
APPLICATIONS
• Power supply
• Telephone/FAX.
• FA/OA equipment
• Programmable logic controller
Document No. PN10222EJ08V0DS (8th edition)
Date Published September 2009 NS
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
PS2561A-1,PS2561AL-1,PS2561AL1-1,PS2561AL2-1

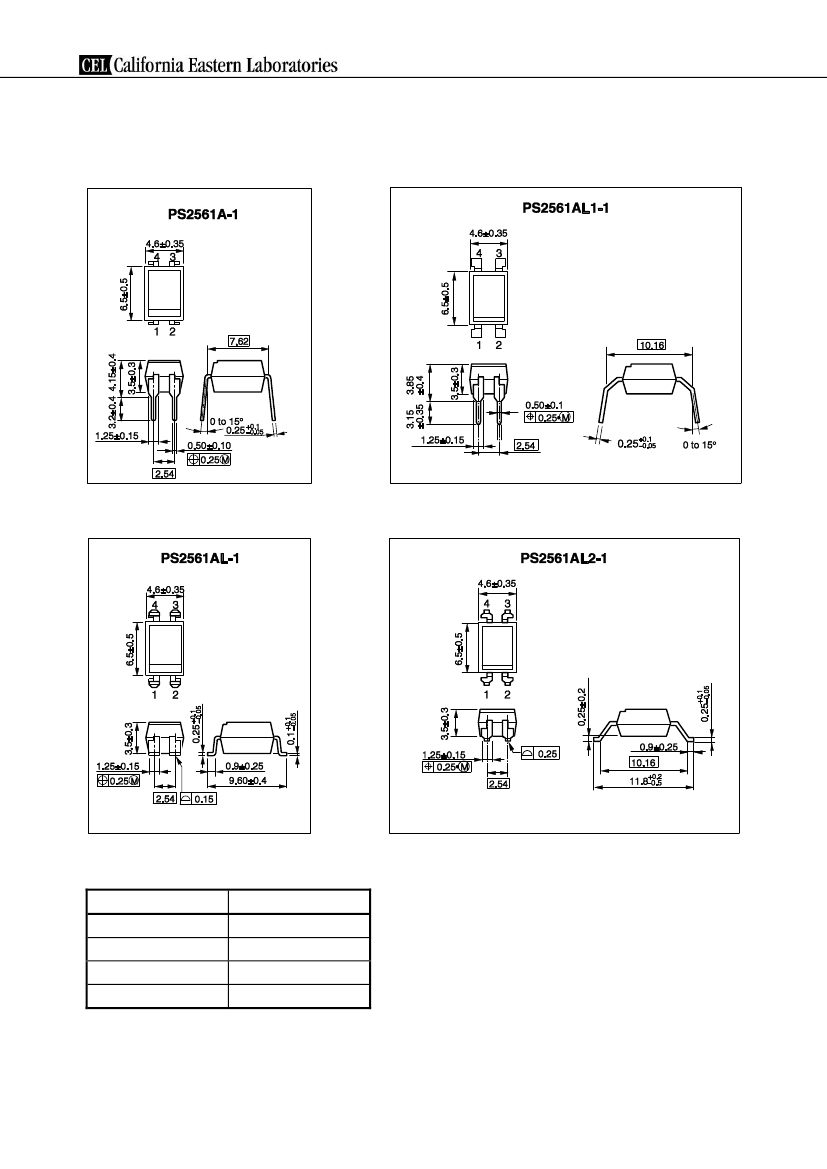

PACKAGE DIMENSIONS (UNIT : mm)
DIP Type
Long Creepage Distance
Lead Bending Type (Gull-Wing)
Long Creepage Distance (Gull-Wing)
PHOTOCOUPLER CONSTRUCTION
Parameter
Air Distance
Outer Creepage Distance
Inner Creepage Distance
Isolation Thickness
Unit (MIN.)
7 mm
7 mm
4 mm
0.4 mm
2
Data Sheet PN10222EJ08V0DS
PS2561A-1,PS2561AL-1,PS2561AL1-1,PS2561AL2-1

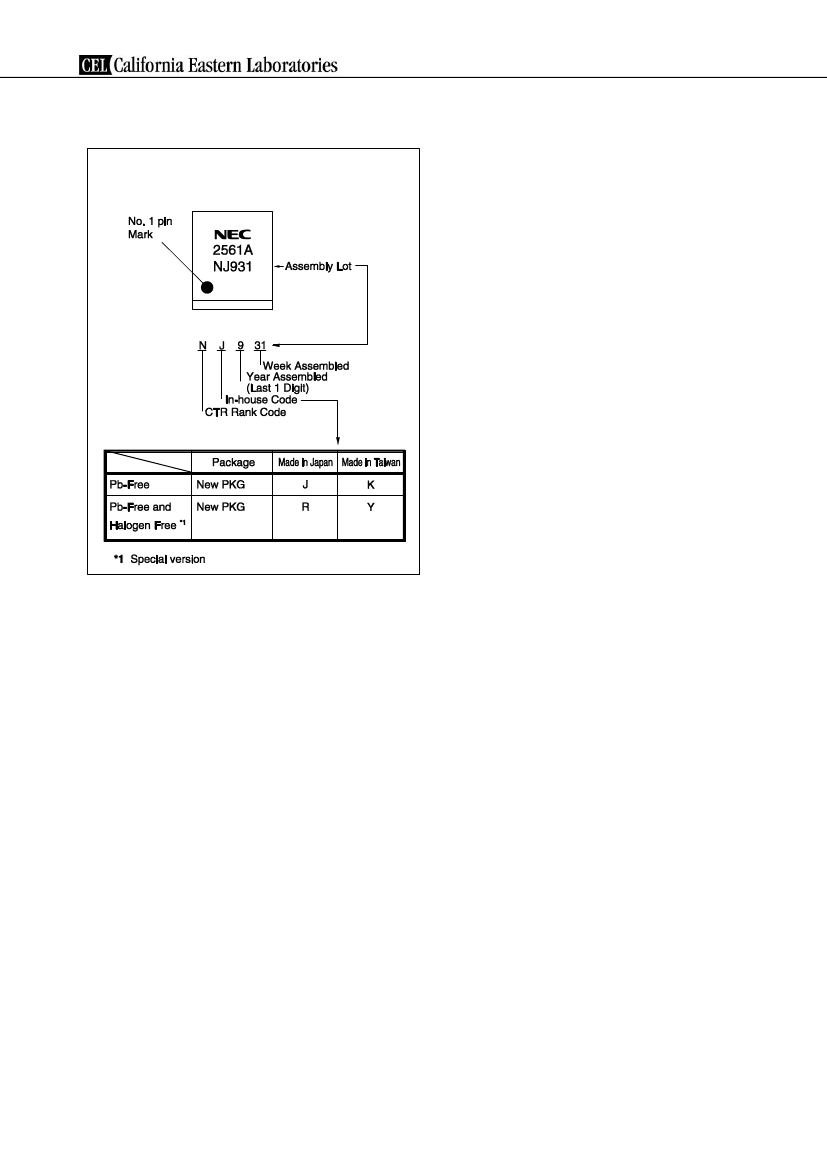

MARKING EXAMPLE
Data Sheet PN10222EJ08V0DS
3
PS2561A-1,PS2561AL-1,PS2561AL1-1,PS2561AL2-1
<R>
ORDERING INFORMATION
Part Number
Order Number
Solder Plating
Specification
Pb-Free
Packing Style
Safety Standard
Approval
Standard products
(UL, CSA, BSI,
SEMKO, NEMKO,
DEMKO, FIMKO
Embossed Tape 2 000 pcs/reel
Embossed Tape 1 000 pcs/reel
Magazine case 100 pcs
DIN EN60747-5-2
(VDE0884 Part2)
Approved (option)
approved)
Application Part
Number
*1
PS2561A-1
PS2561A-1
PS2561AL-1
PS2561AL1-1
PS2561AL2-1
PS2561AL-1-F3
PS2561AL2-1-E3
PS2561A-1-V
PS2561AL-1-V
PS2561AL1-1-V
PS2561AL2-1-V
PS2561AL-1-V-F3
PS2561AL2-1-V-E3
PS2561A-1
PS2561AL-1
PS2561AL1-1
PS2561AL2-1
PS2561AL-1-F3
PS2561AL2-1-E3
PS2561A-1-V
PS2561AL-1-V
PS2561AL1-1-V
PS2561AL2-1-V
PS2561AL-1-V-F3
PS2561AL2-1-V-E3
PS2561A-1-A
PS2561AL-1-A
PS2561AL1-1-A
PS2561AL2-1-A
PS2561AL-1-F3-A
PS2561AL2-1-E3-A
PS2561A-1-V-A
PS2561AL-1-V-A
PS2561AL1-1-V-A
PS2561AL2-1-V-A
PS2561AL-1-V-F3-A
PS2561AL2-1-V-E3-A
PS2561A-1Y-A
PS2561AL-1Y-A
PS2561AL1-1Y-A
PS2561AL2-1Y-A
PS2561AL-1Y-F3-A
PS2561AL2-1Y-E3-A
PS2561A-1Y-V-A
PS2561AL-1Y-V-A
PS2561AL1-1Y-V-A
PS2561AL2-1Y-V-A
PS2561AL-1Y-V-F3-A
PS2561AL2-1Y-V-E3-A
Magazine case 100 pcs
Embossed Tape 2 000 pcs/reel
Embossed Tape 1 000 pcs/reel
Special version
(Pb-Free and
Halogen Free)
Magazine case 100 pcs
Standard products
(UL, CSA, BSI,
SEMKO, NEMKO,
DEMKO, FIMKO
Embossed Tape 2 000 pcs/reel
Embossed Tape 1 000 pcs/reel
Magazine case 100 pcs
DIN EN60747-5-2
(VDE0884 Part2)
Approved (option)
approved)
PS2561A-1
Embossed Tape 2 000 pcs/reel
Embossed Tape 1 000 pcs/reel
*1
For the application of the Safety Standard, following part number should be used.
4
Data Sheet PN10222EJ08V0DS
PS2561A-1,PS2561AL-1,PS2561AL1-1,PS2561AL2-1
ABSOLUTE MAXIMUM RATINGS (T
A
= 25 C, unless otherwise specified)
Parameter
Diode
Reverse Voltage
Forward Current (DC)
Power Dissipation Derating
Power Dissipation
Peak Forward Current
*1
Transistor
Collector to Emitter Voltage
Emitter to Collector Voltage
Collector Current
Power Dissipation Delay
Power Dissipation
Isolation Voltage
*2
Operating Ambient Temperature
Storage Temperature
Symbol
V
R
I
F
P
D
/ C
P
D
I
FP
V
CEO
V
ECO
I
C
P
C
/ C
P
C
BV
T
A
T
stg
Ratings
6
30
1.5
150
0.5
70
5
30
1.5
150
5 000
55 to +100
55 to +150
Unit
V
mA
mW/ C
mW
A
V
V
mA
mW/ C
mW
Vr.m.s.
C
C
*1
PW = 100 s, Duty Cycle = 1%
*2
AC voltage for 1 minute at T
A
= 25 C, RH = 60% between input and output.
Pins 1-2 shorted together, 3-4 shorted together.
Data Sheet PN10222EJ08V0DS
5
