KC7050PFREQP2SE00 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> KC7050PFREQP2SE00

KC7050PFREQP2SE00: DescriptionLVPECL Output Clock Oscillator, 50MHz Min, 190MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN; CategoryPassive components oscillator; File Size127KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric Compare View All

KC7050PFREQP2SE00 Overview

LVPECL Output Clock Oscillator, 50MHz Min, 190MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN

KC7050PFREQP2SE00 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	0.6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	30%
Manufacturer's serial number	KC7050P-P2
Installation features	SURFACE MOUNT
Maximum operating frequency	190 MHz
Minimum operating frequency	50 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVPECL
Output load	50 OHM
physical size	7.0mm x 5.0mm x 1.6mm
longest rise time	0.6 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	45/55 %

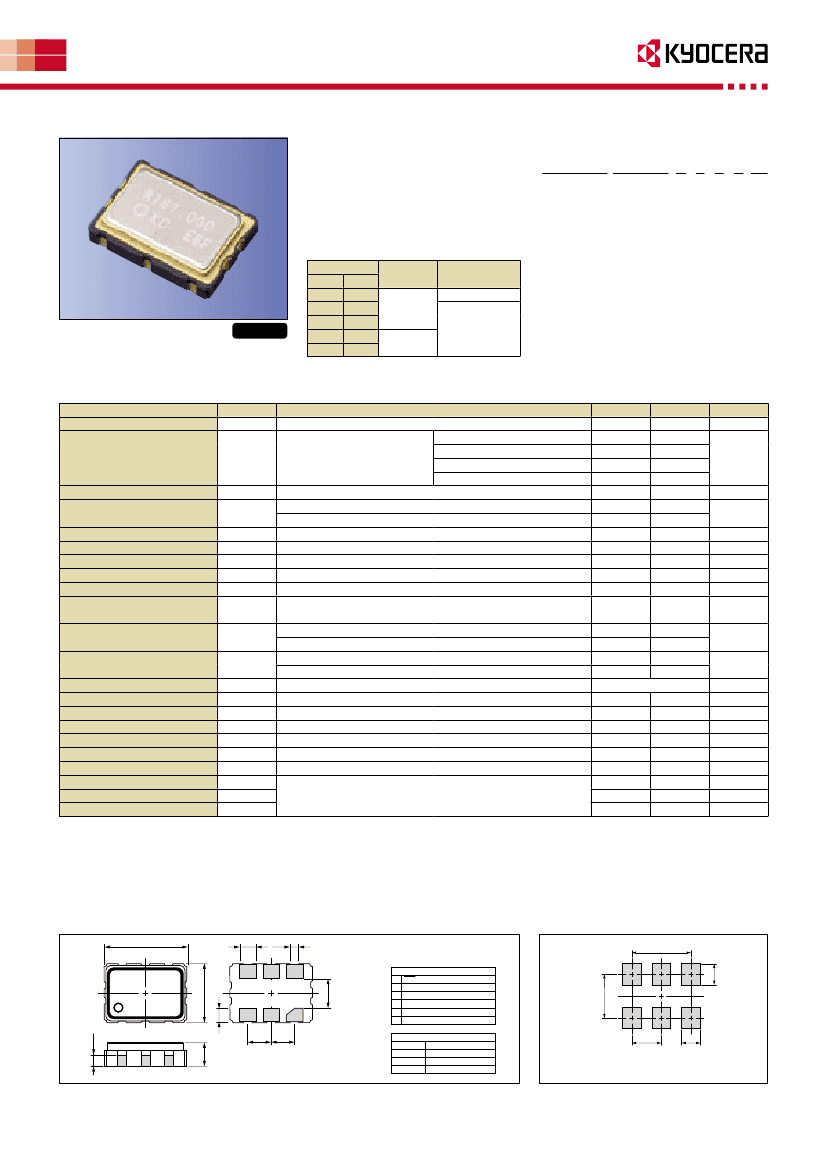

KC7050PFREQP2SE00 Preview

Clock Oscillators Surface Mount Type

KC7050P-P2 Series

LV-PECL/ 2.5V/ 7.0×5.0mm

Features

• Miniature ceramic package

• Highly reliable with seam welding

• LV-PECL output

• Supply voltage V

=2.5V

•

±25×10

available

How to Order

KC7050P 125.000 P 2 0 E 00

①

②

③④⑤⑥ ⑦

①

Type (7.0×5.0mm SMD)

②

Output Frequency

③

Output Type (LV-PECL)

④

Supply Voltage (2.5V)

⑤

Frequency Tolerance (See Table 1)

⑥

Symmetry/ INH Function

(45/ 55%, Stand-by)

⑦

Customer Special Model Suffix

(STD Specification is “00”)

Packaging (Tape & Reel 1000 pcs./ reel)

Table 1

Operating

Freq. Tol.

Note

Temperature

Code

Range (°C)

Standard specifications

30 0 to

+70

With only certain

frequencies

±100

-40

+85

RoHS Compliant

Specifications

Item

Output Frequency Range

Note1

Frequency Tolerance

Storage Temperature Range

Operating Temperature Range

Max. Supply Voltage

Supply Voltage

Current Consumption

Stand-by Current

Symmetry

Rise/ Fall Time

(20% to 80% Output Level)

Low Level Output Voltage

Note2

High Level Output Voltage

Note2

Output Load

Input Voltage Range

Low Level Input Voltage

High Level Input Voltage

Disable Time

Enable Time

Start-up Time

Deterministic Jitter (DJ)

1 Sigma jitter

Peak to Peak Jitter

Symbol

_tol

_stg

_use

—

_std

SYM

tr/ tf

_dis

_ena

_str

Sigma

PK-PK

Standard Specifications

Extend (Option)

Conditions

Initial tolerance, Operating tem-

perature range, Rated power supply

voltage change, Load change, Aging

(1 year @25°C), Shock and vibration

Op. Temp.:

-40

+85°C

Op. Temp.: 0 to

+70°C/ -40

+85°C

Op. Temp.: 0 to

+70°C

Op. Temp.: 0 to

+70°C

Min.

-100

-50

-30

-25

-55

-40

-0.5

+2.375

—

Max.

190

+100

+50

+30

+25

+125

+70

+85

+2.625

0.6

Units

MHz

×10

°C

μA

ohm

50ohm @crossing point

50ohm

Op. Temp.: 0 to

+85°C/

Typ. 0.800V

Op. Temp.:

-40

to 0°C/ Typ. 0.805V

Op. Temp.: 0 to

+85°C/

Typ. 1.550V

Op. Temp.:

-40

to 0°C/ Typ. 1.495V

LV-PECL Output

@Minimum operating voltage to be 0 sec.

Measured with Wavecrest DTS-2079

VISI 6.3.1

-1.810

-1.405

-1.830

-1.305

-1.025

-0.740

-1.085

-0.800

—

30% V

70% V

—

150

—

Note : All electrical characteristics are defined at the maximum load and operating temperature range.

Note1: Please contact us for inquiry about operating temperature range, available frequencies and other conditions.

Note2: DC characteristic

Dimensions

7.0

1.4

0.6

(Unit: mm)

Recommended Land Pattern

5.08

(Unit: mm)

2.46

5.0

1.17

0.75

2.54

1.6

2.54

Plating: Ni+Au

Tolerance:

±0.2

INH Function

Pad1

Pad4/ Pad5 (Output)

Open

Active

"H" Level

Active

"L" Level High Z (No-Oscillation)

3.6

Pad Connections

INH

Case GND

Output

Complementary Output

2.54

1.6

Note: A capacitor of value 0.01µF and 10µF

between V

and GND is recommended.

1.6

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

KC7050PFREQP2SE00 Related Products

	KC7050PFREQP2SE00	KC7050PFREQP2GE00
Description	LVPECL Output Clock Oscillator, 50MHz Min, 190MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN	XO, Clock, CRYSTAL OSCILLATOR, CLOCK, 50 MHz - 190 MHz, LVPECL OUTPUT, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 6 PIN
Is it Rohs certified?	conform to	conform to
Maker	Kyocera	Kyocera
Reach Compliance Code	compliant	unknown
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	0.6 ns	0.6 ns
Frequency Adjustment - Mechanical	NO	NO
frequency stability	30%	50%
Manufacturer's serial number	KC7050P-P2	KC7050P-P2
Installation features	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	190 MHz	190 MHz
Minimum operating frequency	50 MHz	50 MHz
Maximum operating temperature	70 °C	85 °C
Oscillator type	LVPECL	LVPECL
Output load	50 OHM	50 OHM
physical size	7.0mm x 5.0mm x 1.6mm	7.0mm x 5.0mm x 1.6mm
longest rise time	0.6 ns	0.6 ns
Maximum supply voltage	2.625 V	2.625 V
Minimum supply voltage	2.375 V	2.375 V
Nominal supply voltage	2.5 V	2.5 V
surface mount	YES	YES
maximum symmetry	45/55 %	45/55 %
