CRYSTAL OSCILLATORS
AN-XA7XSXX-X Series
HF SMD TCXO/VCTCXO
Ultra Low Phase Noise
Description:
The AN-XA7XSXX Series of SMD
temperature compensated crystal oscillators (TCXO), provides
High Frequency with excellent temperature stability, extremely
low phase noise and jitter with Sine-wave output in a small
surface mount FR4 based package.
Data Sheet 0749C
Rev. M
Features
•
•
•
•
•
•
•
Small, Low Profile SMD Package
Very Low Phase Jitter and Phase Noise
Excellent Frequency Stability
Frequency – up to 250 MHz
No Multiplication – no sub-harmonics
Stratum3 available
COTS/Dual use
Creating a Part Number
AN - X A7 X S
Package Code
AN 8 Pad 17x14x6mm SMD
Supply Voltage
Code
0
A
Specification
5V ±5%
3.3V ±5%
R
X
X - X - FREQ
Environmental
Code
L
Specification
Contains a level of lead
that is in excess of
RoHS directive and is
not designed for reflow
RoHS compliant
Voltage Control
Code
V
N
Specification
Voltage Control
No Voltage
Control
Output Type
Code
S
Specification
Sine-wave
Temp. Frequency Stability
Code
1
2
3
9
Specification
±1.0 ppm
±2.5 ppm
±0.28
ppm
Customer Specific
Temperature Range
Code
E
B
C
D
Specification
-10°C to 60°C
0°C to 70°C
-20°C to 70°C
-40°C to 85°C
Not all combinations available – consult factory
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL OSCILLATORS
AN-XA7XSXX-X Series
(1)
Data Sheet 0749C
Rev. M
Specifications
Parameter
Symb
Electrical
Frequency Range
F
Vcc
Input Voltage
Input Current
Frequency Stab.
Frequency
Stability
Icc
ΔF/F
ΔF/F
Condition
Sine-wave
Min
10
3.135
4.75
Typ
Max
250
3.465
5.25
40
±4.6
±1
Unit
MHz
V
mA
Note
3.30
5.0
Sine
Overall, available
vs. Temperature
vs. Vcc
aging
As shipped, 25ºC
Sine
Sine-wave Into
50 Ohms
1σ
Calibration
Load
Output power
(2)
Start up time
Phase Jitter
Subharmonics
Spurious
Harmonics
SSB Phase Noise
ΔF/F
P
Ts
SSB Phase Noise
Sine-wave
@10Hz
@100 Hz
@1 KHz
@10 KHz
@100 KHz
@10Hz
@100 Hz
@1 KHz
@10 KHz
@100 KHz
Input Impdeance
Vc
Control voltage
MB
Modulation
bandwidth
ΔF/F
Vc=0V to 3.3V,25°C
Deviation
±0.5
ppm
±0.1
ppm/V
±1
ppm/year
±2.5
ppm
±3.5
ppm
±0.5
±1
ppm
Internally AC-coupled 50 Ohm
0
3
dBm
4
7
2
100
ms
0.4
1
ps
0.2
0.4
none
-60
dBc
-30
-25
dBc
-80
dBc/Hz
-110
-140
-155
-160
-105
dBc/Hz
-135
-150
-160
-165
>10K Ohm
0
3.0
V
1.5
Hz
±5
±7
ppm
A
0
@100MHz, 3.3V
20 years
See chart
First Year
7 years
10 years
3.3V
5.0V
100Hz to 20MHz
12KHz to 20MHz
@100MHz
@20 MHz
Note 1) All parameters, unless otherwise specified, are at nominal conditions, ie: T=25°C, Nominal Vcc & Nominal Load
2) Higher output power available – consult factory (current consumption may increase)
Absolute Maximum Ratings
Parameter
Input Break
Down Voltage
Storage temp.
Contr. Voltage
Symb Condition
Vcc
Ts
Vc
Min
-0.5
-40
-1
Typ
Max
5.5
105
9
Unit
V
°C
V
Note
Environmental and Mechanical
Operating temp.
range
Mechanical Shock
Thermal Shock
Vibration
Soldering Conditions
Hermetic Seal
0°C to 70°C , -40°C to 85°C, see chart, page 1
Per MIL-STD-202, Method 213, Cond. E
Per MIL-STD-883, Method 1011, Cond. A
Per MIL-STD-883, Method 2007, Cond. A
See MAX reflow profile; The device may be reflowed once. Reflowing upside down is
not allowed. NO CLEAN assembly is recommended.
Leak rate less than 1x10-8 atm.cc/s of helium (crystal only)
357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881
Email:
nelsales@nelfc.com
www.nelfc.com
CRYSTAL OSCILLATORS
AN-XA7XSXX-X Series
Rev. M
Data Sheet 0749C

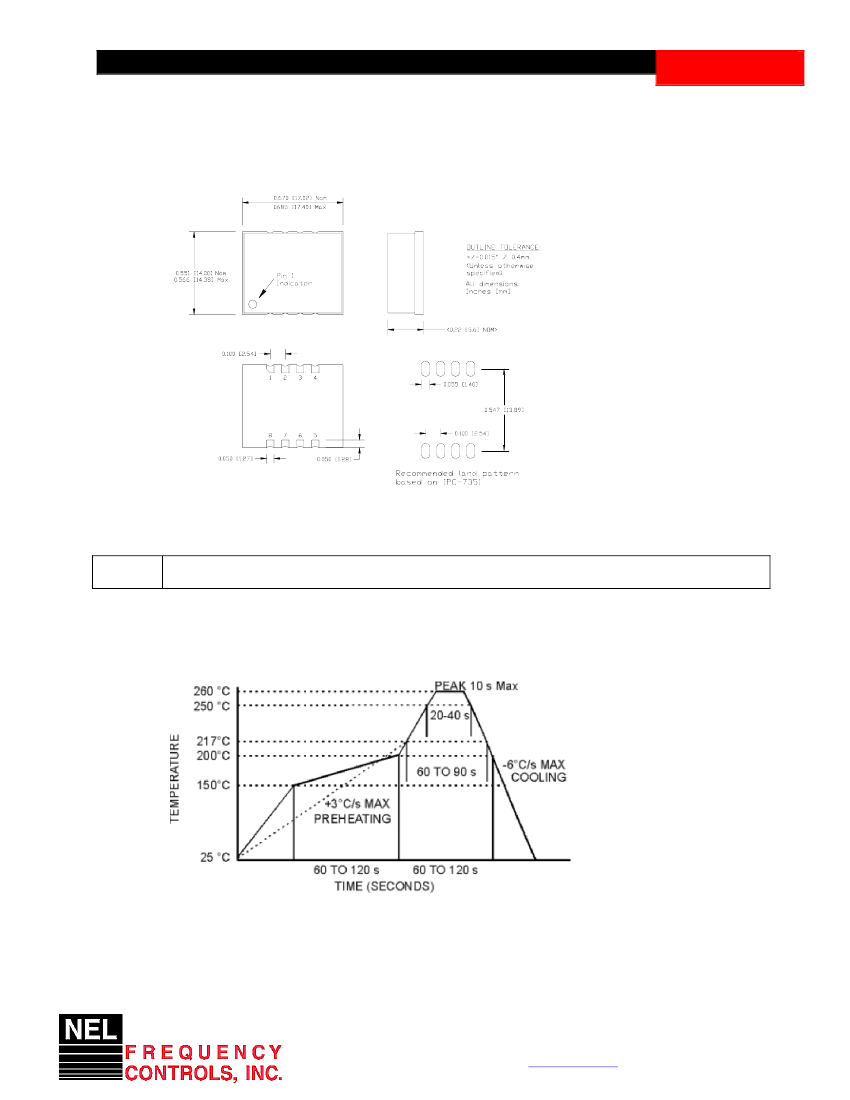

Electrical Connections
Pin out
Pin 1=Vcc; Pin 2=Do Not Connect; Pin 3=GND; Pin 4=GND; Pin 5=Output; Pin 6= Optional Voltage
Control; Pin 7 & 8= Do Not Connect
Maximum solder reflow profile
The device may be reflowed once. Reflowing upside down is not allowed. NO CLEAN assembly is recommended.
