DR5000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Wireless rf/communication> DR5000

DR5000: DescriptionSPECIALTY TELECOM CIRCUIT, QMA14; CategoryTopical application Wireless rf/communication; File Size493KB，2 Pages; ManufacturerGaomi Xinghe Electronics; Websitehttp://www.sddzg.com

Download Datasheet Parametric Compare View All

DR5000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DR5000	-	-	View	Buy Now

DR5000 Overview

SPECIALTY TELECOM CIRCUIT, QMA14

DR5000 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	14
Maximum operating temperature	65 Cel
Minimum operating temperature	-20 Cel
Rated supply voltage	3 V
state	ACTIVE
packaging shape	SQUARE
Package Size	MICROELECTRONIC ASSEMBLY
surface mount	Yes
Terminal form	NO
Terminal location	Four
Packaging Materials	UNSPECIFIED
Temperature level	COMMERCIAL
Communication type	telecommunications circuits

Preview

Download Datasheet

View All

星合电子

ＸＩＮＧＨＥ　ＥＬＥＣＴＲＯＮＩＣＳ

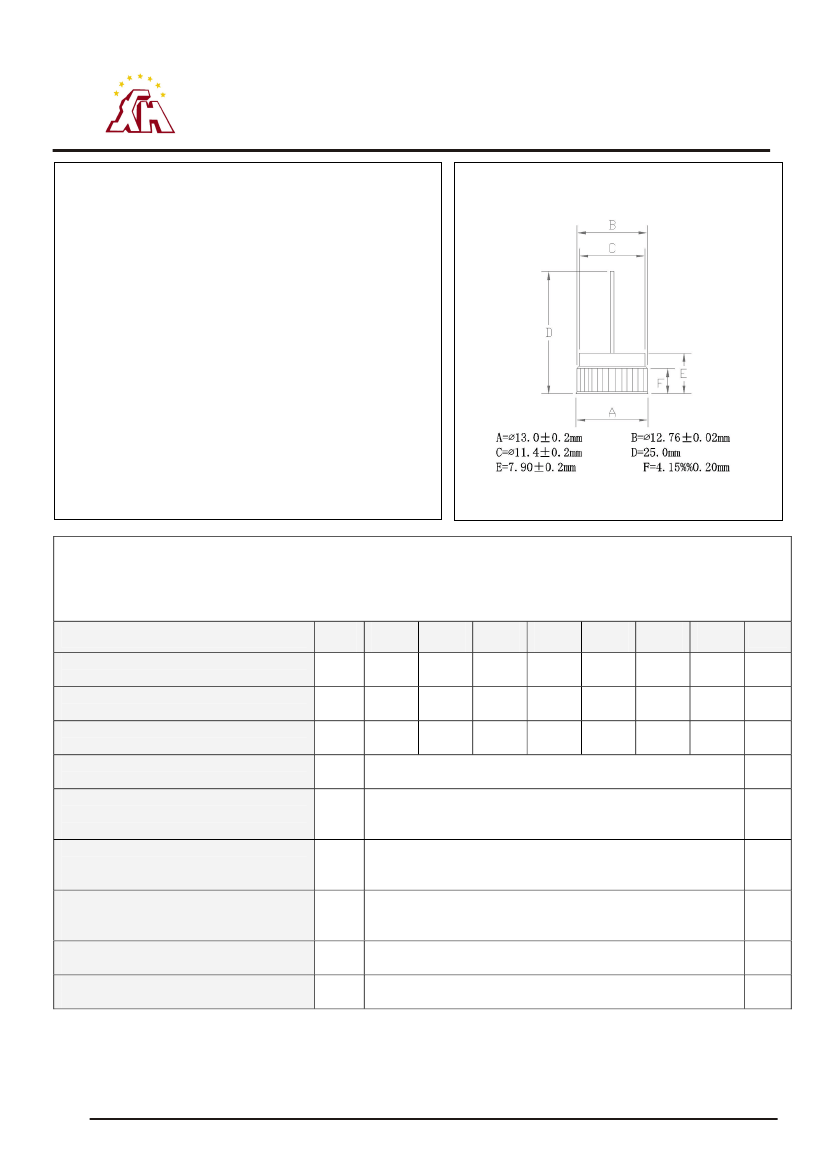

特性：

FEATURES

◆正向压降½.Low

forward voltage drop

◆½漏电.

Low leakage current

◆高浪涌承受½力.High

surge current capability

◆35A 工½在表面温度是125℃,无热损耗的情况下.

35Ampere Operation At TL=125℃ With No Thermal Runaway

DR5000

THRU

DR5010

BOSCH

机械性½：

MECHANICAL DATA

◆封装:铜材质.

Case: Copper

◆端子:镀金端子,焊接按照

MIL-STD-202,方法 208.

Terminals: Plated terminals, solderable per

MIL-STD-202, method 208.

◆极性: 灌注红色环氧树脂（端子为正/P 型）

灌注黑色环氧树脂（端子为负/N 型）

Polarity : By RED Color Epoxy Potting. (Positive)

By BLACK Color Epoxy Potting. (Negative)

◆重量：6.8 克.

Weight: 6.8grams

Dimension in millimeters

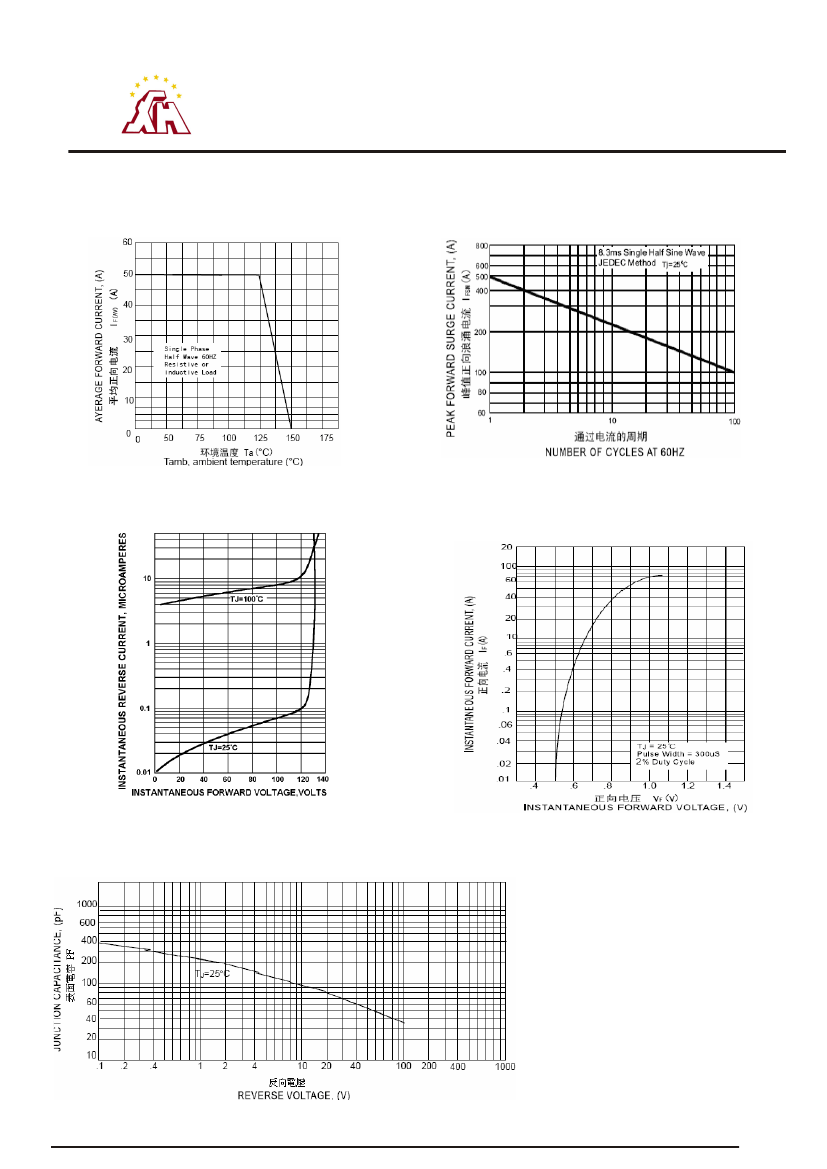

极限值和电参数

TA= 25℃除非另有规定.

单相,正半弦波,60HZ,阻抗或电感负½½.为电容装½½,减少电流的

20%

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating at 25℃ Ambient temp. Unless otherwise specified.Single phase, half sine wave, 60HZ,resistive or inductive load.

型

最大峰值反向电压

号

TYPE

符号

RRM

RMS

F（AV）

DR5000

DR5001

DR5002

DR5004

DR5006

DR5008

DR5010

单 ½

Maximum Current Peak Reverse Voltage

最大反向有效值电压

100

200

140

200

400

280

400

600

420

600

800

560

800

1000

700

1000

Working Peak Reverse Voltage

最大直流截止电压

Maximum DC Blocking Voltage

最大正向平均整流电流

Ta=125℃，

Maximum Average Forward Rectified Current

峰值正向浪涌电流

Peak Forward Surge Current 8.3ms Single

Sine-wave on Rated Load (JEDEC Method)

最大瞬间正向压降＠100A

FSM

500

Maximum Instantaneous Forward Voltage

Drop at 100A DC

最大反向直流电流

1.03

1.0

200

STG

Maximum DC Reverse Current

Ta = 25℃

at Rated DCBlocking Voltage

Ta =100℃

典型结电容

Typical Junction Capacitance (NOTE 1)

工½及储存温度范围

μA

140

-55½+150

℃

Operating AND Storage Temperature Range

注

释

: NOTE

在

1MHz

下测量，½加

4.0V

D.C

的反向电压.

Measured at 1 MHz and Applied Reverse Voltage of 4.0 Volts D.C.

ＧＡＯＭＩ　ＸＩＮＧＨＥ　ＥＬＥＣＴＲＯＮＩＣＳＣＯ．，ＬＴＤ．　　　　ＷＷＷ．ＳＤＤＺＧ．ＣＯＭ　　　　　ＴＥＬ：０５３６－２２１０３５９　　　　　　　ＱＱ：４６４７６８０１７

DR5000 Related Products

	DR5000	DR5001	DR5006	DR5008	DR5004	DR5010
Description	SPECIALTY TELECOM CIRCUIT, QMA14	SPECIALTY TELECOM CIRCUIT, QMA14	SPECIALTY TELECOM CIRCUIT, QMA14	SPECIALTY TELECOM CIRCUIT, QMA14	SPECIALTY TELECOM CIRCUIT, QMA14	SPECIALTY TELECOM CIRCUIT, QMA14
Number of functions	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	65 Cel	65 Cel	65 Cel	65 Cel	65 Cel	65 Cel
Minimum operating temperature	-20 Cel	-20 Cel	-20 Cel	-20 Cel	-20 Cel	-20 Cel
Rated supply voltage	3 V	3 V	3 V	3 V	3 V	3 V
state	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE	ACTIVE
packaging shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package Size	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
surface mount	Yes	Yes	Yes	Yes	Yes	Yes
Terminal form	NO	NO	NO	NO	NO	NO
Terminal location	Four	Four	Four	Four	Four	Four
Packaging Materials	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Communication type	telecommunications circuits	telecommunications circuits	telecommunications circuits	telecommunications circuits	telecommunications circuits	telecommunications circuits
