DATA SHEET
MOS INTEGRATED CIRCUITS
µ
PD63315
AC’97 SOUND CODEC
DESCRIPTION
The
µ
PD63315 is an audio codec compliant with the AC’97 Rev 2.1 specification. It features 18-bit ADC’s and
DAC’s (2 channels each) for mutual conversion between audio analog signals with a maximum signal band of 20 kHz
and digital signals, and supports full-duplex communication.
The analog signal input block has four analog stereo signal input lines, LINE, CD, VIDEO, and AUX, and three
analog monaural signal input lines, PHONE, PC_BEEP, and MIC (2 MIC pins selectable).
The analog signal output block has three outputs pins, LINE_OUT, LNLVL_OUT, and MONO_OUT, each with its
own volume control.
The
µ
PD63315 supports also sample rate conversion (SRC), EAPD, power management.
FEATURES
•
AC’97 Rev 2.1 compliant
•
Oversample
∆
∑-type
ADC/DAC (2 channels each)
•
ADC SNR = 85 dB Typ.
•
DAC SNR = 90 dB Typ.
•
Multiple codec support
•
Sample rate conversion (SRC) support
•
Power management support
•
External Amplifier Power Down (EAPD) support
•
Low-supply-voltage operation: DV
DD
= 3.3 V, AV
DD
= 3.3 V
•
Operating ambient temperature:
−40
to +85°C
APPLICATIONS
•
PC sound systems
•
PDA
ORDERING INFORMATION
Part Number
Package
48-pin plastic TQFP (fine pitch) (7
×
7)
µ
PD63315GA-9EU
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. S15157EJ2V1DS00 (2nd edition)
Date Published August 2001 NS CP (K)
Printed in Japan
The mark
shows major revised points.
©
2000
2
Data Sheet S15157EJ2V1DS

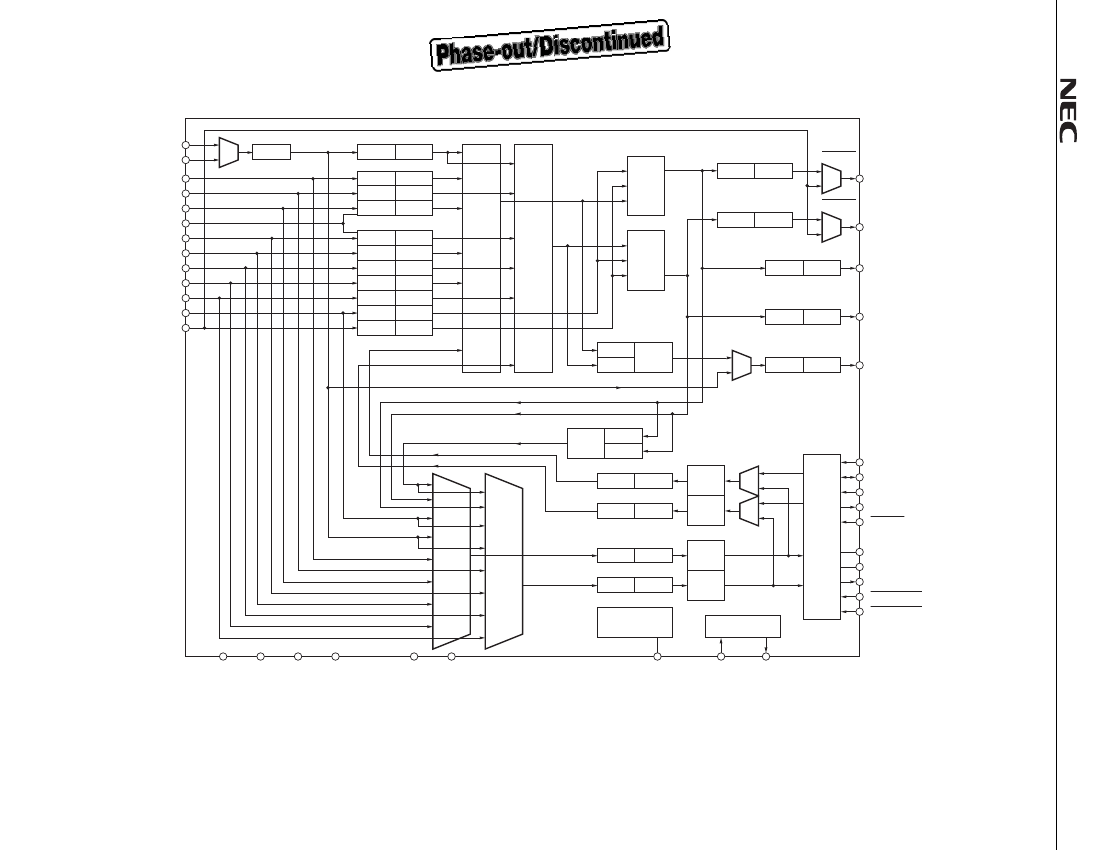

BLOCK DIAGRAM
MIC1
MIC2
LINE_IN_L
LINE_IN_R
CD_L
CD_GND
CD_R
VIDEO_L
VIDEO_R
AUX_L
AUX_R
PHONE
PC_BEEP
0
1
MC20
GA
GA
GA
GA
GA
GA
GA
GA
GA
GA
GA
MUTE
MUTE
MUTE
MUTE
MUTE
MUTE
MUTE
MUTE
MUTE
MUTE
MUTE
−6
dB
MIC
RESET
POST
Mixer
(L-ch)
Play
Mixer
(R-ch)
POST
Mixer
(R-ch)
A
MUTE
0
1
RESET
A
MUTE
0
1
MUTE
LINE_OUT_R
LINE_OUT_L
Play
Mixer
(L-ch)
A
LNLVL_OUT_L
A
MIX
0
1
A
Play
MONO
−6
dB
MUTE
LNLVL_OUT_R
MUTE
MONO_OUT
MIX
MONO
PCM
REC
−6
dB
MONO
−6
dB
MUTE
MUTE
GA
GA
DAC
(L-ch)
DAC
(R-ch)
ADC
(L-ch)
ADC
(R-ch)
LPBK
0
1
0
1
LPBK
AC-Link
Digital
I/F
SRC
SYNC
BIT_CLK
SDATA_OUT
SDATA_IN
RESET
TEST1
TEST2
EAPD
Codec_ID0
Codec_ID1
G
G
MUTE
MUTE
Voltage
Reference
Oscillator
µ
µ
µ
PD63315
µ
AV
DD
AV
SS
DV
DD
DV
SS
AFILT1 AFILT2
Vref
XTL_IN XTL_OUT
Remark
A: Attenuate, G: Gain, GA: Gain or Attenuate
µ
PD63315
PIN CONFIGURATION (Top View)
48-pin plastic TQFP (fine pitch) (7
×
7)
•
µ
PD633315GA-9EU
LNLVL_OUT_R
LNLVL_OUT_L
48
47
46
45
44
43
42
41
40
39
38
37
DV
DD1
XTL_IN
XTL_OUT
DV
SS1
SDATA_OUT
BIT_CLK
DV
SS2
SDATA_IN
DV
DD2
SYNC
RESET
PC_BEEP
1
2
3
4
5
6
7
8
9
10
11
12
MONO_OUT
36
35
34
33
32
31
30
29
28
27
26
25
Codec_ID1
Codec_ID0
TEST2
TEST1
EAPD
AV
DD2
AV
SS2
NC
NC
LINE_OUT_R
LINE_OUT_L
NC
NC
NC
NC
AFILT2
AFILT1
NC
Vref
AV
SS1
AV
DD1
13
14
15
16
17
18
19
20
21
22
23
24
VIDEO_L
MIC1
MIC2
LINE_IN_L
PHONE
AUX_L
AUX_R
VIDEO_R
CD_L
CD_GND
CD_R
LINE_IN_R
Data Sheet S15157EJ2V1DS
3
µ
PD63315
PIN FUNCTIONS
(1/2)
Pin No.
1
2
3
DV
DD1
XTL_IN
XTL_OUT
Input
Output
−
Input
Input/output
Symbol
Input/Output
−
Digital power supply
Crystal resonator connection pin/external clock input pin
Crystal resonator connection pin. When external clock is used,
leave this pin open.
4
5
6
DV
SS1
SDATA_OUT
BIT_CLK
Digital ground
AC-link data input
When primary codec: 12.288 MHz serial data clock output
When secondary codec: Serial data clock input
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
DV
SS2
SDATA_IN
DV
DD2
SYNC
RESET
PC_BEEP
PHONE
AUX_L
AUX_R
VIDEO_L
VIDEO_R
CD_L
CD_GND
CD_R
MIC1
MIC2
LINE_IN_L
LINE_IN_R
AV
DD1
AV
SS1
Vref
NC
AFILT1
AFILT2
NC
NC
NC
NC
LINE_OUT_L
LINE_OUT_R
MONO_OUT
AV
DD2
Output
Output
Output
−
Input
Input
Input
Input
Input
−
−
−
−
−
−
−
−
−
−
Input
Input
Input
Input
Input
Input
Input
Input
Input
−
Output
−
−
Digital ground
AC-link data output
Digital power supply
48 kHz sample clock input
Reset (active low)
PC Beep monaural input
PHONE monaural input
AUX stereo input, L channel
AUX stereo input, R channel
Video/audio/stereo input, L channel
Video/audio/stereo input, R channel
CD stereo input, L channel
CD stereo input, ground pin
CD stereo input, R channel
Microphone input 1
Microphone input 2
Line input, L channel
Line input, R channel
Analog power supply
Analog ground
Reference voltage output for bypass capacitor connection
Unused pin. Leave this pin open.
ADC, L channel, anti-alias filter pin
ADC, R channel, anti-alias filter pin
Unused pin. Leave this pin open.
Unused pin. Leave this pin open.
Unused pin. Leave this pin open.
Unused pin. Leave this pin open.
Line output, L channel
Line output, R channel
Monaural output
Analog power supply
Function
4
Data Sheet S15157EJ2V1DS
µ
PD63315
(2/2)
Pin No.
39
40
41
42
43
44
45
46
47
48
Symbol
LNLVL_OUT_L
NC
LNLVL_OUT_R
AV
SS2
TEST1
TEST2
Codec_ID0
Codec_ID1
EAPD
NC
Input
Input
Output
−
Output
−
−
−
Input/Output
Output
−
Function
True line level output, L channel
Unused pin. Leave this pin open.
True line level output, R channel
Analog ground
IC selection test pin. Leave this pin open.
IC selection test pin. Leave this pin open.
Codec ID0 setting pin
Codec ID1 setting pin
EAPD pin
Unused pin. Leave this pin open.
Data Sheet S15157EJ2V1DS
5
