BAS83112 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS83112

BAS83112: DescriptionDIODE 0.03 A, SILICON, SIGNAL DIODE, Signal Diode; CategoryDiscrete semiconductor diode; File Size76KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BAS83112 Overview

DIODE 0.03 A, SILICON, SIGNAL DIODE, Signal Diode

BAS83112 Parametric

Parameter Name	Attribute value
Maker	NXP
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	O-LELF-R2
Maximum non-repetitive peak forward current	0.5 A
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	0.03 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.21 W
Certification status	Not Qualified
Maximum reverse current	0.2 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	WRAP AROUND
Terminal location	END

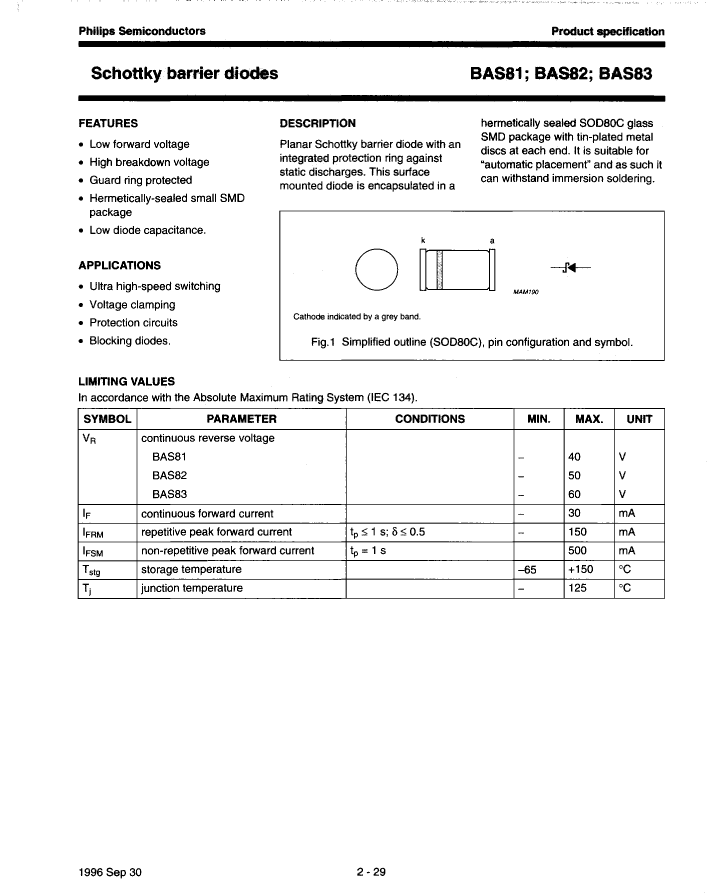

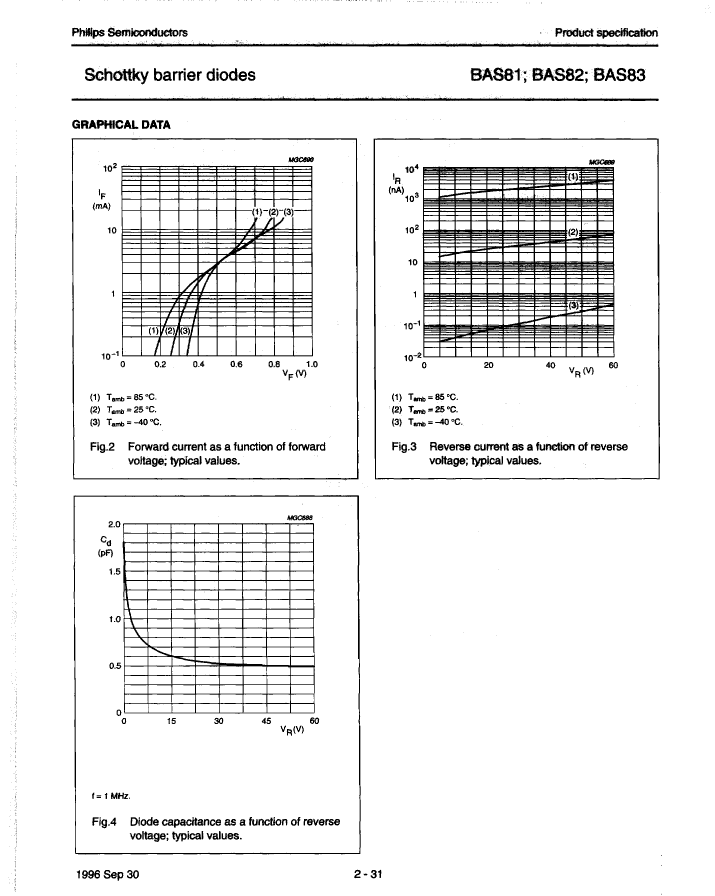

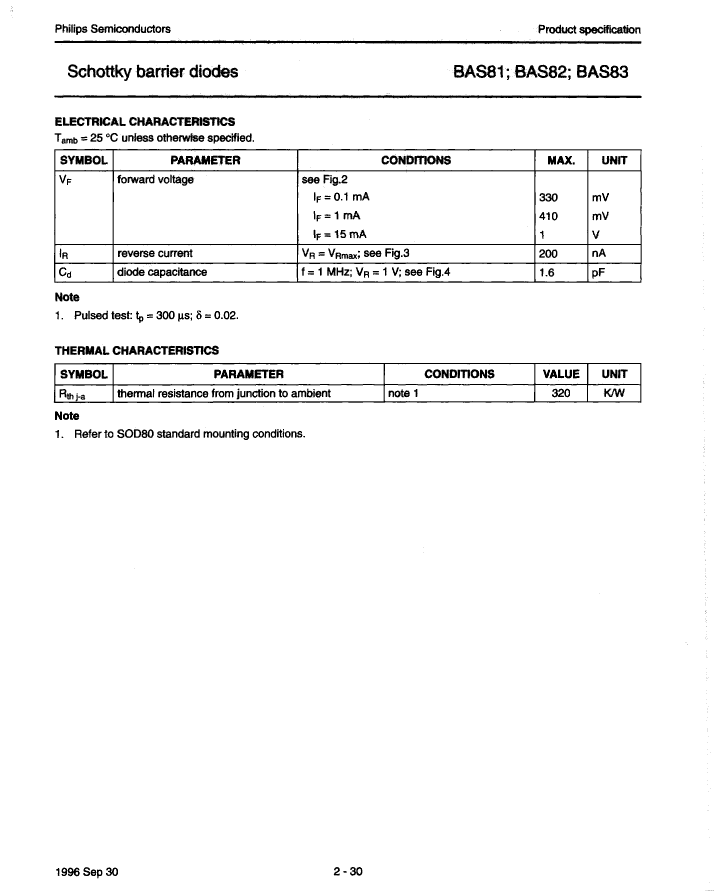

Preview

Download Datasheet

View All

BAS83112 Related Products

	BAS83112	BAS81135	BAS81112	BAS82112	BAS82135
Description	DIODE 0.03 A, SILICON, SIGNAL DIODE, Signal Diode	DIODE 0.03 A, SILICON, SIGNAL DIODE, Signal Diode	DIODE 0.03 A, SILICON, SIGNAL DIODE, Signal Diode	DIODE 0.03 A, SILICON, SIGNAL DIODE, Signal Diode	DIODE 0.03 A, SILICON, SIGNAL DIODE, Signal Diode
Maker	NXP	NXP	NXP	NXP	NXP
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V
JESD-30 code	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2	O-LELF-R2
Maximum non-repetitive peak forward current	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum power dissipation	0.21 W	0.21 W	0.21 W	0.21 W	0.21 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	0.2 µA	0.2 µA	0.2 µA	0.2 µA	0.2 µA
surface mount	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	END	END	END	END	END
