8454 /2 H4P

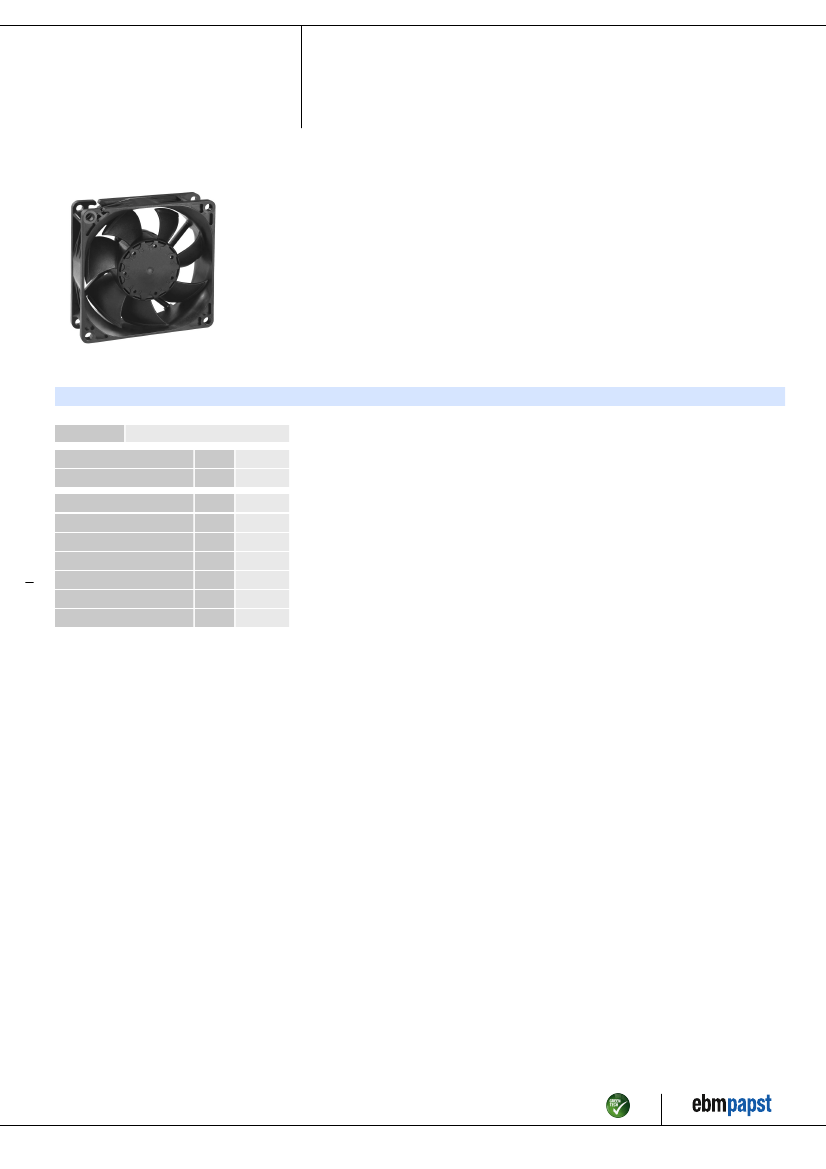

DC axial fan
ebm-papst St. Georgen GmbH & Co. KG
Hermann-Papst-Straße 1
D-78112 St. Georgen
Phone +49 7724 81-0
Fax +49 7724 81-1309
info2@de.ebmpapst.com
www.ebmpapst.com
Nominal data
Type
8454 /2 H4P
VDC
VDC
min
-1
W
°C
°C
m
3
/h
B
dB(A)
24
20 .. 26,4
6200
6.8
-20
70
117
6.4
50
Nominal voltage
Nominal voltage range
Speed
Power input
Min. ambient temperature
Max. ambient temperature
Air flow
Sound power level
Sound pressure level
ml = max. load · me = max. efficiency · rfa = running at free air · cs = customer specs · cu = customer unit
Subject to alterations
Web data sheet D · Page 1 of 4
ebm-papst St. Georgen GmbH & Co. KG · Hermann-Papst-Straße 1 · D-78112 St. Georgen · Phone +49 7724 81-0 · Fax +49 7724 81-1309 · info2@de.ebmpapst.com · www.ebmpapst.com
8454 /2 H4P
DC axial fan
Technical features
General description
Particular design features:
Rigid compression curve for high air flow at high counterpressure.
Motor has very low structure-borne noise.
Innovative impeller with winglets for low noise.
Extremely quiet Sintec sleeve bearings and ball bearings.
Models with PWM and open collector speed signal.
General features:
Material: fibreglass-reinforced plastic. Impeller PA, housing PBT.
Electronic commutation completely integrated.
Protected against reverse polarity and locking.
Connection via single strands AWG 24, TR 64, bared and tin-plated.
Air exhaust over bars. Direction of rotation counter-clockwise seen on rotor.
Mass: 105 g.
0.105 kg
80 x 80 x 25 mm
60000 h
30000 h
Mass
Dimensions
Lifetime L10 at 40 °C
Lifetime L10 at maximum
temperature
Web data sheet D · Page 2 of 4
ebm-papst St. Georgen GmbH & Co. KG · Hermann-Papst-Straße 1 · D-78112 St. Georgen · Phone +49 7724 81-0 · Fax +49 7724 81-1309 · info2@de.ebmpapst.com · www.ebmpapst.com
8454 /2 H4P
DC axial fan

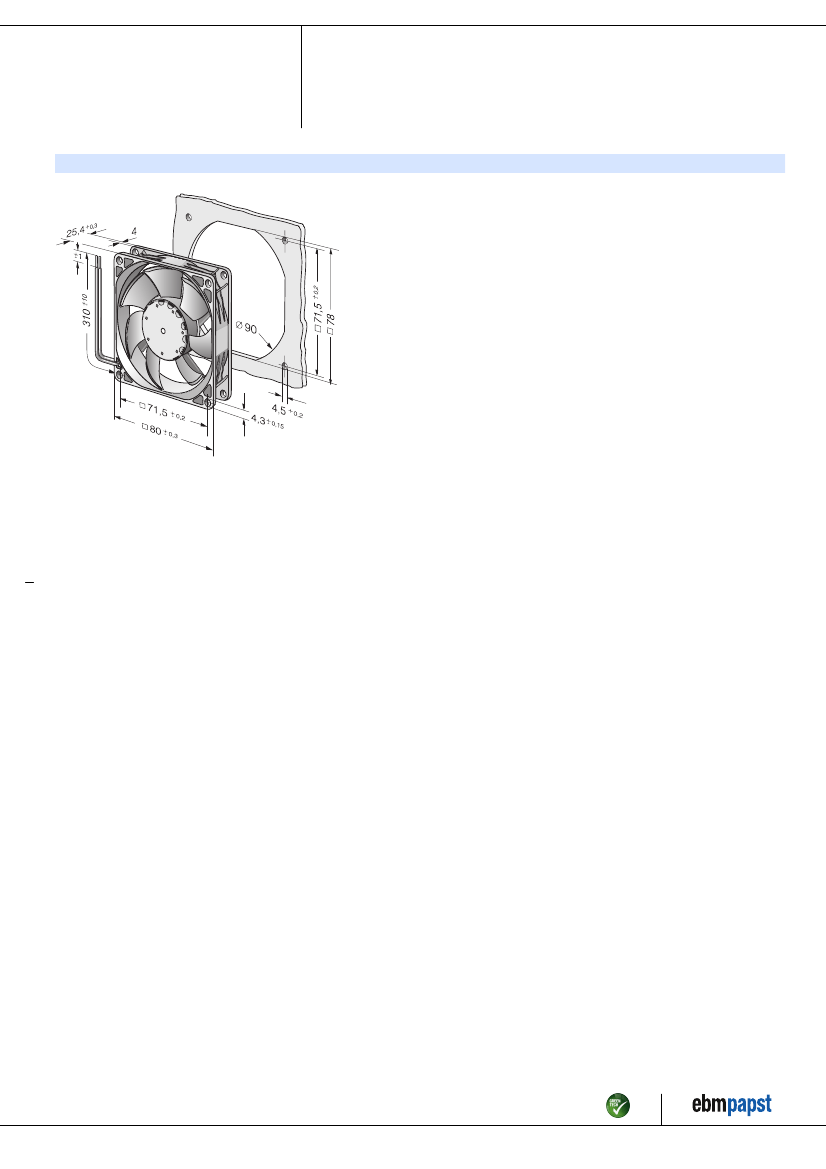

Product drawing
