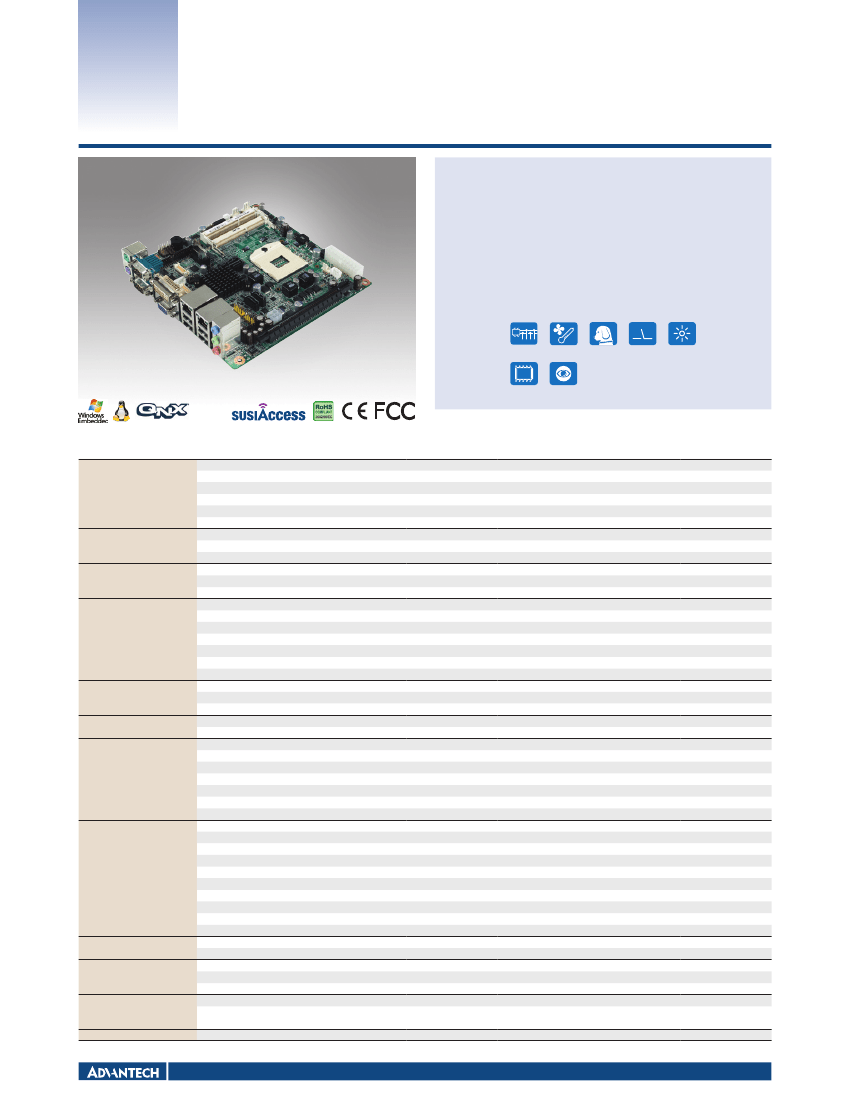

AIMB-270

Intel

®

Core™ i7/i5/Celeron uFC-PGA989 Mini-ITX

with CRT/2DVI/LVDS, 6 COM, Dual LAN, PCIe x16

Features

Supports Intel

®

Core™ i7 and i5 mobile processor (PGA) with Intel QM57

chipset

Supports dual display of 2 DVI, LVDS, and CRT

Supports PCIe x16 (Gen 2) and mini PCIe

Supports, AMT6.0 and software RAID 0, 1, 5, 10

Supports SUSIAccess and Embedded Software APIs

Software APIs:

SMBus

H/W Monitor Watchdog

GPIO

Brightness

Utilities:

BIOS flash Monitoring

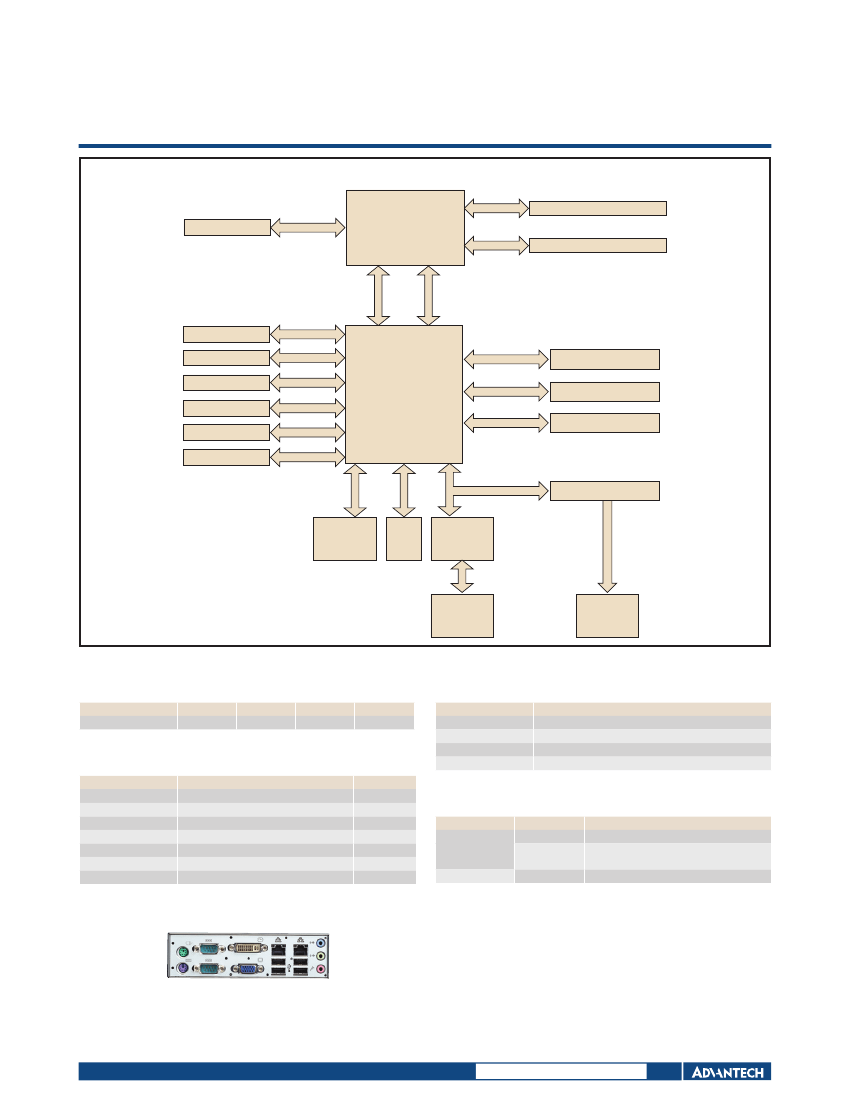

Specifications

Processor System

CPU

Max. Speed

DMI/FDI

L2 Cache

Chipset

BIOS

PCI

Mini-PCIe

PCIe x16 (Gen2)

Technology

Max. Capacity

Socket

Controller

VRAM

CRT

LVDS

1st DVI

2nd DVI

Dual Display

Interface

Controller

Connector

Max Data Transfer Rate

Channel

CRT

DVI

Ethernet

USB

Audio

Serial

PS/2

USB

LVDS/inverter

2nd DVI

Serial

IDE

SATA

Mini-PCIe

Parallel

IrDA

GPIO

Output

Interval

Power On

Intel Core i7-620M

Intel Core i5-520M

Intel Celeron

2.66 GHz

2.4 GHz

1.86 GHz

DMI/FDI

4 MB

3 MB

2 MB

Intel 5 series Chipset (QM57)

AMI EFI 64 Mbit SPI

-

1

8 GB/s per direction, 1 slot

DDR3 800/1066 MHz SDRAM

8 GB

2x 204 PIN DDR3 SO-DIMM (Non-ECC)

Integrated Gfx Gen5.75, supports DirectX 10 and OpenGL 2.1

1GB maximum shared memory with 2GB and above system memory installed

Yes, supports max. resolution 2048 x 1536

Single channel 18/24-bit/Dual channel 36/48-bit LVDS, supports max resolution 1920 x 1200

Yes, supports max. resolution 1920 x 1200

Yes, with internal pin header, supports max. resolution 1920 x 1200

CRT+LVDS, CRT+DVI, LVDS+DVI

10/100/1000 Mbps

GbE LAN1: Intel 82577LM, LAN2: Intel 82583V

RJ-45 x 2

300 MB/s

4

1

2

4 (USB 2.0 compliant)

3 (Mic-in, Line-out, Line-in)

2 (RS-232)

2 (1 x keyboard and 1 x mouse)

4 (USB 2.0 compliant)

1

4 (RS-232)

-

4

1

-

8-bit

System reset

Programmable 1 ~ 255 sec/min

Intel Core i7-620M 2.66 GHz, 4 GB DDR3 1333 MHz SDRAM

5V

3.3 V

12 V

5 Vsb

3.42 A

1.1 A

1.19 A

0.5 A

Operating

Non-Operating

0 ~ 60° C (32 ~ 140° F), depends on CPU speed

-20 ~ 70° C (-4 ~ 158° F)

and cooler solution

170 mm x 170 mm (6.69" x 6.69")

Expansion Slot

Memory

Graphics

Ethernet

SATA

Rear I/O

Internal Connector

Watchdog Timer

Power Requirements

Environment

Physical Characteristics

-12 V

0.07A

Temperature

Dimensions

Industrial Motherboards

All product specifications are subject to change without notice

Last updated : 13-Jun-2012
