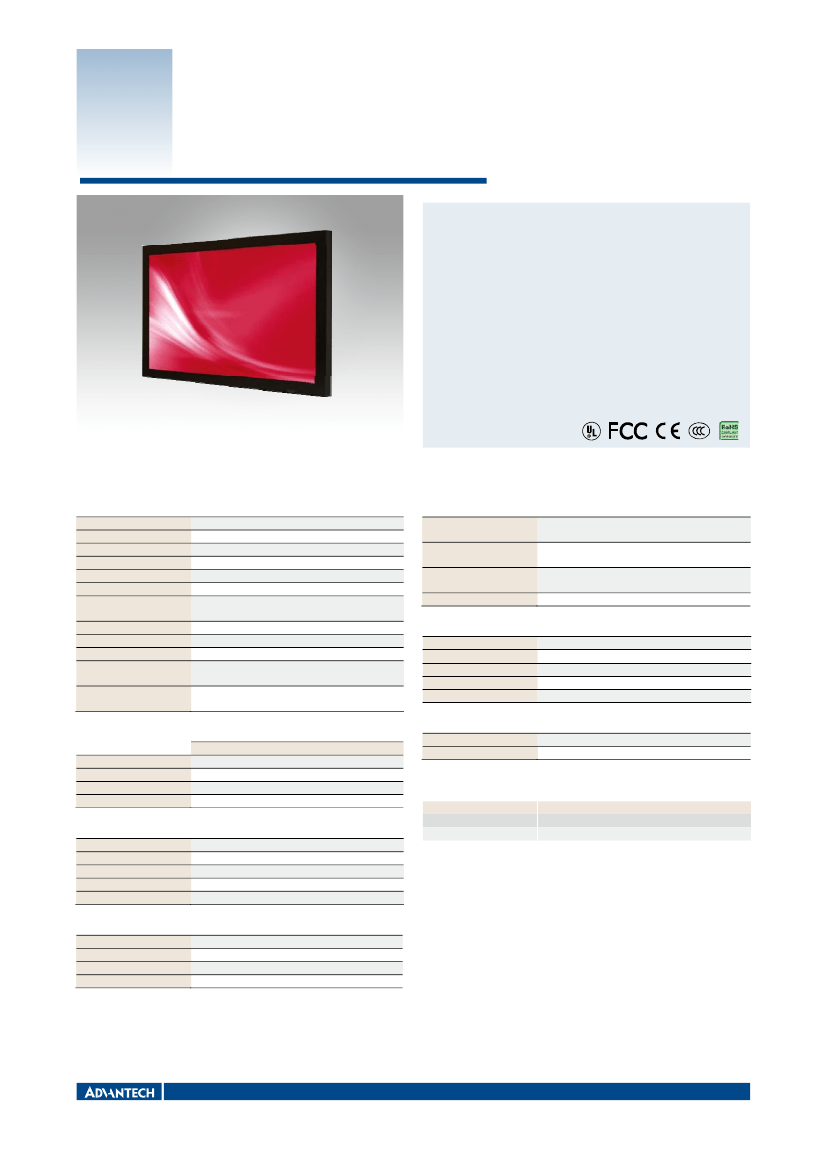

DSD-3042

42" FHD Industrial Digital Signage

Monitor & Touch Screen

Features



High Resolution FHD 1080p (1920 x 1080)



Ultra-Wide Viewing Angle (176°)



Prolonged Life: 50,000hrs



Configurable I/O



Durable and Professional Design



IRFM™



Energy Saving Control



Player Mounting Space reserved (8.7 x 8.7 x 2.3 inch)



Optical Touch with Multi Touch Support

Display

LCD Panel

Brightness

Contrast Ratio

Viewing angle

Response Time

Supported Colors

Resolution

Horizontal / Vertical

Frequency

Max. Input

Resolution

DDC

Connector

Communication Port

(Transport Protocol)

450 cd/m

5000 : 1

H: 176°/V: 176°

6.5ms (GTG)

16.7M colors

1920 x 1080 (16:9)

30 ~ 80 KHz/56 ~ 75 Hz

1920 x 1080 @ 60 Hz (Analog)

1920 x 1080 @ 60 Hz (Digital)

VGA/Component/AV/S-Video/Audio (optional)/ HD-

SDi BNC (optional)/HDMI 1.3c x2

D-Sub 9 pin In, RJ45 In/Out

(RS-232C In, RS-485 In/Out)

Mechanical/ Environmental

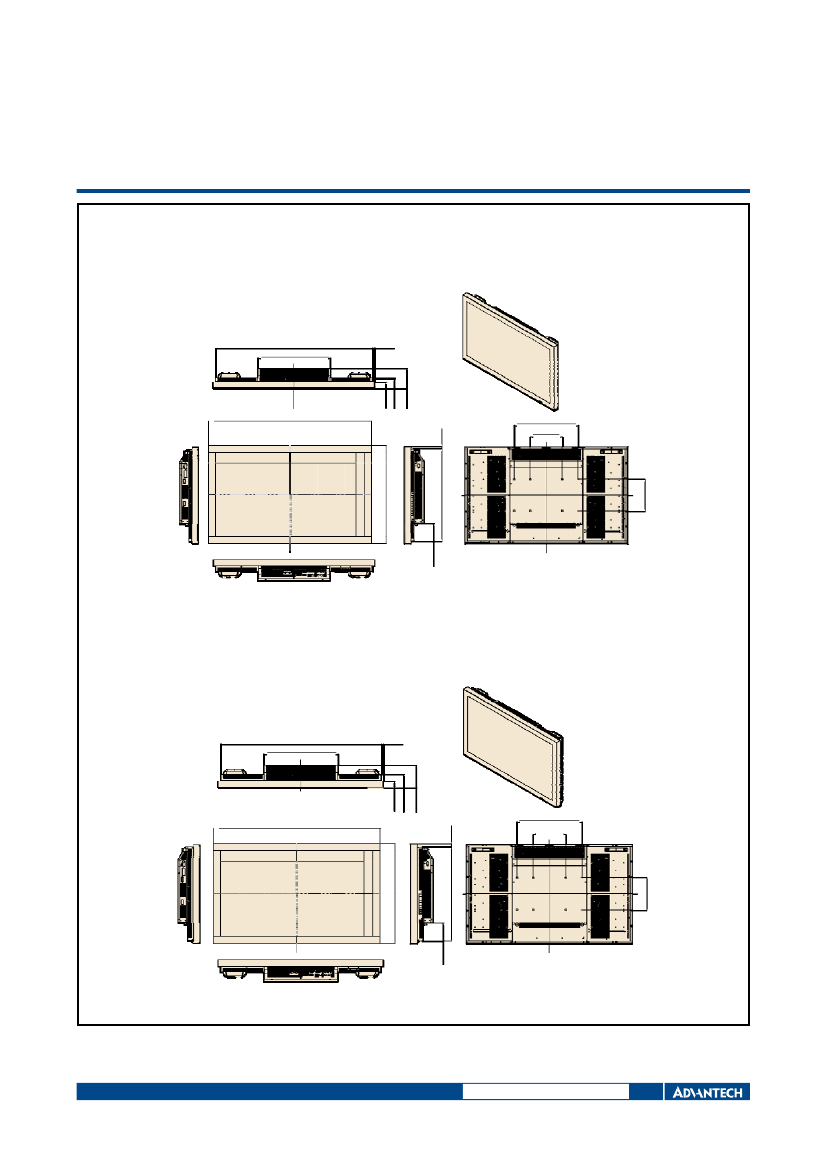

Size and Weight

Dimensions w/o Stand

(W x H x D)

Weight w/o Stand

Wall

Arm Mount Type

Fanless Design

DSD-3042FNC : 1026 x 619 x 128.9mm

DSD-420T : 1022.2 x 615.2 x 135.4mm

DSD-3042FNC : Net:30kgs/Gross: 36kgs

DSD-420T : Net: 29kgs/Gross: 33kgs

400 mm x 200 mm VESA

Yes

Electrical

Power Supply

Normal Operation

Suspend / Standby

Power Off

Power Output

AC 100V ~ 240V (50/60 Hz)

<= 231W

<= 15W

<= 1W

AC 100 V ~ 240 V (50/60 Hz), 2A DC 12V, 2A

Touch Panel

Response Time

Interface

Transmittance

Operating Systems

DSD-420T-45FHA1E

14ms (Typ.)

USB HID

90%

Windows 2000/XP/Vista/7, Mac OS, Linux

Environmental

Operating Temperature

Storage Temperature

0° C ~ 35° C, 85% RH

-20° C ~ 60° C, 85% RH

Ordering Information

Part No.

DSD-3042FNC-L04E

DSD-420T-45FHA1E



Description

42" Industrial Digital Signage Monitor

42" Industrial Digital Signage Optical Touch Monitor

OSD Functions

Control

Language

Multimedia

Source Auto Detect

Key Lock

RS-232C, Push Button, IR Remote Controller

English, Chinese

PIP, PBP(

side by side

), Zoom

Yes

Product warranty : 1 year

Options

HD-SDi / SDi

Audio Amplifier

Speaker

Other

In x 2, Out x 1 (With Advanced Version only)

Audio in & Speaker out (RCA)

4Ω/10W x 2

Stand, Back Cover (I/O cover, R/L cover)

All product specifications are subject to change without notice

Last updated : 4-Feb-2012
