FDK170-830
17" SXGA TFT Open Frame Panel Computer
Features
●
Front panel open frame design
●
Outstanding configuration flexibility delivering best ROI
●
17" SXGA TFT LCD display
®
●
Intel Atom™ processor N270 1.6 GHz
●
Touchscreen optional
●
Changeable front bezel
●
Supports VESA arm and open frame mount
4
11
Brightness
adjustment (VR)
1
2
3
5
6
7
8
9 10

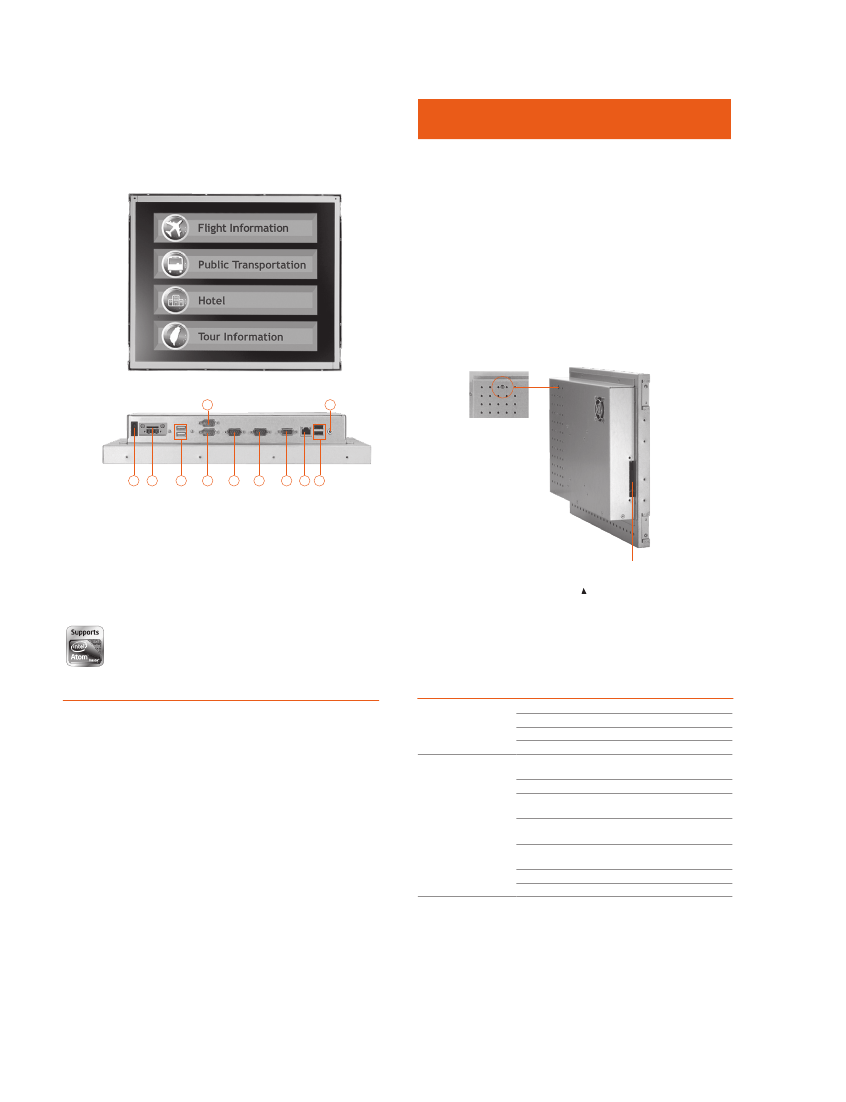

1. Power switch (ATX)
2. Power input connector
3. USB 2.0 x 2
4. COM 4 (RS-232)
5. COM 3 (RS-232)
6. COM 1 (RS-232/422/485)
7. COM 2 (RS-232)
8. VGA
9. Ethernet
10. USB 2.0 x 2
11. Audio (Line-out)
CompactFlash™ slot
Rear view
Introduction
The FDK170-830 is an open frame display panel computer with outstanding flexibility,
configurable in a variety of ways to deliver best ROI for a variety of applications. It
features Intel
®
Atom™ processor N270 1.6 GHz with a 17" LCD display with up to 1280x
1024 resolution, providing a very cost effective low power solution.
Ultra slim design
Designed to integrate into your custom enclosure, this unit offers an open frame slim
design architecture for easy fit. The FDK170-830 is ideal for indoor kiosk, HMI automation,
signage and other applications. The system is only 65mm deep and provides narrow bezel
widths of 13 ~ 15mm for space-saving custom bezels and enclosure applications.
Touchscreen option
A resistive touchscreen option is available for interactive user interface requirements.
Optionally, when ordered without touchscreen you get an even lower cost solution for
dynamic signage or informational applications.
Brightness adjustment & PCIe Mini Card slot
The hidden but accessible brightness adjustment on back cover protects against end
user access. One PCIe Mini Card slot is standard for I/O expansion such as WiFi, 3G
connection, or other 3rd party I/O cards.
Specifications
LCD Panel
Display Type
Brightness (cd/m
2
)
Resolution
Viewing Angle (H/V)
CPU
Chipset
System Memory
BIOS
Storage
Watchdog Timer
Onboard Graphics
17" SXGA TFT LCD
250 nits
1280 x 1024
160°/130°
Intel
®
Atom™ processor N270 1.6
GHz with FSB 533 MHz
Intel
®
945GSE + ICH7M
1 x 200-pin DDR2 SO-DIMM max.
up to 2 GB
AMI 8 Mbit with RPL/PXE LAN
boot ROM
1 x 2.5" SATA HDD
1 x CompactFlash™
255 levels, 0~255 sec.
Integrated in Intel 945GSE
Main System
553
* All specifications and photos are subject to change without notice.
Specifications
I/O Connector
1 x RS-232/422/485 (COM 1)
3 x RS-232 (COM 2 ~ 4)
1 x 10/100/1000Mbps Ethernet
4 x USB 2.0
1 x Audio (Line-out)
1 x VGA
1 x VR (brightness adjustment)
Expansion Interface
1 x PCIe Mini Card
Touchscreen
Resistive type (optional)
Power Supply
12/24 VDC
Dimensions
367 mm (14.45") (W) x 65 mm (2.6") (D)
x 304.5 mm (11.99") (H) (FDK170-830-N, without touch)
367 mm (14.45") (W) x 69.8 mm (2.74") (D)
x 304.5 mm (11.99") (H) (FDK170-830-R, with touch)
Packing Dimensions
510 mm (20.08") (W) x 190 mm (7.48") (D)
x 540 mm (21.26") (H)
Weight (net/gross)
5.52 kg (12.16 lb)/7.5 kg (16.53 lb)
Environment
Operating temperature: 0° ~ +50°C (32°F ~ 122°F)
Relative humidity: 10% ~ 95% @ 40°C, non-condensing
Certification
CE
* Specification and certifications are based on options and may vary.
** W.T.: Wide Temperature. All W.T. supported products have to be sorted by Axiomtek.
Ordering Information
FDK170-830-N
17" TFT open frame panel computer
FDK170-830-R
17" TFT open frame touch panel computer
50966A23040E
Power adapter, 70W, 110~230VAC to 24VDC
* Specification and certifications are based on options and may vary.
Overview
Industrial Panel
Computers &
Monitors
Heavy-duty Fanless
Touch Panel
Computers
Digital
Signage
Solutions
Healthcare
& Medical
Solutions
Open Frame
Panel
Computers
Accessories
Optional OS Installation
Windows
®
XP
Windows
®
7
Linux Kernel 2.6
Rear view
Side view

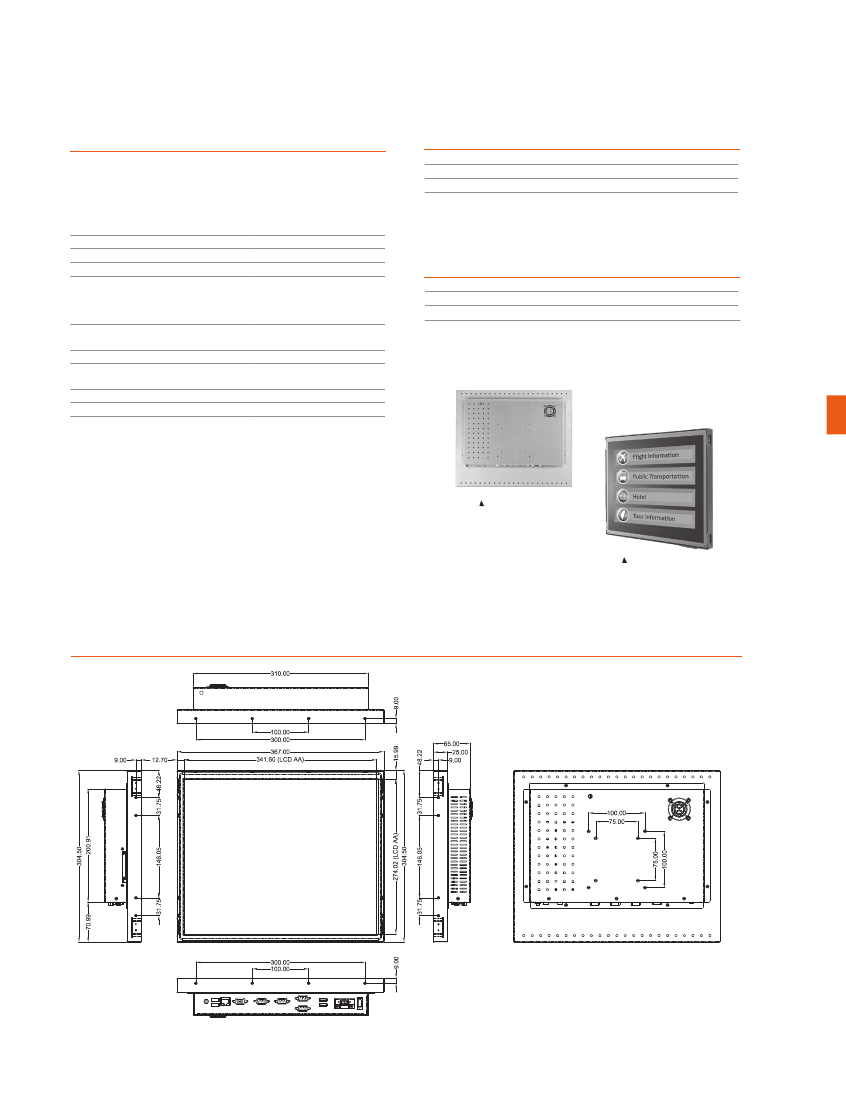

Dimensions
FDK170-830-N
(without touchscreen)
For dimensions of FDK170-830-R (with touchscreen),
please refer to user manuals.
* All specifications and photos are subject to change without notice.
© 2013 Axiomtek Co., Ltd. All rights reserved.
a x io m te k .c om
554
