710/740 MHz Duplexer
Applications
•
•
For Band 17 LTE applications
LTE Band 17 handsets, data cards, mobile routers
Product Features
•
•
•
•
•
•
•
•
•
For LTE Band 17 applications
Usable bandwidth 12 MHz (each band)
High Tx-Rx isolation
Low loss
High attenuation
Single ended - Balanced Rx operation
Ceramic Chip Scale Package (CSP)
Hermetic
RoHS
compliant (2002/95/EC),
Pb-free

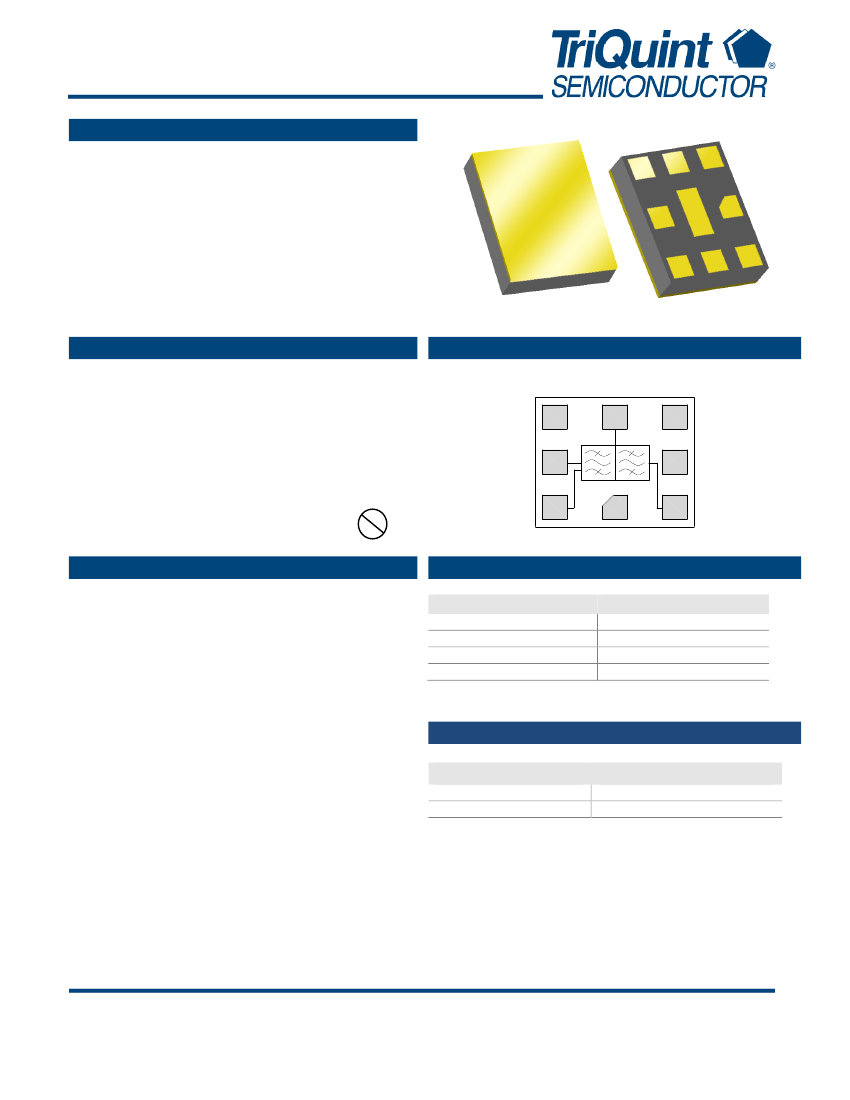

Functional Block Diagram
Top View
Gnd
7
Ant
6
Gnd
5
4
Rx
Out
8
1
2
Gnd
Pb
Rx
Out
3
Gnd
Tx in
General Description
856931 is a high-performance Surface Acoustic Wave
duplexer designed to meet the strict LTE requirements for
use in Band 17.
The 856931 is specifically designed to meet the high
performance expectations of insertion loss, isolation and
linearity in LTE systems operating in Band 17 applications
under all operating conditions.
The 856931 uses common module packaging techniques to
achieve the industry standard 2.5 x 2.0 mm
2
footprint. The
duplexer exhibits excellent power handling capabilities.
Pin Configuration
Pin # SE-Balanced
1,8
3
6
2,4,5,7,9
Description
Rx output
Tx input
Antenna/Phasing inductor
Ground
Ordering Information
Part No.
856931
856931-EVB
Description
Packaged Part
Evaluation Board
Standard T/R size = 10,000 units/reel.
Preliminary Data Sheet: Rev D 11/23/2011
© 2011 TriQuint Semiconductor, Inc.
- 1 of 9 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
856931
710/740 MHz Duplexer
Preliminary Data Sheet
Tx - Electrical Specifications
(1)
Specified Temperature Range:
(2)
-20 to +90 ºC
Parameter
(3)
Center Frequency
Maximum Insertion Loss
Amplitude Variation
Conditions
Ant-Tx Specification
704 – 716 MHz
704 – 716 MHz (over any 5 MHz
in-band)
10 – 686 MHz
728 – 734 MHz
734 – 746 MHz
746 – 768 MHz
768 –805 MHz
869 – 894 MHz
1408 – 1432 MHz
1565 – 1585 MHz
1597 – 1607 MHz
1805 – 1880 MHz
1930 – 1990 MHz
2110 – 2155 MHz
2155 – 2170 MHz
2400 – 2484 MHz
2816– 3000 MHz
704 – 716 MHz
704 – 716 MHz
Min
-
-
-
32
15
45
33
30
30
30
43
44
40
50
45
50
45
30
10
10
Typical
(4)
710
1.8
0.7
34
30
49
38
35
35
45
50
51
52
60
62
60
60
55
12
12
Max
-
2.5
1.2
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Units
MHz
dB
dB p-p
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
Absolute Attenuation
(5)
Return Loss at Tx
Return Loss at Antenna
Tx-Rx Specification
704 – 716 MHz (Differential)
704 – 716 MHz (Common-mode)
734 – 746 MHz (Differential)
1408 – 1432 MHz
2112 – 2148 MHz
2816 – 3000 MHz
54
54
50
30
30
30
-
-
56
56
52
50
50
50
50
50
-
-
-
-
-
-
-
-
dB
dB
dB
dB
dB
dB
Ω
Ω
Isolation
Tx Impedance (single-ended)
(6)
Ant Impedance (single-ended)
(6)
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 4
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to zero dB
6. This is the optimum impedance in order to achieve the performance shown
Preliminary Data Sheet: Rev D 11/23/2011
© 2011 TriQuint Semiconductor, Inc.
- 2 of 9 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
856931
710/740 MHz Duplexer
Preliminary Data Sheet
Rx - Electrical Specifications
(1)
Specified Temperature Range:
(2)
-20 to +90 ºC
Parameter
(3)
Center Frequency
Maximum Insertion Loss
Amplitude Variation
Conditions
Ant-Rx Specification
734 – 746 MHz
734 – 746 MHz (over any 5 MHz
in-band)
10 – 674 MHz
674 – 686 MHz
686 - 704 MHz
704 – 716 MHz
716 – 722 MHz
776 – 793 MHz
793 – 805 MHz
805 – 2300 MHz
2300 – 3000 MHz
734 – 746 MHz
734 – 746 MHz
734 – 746 MHz
734 – 746 MHz (Over any 5MHz
in-band)
Min
-
-
-
45
53
35
50
32
32
40
40
35
10
10
-5.0
-0.7
-
-
-
-
Typical
(4)
740
1.9
0.5
48
58
50
53
53
35
42
42
37
12
12
-
-
-103
-102
50
100
Max
-
2.5
1.2
-
-
-
-
-
-
-
-
-
-
-
5.0
0.7
-
-
-
-
Units
MHz
dB
dB p-p
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
degree
dB
dBm
dBm
Ω
Ω
Absolute Attenuation
(5)
Return Loss at Rx
Return Loss at Antenna
Output phase balance
Output amplitude balance
IM2 product
(6) (a,b)
IM3 product
(6) (c,d)
ANT Impedance (single-ended )
(7)
Rx Impedance (balanced)
(7)
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 4
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to zero dB
6. All power levels are referenced to the antenna port. Two CW tones are applied at frequencies f1 and f2, and the resultant
intermodulation product in the Rx band is measured. The first tone is applied to the Tx port, in the range f1 = 704 to 716 MHz, at
+21.5 dBm (referenced to the antenna port). The second tone is -15 dBm, applied to the antenna port at f2, with the following four
cases:
a.
f2 = 30 MHz
b.
f2 = 2 * f1 + 30 MHz
c.
f2 = f1 - 30 MHz
d.
f2 = 3 * f1 + 30 MHz
The intermodulation product is measured at f1 + 30 MHz.
7. This is the optimum impedance in order to achieve the performance shown
Preliminary Data Sheet: Rev D 11/23/2011
© 2011 TriQuint Semiconductor, Inc.
- 3 of 9 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
856931
710/740 MHz Duplexer

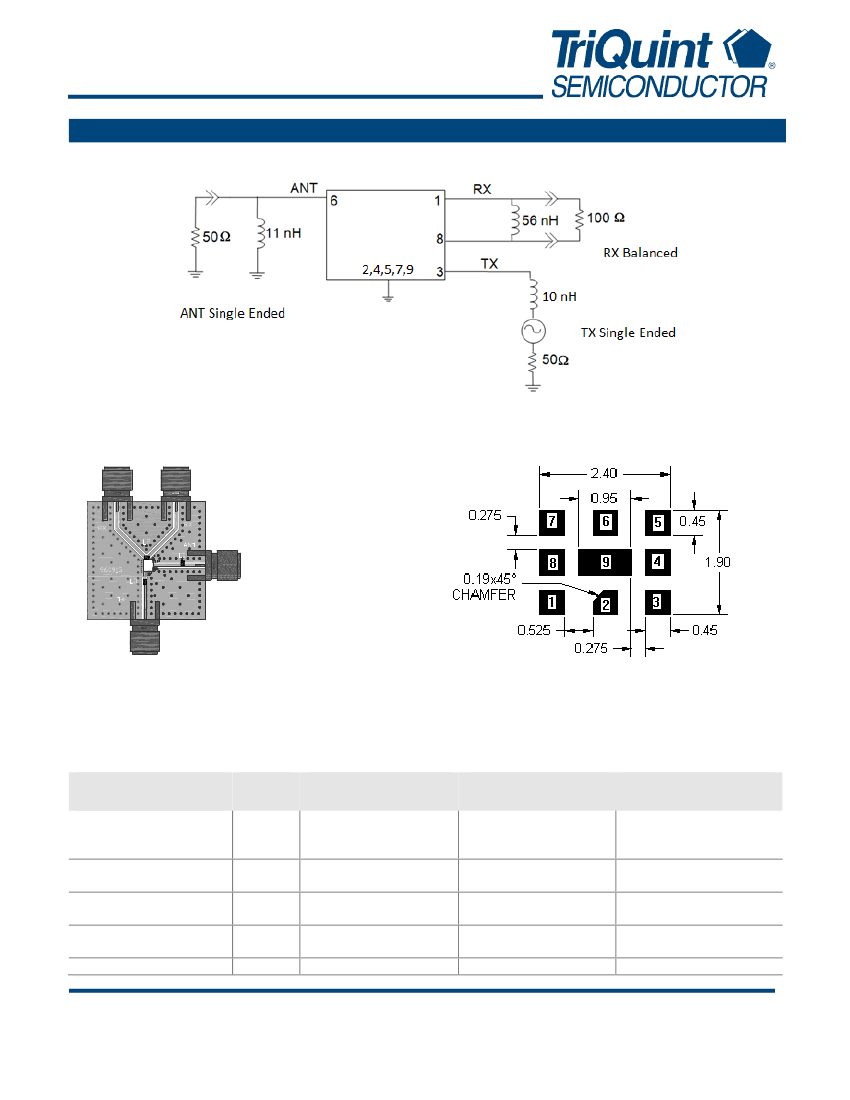

Reference Design –Ant- 50Ω SE In, Tx-50Ω SE Out , Rx-100Ω Bal Out
Ω
Ω
Ω
Schematic
Notes:
1.
Actual matching values may vary due to PCB layout and parasitic
PC Board
Mounting Configuration
FD
M
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Bill of Material
Reference
Design
L1 at ANT
L2 at Rx
L3 at Tx
SMA
PCB
Preliminary Data Sheet: Rev D 11/23/2011
© 2011 TriQuint Semiconductor, Inc.
WWY
Notes:
1.
Top view of the duplexer.
2.
All dimensions are in millimeters.
3.
This footprint represents a recommendation only.
Value
Description
Chip inductor,
Wire wound, 0402, ±2%
Chip inductor
Wire-wound, 0402, ±3%
Chip inductor
Wire-wound, 0402, ±3%
SMA connector
3-layer
- 4 of 9 -
Manufacturer
MuRata
MuRata
MuRata
Radiall USA Inc.
multiple
Part Number
LQW15AN11NG00
LQW15AN56NH00
LQW15AN10NG00
9602-1111-018
N/A
11 nH
56 nH
10 nH
N/A
N/A
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
856931
710/740 MHz Duplexer

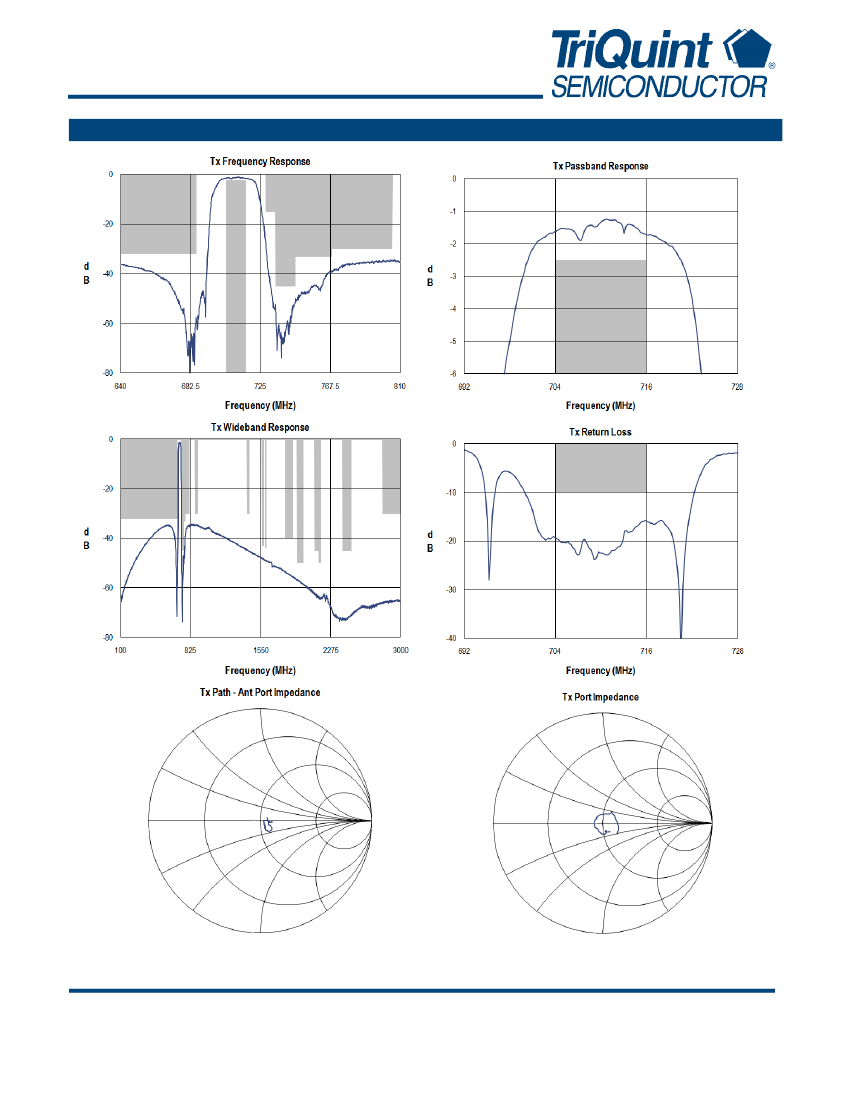

Tx - Typical Performance
(at room temperature)
Preliminary Data Sheet: Rev D 11/23/2011
© 2011 TriQuint Semiconductor, Inc.
- 5 of 9 -
Disclaimer: Subject to change without notice
Connecting the Digital World to the Global Network
