PBR-1051-054T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PBR-1051-054T

PBR-1051-054T: DescriptionD Microminiature Connector, 51 Contact(s), Female, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size405KB，4 Pages; ManufacturerCristek Interconnects Inc

Download Datasheet Parametric View All

PBR-1051-054T Overview

D Microminiature Connector, 51 Contact(s), Female, Solder Terminal, Receptacle,

PBR-1051-054T Parametric

Parameter Name	Attribute value
Maker	Cristek Interconnects Inc
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connector type	D MICROMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	PBR
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	POLYPHENYLENE SULFIDE
Housing size	G
Termination type	SOLDER
Total number of contacts	51

Preview

Download Datasheet

View All

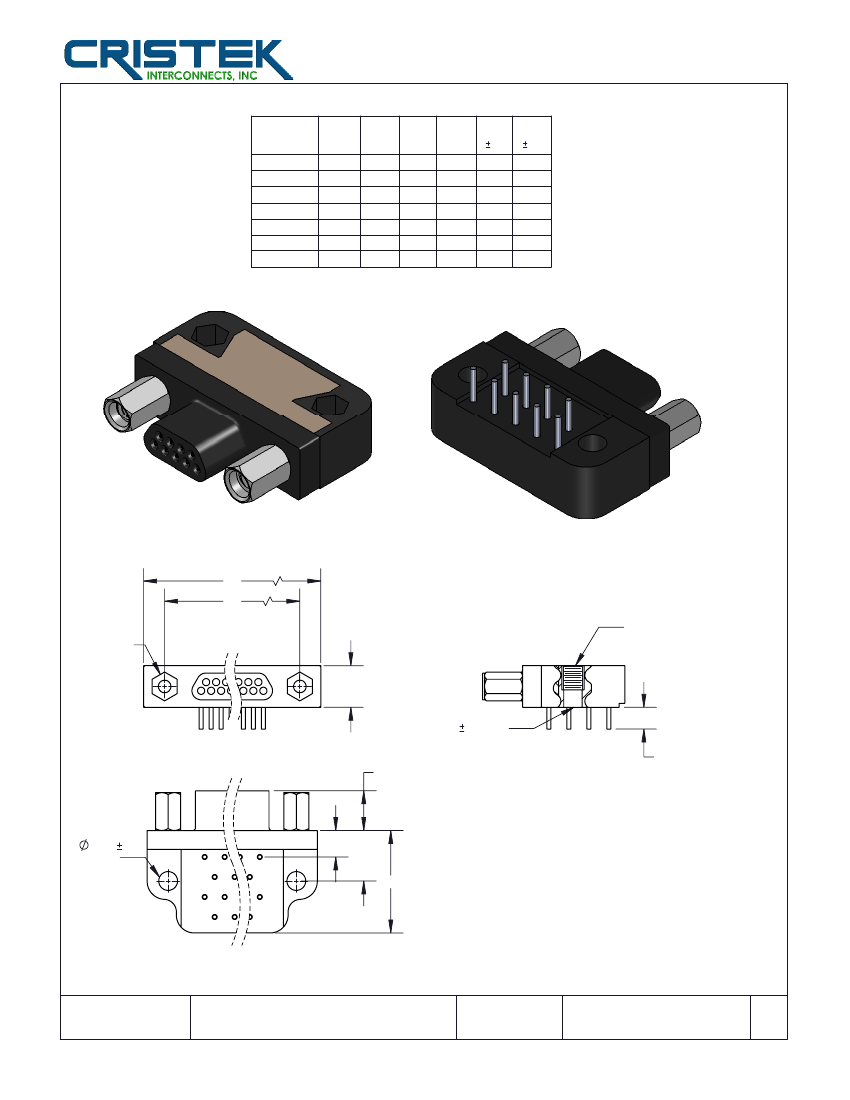

MICRO-D PLASTIC SHELL

RIGHT ANGLE P.C.B. MOUNT

NO. OF

POSITIONS

SERIES

PBR

MAX

.790

.940

1.090

1.190

1.340

1.550

1.440

NOM

.565

.715

.865

.965

1.115

1.265

1.215

MAX

.230

.275

MAX

.425

.525

.660

.01

.25

.30

.23

.13

.15

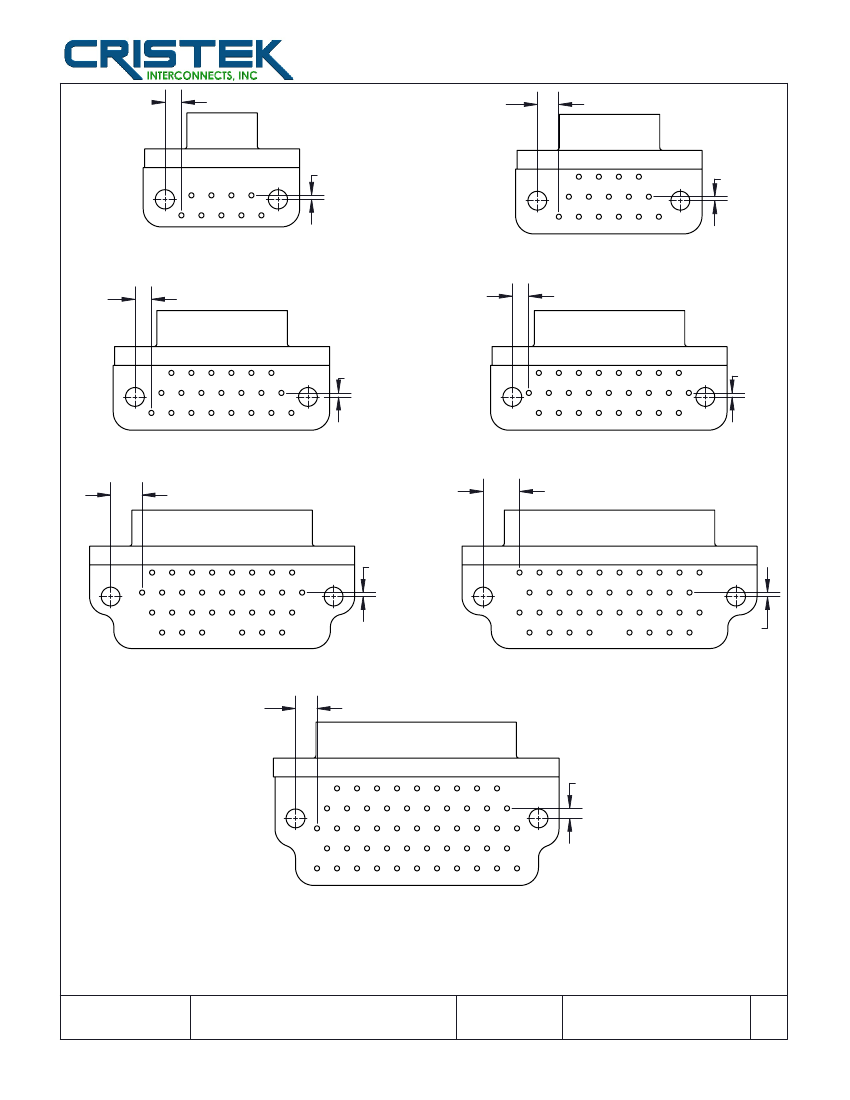

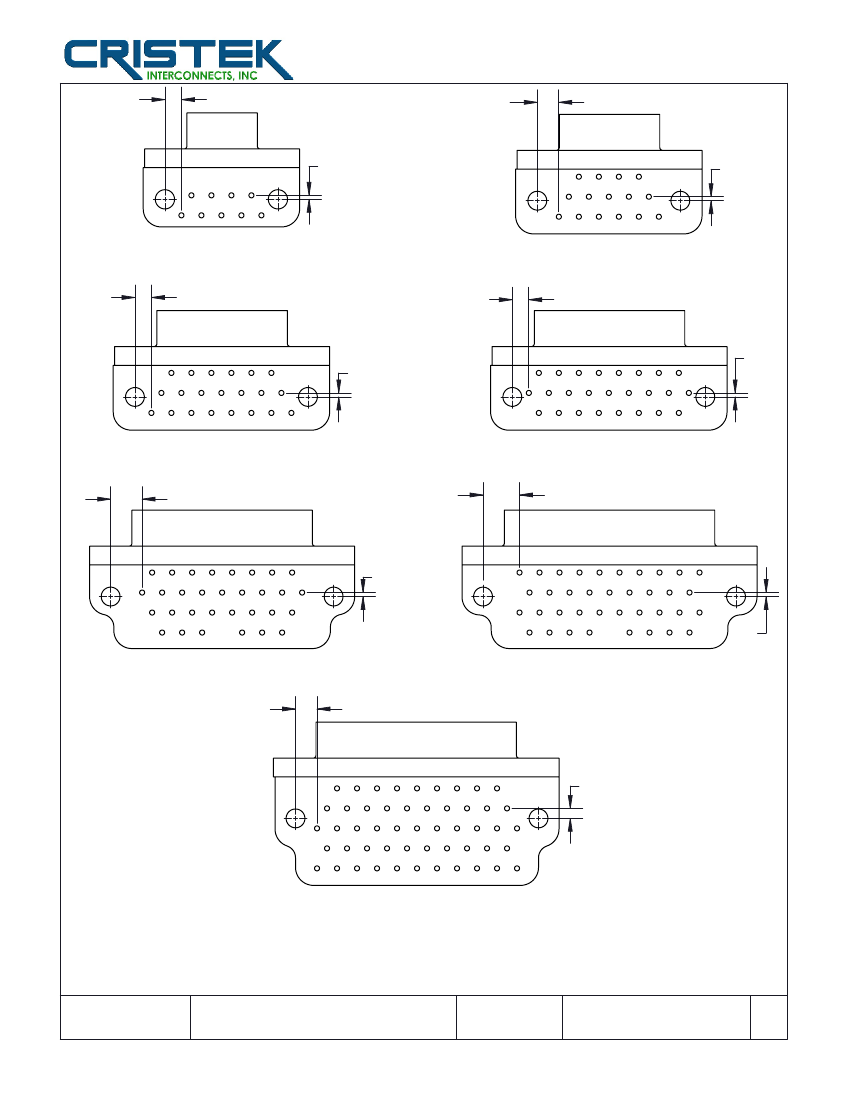

2x JACKPOST

#2-56 UNC-2B

.096 .005 DIA

THRU HOLE

.183 MAX (RECEPT)

.202 MAX (PLUG)

#2-56 THREADED INSERT

(OPTIONAL)

SEE

TERMINATION

OPTIONS

.096 .005

THRU HOLE

TOLERANCE: .XXX ±.005

.XX ±.01

ANGLE ±1°

TITLE

MICRO-D PLASTIC SHELL

RIGHT ANGLE P.C.B. MOUNT

DWG. NO.

SHT

REV

PBR

CRISTEK.COM

888.265.9162
