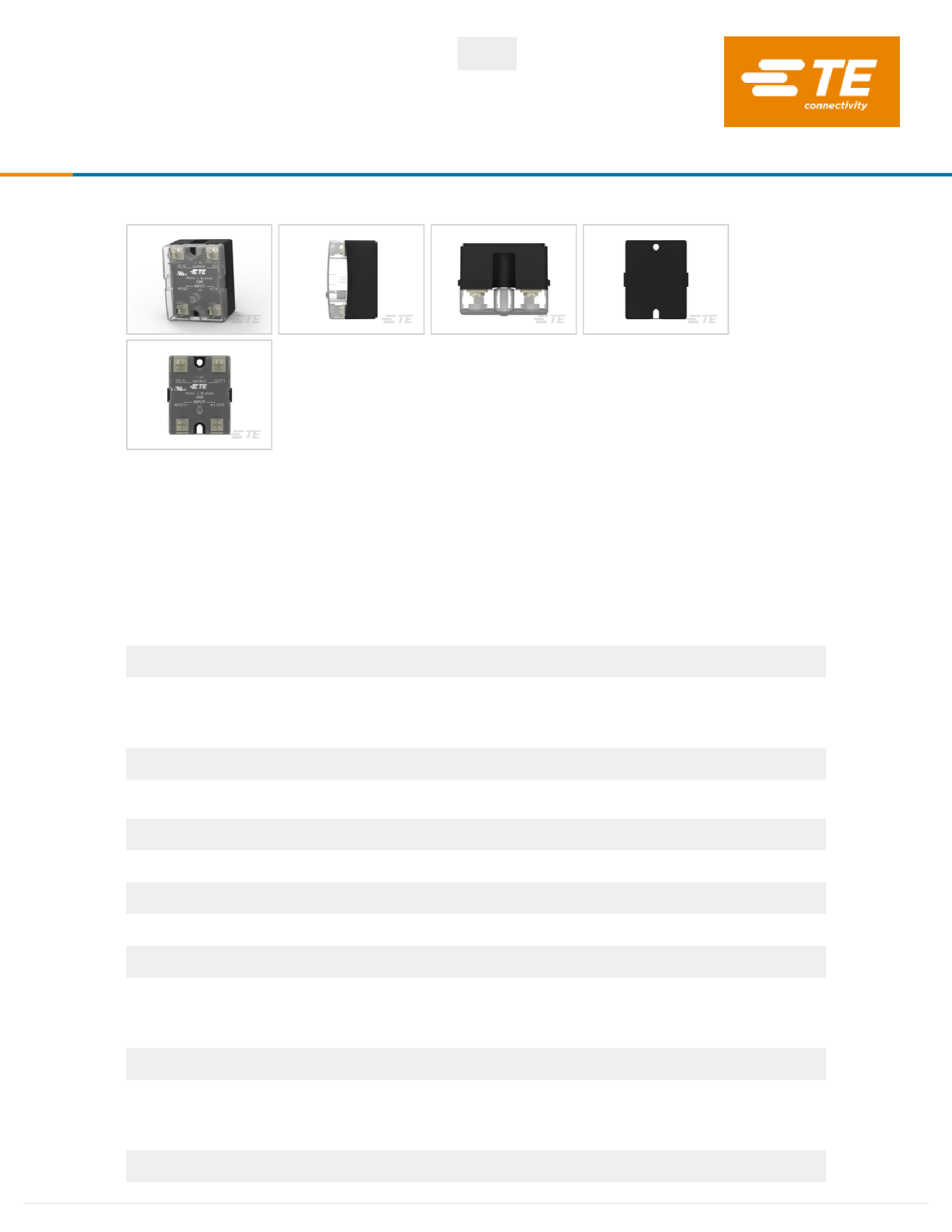

SSR SRS,PANEL MNT, 25A,480V AC - AC I/P
TE Part # 5-1393030-0
TE Internal #: SSR-480A25
SSR SRS,PANEL MNT, 25A,480V AC - AC I/P
Potter & Brumfield
|
Potter & Brumfield SSR
ACTIVE
TE Part # 5-1393030-0
TE Internal #: SSR-480A25
View on TE.com >
Relays, Contactors & Switches
>
Relays
>
Power Relays
Power Relay Type:
Solid State
Contact Arrangement:
1 Form A (SPST-NO)
Relay Mounting Type:
Chassis Mount
Features
Product Type Features
Output Type
Power Relay Type
Configuration Features
Output Switching
Electrical Characteristics
Input Voltage Typical
Output Voltage Rating (AC Relays)
Output Current Rating
Input Voltage
Output Current (Min)
Output Voltage (Max)
Body Features
Product Weight
Case Color
Contact Features
Switch Arrangement
Contact Arrangement
1 Form A (SPST-NO)
1 Form A (SPST-NO)
98 g[3.45 oz]
Black
90 – 280 VAC
48 – 660 Vrms
.1 – 25 Arms
90 – 280 VAC
.1 A
660 V
Zero
AC
Solid State
For support call+1 800 522 6752
09/12/2019 07:36AM | Page 1
SSR SRS,PANEL MNT, 25A,480V AC - AC I/P
TE Part # 5-1393030-0
TE Internal #: SSR-480A25
Contact Arrangement
Termination Features
Relay Termination Type
Mechanical Attachment
Coupling
Relay Mounting Type
Housing Features
Relay Housing Style
Dimensions
Dimensions (L x W x H) (Approximate)
Usage Conditions
Operating Temperature Range
Operation/Application
R-Switch & slimSSR Relays
1 Form A (SPST-NO)
Screws
Optical
Chassis Mount
Hockey Puck
45 x 57.8 x 36.5 mm[1.772 x 2.276 x 1.437 in]
-30 – 80 °C
No
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Not Yet Reviewed
Not Yet Reviewed
Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2019
(197)
Candidate List Declared Against: JAN 2019
(197)
Halogen Content
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Not applicable for solder process capability
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked.Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulations, TE’s information on SVHC in
For support call+1 800 522 6752
09/12/2019 07:36AM | Page 2
SSR SRS,PANEL MNT, 25A,480V AC - AC I/P
TE Part # 5-1393030-0
TE Internal #: SSR-480A25
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulations, TE’s information on SVHC in
articles for this part number is still based on the European Chemical Agency (ECHA) ‘Guidance on requirements for
substances in articles’(Version: 2, April 2011), applying the 0.1% weight on weight concentration threshold at the finished
product level. TE is aware of the European Court of Justice ruling of September 10th, 2015 also known as O5A (Once An
Article Always An Article) stating that, in case of ‘complex object’, the threshold for a SVHC must be applied to both the
product as a whole and simultaneously to each of the articles forming part of its composition. TE has evaluated this ruling
based on the new ECHA “Guidance on requirements for substances in articles” (June 2017, version 4.0) and will be
updating its statements accordingly.
Also in the Series
