BFG33 datasheet, PDF - EEWORLD Datasheet

BFG33: DescriptionTRANSISTOR L BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal; CategoryDiscrete semiconductor The transistor; File Size459KB，14 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

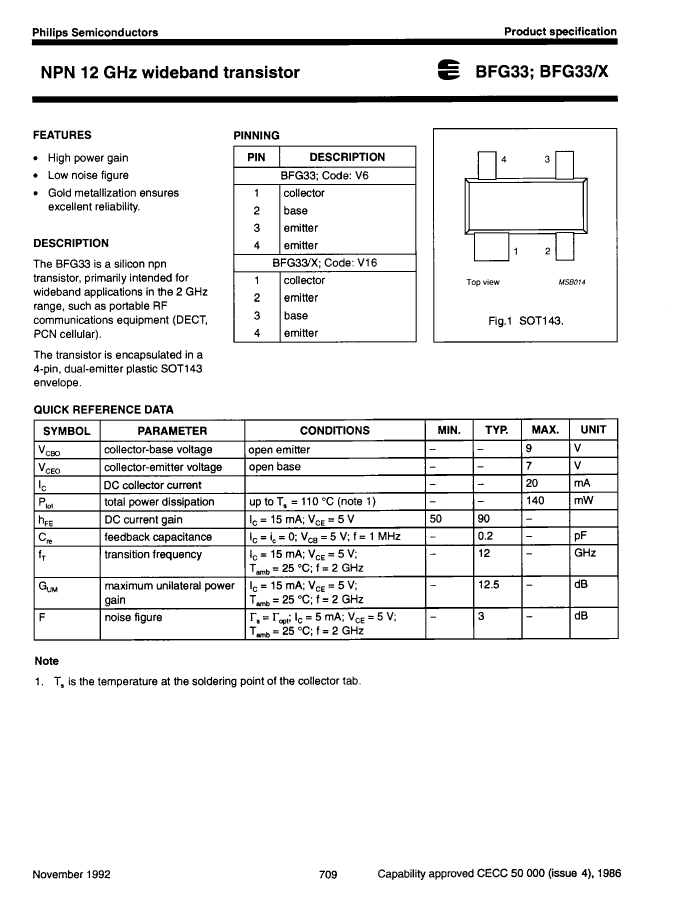

BFG33 Overview

TRANSISTOR L BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal

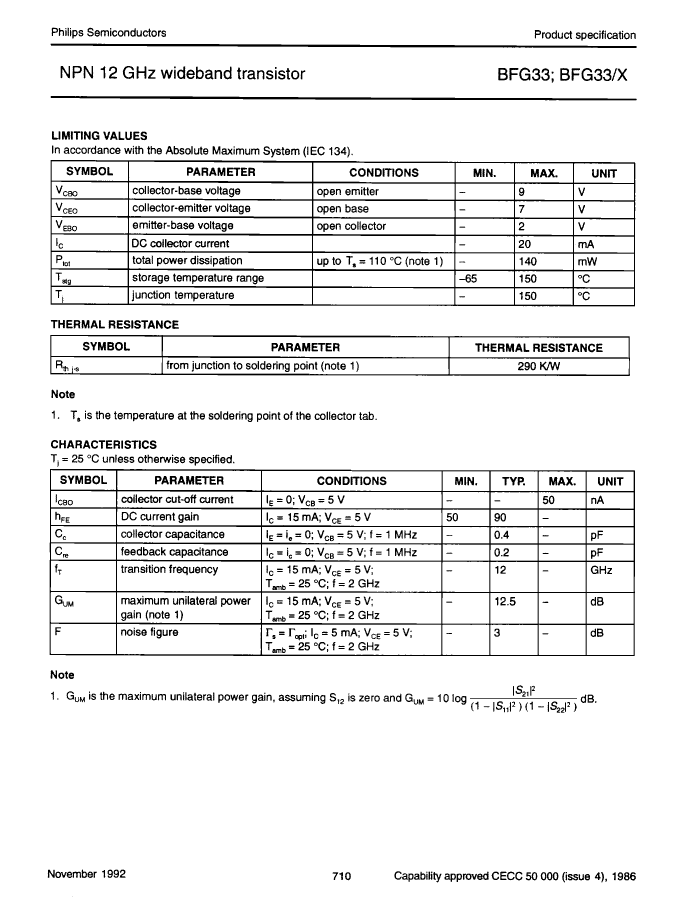

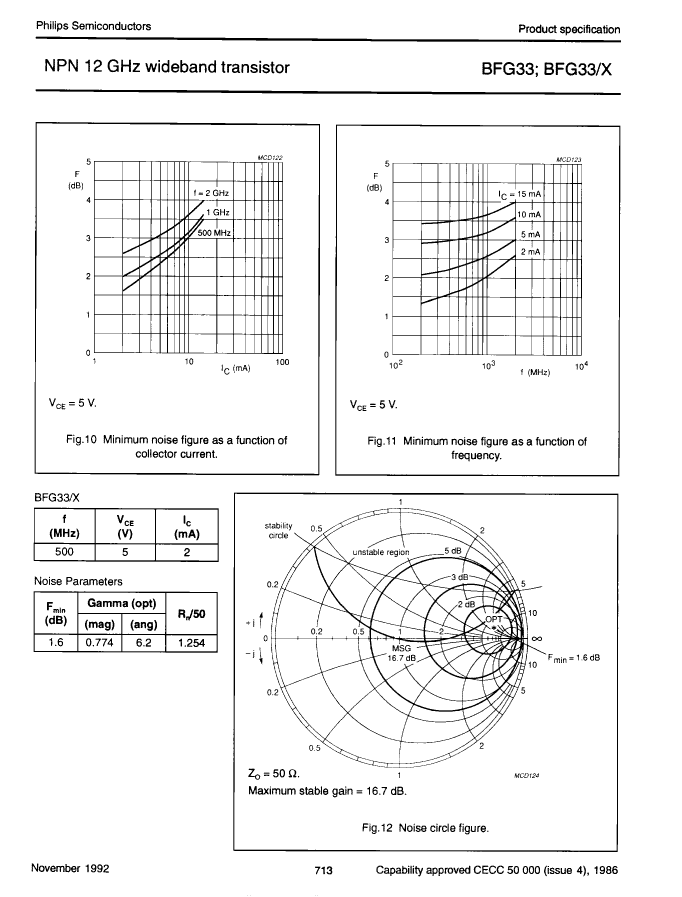

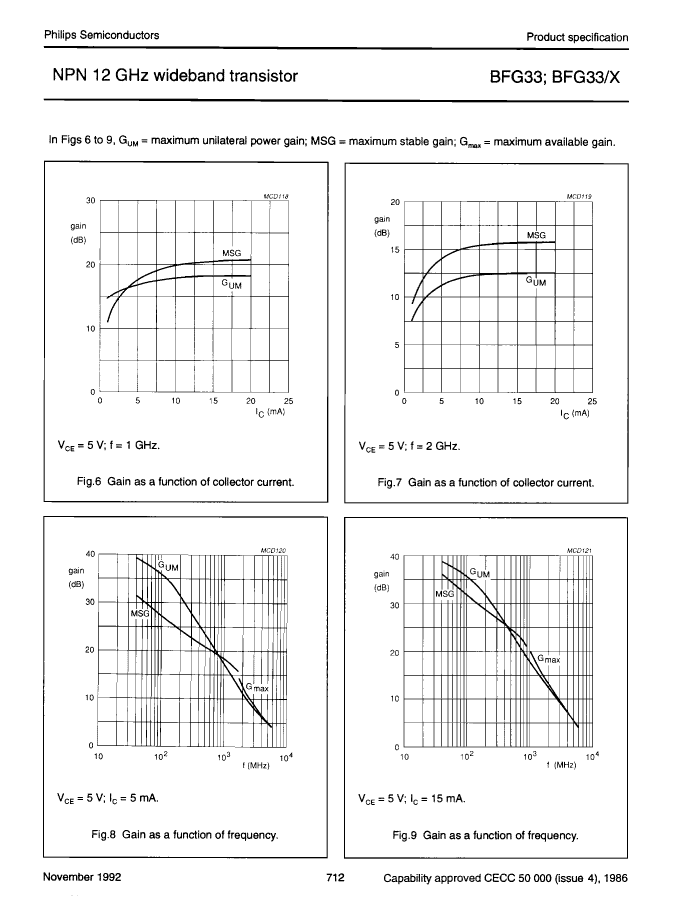

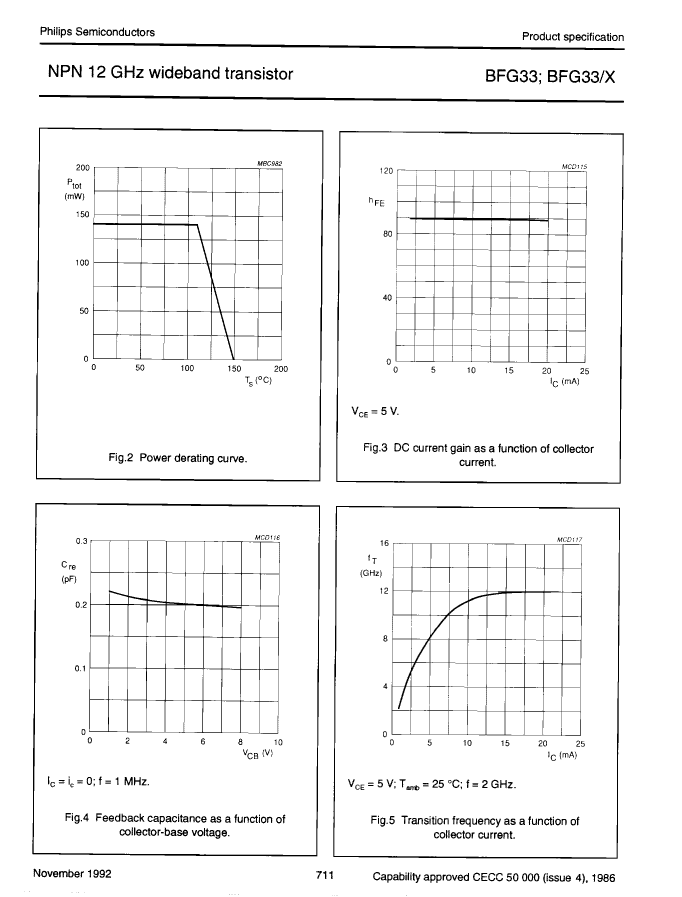

Parameter Name	Attribute value
Maker	NXP
package instruction	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW NOISE, HIGH RELIABILITY
Shell connection	COLLECTOR
Maximum collector current (IC)	0.02 A
Collector-emitter maximum voltage	7 V
Configuration	SINGLE
Minimum DC current gain (hFE)	50
highest frequency band	L BAND
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Maximum power consumption environment	0.14 W
Certification status	Not Qualified
Guideline	CECC
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	12000 MHz

	BFG33	BFG33/X
Description	TRANSISTOR L BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal	TRANSISTOR L BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal
Maker	NXP	NXP
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	LOW NOISE, HIGH RELIABILITY	LOW NOISE, HIGH RELIABILITY
Shell connection	COLLECTOR	COLLECTOR
Maximum collector current (IC)	0.02 A	0.02 A
Collector-emitter maximum voltage	7 V	7 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	50	50
highest frequency band	L BAND	L BAND
JESD-30 code	R-PDSO-G4	R-PDSO-G4
Number of components	1	1
Number of terminals	4	4
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN
Maximum power consumption environment	0.14 W	0.14 W
Certification status	Not Qualified	Not Qualified
Guideline	CECC	CECC
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	12000 MHz	12000 MHz
