RF3934
120W GaN WIDEBAND POWER AMPLIFIER
Package: Hermetic 2-Pin Flanged Ceramic
Features
Broadband Operation DC to
3.5GHz
Advanced GaN HEMT
Technology
Advanced Heat-Sink
Technology
Small Signal Gain = 13dB at
2GHz
48V Operation Typical
Performance
• Output Power 140W at P3dB
• Drain Efficiency 60% at P3dB
• -40°C to 85°C Operation
RF IN
VG
Pin 1 (CUT )
GND
BASE
RF OUT
VD
Pin 2
Functional Block Diagram
Product Description
The RF3934 is a 48V 120W high power discrete amplifier designed for commercial
wireless infrastructure, cellular and WiMAX infrastructure, industrial/scien-
tific/medical and general purpose broadband amplifier applications. Using an
advanced high power density Gallium Nitride (GaN) semiconductor process, these
high-performance amplifiers achieve high efficiency and flat gain over a broad fre-
quency range in a single amplifier design. The RF3934 is an unmatched GaN tran-
sistor packaged in a hermetic, flanged ceramic package. This package provides
excellent thermal stability through the use of advanced heat sink and power dissi-
pation technologies. Ease of integration is accomplished through the incorporation
of simple, optimized matching networks external to the package that provide wide-
band gain and power performance in a single amplifier.
Applications
Commercial Wireless
Infrastructure
Cellular and WiMAX
Infrastructure
Civilian and Military Radar
General Purpose Broadband
Amplifiers
Public Mobile Radios
Industrial, Scientific, and
Medical
Ordering Information
RF3934S2
RF3934SB
RF3934SQ
RF3934SR
RF3934TR7
RF3934PCK-411
2-piece sample bag
5-piece bag
25-piece bag
100 pieces on 7” short reel
750 pieces on 7” reel
Fully assembled evaluation board optimized for
2.14GHz; 48V
Optimum Technology Matching® Applied
GaAs HBT
GaAs MESFET
InGaP HBT
SiGe BiCMOS
Si BiCMOS
SiGe HBT
GaAs pHEMT
Si CMOS
Si BJT
GaN HEMT
BiFET HBT
LDMOS
RF MICRO DEVICES®, RFMD®, Optimum Technology Matching®, Enabling Wireless Connectivity™, PowerStar®, POLARIS™ TOTAL RADIO™ and UltimateBlue™ are trademarks of RFMD, LLC. BLUETOOTH is a trade-
mark owned by Bluetooth SIG, Inc., U.S.A. and licensed for use by RFMD. All other trade names, trademarks and registered trademarks are the property of their respective owners. ©2012, RF Micro Devices, Inc.
DS120306
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
1 of 14
RF3934
Absolute Maximum Ratings
Parameter
Drain Voltage (V
D
)
Gate Voltage (V
G
)
Gate Current (I
G
)
Operational Voltage
Ruggedness (VSWR)
Storage Temperature Range
Operating Temperature Range (T
C
)
Operating Junction Temperature (T
J
)
Human Body Model
MTTF (T
J
< 200°C, 95% Confidence Limits)*
Thermal Resistances, R
TH
(junction to case)
measured at T
C
=85°C, DC bias only
Rating
150
-8 to +2
78
65
10:1
-55 to +125
-40 to +85
200
Class 1A
3 x 10
6
1.6
Unit
V
V
mA
V
°C
°C
°C
Hours
°C/W
Caution! ESD sensitive device.
Exceeding any one or a combination of the Absolute Maximum Rating conditions may
cause permanent damage to the device. Extended application of Absolute Maximum
Rating conditions to the device may reduce device reliability. Specified typical perfor-
mance or functional operation of the device under Absolute Maximum Rating condi-
tions is not implied.
The information in this publication is believed to be accurate and reliable. However, no
responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any
infringement of patents, or other rights of third parties, resulting from its use. No
license is granted by implication or otherwise under any patent or patent rights of
RFMD. RFMD reserves the right to change component circuitry, recommended appli-
cation circuitry and specifications at any time without prior notice.
RFMD Green: RoHS compliant per EU Directive 2002/95/EC, halogen free
per IEC 61249-2-21, < 1000ppm each of antimony trioxide in polymeric
materials and red phosphorus as a flame retardant, and <2% antimony in
solder.
*MTTF - median time to failure for wear-out failure mode (30% I
DSS
degradation) which is determined by the technology process reliability. Refer
to product qualification report for FIT (random) failure rate.
Operation of this device beyond any one of these limits may cause
permanent damage. For reliable continuous operation, the device voltage and
current must not exceed the maximum operating values specified in the table
below.
Bias Conditions should also satisfy the following expression:
P
DISS
< (T
J
- T
C
) / R
TH
J-C and T
C
= T
CASE
Parameter
Recommended Operating Conditions
Drain Voltage (V
DSQ
)
Gate Voltage (V
GSQ
)
Drain Bias Current
Frequency of Operation
Specification
Min.
Typ.
Max.
28
-4.5
DC
9
40
27.5
2
2.5
-4.2
0.25
-3.4
10
55
12
60
-12
-3.7
440
3500
48
-2.5
Unit
V
V
mA
MHz
pF
pF
pF
mA
mA
V
V
V
dB
%
dB
Condition
Capacitance
C
RSS
C
ISS
C
OSS
V
G
= - 8V, V
D
= OV
V
G
= - 8V, V
D
= OV
V
G
= - 8V, V
D
= OV
V
G
= - 8V, Vd = OV
V
G
= - 8V, Vd = 48V
V
D
= 48V, I
D
= 20mA
V
G
= OV, I
D
= 1.5A
V
D
= 48V, I
D
= 440mA
CW, P
OUT
= 50.8dBm, f = 2140MHz
CW, P
OUt
= 50.8dBm, f = 2140MHz
CW, P
OUT
= 50.8dBm, f = 2140MHz
DC Functional Test
I
G (OFF)
- Gate Leakage
I
D (OFF)
- Drain Leakage
V
GS (TH)
- Threshold Voltage
V
DS (ON)
- Drain Voltage at high current
RF Functional Test
V
GSQ
Gain
Drain Efficiency
Input Return Loss
2 of 14
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
DS120306
RF3934
Parameter
RF Typical Performance
Small Signal Gain
Small Signal Gain
Output Power at P3dB
Output Power at P3dB
Drain Efficiency at P3dB
Drain Efficiency at P3dB
21
13
51.60
51.46
75
60
dB
dB
dBm
dBm
%
%
Specification
Min.
Typ.
Max.
Unit
[1], [2]
Condition
CW, f = 900MHz
CW, f = 2140MHz
CW, f = 900MHz
CW, f = 2140MHz
CW, f = 900MHz
CW, f = 2140MHz
[1] Test Conditions: CW operation, V
DSQ
= 48V, I
DQ
= 440mA, T = 25ºC
[2] Performance in a standard tuned test fixture.
DS120306
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
3 of 14
RF3934

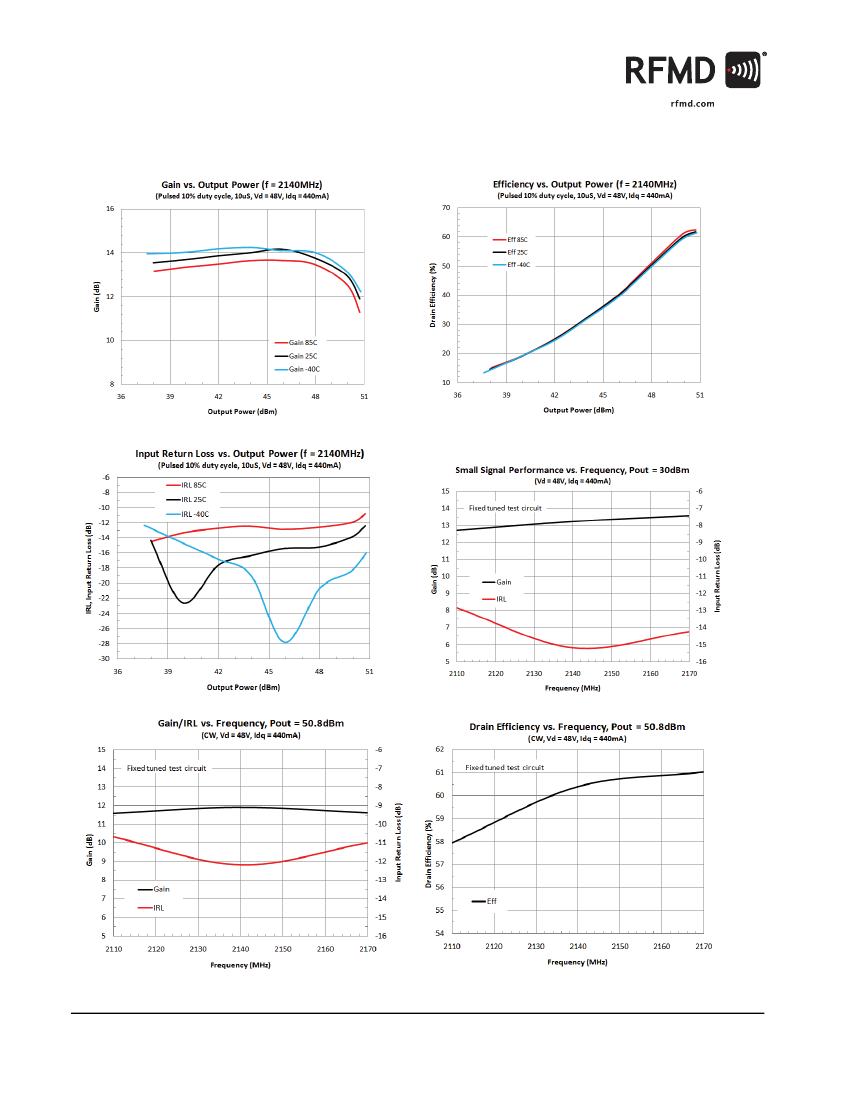

Typical Performance in Standard 2.14GHz Tuned Test Fixture
(CW, T = 25°C, unless otherwise noted)
4 of 14
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
DS120306

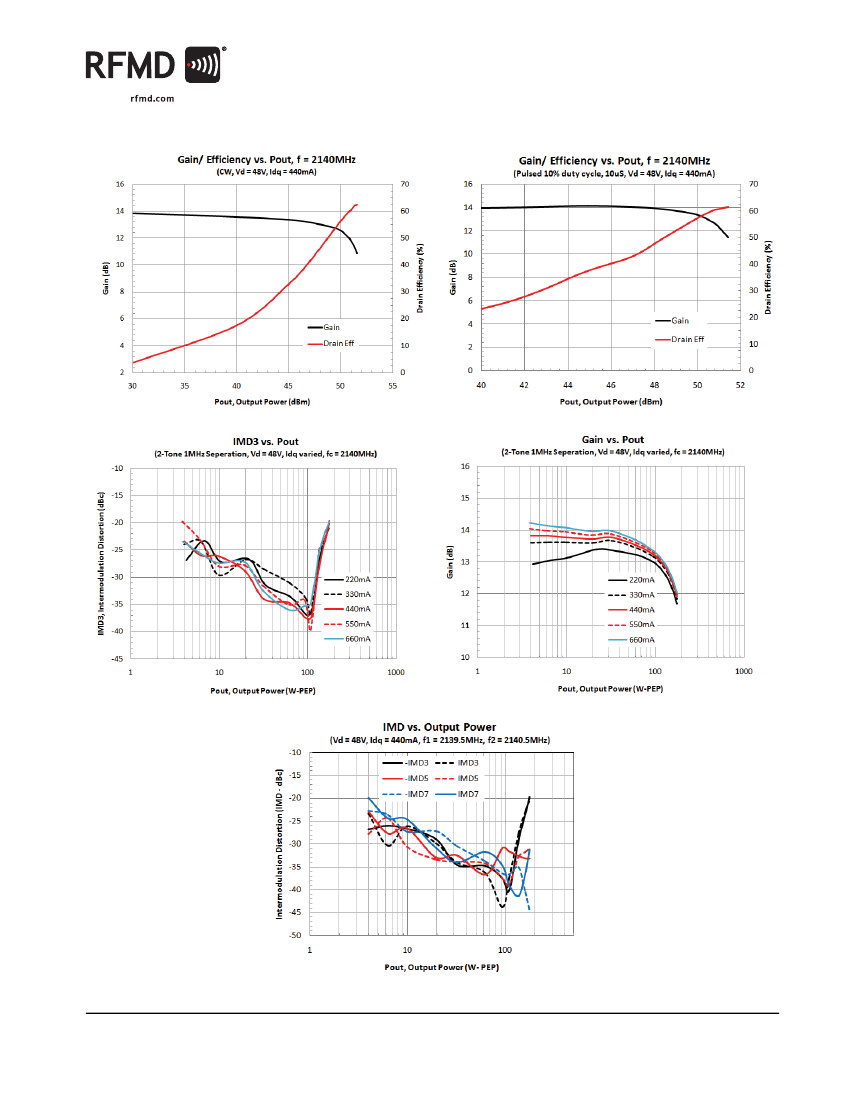

RF3934
DS120306
7628 Thorndike Road, Greensboro, NC 27409-9421 · For sales or technical
support, contact RFMD at (+1) 336-678-5570 or customerservice@rfmd.com.
5 of 14
