ZTT10.00MT

Ceramic Resonator

1 SCOPE

This specification shall cover the characteristics of the ceramic resonator with the

type ZTT10.00MT.

2 PART NO

PART NUMBER CUSTOMER PART NO SPECIFICATION NO

ZTT10.00MT

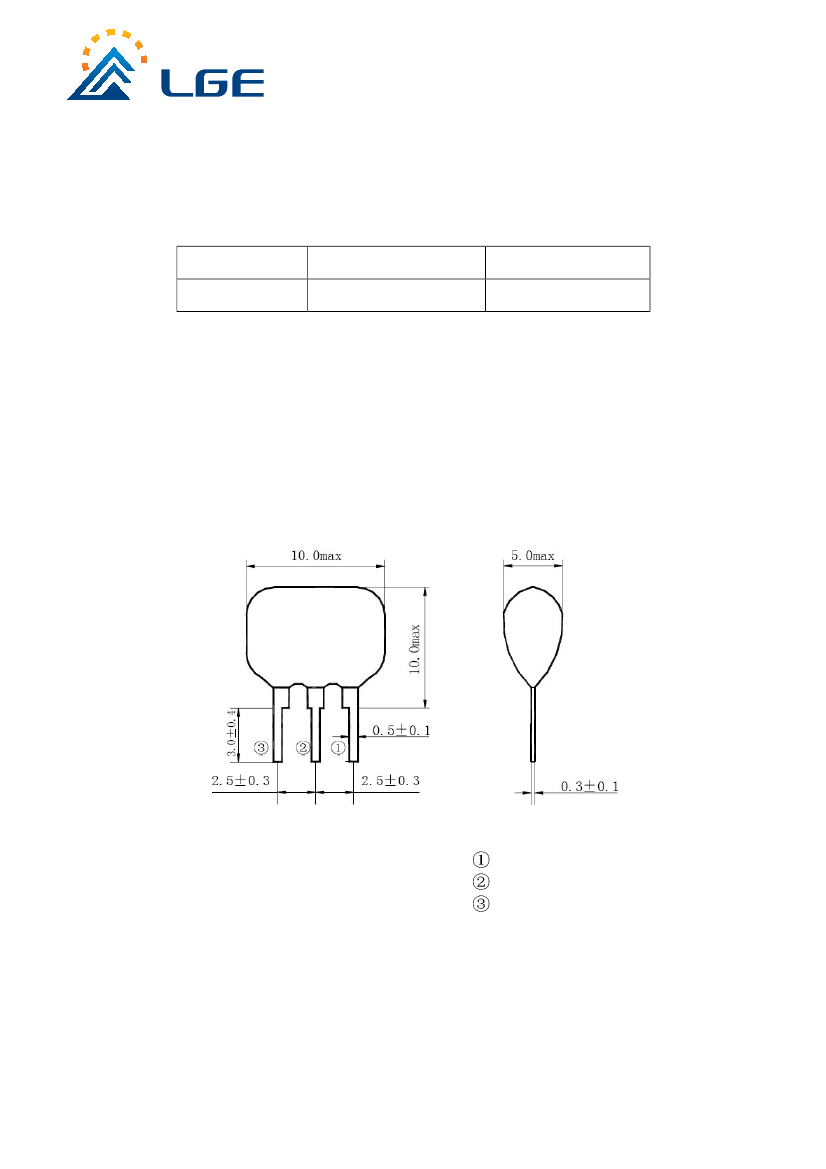

3 OUTLINE DRAWING AND DIMENSIONS

3.1 Appearance: No visible damage and dirt.

3.2 Construction: Leads are soldered on electrode and body is molded by resin.

3.3 Except the chip(ceramic element, ceramic base, capacitance slice), the materials

don’t contain lead.

3.4

Dimensions

Input

Ground

Output

http://www.luguang.cn

mail:lge@luguang.cn

ZTT10.00MT

Ceramic Resonator

4 RATING AND ELECTRICAL SPECIFICATIONS

4.1 RATING

Items

Withstanding Voltage (V)

Insulation Resistance Ri, M

min.

Operating Temperature Range (

Storage Temperature Range (

)

Content

50 (DC 1min)

100 100V 1min

-20 +80

-40 +85

Content

5.000

0.5

0.3 Oscillation Frequency

drift -20 +80

6V DC

15V p-p

0.3

For Ten Years

4.2 ELECTRICAL SPECIFICATIONS

Items

Oscillation Frequency Fosc MHz

Frequency Accuracy %

Resonant Impedance Ro

max.

Temperature Coefficient of Oscillation

Frequency

max.

Rating Voltage U

Aging Rate

5 MEASUREMENT

V max.

max.

5.1 Measurement Conditions: Parts shall be measured under a condition ( Temp.

20±15 ,Humidity

65±20% R.H.) unless the standard condition(Temp. 25±3

,Humidity 65±5% R.H.) is regulated to measure.

5.2 Test Circuit

IC 1/6TC4069UBP×2

X CERAMIC RESONATOR

http://www.luguang.cn

mail:lge@luguang.cn

ZTT10.00MT

Ceramic Resonator

6 PHYSICAL AND ENVIRONMENTAL CHARACTERISTICS

No.

Item

Condition of Test

Subject the resonator at +40

and

90%-95% R.H. for 500h, resonator shall be

measured after being placed in natural

conditions for 1h.

Subject the resonator to +85

for

500h, resonator shall be measured after being

placed in natural conditions for 1hr.

Performance

Requirements

It shall fulfill the

specifications in

Table 1.

6.1

Humidity

High

Temperature

Exposure

Low

Temperature

Exposure

6.2

6.3

6.4

6.5

6.6

6.7

6.8

It shall fulfill the

specifications in

Table 1.

Subject the resonator to –25

for It shall fulfill the

500h, resonator shall be measured after being specifications in

placed in natural conditions for 1h.

Table 1.

Subject the resonator to 25

for 30 min.

It shall fulfill the

followed by a high temperature of

Temperature

for 30 min. Cycling shall be repeated 5 times. specifications in

Cycling

Resonator shall be measured after being Table 1.

placed in natural conditions for 1h.

Subject the resonator to vibration for 2h each

in x y and z axis with the amplitude of It shall fulfill the

1.5mm, the frequency shall be varied specifications in

Vibration

uniformly between the limits of 10Hz-55Hz Table 1.

and then resonator shall be measured.

visible

Resonator shall be measured after 3 times' damage and it

Mechanical

random dropping from the height of 100cm shall fulfill the

Shock

on concrete floor.

specifications in

Table 1.

Lead terminals are immersed up to 2 mm

Resistance to from resonator’s body in soldering bath of It shall fulfill the

260

for 5s 1s and then resonator specifications in

Soldering

shall be measured after being placed in Table 1.

Heat

natural conditions for 1h

More than 95%

of the terminal

Lead terminals are immersed up to 2mm from

surface of the

Solderability resonator’s body in soldering bath of 250

resonator shall be

for 2s 0.5s.

covered

with

fresh solder.

(To be continued)

http://www.luguang.cn

mail:lge@luguang.cn

ZTT10.00MT

Ceramic Resonator

6. PHYSICAL AND ENVIRONMENTAL CHARACTERISTICS

No.

6.9

Item

Condition of Test

Performance

Requirements

Terminal

Strength

6.9.1 Terminal

Pulling

6.9.2 Terminal

Bending

Force of 5N is applied to each lead in axial

direction for 10s 1s.

When force of 5N is applied to each lead in

axial direction,the lead shall folded up 90

from the axial direction and folded back to

the axial direction. The speed of folding

shall be each 3s.

No visible damage

and it shall fulfill

the specifications

in Table 1.

Table 1

Item

Oscillation Frequency Change

fosc/fosc

Resonant Impedance

(%) max

max

Specification after test

0.3

Note:The limits in the above table are referenced to the initial measurements.

http://www.luguang.cn

mail:lge@luguang.cn

ZTT10.00MT

Ceramic Resonator

7 PACKAGE

To protect the products in storage and transportation it is necessary to pack them

outer and inner package .On paper pack, the following requirements are requested.

7.1 Dimensions and Mark

At the end of package, the warning (moisture proof, upward put) should be stick to

it.

Dimensions and Mark (see below)

NO.

Name

Inner

Box

Quantity

1.2m

2.9m

Notes

Box

Package

Adhesive tape

Label

Belt

Certificate of approval

7.2 Section of package

Package is made of corrugated paper with thickness of 0.8cm.Package has 2 inner

boxes, each has 20 inner box (each box

for plastic bag).

http://www.luguang.cn

mail:lge@luguang.cn
