LDS-C322RI-SUG

Description
Smart/Normal 7 Seg Numeric LED Display, Green, 9.1mm
CategoryLED optoelectronic/LED    photoelectric
File Size158KB,1 Pages
ManufacturerLumex
Websitehttps://www.lumex.com
Environmental Compliance
Download Datasheet Parametric Compare View All

LDS-C322RI-SUG Overview

Smart/Normal 7 Seg Numeric LED Display, Green, 9.1mm

LDS-C322RI-SUG Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerLumex
Reach Compliance Codecompliant
colorGREEN
ConfigurationCOMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display height9.1 mm
Maximum forward current0.03 A
Number of functions1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Optoelectronic device typesSMART/NORMAL 7 SEG NUMERIC LED DISPLAY
LED
Displays ~ Seven Segment ~ Numeric
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
USA/Canada
+1-800-278-5666
Europe
+49-6081-964380
Asia
+886-3-5821124
USA/Canada
+1-847-359-8904
Europe
+49-6081-964381
Asia
+886-3-5821154

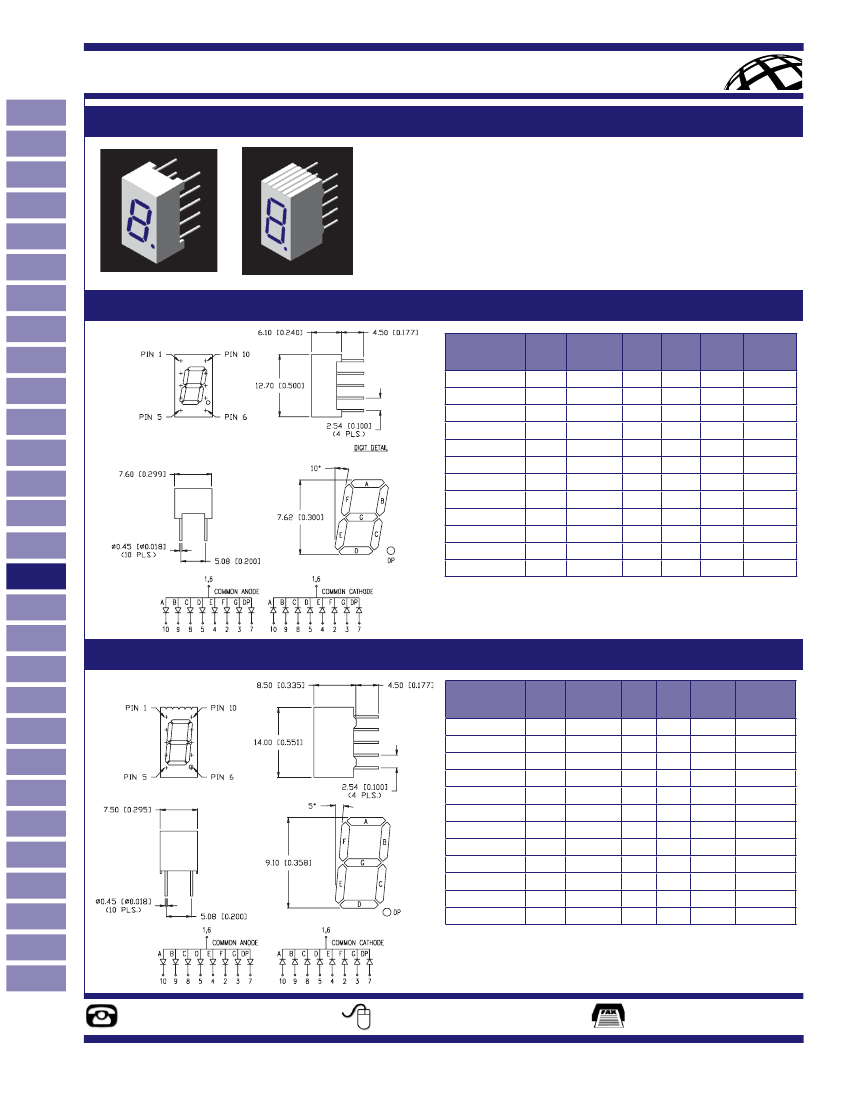

Single Digit
