VLMK/R/Y71..
Vishay Semiconductors
Little Star
®

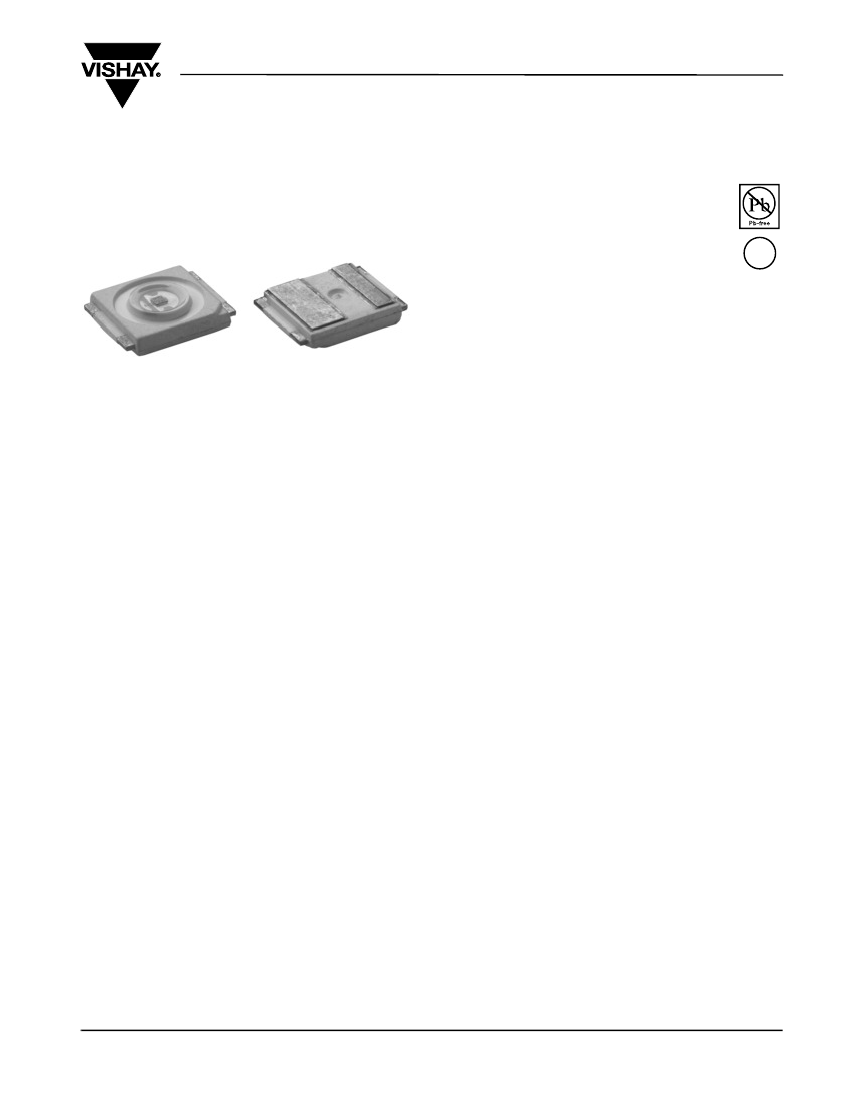

1 Watt Power SMD LED
FEATURES
• Super high brightness surface mount LED
• High flux output
• 120° viewing angle
e3
• Compact package outline
(L x W x H) of 6.0 x 6.0 x 1.5 mm
• Ultra low height profile - 1.5 mm
• Designed for high current drive; typically 400 mA
• Low thermal resistance; R
thJP
= 20 K/W
• Qualified according to JEDEC moisture sensitivity
level 2a
• Compatible with IR reflow solder processes
according to CECC 00802 and J-STD-020C
• Environment friendly; RoHS compliance
• Little Star
®
are class 1M LED products. Do not view
directly with optical instrument
• Component in accordance to RoHS 2002/95/EC
and WEEE 2002/96/EC
• Automotive qualified AEC-Q101
• ESD-withstand voltage: up to 2 kV according to
JESD22-A114-B
• Optical efficiency typical up to 52 lm/W
APPLICATIONS
• Automotive: exterior applications, e.g.: center high
mounted stop light (CHMSL), rear combination
lights (RCLs), signal lighting, etc.
• Communication: indicator and backlight in mobile
phone
• Industry: white goods (e.g.: oven, microwave, etc.)
• Lighting: garden light, architecture lighting, general
lighting, etc.
20783
DESCRIPTION
The VLMK/R/Y71.. is one of the most robust and light
efficient LEDs in the market. With its extremely high
level of brightness and the ultra low high profile, which
is only 1.5 mm are highly suitable for both conventional
lighting and specialized application such as
automotive signal lights, traffic lights, channel lights,
tube lights and garden lights among others.
PRODUCT GROUP AND PACKAGE DATA
• Product group: LED
• Package: SMD Little Star
• Product series: power
• Angle of half intensity: ± 60°
Document Number 81707
Rev. 1.2, 23-Jan-08
www.vishay.com
1
VLMK/R/Y71..
Vishay Semiconductors
PARTS TABLE
PART
COLOR, LUMINOUS INTENSITY
(at I
F
= 400 mA)
Amber, I
V
= (9000 to 18000) mcd
Amber, I
V
= (9000 to 11250) mcd
Amber, I
V
= (11250 to 14000) mcd
Amber, I
V
= (14000 to 18000) mcd
Red, I
V
= (7150 to 14000) mcd
Red, I
V
= (7150 to 9000) mcd
Red, I
V
= (9000 to 11250) mcd
Red, I
V
= (11250 to 14000) mcd
Yellow, I
V
= (7150 to 14000) mcd
Yellow, I
V
= (7150 to 9000) mcd
Yellow, I
V
= (9000 to 11250) mcd
Yellow, I
V
= (11250 to 14000) mcd
LUMINOUS FLUX
CORRELATION BETWEEN
LUM. FLUX/LUM. INTENSITY
(at I
F
= 400 mA)
26100 to 52000 mlm
26100 to 33000 mlm
33000 to 39000 mlm
39000 to 52000 mlm
20700 to 39000 mlm
20700 to 26100 mlm
26100 to 33000 mlm
33000 to 39000 mlm
20700 to 39000 mlm
20700 to 26100 mlm
26100 to 33000 mlm
33000 to 39000 mlm
TECHNOLOGY
VLMK71ABAD-GS08
VLMK71AB-GS08
VLMK71AC-GS08
VLMK71AD-GS08
VLMR71AAAC-GS08
VLMR71AA-GS08
VLMR71AB-GS08
VLMR71AC-GS08
VLMY71AAAC-GS08
VLMY71AA-GS08
VLMY71AB-GS08
VLMY71AC-GS08
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
AlInGaP
ABSOLUTE MAXIMUM RATINGS
1)
VLMK71../VLMR71../VLMY71..
PARAMETER
Forward current
Power dissipation
Junction temperature
Surge current
t < 10 µs, d = 0.1
Operating temperature range
Storage temperature range
Thermal resistance junction/pin
Note:
Not designed for reverse operation
1)
T
amb
= 25 °C, unless otherwise specified
TEST CONDITION
SYMBOL
I
F
P
tot
T
j
I
FM
T
amb
T
stg
R
thJP
VALUE
400
1120
+ 120
500
- 40 to + 100
- 40 to + 100
20
UNIT
mA
mW
°C
mA
°C
°C
K/W
OPTICAL AND ELECTRICAL CHARACTERISTICS
1)
VLMK71.., AMBER
PARAMETER
TEST CONDITION
PART
VLMK71ABAD
Luminous intensity
I
F
= 400 mA
VLMK71AB
VLMK71AC
VLMK71AD
Dominant wavelength
Spectral bandwidth
at 50 % I
rel max
Angle of half intensity
Forward voltage
2)
Optical efficiency
I
F
= 400 mA
I
F
= 400 mA
I
F
= 400 mA
I
F
= 400 mA
I
F
= 400 mA
SYMBOL
l
V
l
V
l
V
l
V
λ
d
Δλ
ϕ
V
F
ηopt
2.2
40
MIN.
9000
9000
11250
14000
610
18
60
2.8
52
TYP.
MAX.
18000
11250
14000
18000
620
UNIT
mcd
mcd
mcd
mcd
nm
nm
deg
V
Im/W
Note:
1)
T
amb
= 25 °C, unless otherwise specified
2)
Forward voltages are tested at a current pulse duration of 1 ms and a tolerance of ± 0.05 V
www.vishay.com
2
Document Number 81707
Rev. 1.2, 23-Jan-08
VLMK/R/Y71..
Vishay Semiconductors
OPTICAL AND ELECTRICAL CHARACTERISTICS
1)
VLMR71.., RED
PARAMETER
TEST CONDITION
PART
VLMR71AAAC
Luminous intensity
I
F
= 400 mA
VLMR71AA
VLMR71AB
VLMR71AC
Dominant wavelength
Spectral bandwidth
at 50 % I
rel max
Angle of half intensity
Forward voltage
2)
Optical efficiency
I
F
= 400 mA
I
F
= 400 mA
I
F
= 400 mA
I
F
= 400 mA
I
F
= 400 mA
SYMBOL
l
V
l
V
l
V
l
V
λ
d
Δλ
ϕ
V
F
ηopt
2.2
30
MIN.
7150
7150
9000
11250
620
18
60
2.8
39
TYP.
MAX.
14000
9000
11250
14000
630
UNIT
mcd
mcd
mcd
mcd
nm
nm
deg
V
Im/W
Note:
1)
T
amb
= 25 °C, unless otherwise specified
2)
Forward voltages are tested at a current pulse duration of 1 ms and a tolerance of ± 0.05 V
OPTICAL AND ELECTRICAL CHARACTERISTICS
1)
VLMY71.., YELLOW
PARAMETER
TEST CONDITION
PART
VLMY71AAAC
Luminous intensity
I
F
= 400 mA
VLMY71AA
VLMY71AB
VLMY71AC
Dominant wavelength
Spectral bandwidth
at 50 % I
rel max
Angle of half intensity
Forward voltage
2)
Optical efficiency
I
F
= 400 mA
I
F
= 400 mA
I
F
= 400 mA
I
F
= 400 mA
I
F
= 400 mA
SYMBOL
l
V
l
V
l
V
l
V
λ
d
Δλ
ϕ
V
F
ηopt
2.2
30
MIN.
7150
7150
9000
11250
585
15
± 60
2.8
39
TYP.
MAX.
14000
9000
11250
14000
597
UNIT
mcd
mcd
mcd
mcd
nm
nm
deg
V
Im/W
Note:
1)
T
amb
= 25 °C, unless otherwise specified
2)
Forward voltages are tested at a current pulse duration of 1 ms and a tolerance of ± 0.05 V
LUMINOUS INTENSITY/FLUX CLASSIFICATION RED/AMBER/YELLOW
GROUP
STANDARD
AA
AB
AC
AD
AE
AF
LUMINOUS INTENSITY I
V
(MCD)
MIN.
7150
9000
11250
14000
18000
22400
MAX.
9000
11250
14000
18000
22400
28500
LUMINOUS FLUX
Φ
V
(MLM)
CORRELATION TABLE
MIN.
20700
26100
33000
39000
52000
71000
MAX.
26100
33000
39000
52000
71000
97000
Note:
Luminous intensity is tested at a current pulse duration of 25 ms and an accuracy of ± 11 %.
The above type numbers represent the order groups which include only a few brightness groups. Only one group will be shipped on each reel
(there will be no mixing of two groups on each reel).
In order to ensure availability, single brightness groups will not be orderable.
In a similar manner for colors where wavelength groups are measured and binned, single wavelength groups will be shipped in any one reel.
In order to ensure availability, single wavelength groups will not be orderable.
Document Number 81707
Rev. 1.2, 23-Jan-08
www.vishay.com
3
VLMK/R/Y71..
Vishay Semiconductors
COLOR CLASSIFICATION
DOM. WAVELENGTH (NM)
GROUP
MIN.
A
B
C
D
585
588
591
594
YELLOW
MAX.
588
591
594
597
MIN.
610
616
DOM. WAVELENGTH (NM)
AMBER
MAX.
616
620
Note:
Wavelengths are tested at a current pulse duration of 25 ms and an accuracy of ± 1 nm.
FORWARD VOLTAGE CLASSIFICATION
GROUP
02
03
FORWARD VOLTAGE (V)
MIN.
2.2
2.5
MAX.
2.5
2.8
Note:
Forward voltages are tested at a current pulse duration of 25 ms and a tolerance of ± 0.05 V.
In order to ensure availability, a single forward voltage group can not be ordered.
TYPICAL CHARACTERISTICS
T
amb
= 25 °C, unless otherwise specified
I
V
rel
- Relative Lumnious Intensity
1.4
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
20960
Ф
V
rel
- Relative Luminous Flux
1.2
1.0
0.8
0.6
0.4
0.2
0
100 200 300 400 500 600 700
800
0
20803
100
200
300
400
500
600
I
F
- Forward Current (mA)
I
F
- Forward Current (mA)

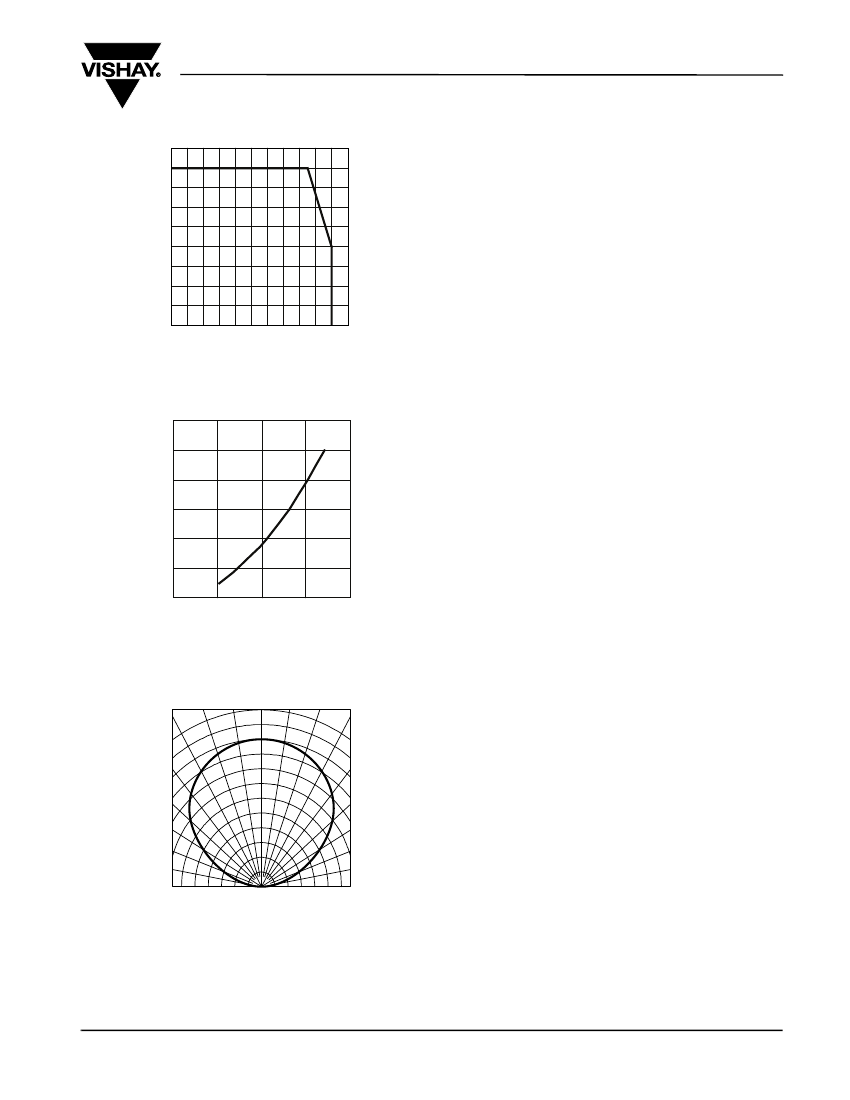

Figure 1. Relative Luminous Flux vs. Forward Current
Figure 2. Relative Luminous Intensity vs. Forward Current
www.vishay.com
4
Document Number 81707
Rev. 1.2, 23-Jan-08
VLMK/R/Y71..
Vishay Semiconductors
450
400
I
F
- Forward Current (mA)
350
300
250
200
150
100
50
0
0 10 20 30 40 50 60 70
80
90 100 110
20962
T
SP
- Solder Point Temperature (°C)
Figure 3. Forward Current vs. Solder Point Temperature
1200
I
F
- Forward Current (mA)
1000
800
600
400
200
0
1.5
2.0
2.5
3.0
3.5
20961
V
F
- Forward
Voltage
(V)
Figure 4. Forward Current vs. Forward Voltage
0°
10°
20°
30°
I
V
rel
- Relative Luminous Intensity
40°
1.0
0.9
0.8
0.7
50°
60°
70°
80°
0.6
0.4
0.2
0
0.2
0.4
0.6
95 10319
Figure 5. Relative Luminous Intensity vs. Angular Displacement
Document Number 81707
Rev. 1.2, 23-Jan-08
www.vishay.com
5
