D1213A-02SR
2 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
Features
•
•
•
•
•
•
•
IEC 61000-4-2 (ESD): Air ±15kV, Contact ±8kV
2 Channels of ESD Protection
Low Channel Input Capacitance of 0.85pF Typical
Typically Used at High Speed Ports such as USB 2.0,
IEEE1394, Serial ATA, DVI, HDMI, PCI
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
Case: SOT143
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Weight: 0.009 grams (approximate)
NEW PRODUCT
V
P
4
CH2
3
V
P
CH 1
CH 2
1
2
V
N
CH1
V
N
Device Schematic
Pin Configuration
Ordering Information
(Note 4)
Part Number
D1213A-02SR-7
Notes:
Case
SOT143
Packaging
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.
Marking Information
TV2
TV2 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Z = 2012)
M = Month (ex: 9 = September)
Date Code Key
Year
Code
Month
Code
2011
Y
Jan
1
Feb
2
2012
Z
Mar
3
Apr
4
2013
A
May
5
Jun
6
YM
2014
B
Jul
7
2015
C
Aug
8
Sep
9
2016
D
Oct
O
Nov
N
2017
E
Dec
D
D1213A-02SR
Document number: DS32151 Rev. 12 - 2
1 of 4
www.diodes.com
August 2012
© Diodes Incorporated
D1213A-02SR
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Operating Supply Voltage
DC Voltage at any Channel Input
Peak Pulse Current
ESD Protection – Contact Discharge
ESD Protection – Air Discharge
Symbol
V
P
- V
N
—
I
PP
Value
6.0
(V
N
– 0.5) to (V
P
+ 0.5)
5
±8
±15
Unit
V
V
A
kV
kV
Conditions
—
—
8/20µs, Per Figure 2
Standard IEC 61000-4-2
Standard IEC 61000-4-2
NEW PRODUCT
V
ESD_Contact
V
ESD_Air
Thermal Characteristics
Characteristic
Power Dissipation (Note 5)
Thermal Resistance, Junction to Ambient (Note 5)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J
, T
STG
Value
400
310
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Operating Supply Voltage
Operating Supply Current (Note 6)
Channel Leakage Current (Note 6)
Reverse breakdown voltage
Clamping Voltage, Positive Transients
Clamping Voltage, Negative Transients
Forward Voltage for Top Diode
Forward Voltage for Bottom Diode
Dynamic Resistance
Channel Input Capacitance
Notes:
Symbol
V
P
I
P
I
R
V
BR
V
CL1
V
CL2
V
FD1
V
FD2
R
DYN
C
T
Min
—
—
—
6.0
—
—
0.60
0.60
—
—
Typ
3.3
—
±0.1
—
10.0
-1.7
0.80
0.80
0.9
0.85
Max
5.5
8.0
±1.0
—
—
—
0.95
0.95
—
1.2
Unit
V
µA
µA
V
V
V
V
V
Ω
pF
Test Conditions
—
(V
P
– V
N
) = 3.3V
V
P
= 5V, V
N
= 0V
I
R
= 1mA
I
PP
= 1A, t
p
= 8/20μs
I
PP
= -1A, t
p
= 8/20μs
I
F
= 8mA, CH1 to V
P
or CH2 to V
P
I
F
= 8mA, V
N
to CH1 or V
N
to CH2
I
PP
= 1A, t
p
= 8/20μs
V
IN
= 1.65V, V
P
= 3.3V,
V
N
= 0V, f = 1MHz
5. Device mounted on FR-4 PCB pad layout (2oz copper) as shown on Diodes, Inc. suggested pad layout AP02001, which can be found on our website at
http://www.diodes.com.
6. Short duration pulse test used to minimize self-heating effect.
7. Measured from CH1 to V
N
or CH2 to V
N
.
8. Measured from V
P
to V
N
.
9. For information on the impact of Diodes' USB2.0 compatible ESD protectors on signal integrity including eye diagram plots, please refer to AN77 at the
following URL: http://www.diodes.com/_files/products_appnote_pdfs/AN77.pdf.
100
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
75
50
I
PP
, PEAK PULSE CURRENT (%I
pp
)
100
50
25
0
0
25
50
75
100 125 150 175
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 1 Pulse Derating Curve
200
0
0
40
t, TIME (
μ
s)
Fig. 2 Pulse Waveform
20
60
D1213A-02SR
Document number: DS32151 Rev. 12 - 2
2 of 4
www.diodes.com
August 2012
© Diodes Incorporated
D1213A-02SR
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
1,000
Note 8
10,000
Note 8
100
1,000
10
T
A
= 150°C
NEW PRODUCT
1
T
A
= 125°C
100
T
A
= 150°C
T
A
= 125°C
T
A
= 85°C
0.1
T
A
= 85°C
T
A
= 25°C
10
T
A
= -55°C
T
A
= 25°C
0.01
T
A
= -55°C
0.001
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

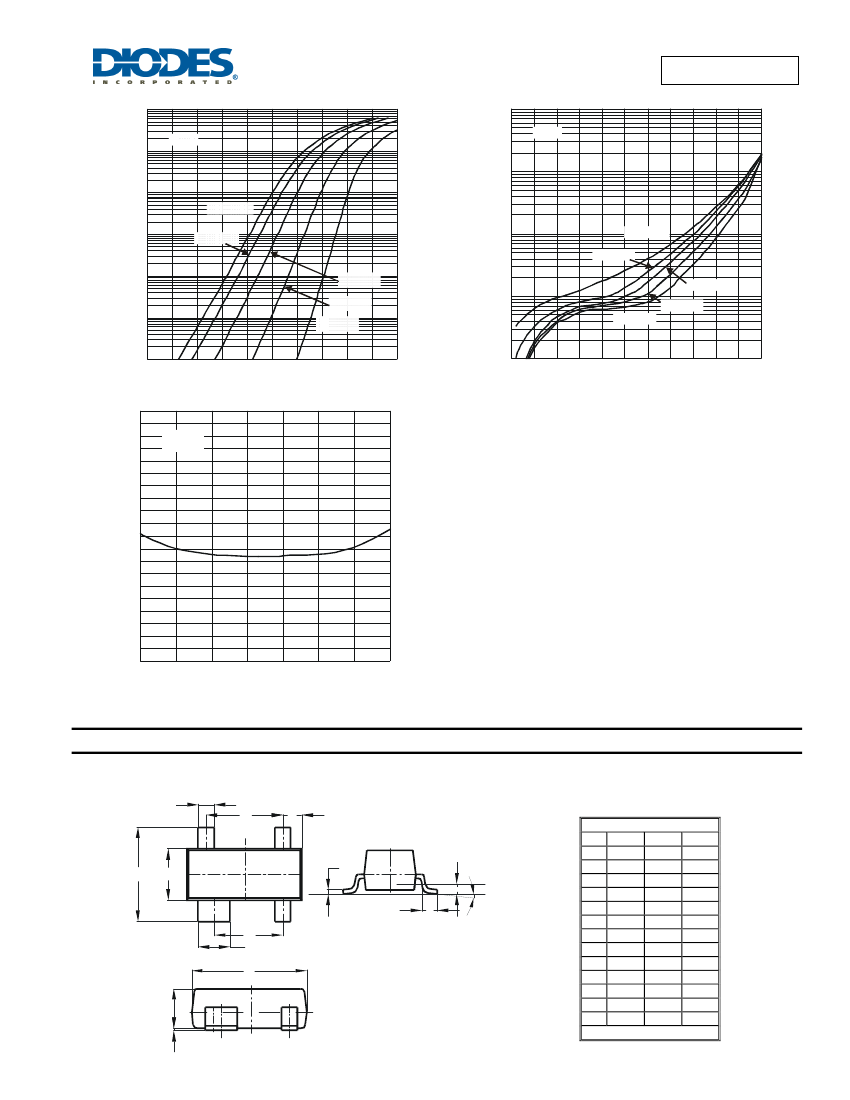

Fig. 3 Typical Forward Characteristics
2.0
f = 1MHz
Note 7
1
0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 4 Typical Reverse Characteristics
C
T
, TOTAL CAPACITANCE (pF)
1.5
1.0
0.5
0
1.0
1.5
2.0
2.5
3.0 3.5
V
R
, REVERSE VOLTAGE (V)
Fig. 5 Typical Total Capacitance vs. Reverse Voltage
0
0.5
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
A1
G
F
C
B
M
0.25
GAUGE PLANE
SEATING PLANE
a
L
D
A2
H
K
J
SOT143
Dim Min
Max
Typ
A1
0.37 0.51 0.400
A2
0.77 0.93 0.800
B
1.20 1.40 1.30
C
2.28 2.48 2.38
D
1.58 1.83 1.72
F
0.45 0.60 0.49
G
1.78 2.03 1.92
H
2.80 3.00 2.90
J
0.013 0.10 0.05
K
0.89 1.00
-
L
0.46 0.60 0.50
M
0.085 0.18 0.11
a
0°
8°
-
All Dimensions in mm
August 2012
© Diodes Incorporated
D1213A-02SR
Document number: DS32151 Rev. 12 - 2
3 of 4
www.diodes.com
D1213A-02SR
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
NEW PRODUCT
X2
Y
G
X
Z
C
Dimensions
Z
G
X
X1
X2
Y
C
Value (in mm)
2.70
1.30
2.50
1.0
0.60
0.70
2.0
X1
X2
