TLRH262(F)

Description
Visible LED, T-1 SINGLE COLOR LED, HIGH INTENSITY RED, 3.1 mm, PLASTIC, 4-3H1, 2 PIN
CategoryLED optoelectronic/LED    photoelectric
File Size119KB,4 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Download Datasheet Parametric Compare View All

TLRH262(F) Overview

Visible LED, T-1 SINGLE COLOR LED, HIGH INTENSITY RED, 3.1 mm, PLASTIC, 4-3H1, 2 PIN

TLRH262(F) Parametric

Parameter NameAttribute value
MakerToshiba Semiconductor
package instructionPLASTIC, 4-3H1, 2 PIN
Reach Compliance Codeunknown
colorHIGH INTENSITY RED
ConfigurationSINGLE
Maximum forward current0.05 A
Lens typeCOLORLESS CLEAR
Nominal luminous intensity220.0 mcd
Installation featuresRADIAL MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
Optoelectronic device typesSINGLE COLOR LED
total height4.8 mm
method of packingBULK
peak wavelength644 nm
shapeROUND
size3.1 mm
surface mountNO
T codeT-1
Terminal pitch2.54 mm

TLRH262(F) Preview

TLRH262
TOSHIBA LED Lamp InGaAℓP Red Light Emission
TLRH262
Panel Circuit Indicator
·
·
·
·
·
·
·
·
·
3.1 mm diameter (T1)
InGaAℓP red LED
All plastic mold type.
Colorless clear lens
Low drive current, high intensity red light emission
Recommended forward current: I
F
= 1~20 mA (DC)
All plastic molded lens, provides an excellent on−off contrast ratio.
Fast response time, capable of pulse operation.
High power luminous intensity
Applications: Suitable for backlighting.
Unit in mm
Maximum Ratings
(Ta = 25°C)
Characteristic
Forward current (DC)
Reverse voltage
Power dissipation
Operating temperature range
Storage temperature range
Symbol
I
F
V
R
P
D
T
opr
T
stg
Rating
50
4
125
-30~85
-40~120
Unit
mA
V
mW
°C
°C
JEDEC
EIAJ
TOSHIBA
Weight: 0.14 g
Min
¾
¾
(Note)
85
85
¾
¾
¾
Typ.
1.9
¾
220
¾
644
18
630
4−3H1
Electrical And Optical Characteristics
(Ta = 25°C)
Characteristic
Forward voltage
Reverse current
Luminous
intensity
TLRH262
TLRH262 (NP)
Symbol
V
F
I
R
I
V
λ
P
∆λ
λ
d
Test Condition
I
F
= 20 mA
V
R
= 4 V
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
Max
2.5
50
¾
414
¾
¾
¾
Unit
V
µA
mcd
nm
nm
nm
Peak emission wavelength
Spectral line half width
Dominant wavelength
(Note): Lamps are classified into the following ranks according to their luminous intensity.
Measurement tolerance for each limit is ±15%.
N: 100-200 mcd, P: 180-360 mcd, Q: 320-640 mcd.
1
2002-09-25
TLRH262
Precaution
·
·
·
Please be careful of the followings
Soldering temperature: 260°C max
Soldering time : 3 s max
(soldering portion of lead: Up to 2 mm from the body of the device)
If the lead is formed, the lead should be formed up to 5 mm from the body of the device without forming stress to
the resin. Soldering should be performed after lead forming.
This visible LED lamp also emits some IR light. If a photodetector is located near the LED lamp, please ensure
that it will not be affected by this IR light.
2
2002-09-25

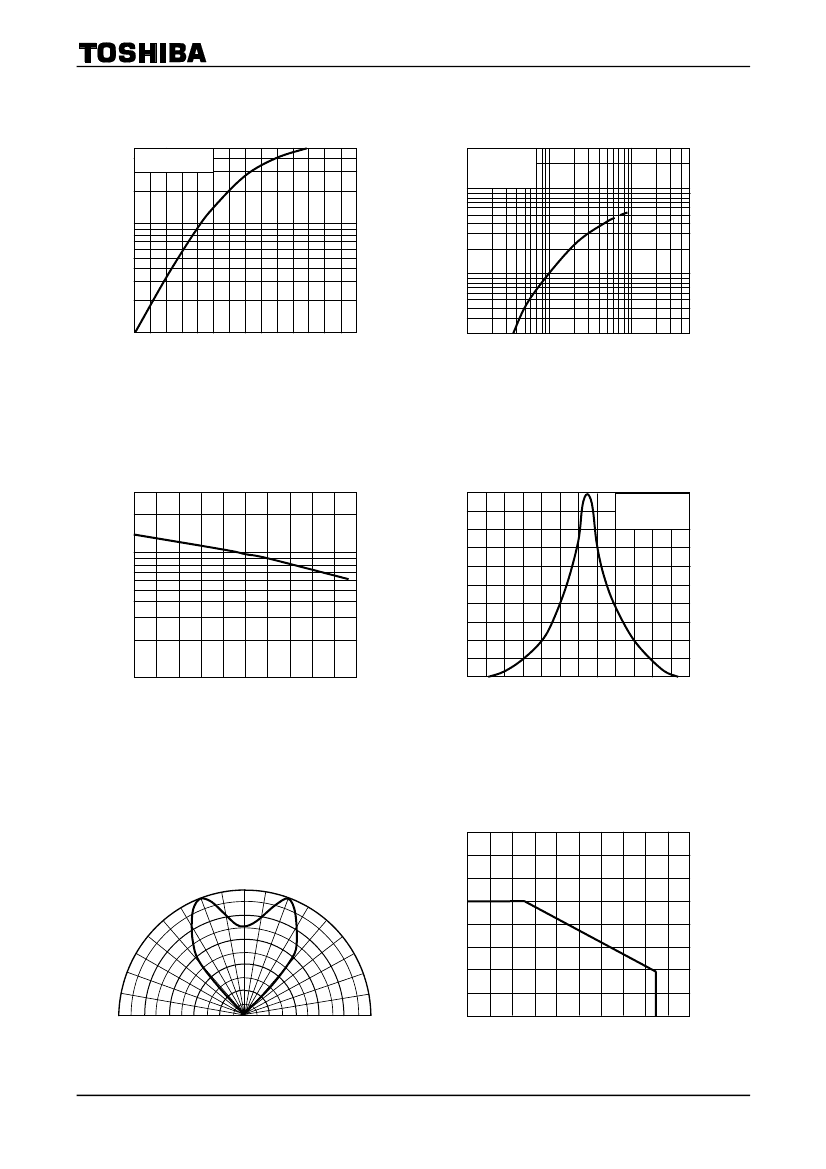

TLRH262
I
F
– V
F
50
30
Ta = 25°C
3000
Ta = 25°C
I
V
– I
F
(mA)
(mcd)
I
V
Luminous intensity
1.7
1.8
1.9
2.0
2.1
2.2
2.3
1000
500
300
Forward current I
F
10
5
3
100
50
1
1.6
20
1
3
5
10
30
50
100
300
Forward voltage
V
F
(V)
Forward current
I
F
(mA)
I
V
– Tc
3
1.0
Relative Luminous Intensity –
Wavelength
IF = 20m A
Ta = 25°C
I
V
Relative luminous intensity
1
Relative luminous intensity
0.8
0.6
0.5
0.3
0.4
0.2
0.1
20
0
20
40
60
80
0
580
600
620
640
660
680
700
Case temperature Tc
(°C)
Wavelength
λ
(nm)
Radiation Pattern
Ta = 25°C
80
I
F
– Ta
Allowable forward current
I
F
(mA)
20°
30°
40°
50°
60°
70°
80°
90°
10°
10°
60
20°
30°
40°
50°
60°
70°
80°
40
20
0
0.2
0.4
0.6
0.8
90°
0
0
20
40
60
80
100
Ambient temperature Ta (°C)
3
2002-09-25
TLRH262
RESTRICTIONS ON PRODUCT USE
000707EAC
·
TOSHIBA is continually working to improve the quality and reliability of its products. Nevertheless, semiconductor
devices in general can malfunction or fail due to their inherent electrical sensitivity and vulnerability to physical
stress. It is the responsibility of the buyer, when utilizing TOSHIBA products, to comply with the standards of
safety in making a safe design for the entire system, and to avoid situations in which a malfunction or failure of
such TOSHIBA products could cause loss of human life, bodily injury or damage to property.
In developing your designs, please ensure that TOSHIBA products are used within specified operating ranges as
set forth in the most recent TOSHIBA products specifications. Also, please keep in mind the precautions and
conditions set forth in the “Handling Guide for Semiconductor Devices,” or “TOSHIBA Semiconductor Reliability
Handbook” etc..
·
The TOSHIBA products listed in this document are intended for usage in general electronics applications
(computer, personal equipment, office equipment, measuring equipment, industrial robotics, domestic appliances,
etc.). These TOSHIBA products are neither intended nor warranted for usage in equipment that requires
extraordinarily high quality and/or reliability or a malfunction or failure of which may cause loss of human life or
bodily injury (“Unintended Usage”). Unintended Usage include atomic energy control instruments, airplane or
spaceship instruments, transportation instruments, traffic signal instruments, combustion control instruments,
medical instruments, all types of safety devices, etc.. Unintended Usage of TOSHIBA products listed in this
document shall be made at the customer’s own risk.
·
Gallium arsenide (GaAs) is a substance used in the products described in this document. GaAs dust and fumes
are toxic. Do not break, cut or pulverize the product, or use chemicals to dissolve them. When disposing of the
products, follow the appropriate regulations. Do not dispose of the products with other industrial waste or with
domestic garbage.
·
The information contained herein is presented only as a guide for the applications of our products. No
responsibility is assumed by TOSHIBA CORPORATION for any infringements of intellectual property or other
rights of the third parties which may result from its use. No license is granted by implication or otherwise under
any intellectual property or other rights of TOSHIBA CORPORATION or others.
·
The information contained herein is subject to change without notice.
4
2002-09-25

TLRH262(F) Related Products

TLRH262(F) TLRH262(N) TLRH262(NP,F) TLRH262(NP) TLRH262(P) TLRH262(Q)
Description Visible LED, T-1 SINGLE COLOR LED, HIGH INTENSITY RED, 3.1 mm, PLASTIC, 4-3H1, 2 PIN Visible LED, T-1 SINGLE COLOR LED, HIGH INTENSITY RED, 3.1 mm, PLASTIC, 4-3H1, 2 PIN Visible LED, T-1 SINGLE COLOR LED, HIGH INTENSITY RED, 3.1 mm, PLASTIC, 4-3H1, 2 PIN Visible LED, T-1 SINGLE COLOR LED, HIGH INTENSITY RED, 3.1 mm, PLASTIC, 4-3H1, 2 PIN Visible LED, T-1 SINGLE COLOR LED, HIGH INTENSITY RED, 3.1 mm, PLASTIC, 4-3H1, 2 PIN Visible LED, T-1 SINGLE COLOR LED, HIGH INTENSITY RED, 3.1 mm, PLASTIC, 4-3H1, 2 PIN
Maker Toshiba Semiconductor Toshiba Semiconductor Toshiba Semiconductor Toshiba Semiconductor Toshiba Semiconductor Toshiba Semiconductor
package instruction PLASTIC, 4-3H1, 2 PIN PLASTIC, 4-3H1, 2 PIN PLASTIC, 4-3H1, 2 PIN PLASTIC, 4-3H1, 2 PIN PLASTIC, 4-3H1, 2 PIN PLASTIC, 4-3H1, 2 PIN
Reach Compliance Code unknown unknown unknown unknown unknown unknown
color HIGH INTENSITY RED HIGH INTENSITY RED HIGH INTENSITY RED HIGH INTENSITY RED HIGH INTENSITY RED HIGH INTENSITY RED
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Maximum forward current 0.05 A 0.05 A 0.05 A 0.05 A 0.05 A 0.05 A
Lens type COLORLESS CLEAR COLORLESS CLEAR COLORLESS CLEAR COLORLESS CLEAR COLORLESS CLEAR COLORLESS CLEAR
Nominal luminous intensity 220.0 mcd 150.0 mcd 249.5 mcd 249.5 mcd 270.0 mcd 480.0 mcd
Installation features RADIAL MOUNT RADIAL MOUNT RADIAL MOUNT RADIAL MOUNT RADIAL MOUNT RADIAL MOUNT
Number of functions 1 1 1 1 1 1
Number of terminals 2 2 2 2 2 2
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -30 °C -30 °C -30 °C -30 °C -30 °C -30 °C
Optoelectronic device types SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED SINGLE COLOR LED
total height 4.8 mm 4.8 mm 4.8 mm 4.8 mm 4.8 mm 4.8 mm
method of packing BULK BULK BULK BULK BULK BULK
peak wavelength 644 nm 644 nm 644 nm 644 nm 644 nm 644 nm
shape ROUND ROUND ROUND ROUND ROUND ROUND
size 3.1 mm 3.1 mm 3.1 mm 3.1 mm 3.1 mm 3.1 mm
surface mount NO NO NO NO NO NO
T code T-1 T-1 T-1 T-1 T-1 T-1
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
color@wavelength - Red - Orange-Red Red Red
Maximum forward voltage - 2.5 V - 2.5 V 2.5 V 2.5 V
Maximum reverse voltage - 4 V - 4 V 4 V 4 V
perspective - 80 deg - 80 deg 80 deg 80 deg
