4 PIN SOP HIGH VOLTAGE DARLINGTON
PHOTOTRANSISTOR PHOTOCOUPLER
Features:
•
Halogens free
•
High collect- mitter voltage (V
CEO
= 350V)
•
Current transfer ratio
(CTR: Min. 1000% at I
F
=1mA ,V
CE
=2V)
•
High isolation voltage between input
and output (Viso=3750 V rms )
•
Compact 4 Pin SOP with a 2.0 mm profile
•
Pb free and RoHS compliant.
•
UL approved (Pending)
•
VDE approved (Pending)
•
SEMKO approved (Pending)
•
NEMKO approved (Pending)
•
DEMKO approved (Pending)
•
FIMKO approved (Pending)
•
CSA approved (Pending)
EL452-G Series
Description
The EL452-G contains an infrared emitting diode, optically
coupled to a high voltage darlington phototransistor.
It is packaged in a 4-pin small outline SMD package.
Applications
•
Telephone set, telephone exchangers
•
Sequence controllers
•
System appliances, measuring instruments
•
Signal transmission between circuits of different potentials and impedance
Everlight Electronics Co., Ltd.
Document No DPC-0000055
E
Schematic
Pin Configuration
1. Anode
2. Cathode
3. Emitter
4. Collector
1
Rev.2
http://www.everlight.com
November 18,2011
：
4 PIN SOP HIGH VOLTAGE DARLINGTON
PHOTOTRANSISTOR PHOTOCOUPLER
Absolute Maximum Ratings (T
a
=25°
C)
Parameter
Forward current
Input
Peak forward current (t = 10µs)
Power dissipation
Power dissipation
Collector current
Output
Collector-Emitter voltage
Emitter-Collector voltage
Total power dissipation
Isolation voltage
*1
EL452-G Series
Symbol
I
F
I
FM
P
D
P
C
I
C
V
CEO
V
ECO
P
tot
V
iso
T
opr
T
stg
Rating
60
1
100
150
150
350
0.1
170
3750
-55~+110
-55~+125
260
Unit
mA
A
mW
mW
mA
V
V
mW
V rms
°
C
°
C
°
C
Operating temperature
Storage temperature
Soldering temperature
*2
T
sol
Notes
*1 AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1 & 2 are shorted together, and pins 3 & 4
are shorted together.
*2 For 10 seconds.
Everlight Electronics Co., Ltd.
Document No DPC-0000055
2
Rev.2
http://www.everlight.com
November 18,2011
：
4 PIN SOP HIGH VOLTAGE DARLINGTON
PHOTOTRANSISTOR PHOTOCOUPLER
Electrical Characteristics (T
a
=25° unless specified otherwise)
C
Input
Parameter
Forward voltage
Reverse current
Input capacitance
Symbol
V
F
Min.
-
-
-
Typ.*
1.2
-
50
Max.
1.4
10
-
Unit
V
µA
pF
EL452-G Series
Condition
I
F
= 10mA
V
R
= 4V
V = 0, f = 1KHz
I
R
C
in
Output
Parameter
Collector-Emitter dark
current
Collector-Emitter
breakdown voltage
Emitter-Collector
breakdown voltage
Symbol
I
CEO
BV
CEO
BV
ECO
Min.
-
350
0.1
Typ.*
-
-
-
Max.
100
-
-
Unit
nA
V
V
Condition
V
CE
= 200V, I
F
=0mA
I
c
=0.1mA
I
E
=0.01mA
Transfer Characteristics (T
a
=25° unless specified otherwise)
C
Parameter
Current Transfer ratio
Collector-emitter saturation
voltage
Isolation resistance
Cut-off frequency
Floating capacitance
Rise time
Fall time
* Typical values at T
a
= 25°
C
Symbol
CTR
V
CE(sat)
R
IO
fc
C
IO
T
r
T
f
Min.
1000
-
5×10
-
-
-
-
10
Typ.*
2000
1.2
10
11
Max.
-
1.5
-
-
-
250
100
Unit
%
V
Ω
KHz
pF
µs
Condition
I
F
= 1mA ,V
CE
= 2V
I
F
= 20mA ,I
c
= 100mA
V
IO
= 500Vdc, 40~60%R.H
V
CE
=2V, I
C
=2mA,R
L
=100Ω,
-3db
V
IO
= 0, f = 1MHz
V
CE
=2V, I
C
=20mA,R
L
=100Ω
7
0.6
80
10
µs
Everlight Electronics Co., Ltd.
Document No DPC-0000055
3
Rev.2
http://www.everlight.com
November 18,2011
：
4 PIN SOP HIGH VOLTAGE DARLINGTON
PHOTOTRANSISTOR PHOTOCOUPLER

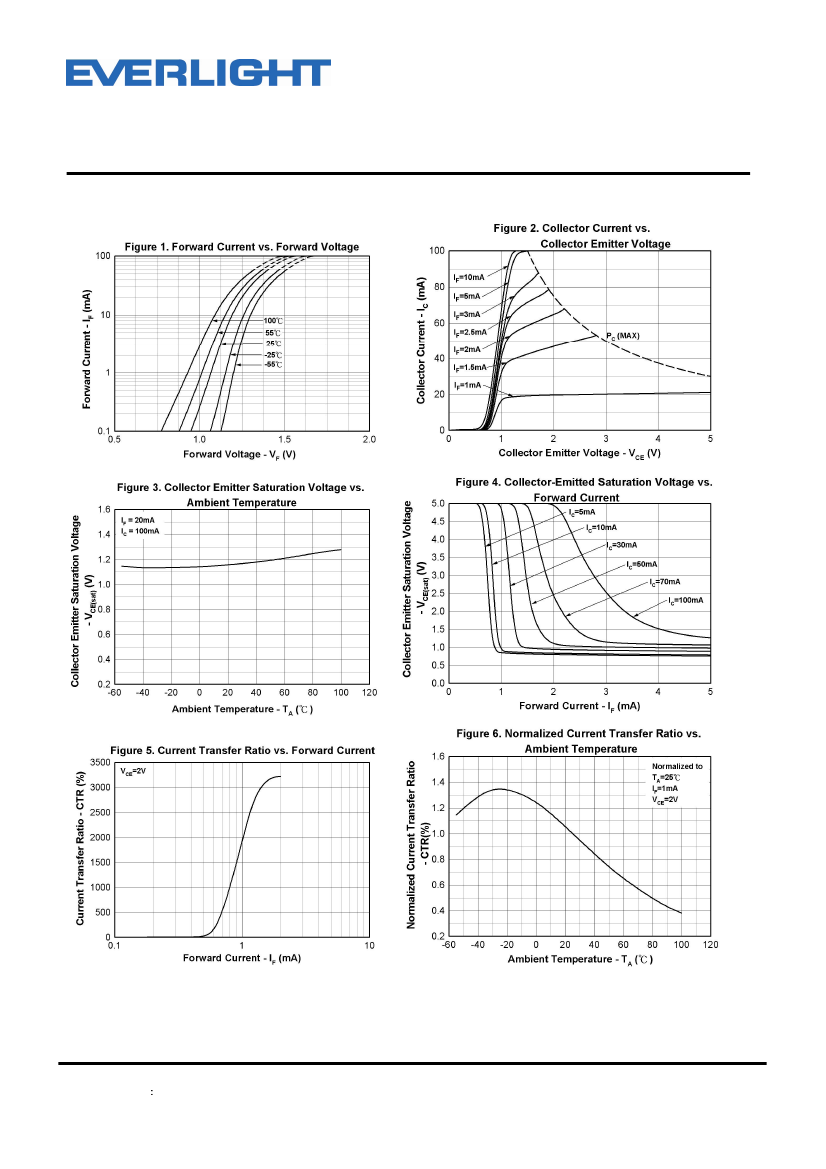

Typical Performance Curves
EL452-G Series
Everlight Electronics Co., Ltd.
Document No DPC-0000055
4
Rev.2
http://www.everlight.com
November 18,2011
：

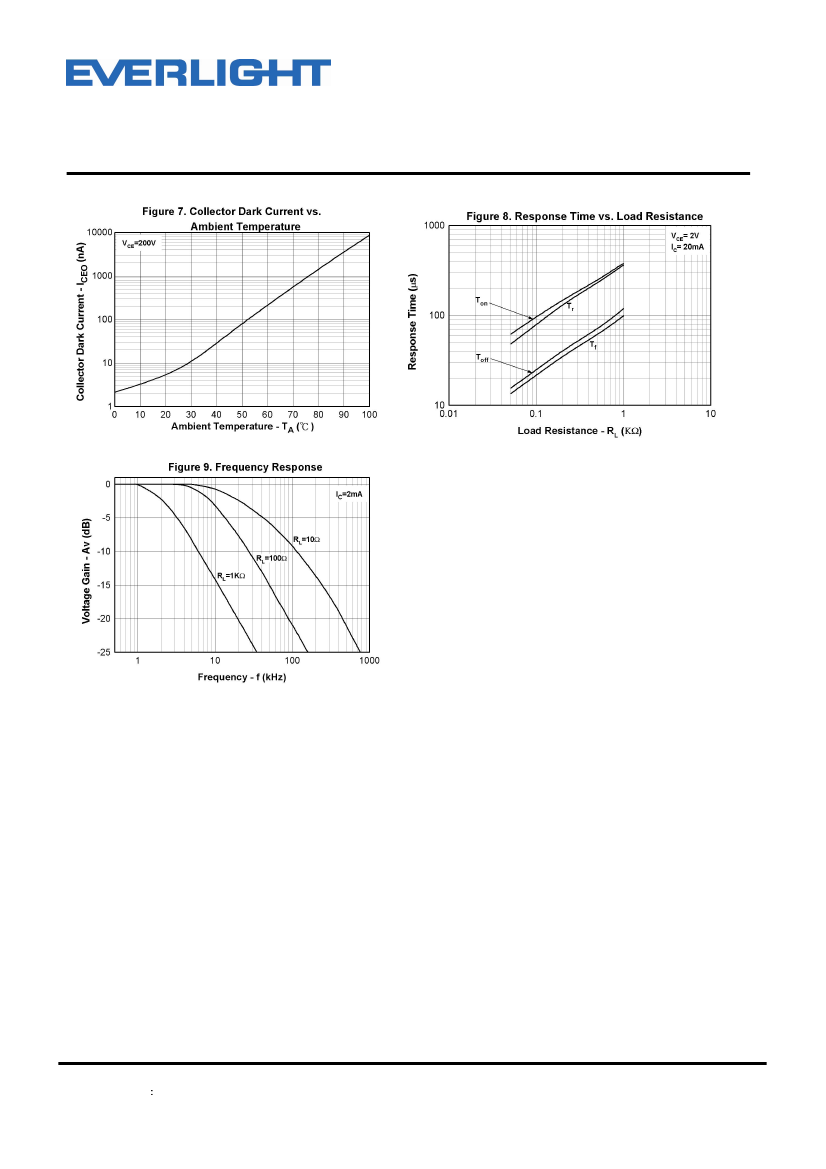

4 PIN SOP HIGH VOLTAGE DARLINGTON
PHOTOTRANSISTOR PHOTOCOUPLER
EL452-G Series
Everlight Electronics Co., Ltd.
Document No DPC-0000055
5
Rev.2
http://www.everlight.com
November 18,2011
：
