Datasheet> All Categories > Discrete semiconductor> diode> BA315113

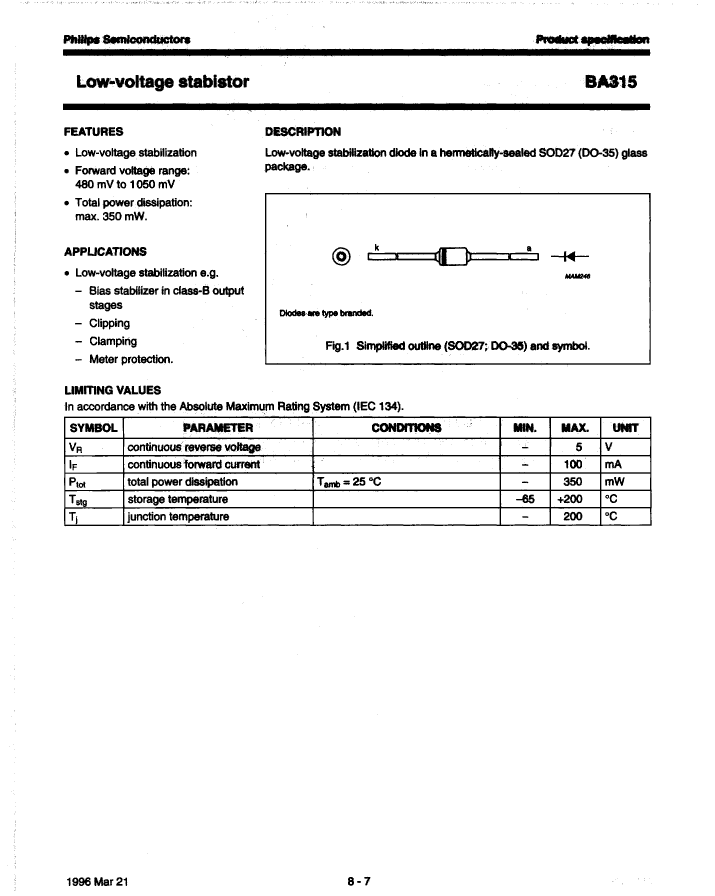

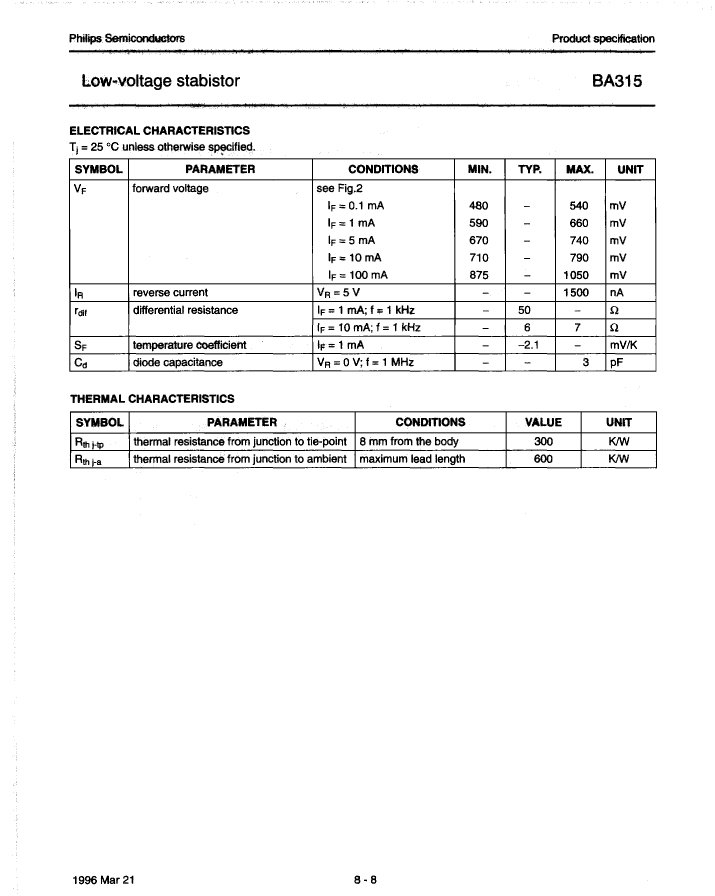

Preview

BA315113: DescriptionDIODE SILICON, STABISTOR DIODE, DO-35, Stabistor Diode; CategoryDiscrete semiconductor diode; File Size60KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BA315113 Overview

DIODE SILICON, STABISTOR DIODE, DO-35, Stabistor Diode

BA315113 Parametric

Parameter Name	Attribute value
Maker	NXP
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	STABISTOR DIODE
Maximum forward voltage (VF)	1.05 V
Minimum forward voltage (VF)	0.875 V
JEDEC-95 code	DO-35
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.35 W
Certification status	Not Qualified
Reverse test voltage	5 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

BA315113 Related Products

	BA315113	BA315153	BA315143	BA315133	BA315116	BA315136
Description	DIODE SILICON, STABISTOR DIODE, DO-35, Stabistor Diode	DIODE SILICON, STABISTOR DIODE, DO-35, Stabistor Diode	DIODE SILICON, STABISTOR DIODE, DO-35, Stabistor Diode	DIODE SILICON, STABISTOR DIODE, DO-35, Stabistor Diode	DIODE SILICON, STABISTOR DIODE, DO-35, Stabistor Diode	DIODE SILICON, STABISTOR DIODE, DO-35, Stabistor Diode
Maker	NXP	NXP	NXP	NXP	NXP	NXP
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	STABISTOR DIODE	STABISTOR DIODE	STABISTOR DIODE	STABISTOR DIODE	STABISTOR DIODE	STABISTOR DIODE
Maximum forward voltage (VF)	1.05 V	1.05 V	1.05 V	1.05 V	1.05 V	1.05 V
Minimum forward voltage (VF)	0.875 V	0.875 V	0.875 V	0.875 V	0.875 V	0.875 V
JEDEC-95 code	DO-35	DO-35	DO-35	DO-35	DO-35	DO-35
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Number of components	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum power dissipation	0.35 W	0.35 W	0.35 W	0.35 W	0.35 W	0.35 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Reverse test voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	-	1	1	1	1	1
