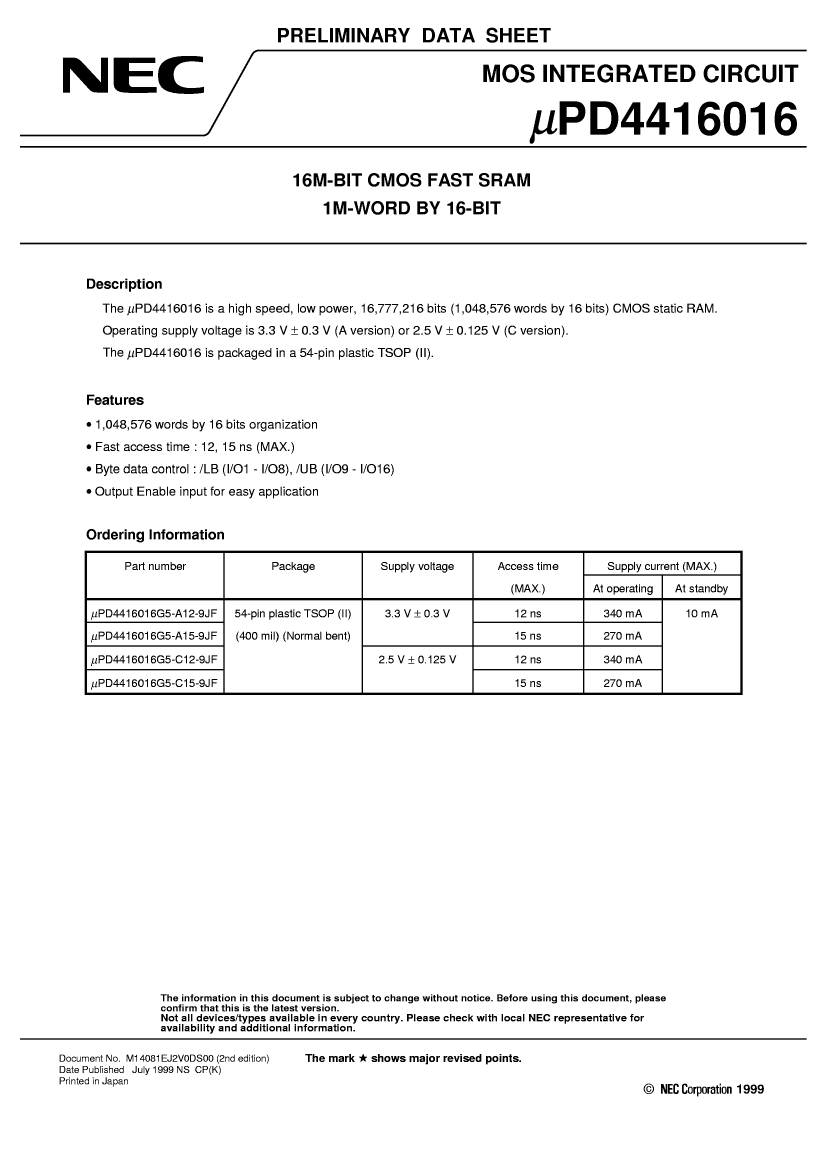

UPD4416016G5-C12-9JF datasheet, PDF

UPD4416016G5-C12-9JF: DescriptionIC,SRAM,1MX16,CMOS,TSOP,54PIN,PLASTIC; Categorystorage storage; File Size423KB，13 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

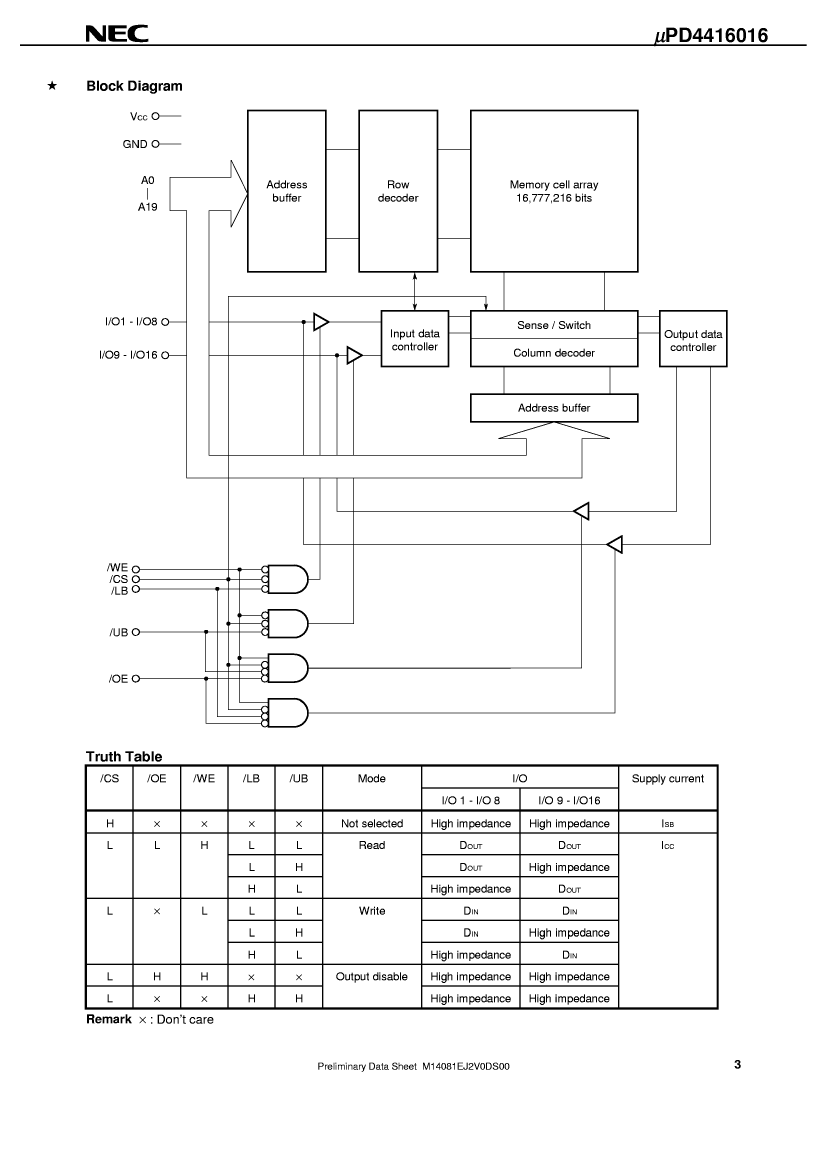

UPD4416016G5-C12-9JF Overview

IC,SRAM,1MX16,CMOS,TSOP,54PIN,PLASTIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	TSOP, TSOP54,.46,32
Reach Compliance Code	unknown
Maximum access time	12 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G54
JESD-609 code	e0
memory density	16777216 bit
Memory IC Type	STANDARD SRAM
memory width	16

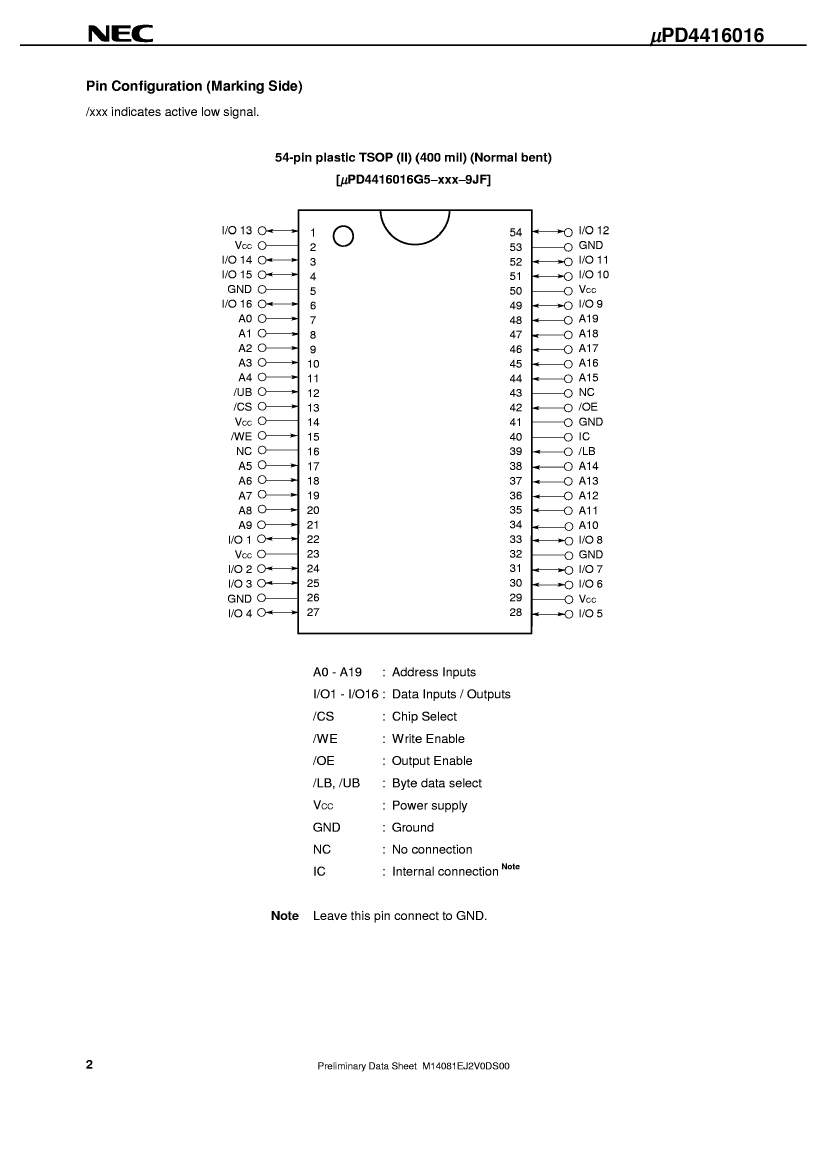

Number of terminals	54
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS

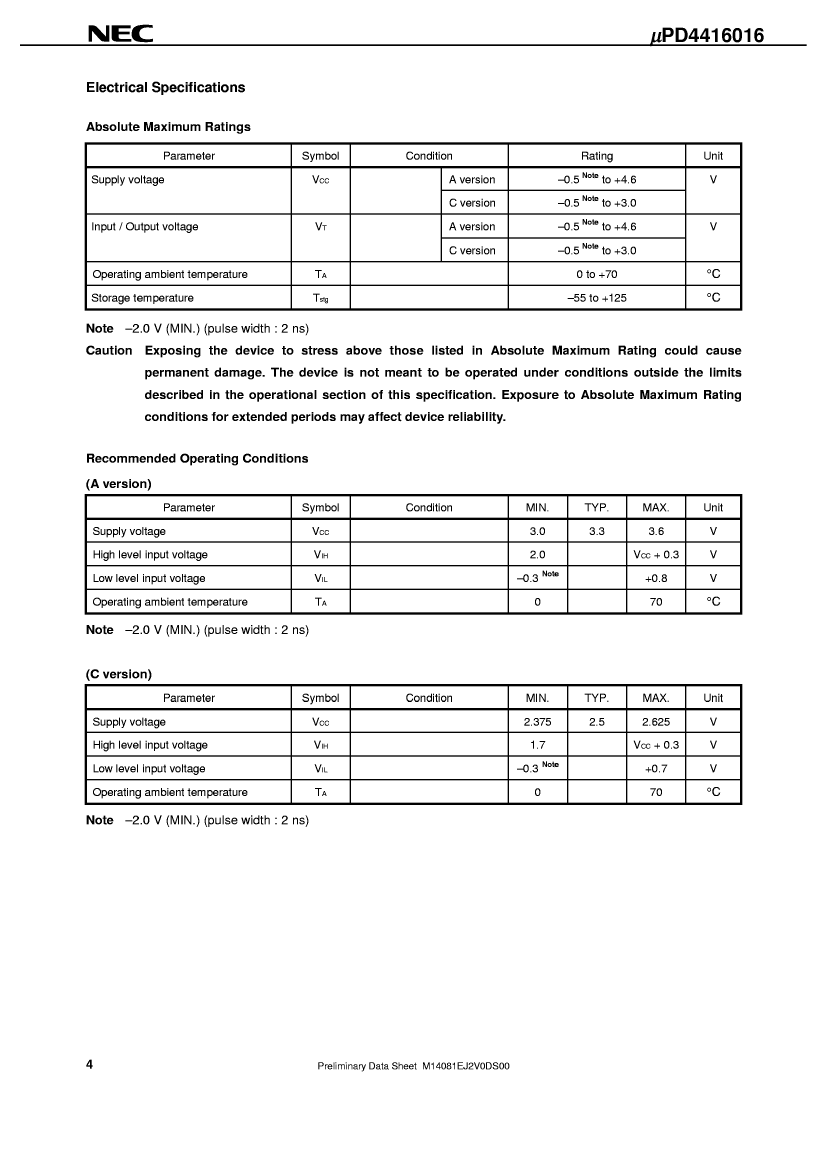

Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Encapsulate equivalent code	TSOP54,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
power supply	2.5 V
Certification status	Not Qualified

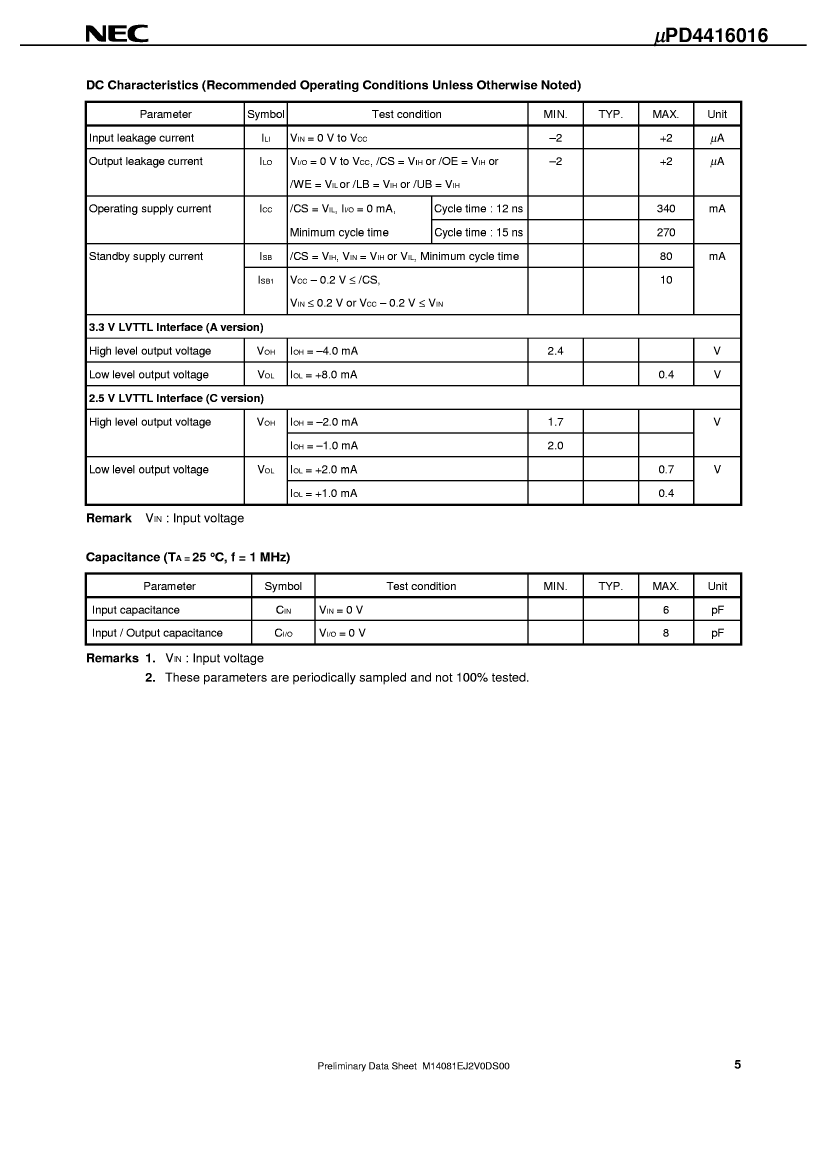

Maximum standby current	0.01 A
Minimum standby current	2.38 V
Maximum slew rate	0.34 mA
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL

	UPD4416016G5-C12-9JF	UPD4416016G5-C15-9JF
Description	IC,SRAM,1MX16,CMOS,TSOP,54PIN,PLASTIC	IC,SRAM,1MX16,CMOS,TSOP,54PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
package instruction	TSOP, TSOP54,.46,32	TSOP, TSOP54,.46,32
Reach Compliance Code	unknown	unknown
Maximum access time	12 ns	15 ns
I/O type	COMMON	COMMON
JESD-30 code	R-PDSO-G54	R-PDSO-G54
JESD-609 code	e0	e0
memory density	16777216 bit	16777216 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM
memory width	16	16
Number of terminals	54	54
word count	1048576 words	1048576 words
character code	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	1MX16	1MX16
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP	TSOP
Encapsulate equivalent code	TSOP54,.46,32	TSOP54,.46,32
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL
power supply	2.5 V	2.5 V
Certification status	Not Qualified	Not Qualified
Maximum standby current	0.01 A	0.01 A
Minimum standby current	2.38 V	2.38 V
Maximum slew rate	0.34 mA	0.27 mA
Nominal supply voltage (Vsup)	2.5 V	2.5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL
