MDA1201 datasheet, PDF - EEWORLD Datasheet

MDA1201: Description4.5A, 100V, SILICON, BRIDGE RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size152KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

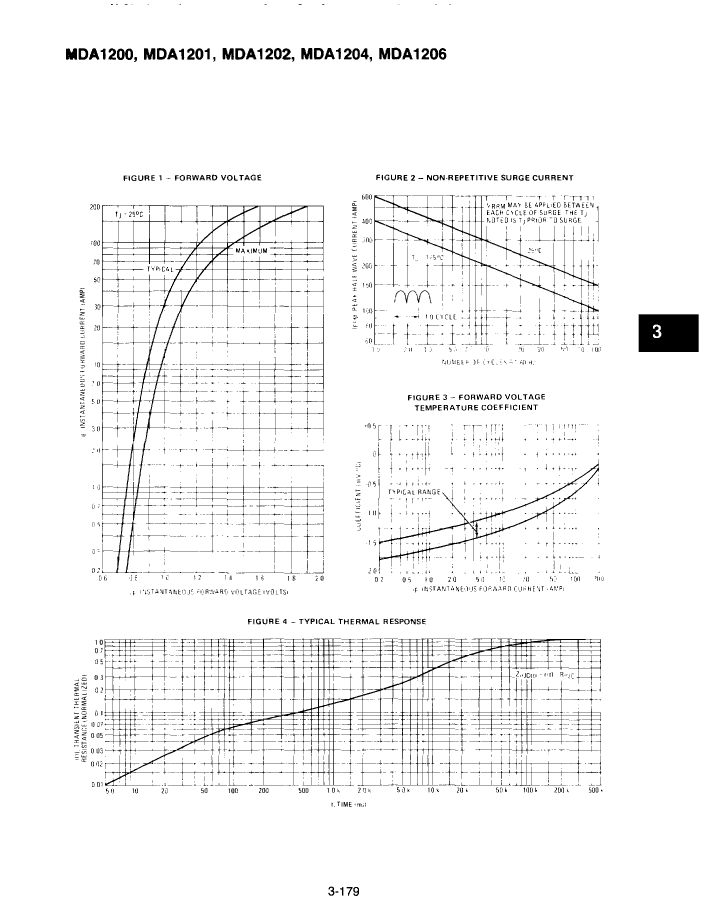

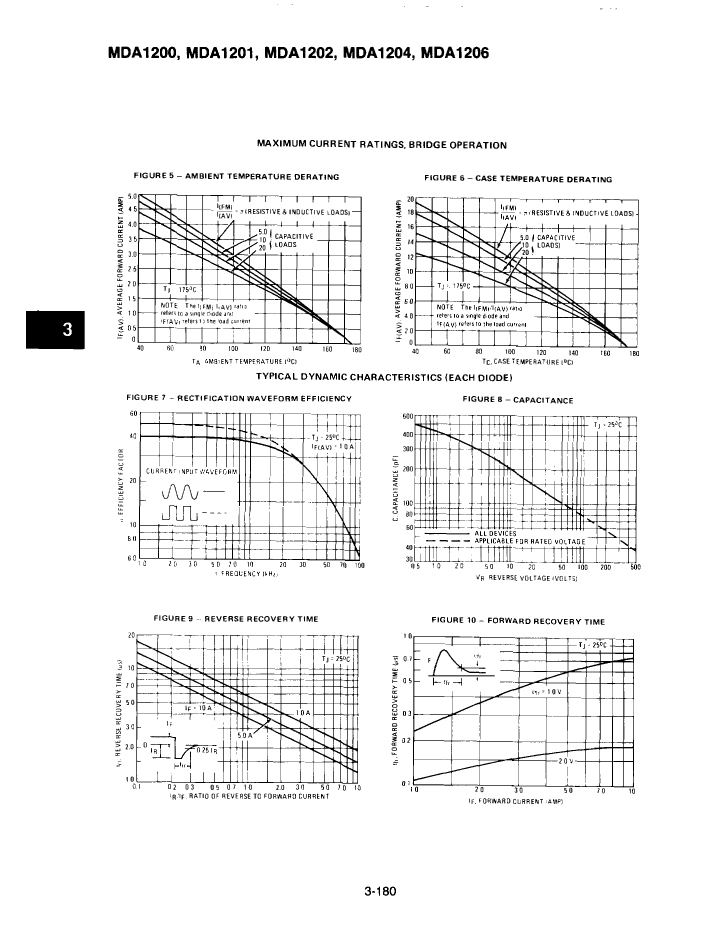

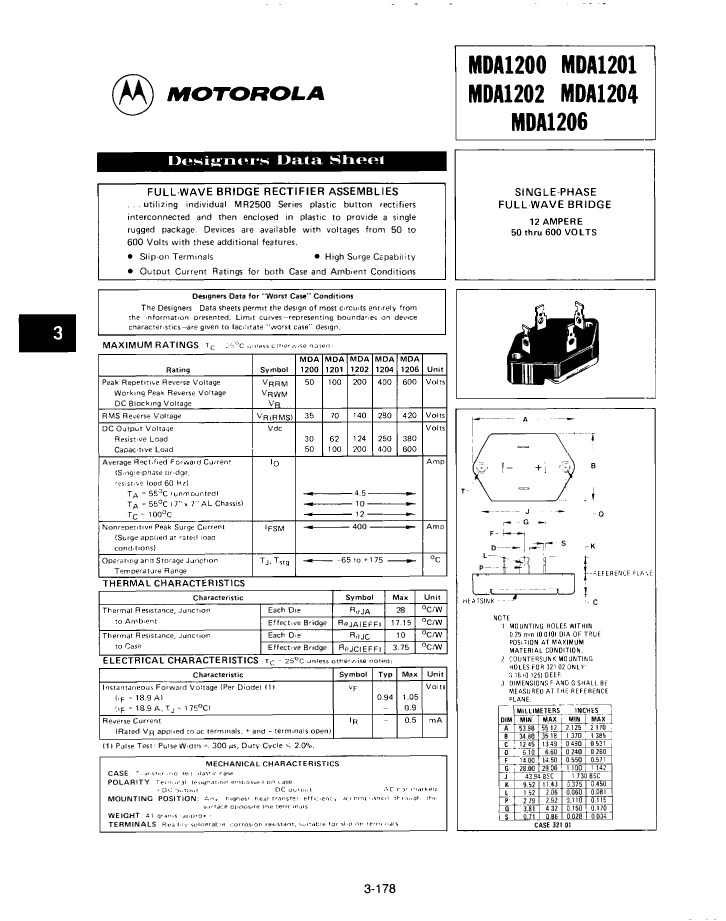

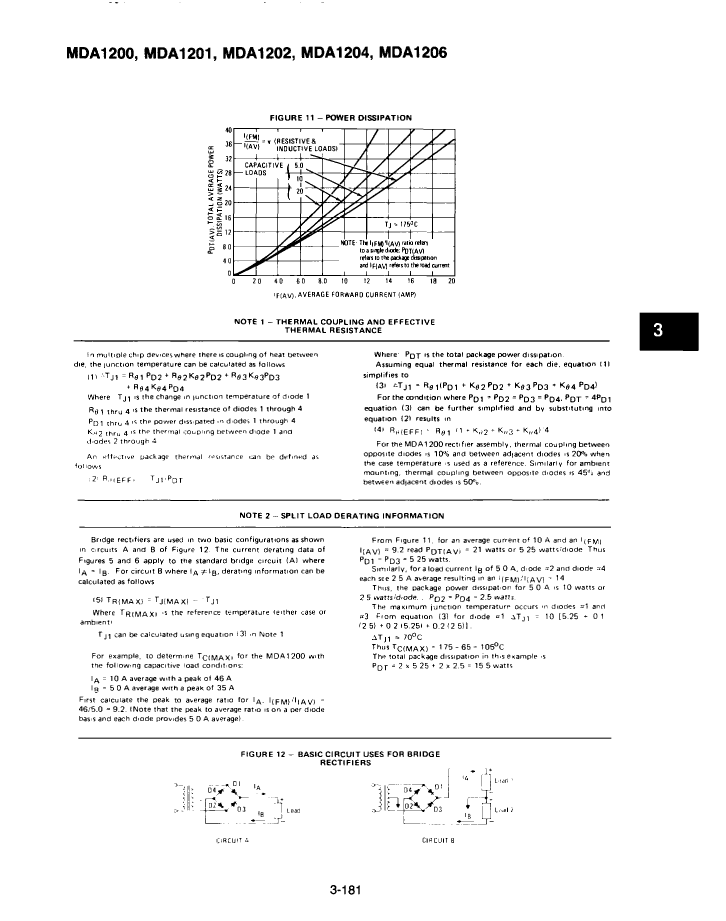

MDA1201 Overview

4.5A, 100V, SILICON, BRIDGE RECTIFIER DIODE

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	X-PUFM-D4
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V
JESD-30 code	X-PUFM-D4
Maximum non-repetitive peak forward current	400 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	4.5 A
Package body material	PLASTIC/EPOXY
Package shape	UNSPECIFIED
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	0.0005 µA
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

	MDA1201	MDA1204	MDA1200
Description	4.5A, 100V, SILICON, BRIDGE RECTIFIER DIODE	4.5A, 400V, SILICON, BRIDGE RECTIFIER DIODE	4.5A, 50V, SILICON, BRIDGE RECTIFIER DIODE
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	X-PUFM-D4	X-PUFM-D4	X-PUFM-D4
Reach Compliance Code	unknown	unknown	unknown
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Shell connection	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.05 V	1.05 V	1.05 V
JESD-30 code	X-PUFM-D4	X-PUFM-D4	X-PUFM-D4
Maximum non-repetitive peak forward current	400 A	400 A	400 A
Number of components	4	4	4
Phase	1	1	1
Number of terminals	4	4	4
Maximum operating temperature	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
Maximum output current	4.5 A	4.5 A	4.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	400 V	50 V
Maximum reverse current	0.0005 µA	0.0005 µA	0.0005 µA
surface mount	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER
ECCN code	EAR99	-	EAR99
