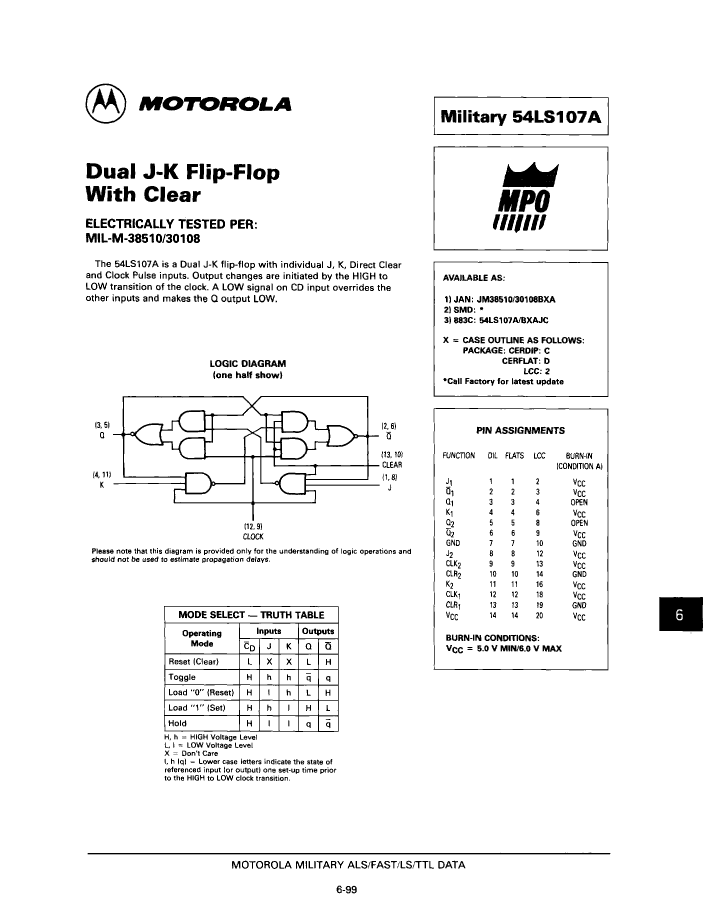

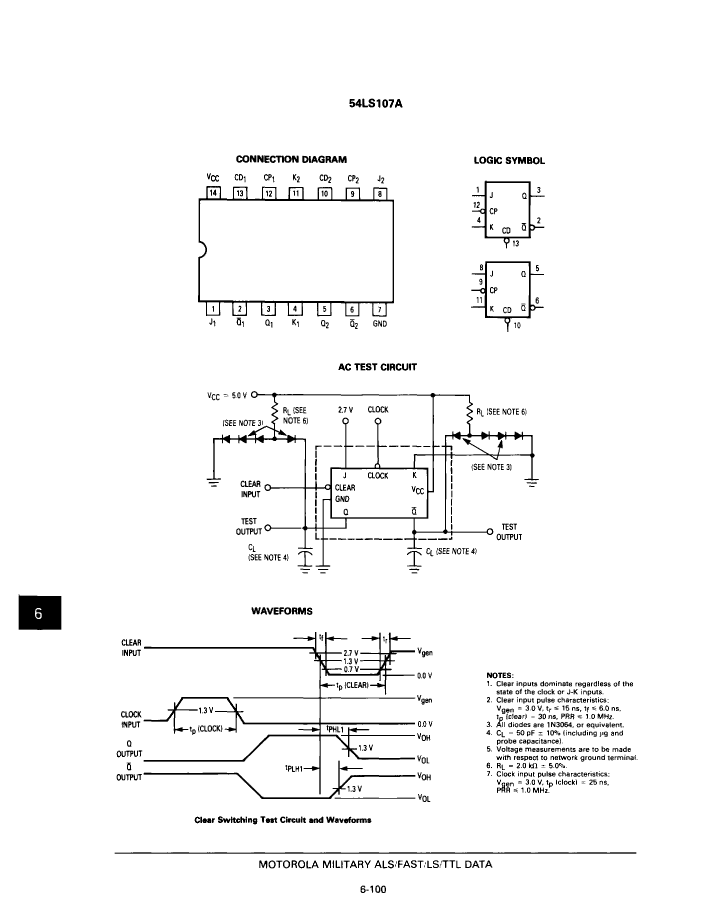

LS SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, CQCC20, CERAMIC, LCC-20
| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| Parts packaging code | QLCC |
| package instruction | QCCN, |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| series | LS |
| JESD-30 code | S-CQCC-N20 |
| length | 8.885 mm |
| Logic integrated circuit type | J-K FLIP-FLOP |
| Number of digits | 2 |
| Number of functions | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | COMPLEMENTARY |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |

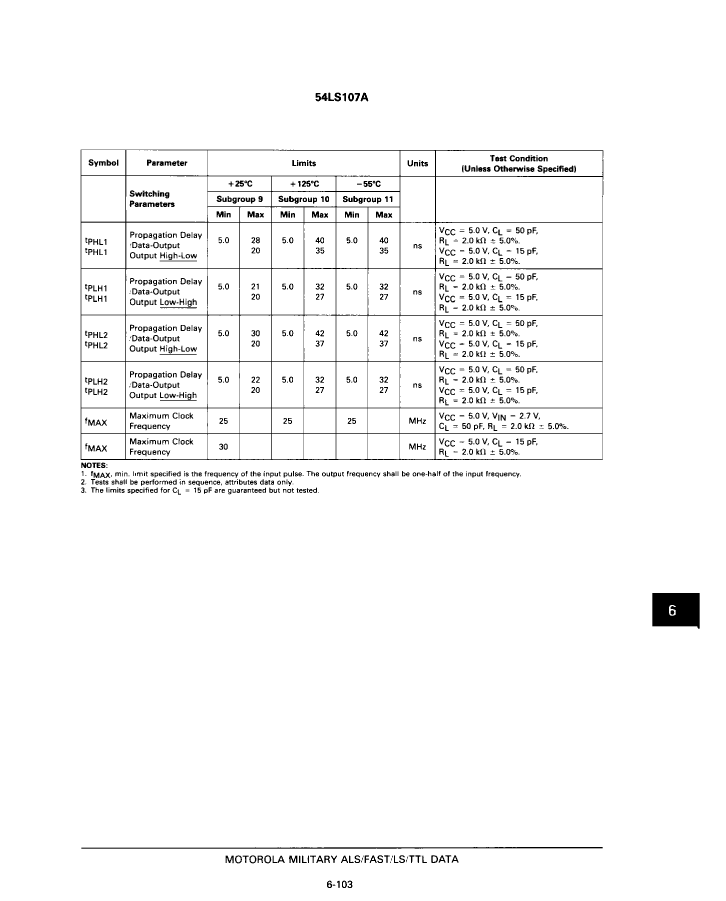

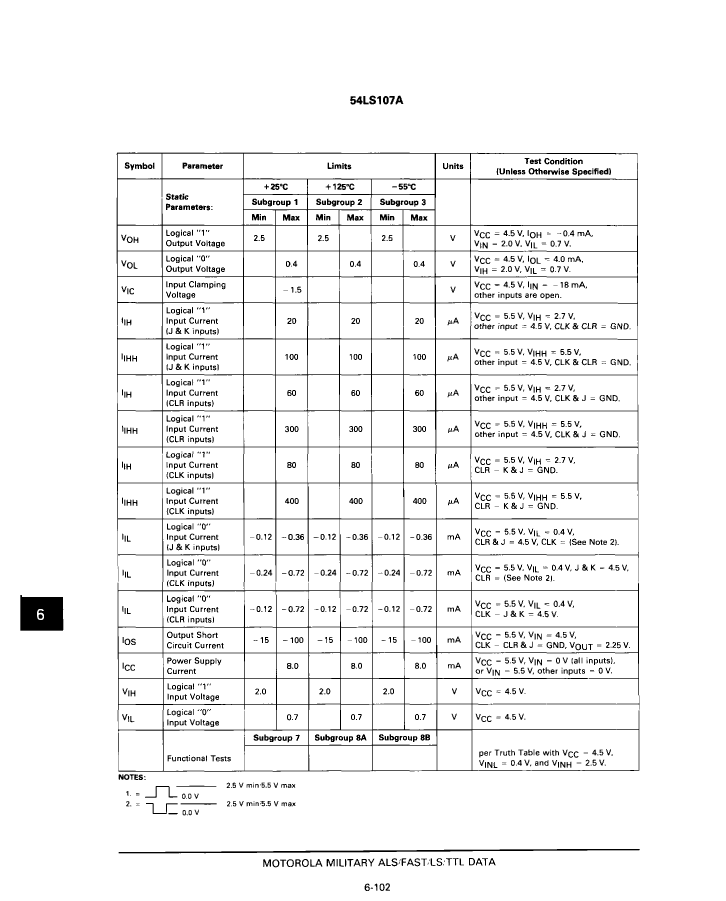

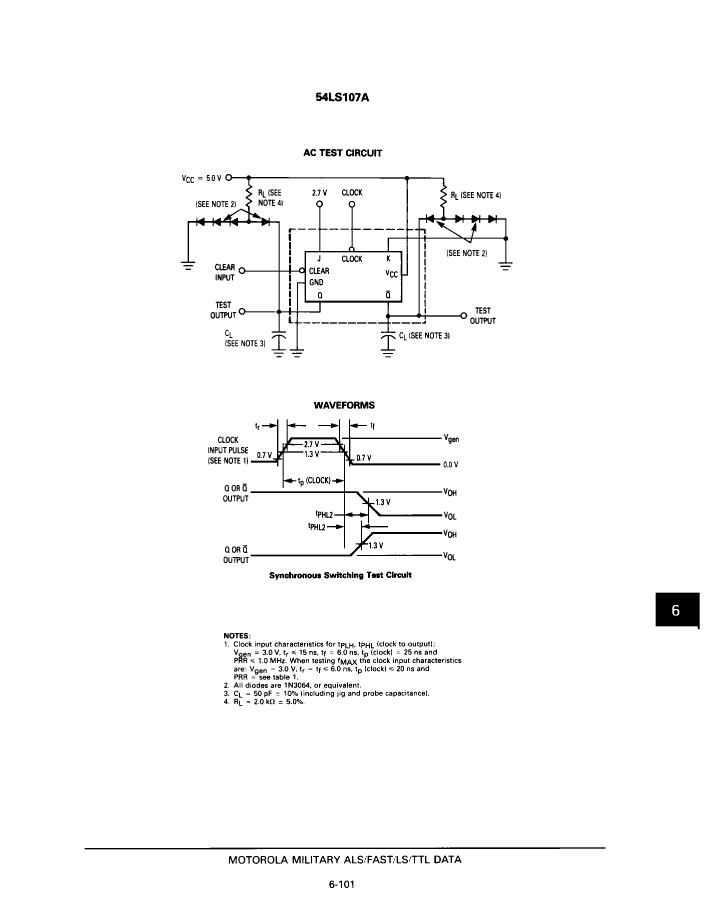

| propagation delay (tpd) | 42 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.9 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Trigger type | NEGATIVE EDGE |
| width | 8.885 mm |
| minfmax | 30 MHz |
| JM38510/30108B2A | 54LS107A/B2AJC | JM38510/30108BCA | JM38510/30108BDA | |
|---|---|---|---|---|
| Description | LS SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, CQCC20, CERAMIC, LCC-20 | LS SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, CQCC20, CERAMIC, LCC-20 | LS SERIES, DUAL NEGATIVE EDGE TRIGGERED J-K FLIP-FLOP, COMPLEMENTARY OUTPUT, CDIP14, CERDIP-14 | J-K Flip-Flop, LS Series, 2-Func, Negative Edge Triggered, 2-Bit, Complementary Output, TTL, CDFP14, CERAMIC, FP-14 |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| package instruction | QCCN, | CERAMIC, LCC-20 | DIP, | DFP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| series | LS | LS | LS | LS |
| JESD-30 code | S-CQCC-N20 | S-CQCC-N20 | R-GDIP-T14 | R-GDFP-F14 |
| length | 8.885 mm | 8.885 mm | 19.495 mm | 9.65 mm |
| Logic integrated circuit type | J-K FLIP-FLOP | J-K FLIP-FLOP | J-K FLIP-FLOP | J-K FLIP-FLOP |
| Number of digits | 2 | 2 | 2 | 2 |
| Number of functions | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 14 | 14 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Output polarity | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | QCCN | QCCN | DIP | DFP |
| Package shape | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | CHIP CARRIER | CHIP CARRIER | IN-LINE | FLATPACK |
| propagation delay (tpd) | 42 ns | 42 ns | 42 ns | 42 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.9 mm | 1.9 mm | 5.08 mm | 2.15 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | YES |
| technology | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | NO LEAD | NO LEAD | THROUGH-HOLE | FLAT |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | QUAD | QUAD | DUAL | DUAL |
| Trigger type | NEGATIVE EDGE | NEGATIVE EDGE | NEGATIVE EDGE | NEGATIVE EDGE |
| width | 8.885 mm | 8.885 mm | 7.62 mm | 6.415 mm |
| minfmax | 30 MHz | 30 MHz | 30 MHz | 30 MHz |
