700SP7B20M2REH: DescriptionE-SWITCH - 700SP7B10M2REH - PUSHBUTTON SWITCH; SPDT; 3A; 120VAC; 28VDC; Categoryunclassified; File Size387KB，4 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

700SP7B20M2REH Overview

E-SWITCH - 700SP7B10M2REH - PUSHBUTTON SWITCH; SPDT; 3A; 120VAC; 28VDC

Preview

Download Datasheet

View All

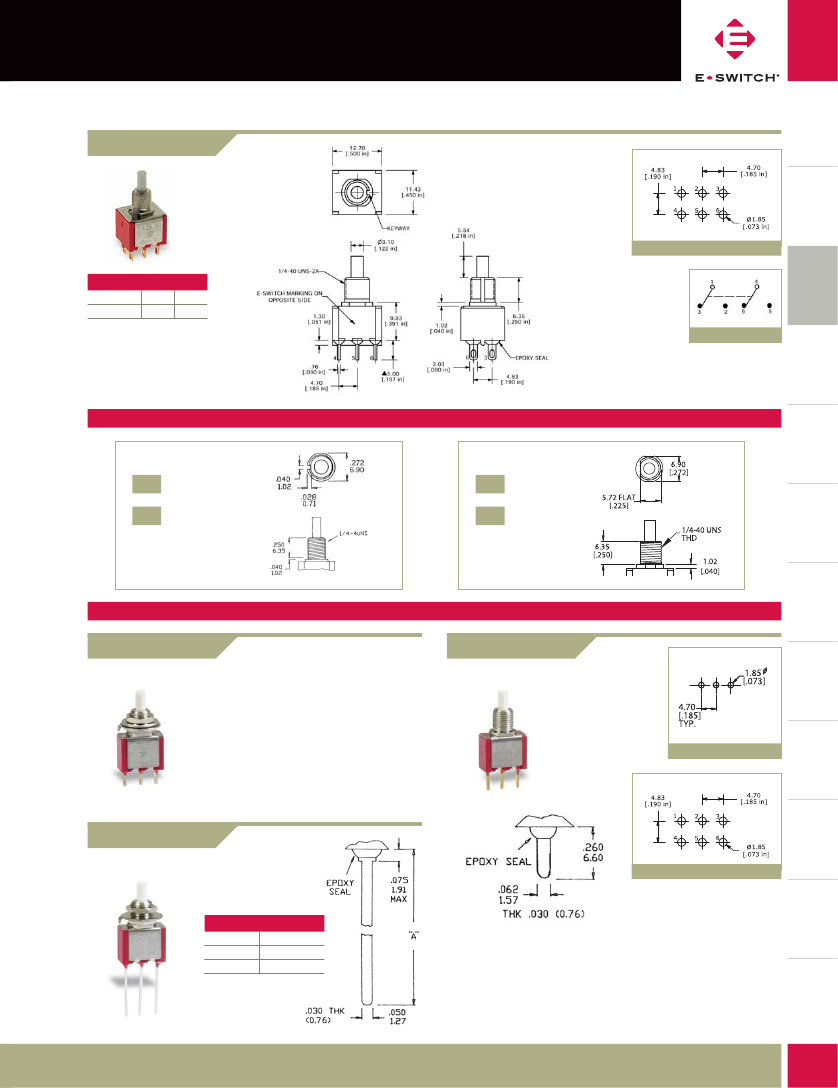

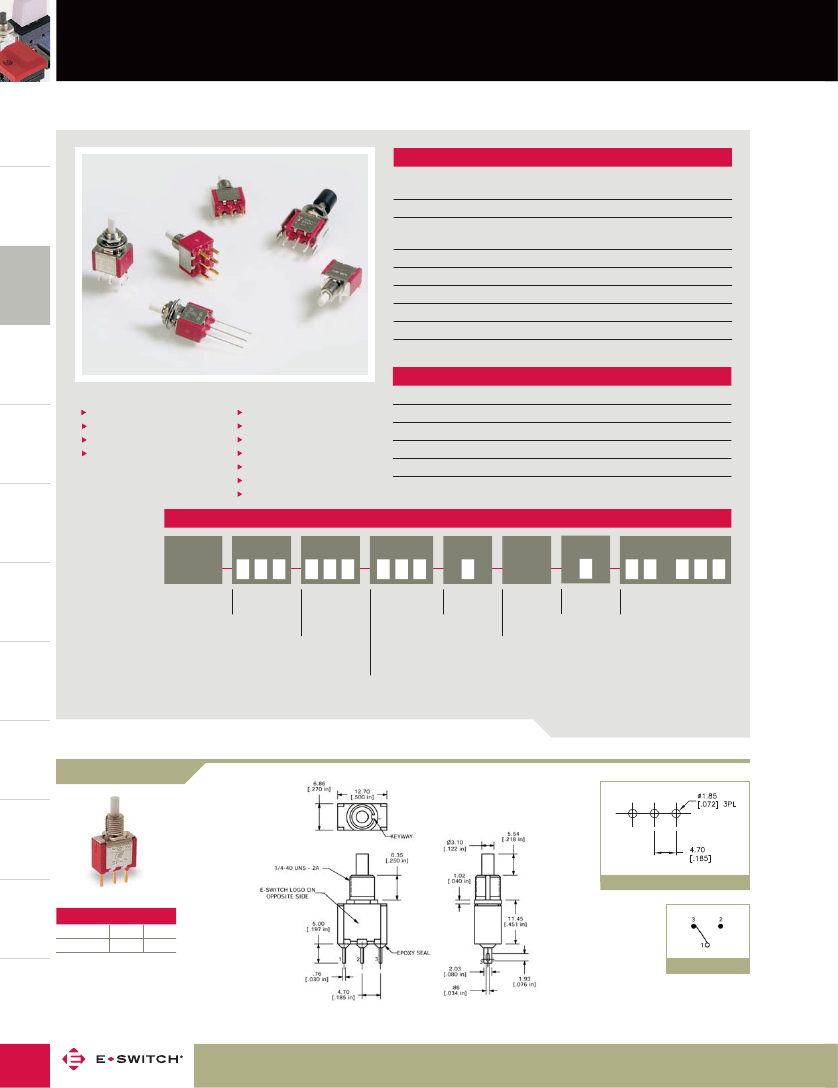

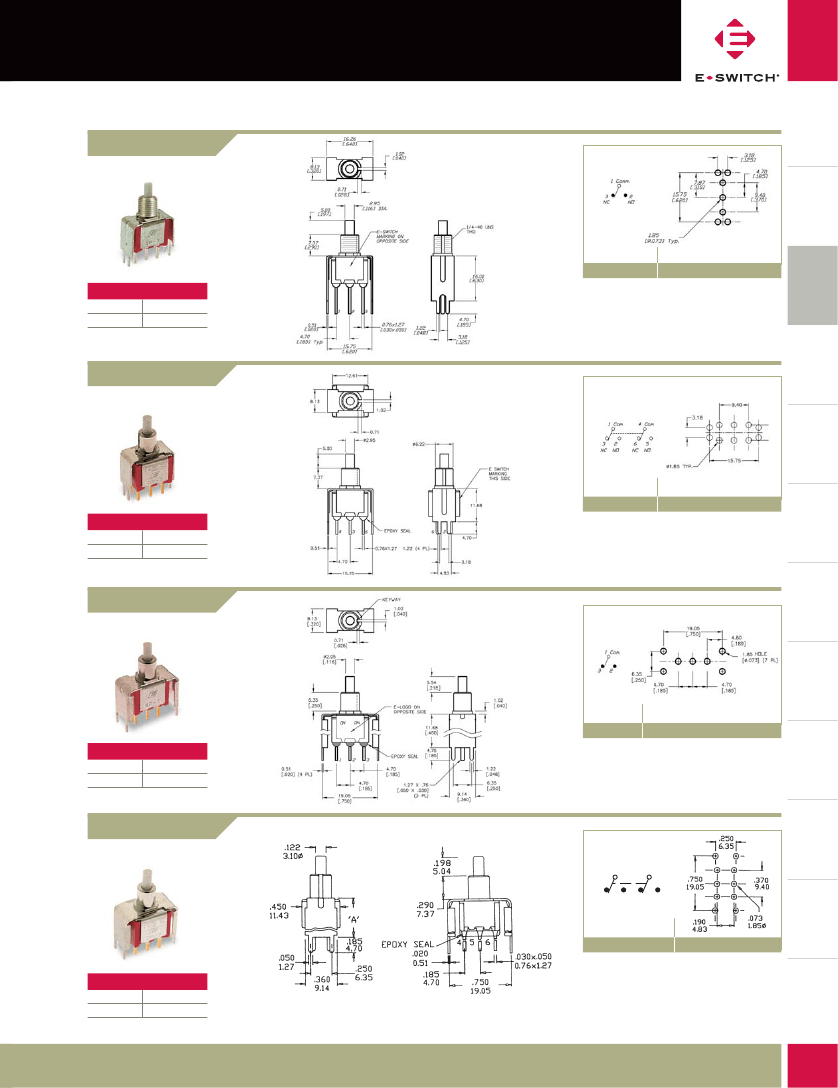

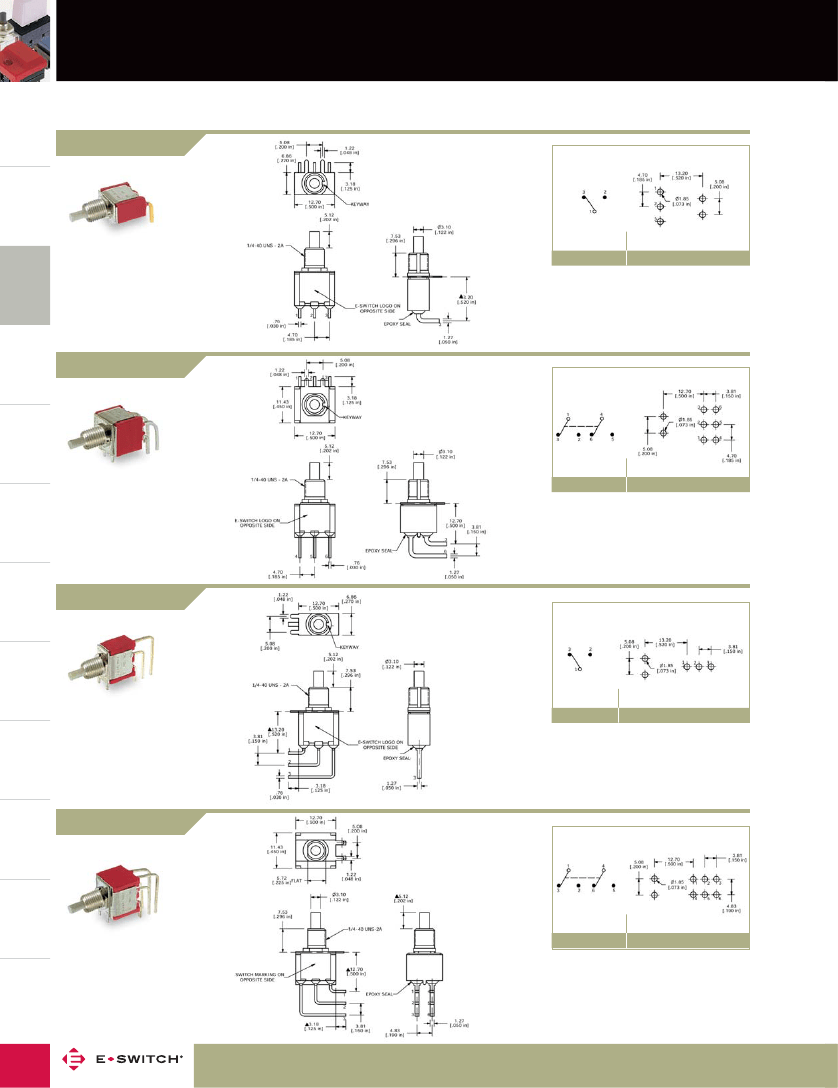

SERIES 700 SWITCHES

TACT

SWITCHES

PUSHBUTTON SWITCHES - SNAP-ACTING

SPECIFICATIONS

NAVIGATION

SWITCHES

Contact Ratings:

Life Expectancy:

Contact Resistance:

Insulation Resistance:

Dielectric Strength:

Actuation Force:

Travel:

1A @ 250 VAC

3A @ 120 VAC or 28 VDC

50,000 cycles typical

20mΩ max. typical @ 2-4 VDC

100mA for both silver and gold plated contacts

1,000 MΩ min.

1,000 V RMS @ sea level

200 ± 50 gf

1.20mm Typ

PUSHBUTTON

SWITCHES

Operating Temperature: -30°C to +85°C

TOGGLE

SWITCHES

MATERIALS

FEATURES & BENEFITS

APPLICATIONS/MARKETS

Telecommunications

Networking

Computers/servers

Performance audio

Instrumentation

Low power on/off designs

External hard drives and modems

Case:

Plunger:

Bushing:

Frame:

Contacts:

DAP

Glass filled nylon or glass filled polyester

Nickel plated brass

Stainless steel

Silver or Gold plated copper alloy

SLIDE

SWITCHES

ROCKER

SWITCHES

Snap acting contact design

Gold & silver contact options

Multiple termination options

Snap-in panel mount option

▲

HOW TO ORDER

SERIES

MODEL NO.

BUSHING

TERMINATION

CONTACT

MATERIAL

SEAL

HARDWARE

CAP

CAP COLOR

SNAP-ACTION

SWITCHES

700

SP7

DP7

B10

B11

B20

B21

M51

M52

M53

VS2

VS3

VS4

VS5

Q = Silver

R = Gold

E = Epoxy

Sealed at

Base of

Terminal

Hardware

See Cap Options

DIP

SWITCHES

▲

Example Ordering Number

700_ DP7_ B10_ M1_ Q

E_ H_ C1_ BLK

Specifications subject to change without notice.

KEYLOCK

SWITCHES

SPDT

ROTARY

SWITCHES

P.C. MOUNTING

DETECTOR

SWITCHES

Model No.

SP-7

Term. Comm

1-3

Type

(ON)

1-2

SCHEMATIC

( ) = Momentary

CAP

OPTIONS

Phone: 800-867-2717

Fax: 763-531-8235
