340108001BDBBM17W2PSNMB Overview

D*BM Series compliant

D*BM Series compliant with ESA/ESCC 3401/080 specification
Connectors Savers, Electrical, Rectangular, Non-Removable
Signal Contacts, and Removable Coaxial and Power Contact For
D*Subminiature
Features/Benefits
Compliant with ESA/ESCC specification
Savers combo connectors
Removable Coaxial contacts
Removable Power contacts
Non removable signal contacts
Combination arrangements
Typical Applications
Space equipments
Test equipments applications
Avionics / Military
Industrials applications

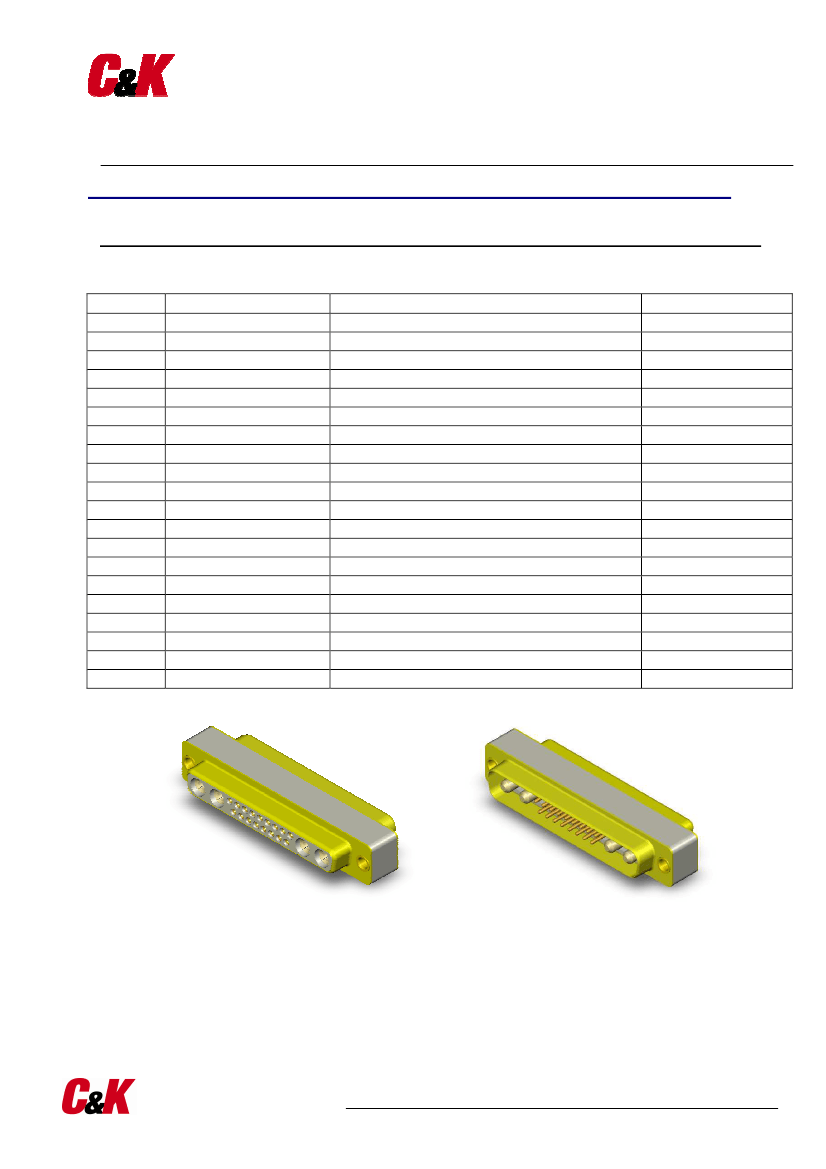

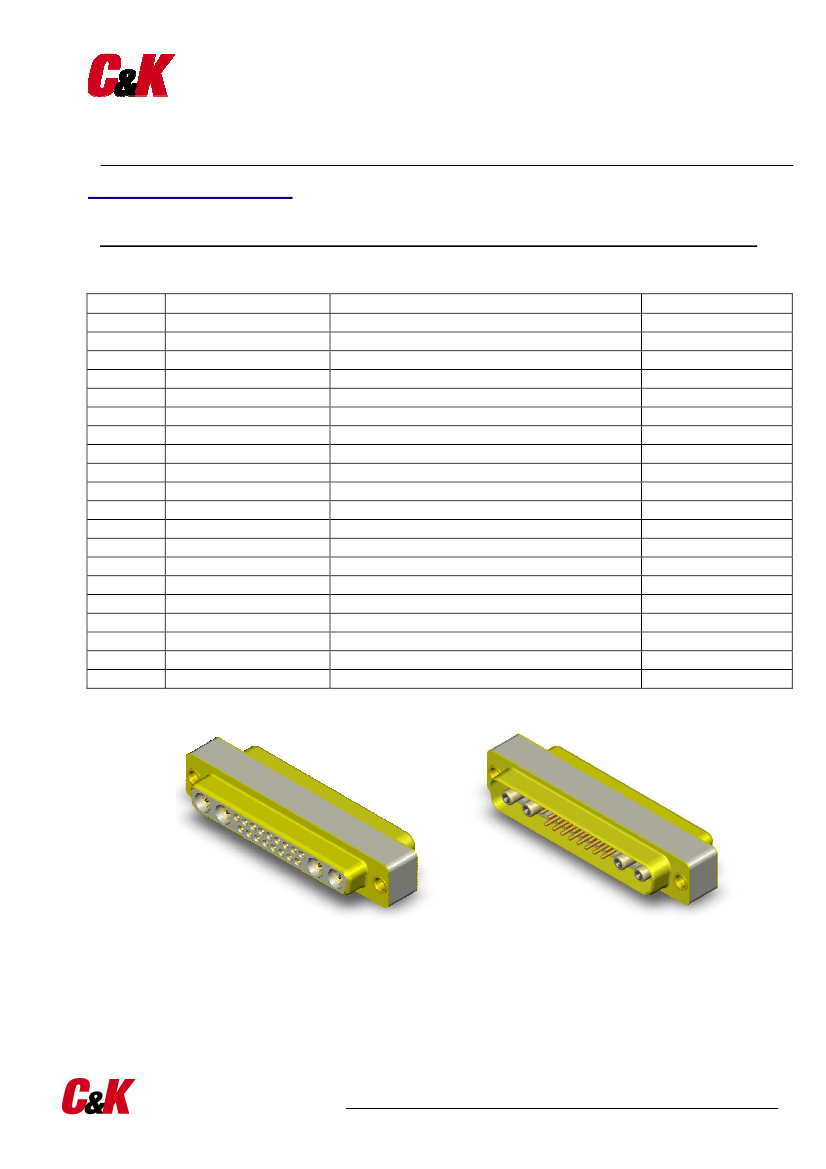

SECTION 1 : ESA / ESCC 3401-080 Connectors without Power or Coaxial Contacts.

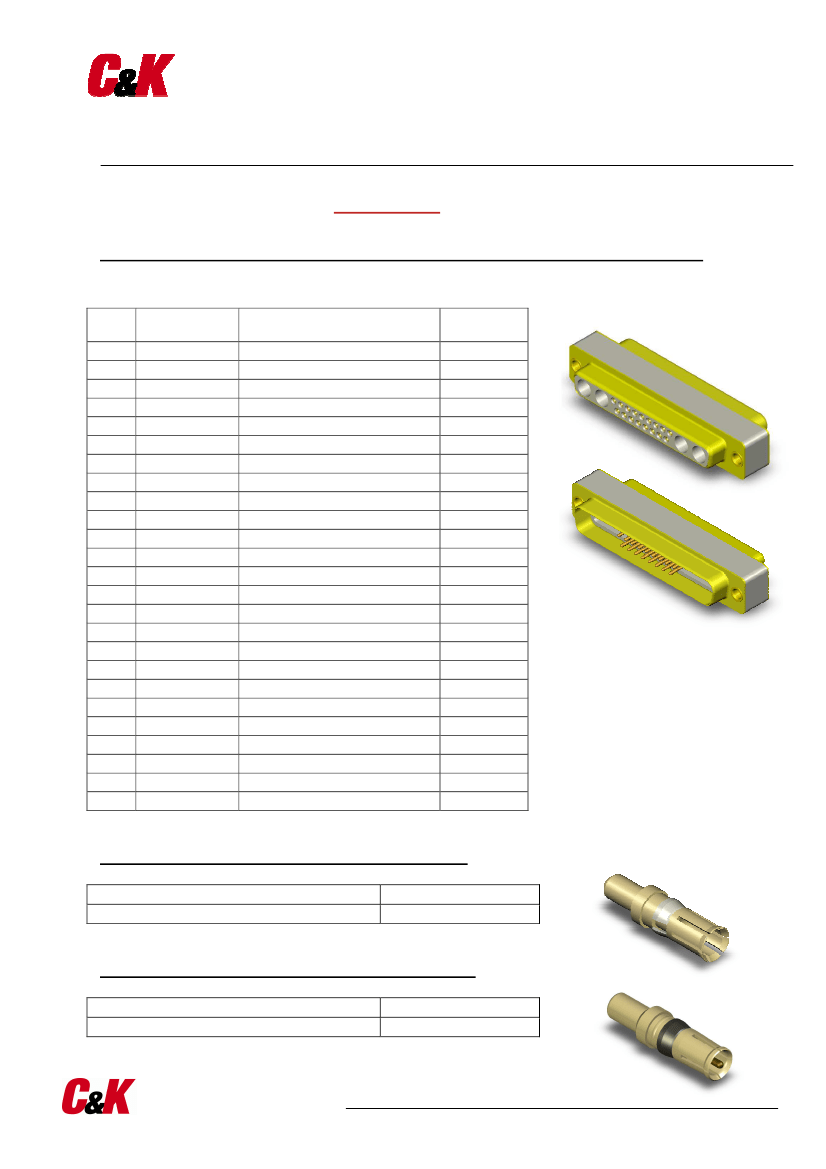

SECTION 2 : ESA / ESCC 3401-080 Connectors with Power or Coaxial Contacts.
SECTION 3 : FR022 Connectors without Power or Coaxial Contacts.
SECTION 4 : FR022 Connectors with Power or Coaxial Contacts.
Specification :
Compliant with ESA/ESCC specifications 3401/080.
Can be delivered with power or coaxial size 8 contacts installed.
Compatible with D*M ESCC 3401/001, D*MA ESCC 3401/002, and
Accessories 3401/022.
Combinations arrangements available.
SIZE AVAILABLE : 9 , 15 , 25 , 37 , 50 for standard arrangements.
5W1, 3WK3, 3W3, 7W2, 11W1, 5W5, 9W4, 13W3, 17W2, 21W1, 8W8,
13W6, 17W5, 21WA4, 25W3, 27W2, 24W7, 36W4, 43W2, 47W1 for
combination arrangements.
Star-clip male/female contact technology for signal contacts.
(1) Force with signal contacts only, cavities sizes 8 are empty.
(2) Force with signal contacts and coaxial contacts equipped.
(3) Force with signal contacts and power contacts equipped.
(4) Weights without coaxial or power contacts: Added 1,7g per
coaxial contacts or 2,15g per power contacts (if applicable)
Retention force in insert
Signal contact
Power or Coaxial contact
N max
40
40,86
Mechanical Characteristics :
Type
Size E- 9
Size E- 5W1
Size A- 15
Size A- 3WK3/3W3
Size A- 7W2
Size A- 11W1
Size B- 25
Size B- 5W5
Size B- 9W4
Size B- 13W3
Size B- 17W2
Size B- 21W1
Size C- 37
Size C- 8W8
Size C- 13W6
Size C- 17W5
Size C- 21WA4
Size C- 25W3
Size C- 27W3
Size D- 50
Size D- 24W7
Size D- 36W4
Size D- 43W2
Size D- 47W1
Mating force (N max)
(1)
30
13,3
50
-
16,6
33,2
83
-
16,6
33,2
49,8
66,4
123
-
23,2
39,8
56,4
73
79,7
166
56,4
106,2
136,1
152,7
(2)
-
23,5
-
30,6
37
43,4
-
51
57,4
63,8
70,2
76,6
-
81,6
84,4
90,8
97,2
103,6
110,3
-
127,8
147
156,5
162,9
(3)
-
20,2
-
20,7
30,4
40,1
-
34,5
44,2
53,9
63,6
73,3
-
55,2
64,6
74,3
84
93,7
100,4
-
104,7
133,8
149,9
159,6
Weight
(g max)
(4)
11,2
9,9
16,2
12,4
13,7
14,9
21
14,7
16
17,2
18,5
19,7
27,8
18,5
20,3
21,5
22,8
24
24,5
32,5
24,3
28
30,3
31,5
1
Dimensions shown in mm (inch)
Specifications and dimensions subject to change
Electrical Characteristics :
Working Voltage for signal contacts (Sea level):
Working Voltage for coaxial or power contacts
(Sea level):
Rated Current for signal contacts and coaxial
centre contacts
Rated Current for power contacts
300 Vrms
250 Vrms
7,5 A
40 A
Temperature Range :
Operating Temperature range
Storage Temperature Range
-55 to +125 °
C
-65 to +125 °
C
Quality Level :
■■■
ESA / ESCC : code 3401-080 (Flying model)
■■■
Standard space : code FR022 (Engineering Model)
Packaging :
■■■
Individual packaging and traceability associated as per
ESA/ESCC specifications
■■■
Each D*BM connector is sold in individual plastic bag
www.ck-components.com
