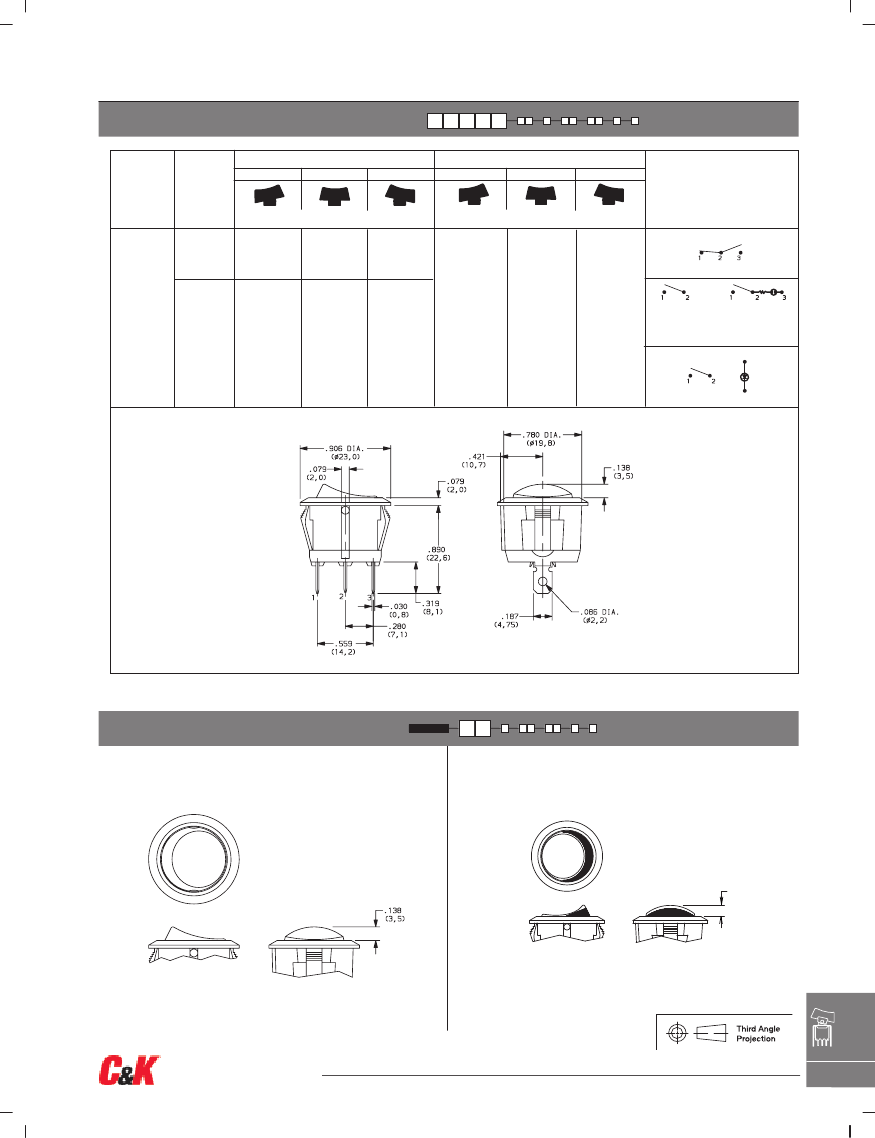

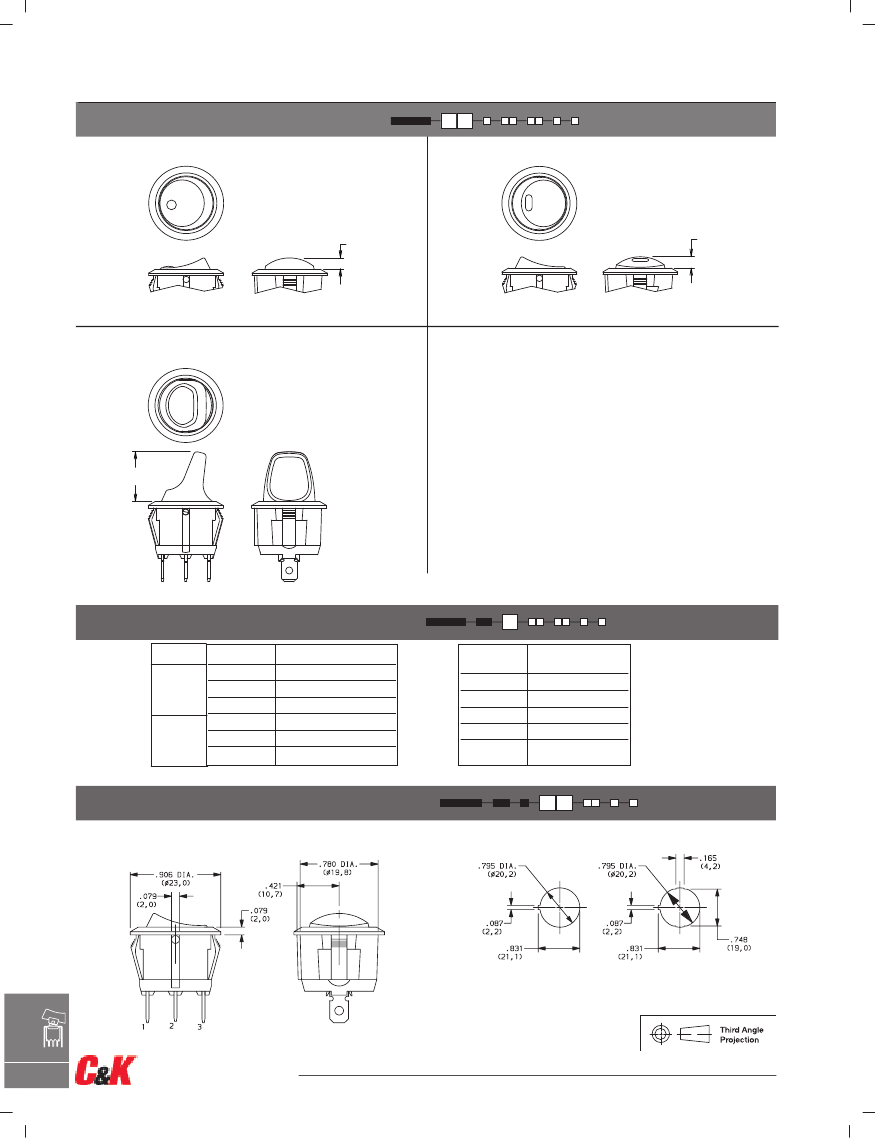

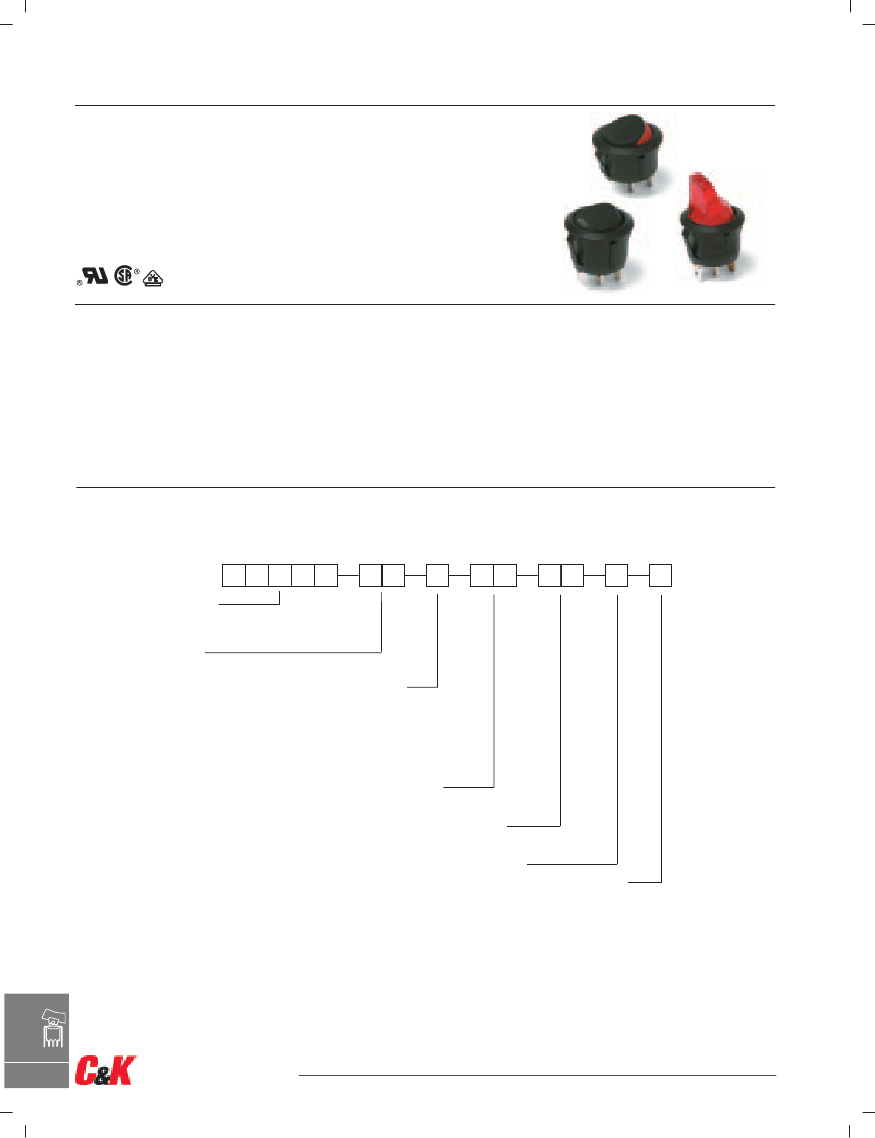

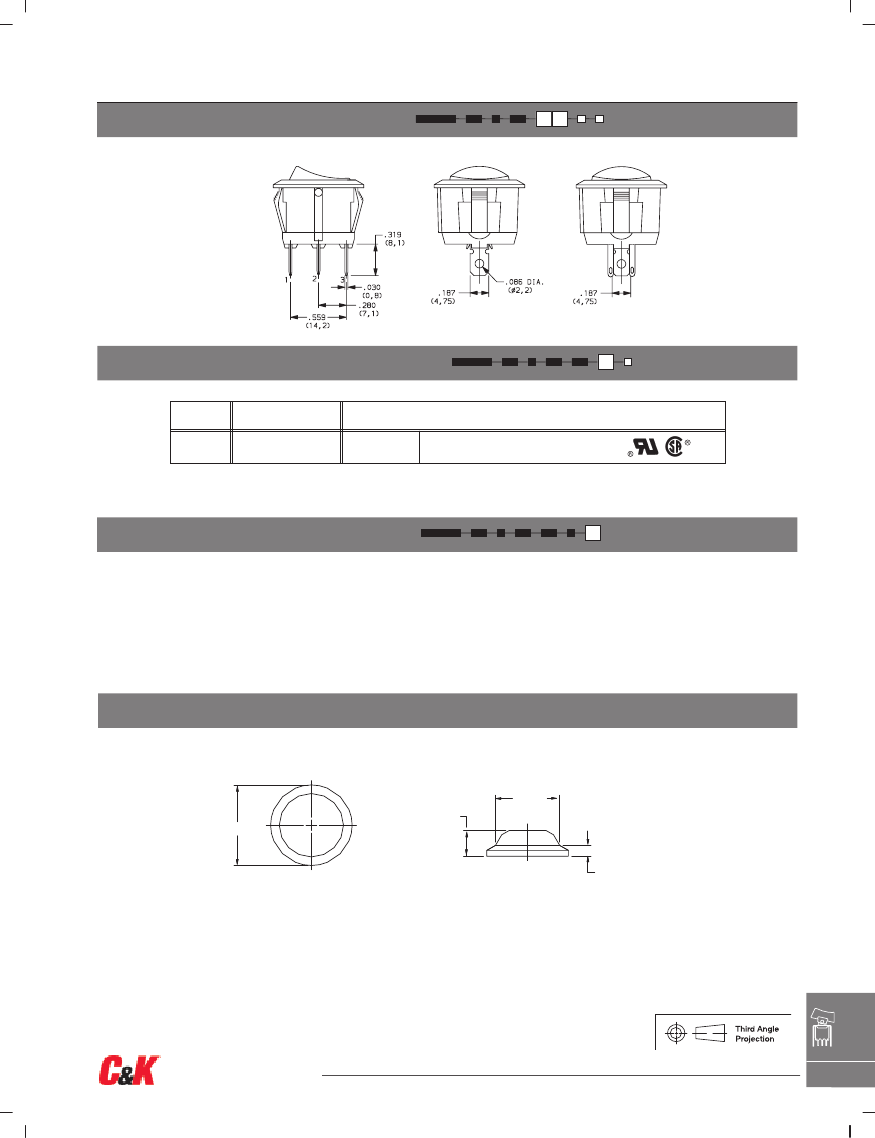

CR Series
Round Single Pole Specialty Rocker Switches
Features/Benefits
•
Round actuator and body
•
Nice styling
•
Multiple illuminated versions
available
•
IP65 splash proof rubber
boot option
Typical Applications
•
Appliances, small and large
•
Office equipment
•
Computers and peripherals
•
Audio/Video equipment
•
RoHS compliant
Models Available
Specifications
CONTACT RATING:
UL: 16 AMPS @ 125 VAC, 10 AMPS @ 250 VAC.
VDE µ T85: 16 AMPS @ 125 VAC, 10 AMPS @ 250 VAC.
ELECTRICAL LIFE: 10,000 make and break cycles at full load.
INSULATION RESISTANCE: 108
Ω
min.
DIELECTRIC STRENGTH: 1,500 VRMS @ sea level.
OPERATING TEMPERATURE: -20ºC to + 85ºC
Materials
HOUSING AND ACTUATOR: 6/6 nylon (UL94V-2), matte finish.
ILLUMINATED ACTUATOR: Polycarbonate, matte finish.
CENTER CONTACTS: Silver plated, copper alloy.
END CONTACTS: Silver plated AgSn02ln03.
ALL TERMINALS: Silver plated, copper alloy.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown
and described on pages G–83 through G–85. For additional options not shown in catalog, consult Customer Service Center.
Switch Function
CR101
SPDT On-None-On
CR102
SPST On-None-Off
Actuator
J1
Rocker
J2*
Two-tone rocker
J3
Illuminated rocker
J4**
Circle, illuminated rocker
J5
Oval, illuminated rocker
JN
Paddle, rocker
JP**
Paddle, illuminated rocker
Actuator Color
2
Black
1
White
3
Red
R
Red, illuminated
A
Amber, illuminated
G
Green, illuminated
Mounting Style/Color
S2
Snap-in, black
S1
Snap-in, white
Termination
15
.187” quick connect
Contact Rating
QF
Silver
Rocker
Lamp Rating
(NONE)
No lamp
6
LED
7
125 VAC neon
8
250 VAC neon
*
Refer to table on page 84 for actuator options.
** VDE rating for JP: 10 A @ 125 VAC / 6 A at 250 VAC.
G
G–82
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
CR Series
Round Single Pole Specialty Rocker Switches
SWITCH FUNCTION
SWITCH FUNCTION
Pos. 1
Pos. 2
Pos. 3
Pos. 1
CONNECTED TERMINALS
Pos. 2
Pos. 3
NO.
POLES
MODEL NO.
C&K marking on opposite side
C&K marking on opposite side
SCHEMATIC
CR101
ON
NONE
ON
2-3
2-1
N/A
OR
OR
CR102
SP
ON
NONE
For 7 & 8
For Illuminated
Illuminated Versions
Version
+
–
For 6 Illuminated
Versions
OFF
ACTUATOR
J1
J3
ROCKER
ILLUMINATED ROCKER
J2
TWO-TONE ROCKER
.138
(3,5)
Rocker
NOTE:
J3 actuator available with the combination of 7 & 8 lamp ratings and
CR102 switch function only.
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–83
www.ck-components.com
G
CR Series
Round Single Pole Specialty Rocker Switches
ACTUATOR
J4
CIRCLE, ILLUMINATED ROCKER
J5
OVAL, ILLUMINATED ROCKER
.138
(3,5)
.138
(3,5)
NOTE:
Available with the combination of CR102 switch function and 7 & 8 lamp ratings only.
NOTE:
Available with the combination of CR102 switch function and 6 lamp rating only.
JN
PADDLE, ROCKER
JP
PADDLE, ILLUMINATED ROCKER
.610
(15,5)
NOTE:
JP actuator available with the combination of CR102 switch function and 7 & 8 lamp ratings only.
ACTUATOR COLOR
ACTUATOR
OPTION
CODE
ACTUATOR
COLOR
BLACK
WHITE
RED
RED, ILLUMINATED
AMBER, ILLUMINATED
GREEN, ILLUMINATED
OPTION
CODE
J1
J3, J4
J5, JP
2
1
3
R
A
G
ACTUATOR
COLOR
TOP
BOTTOM
WHITE
WHITE
RED
BLACK
BLACK
RED
BLACK
WHITE
WHTE
RED
1
2
3
4
5
J2 actuator only
MOUNTING STYLE/COLOR
S2
S1
SNAP-IN, BLACK
SNAP-IN, WHITE
PANEL MOUNTING
Rocker
G
G–84
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
www.ck-components.com
CR Series
Round Single Pole Specialty Rocker Switches
TERMINATION
15
.187” QUICK CONNECT
For switches with LED option
CONTACT MATERIAL
OPTION
CODE
CONTACT AND
TERMINAL MATERIAL
SILVER
POWER
RATINGS
16 AMPS @ 125 VAC; 10 AMPS @ 250 VAC
QF
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.
LAMP RATING
(NONE)
NO LAMP
6
LED RATING @ 10 mA Vf=1.85V
7
125 VAC 33kΩ NEON
8
250 VAC 150kΩ NEON
ACCESSORIES
377C00000
IP65 SPLASH PROOF RUBBER BOOT
.756 DIA.
(19,2)
.960 DIA.
(24,4)
.307
(7,8)
.129
(3,28)
Rocker
Dimensions are shown: Inches (mm)
Specifications and dimensions subject to change
G–85
www.ck-components.com
G
