DDS003: DescriptionSNAP ACTING/LIMIT SWITCH, SPST, MOMENTARY, 0.1A, 30VDC, 2mm, THROUGH HOLE-RIGHT ANGLE; Categoryunclassified; File Size161KB，2 Pages; ManufacturerC&K Components

Download Datasheet Parametric Compare View All

DDS003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DDS003	-	-	View	Buy Now

DDS003 Overview

SNAP ACTING/LIMIT SWITCH, SPST, MOMENTARY, 0.1A, 30VDC, 2mm, THROUGH HOLE-RIGHT ANGLE

DDS003 Parametric

Parameter Name	Attribute value
Maximum DC contact current	0.1000 A
Maximum DC contact voltage	30 V
Minimum operating temperature	-20 Cel
Maximum operating temperature	70 Cel
Processing package description	ROHS COMPLIANT
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Switch type	SNAP ACTING/LIMIT SWITCH
ctuator_travel__mm_	2
width	5.1 mm
high	3.7 mm
length or diameter	6.3 mm
contact_dc_max_rating_r_load	.1A@30VDC
Electrical life	50000 Cycle(s)
Manufacturer Series	DDS
Installation features	THROUGH HOLE-RIGHT ANGLE
maximum control	0.3900 N
Switch action	MOMENTARY
switch function	SPST
terminal coating	NOT SPECIFIED
Terminal type	SOLDER

Preview

Download Datasheet

View All

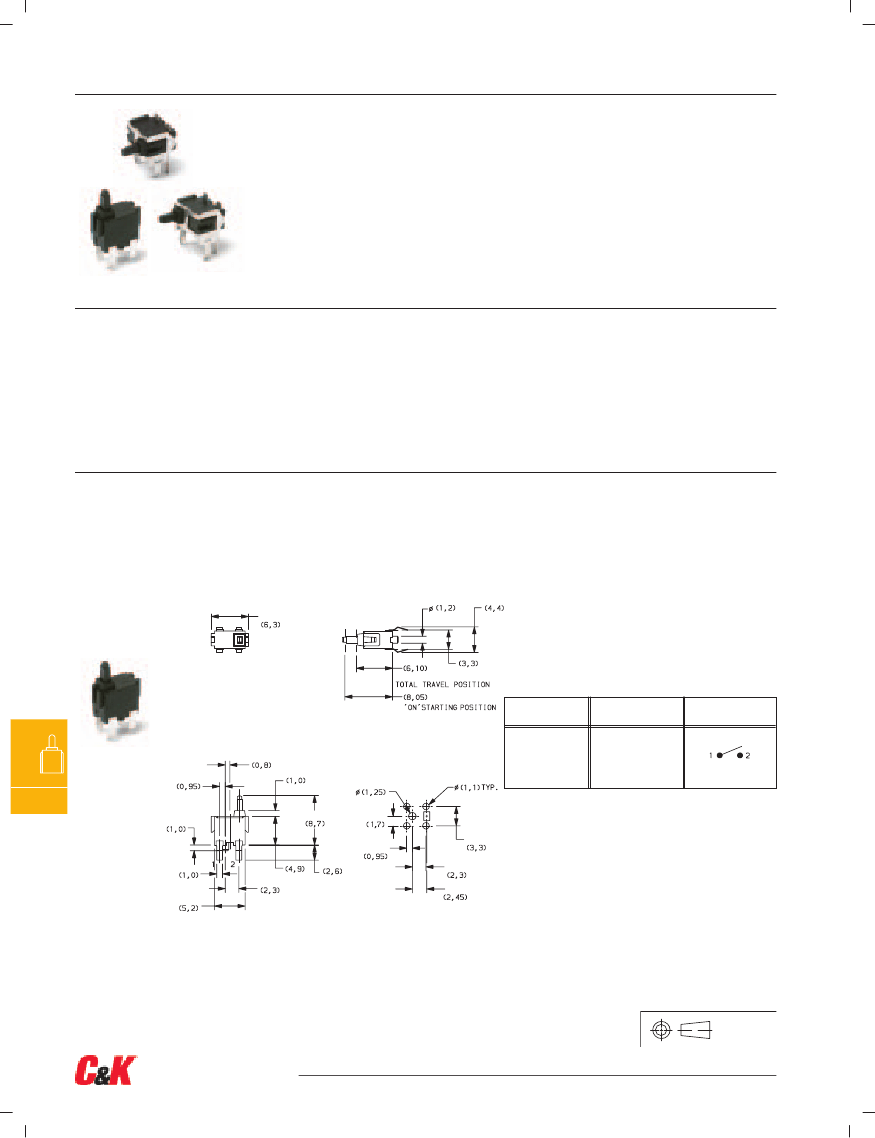

DDS Series

Micro Mini Thru-hole Detect Switches

Features/Benefits

•

Vertical or horizontal actuation

•

2mm overtravel—Ideal for

detector applications

•

Low actuations force

(less than 40 grams)

•

RoHS compliant and compatible

Typical Applications

•

Detect the presence of a

mechanical device

•

Medical devices

•

Consumer electronic devices

Specifications

CONTACT RATING: 0.1A @ 30 VDC.

MECHANICAL & ELECTRICAL LIFE: 50,000 cycles.

CONTACT RESISTANCE: 150 m

Ω

max. initial.

INSULATION RESISTANCE: 100 M

Ω

min. @ 100 VDC.

OPERATING TEMPERATURE: –20ºC to +70ºC.

DIELECTRIC STRENGTH: 100 volts AC @ 60 Hz.

PACKAGING: Bulk.

Materials

HOUSING: P.P.S.

ACTUATOR: PA66

MOVABLE CONTACT: Tin bronze, silver plated.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

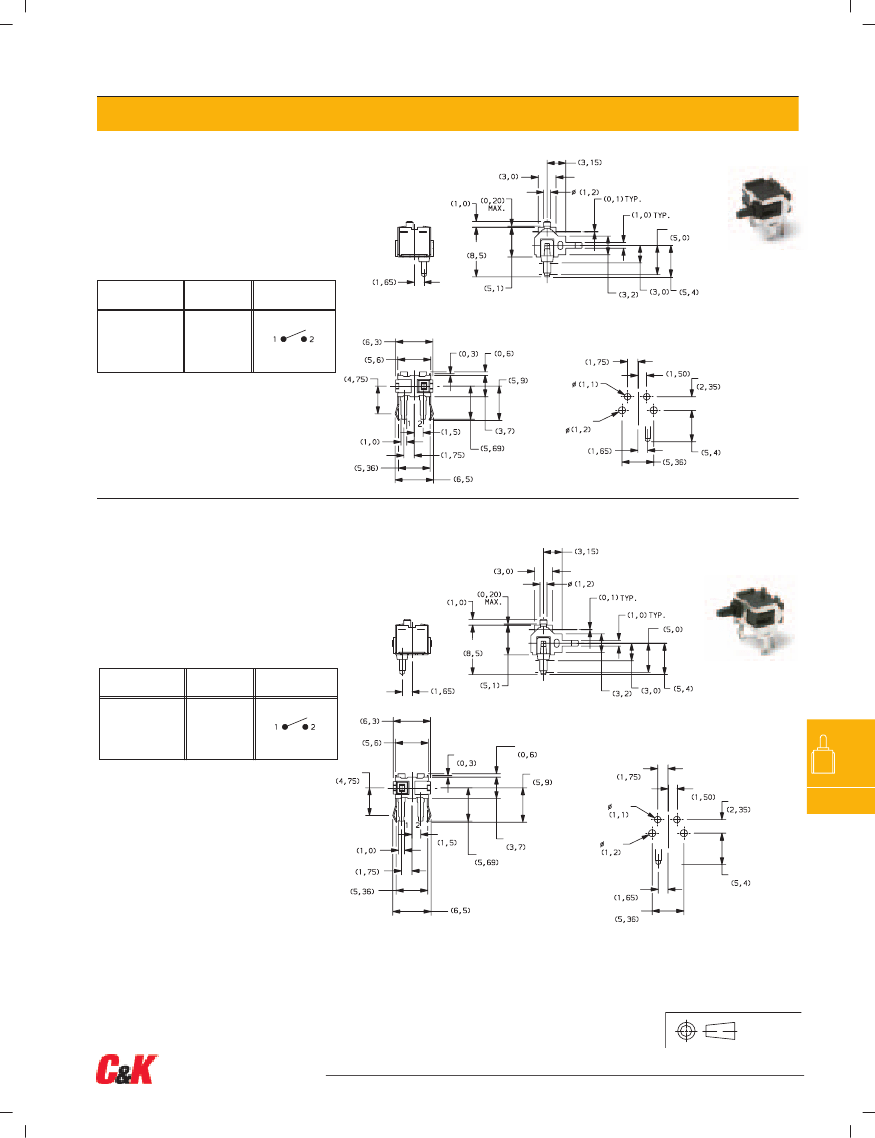

How To Order

Complete part numbers for DDS Series Switches are shown below.

PART NUMBER

DESCRIPTION

SCHEMATIC

DDS001

SPST

PC MOUNTING

DDS001

Vertical Actuator

SPST N.O.

E

Detect

Third Angle

Projection

Dimensions are shown: mm

Specifications and dimensions subject to change

E–24

www.ck-components.com
