84140-8 datasheet, PDF - EEWORLD Datasheet

84140-8: DescriptionCONNECTOR, 44 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size50KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

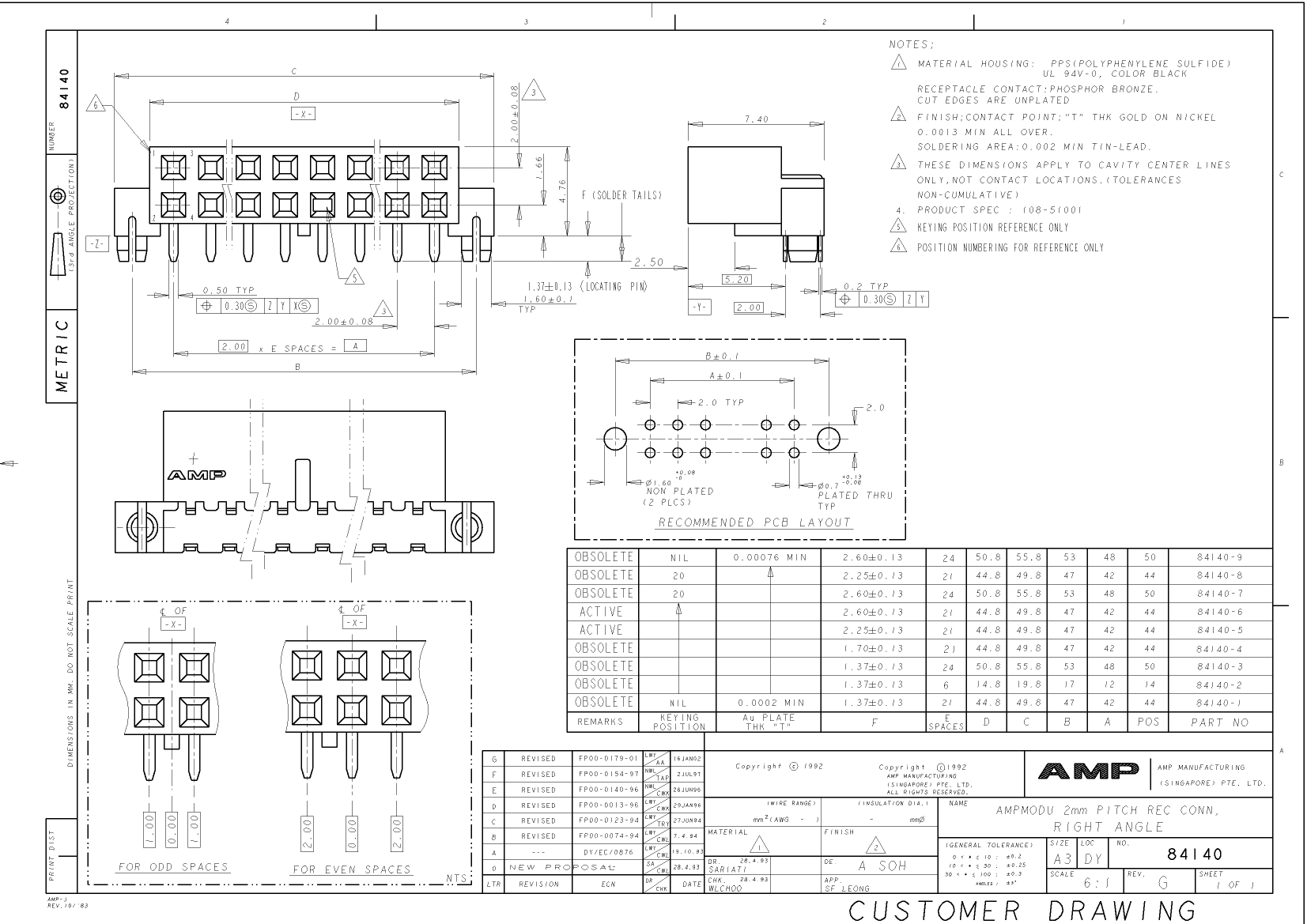

84140-8 Overview

CONNECTOR, 44 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
Other features	AMPMODU
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	84140
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	44
UL Flammability Code	94V-0

	84140-8	84140-7	84140-2	84140-4
Description	CONNECTOR, 44 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR, 50 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	HEADER CONNECTOR,PCB MNT,PLUG,14 CONTACTS,SKT,0.08 PITCH,PC TAIL TERMINAL,BLACK	CONNECTOR, 44 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
Maker	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	PLUG	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Manufacturer's serial number	84140	84140	84140	84140
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2
Terminal pitch	2 mm	2 mm	2.032 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	44	50	14	44
Other features	AMPMODU	AMPMODU	-	AMPMODU
DIN compliance	NO	NO	-	NO
Filter function	NO	NO	-	NO
IEC compliance	NO	NO	-	NO
MIL compliance	NO	NO	-	NO
Mixed contacts	NO	NO	-	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
UL Flammability Code	94V-0	94V-0	-	94V-0
