LM239AJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM239AJ

LM239AJ: DescriptionQUAD COMPARATOR, 4000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERDIP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size168KB，7 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

LM239AJ Overview

QUAD COMPARATOR, 4000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERDIP-14

LM239AJ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	not_compliant
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.3 µA
Maximum bias current (IIB) at 25C	0.1 µA
Maximum input offset voltage	4000 µV
JESD-30 code	R-CDIP-T14
JESD-609 code	e0
Negative supply voltage upper limit
Nominal Negative Supply Voltage (Vsup)
Number of functions	4
Number of terminals	14
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Output type	OPEN-COLLECTOR
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Nominal response time	1300 ns
Maximum seat height	5.08 mm
Maximum slew rate	2 mA
Supply voltage upper limit	36 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

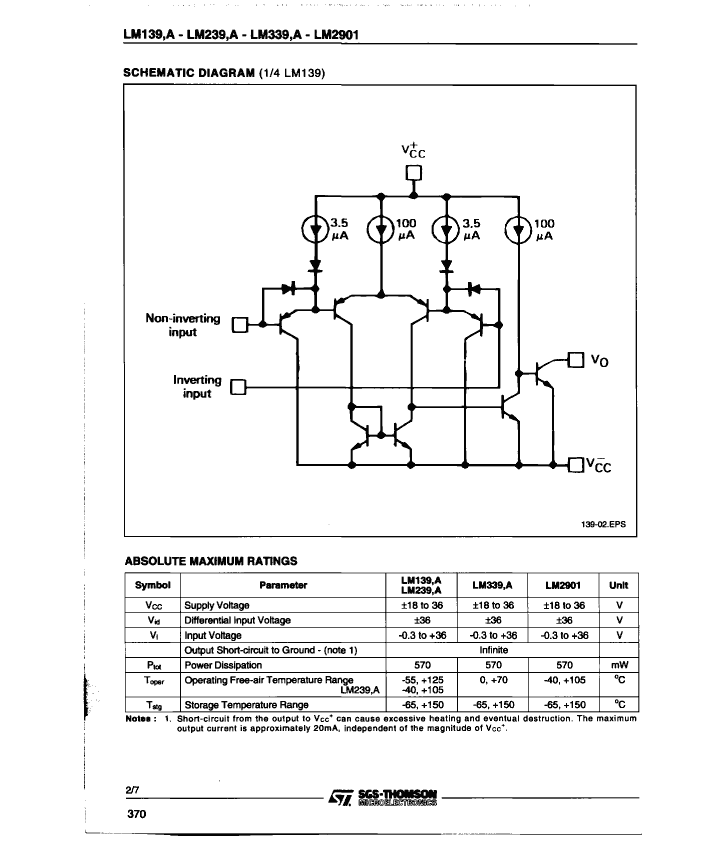

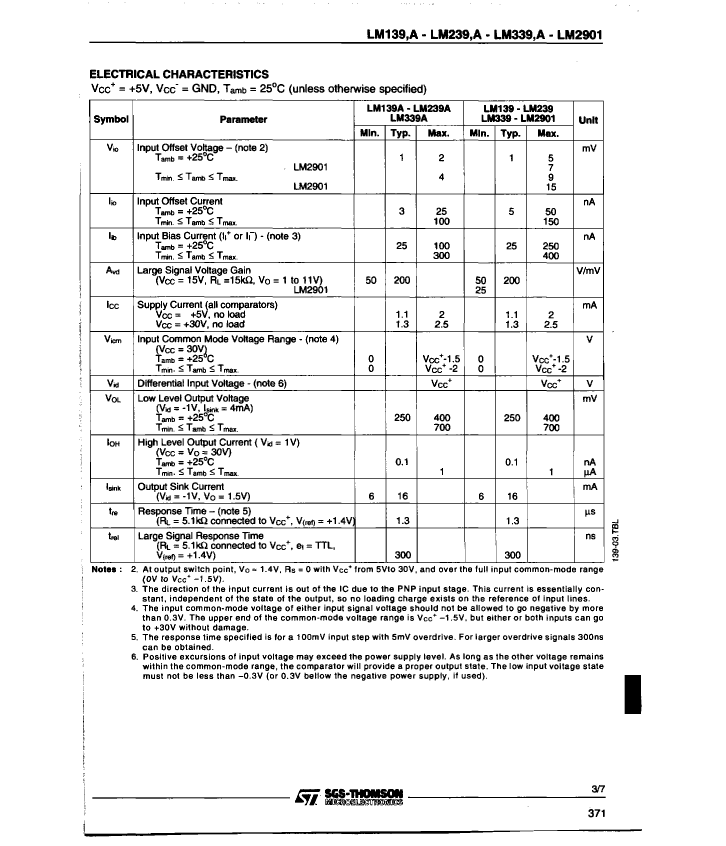

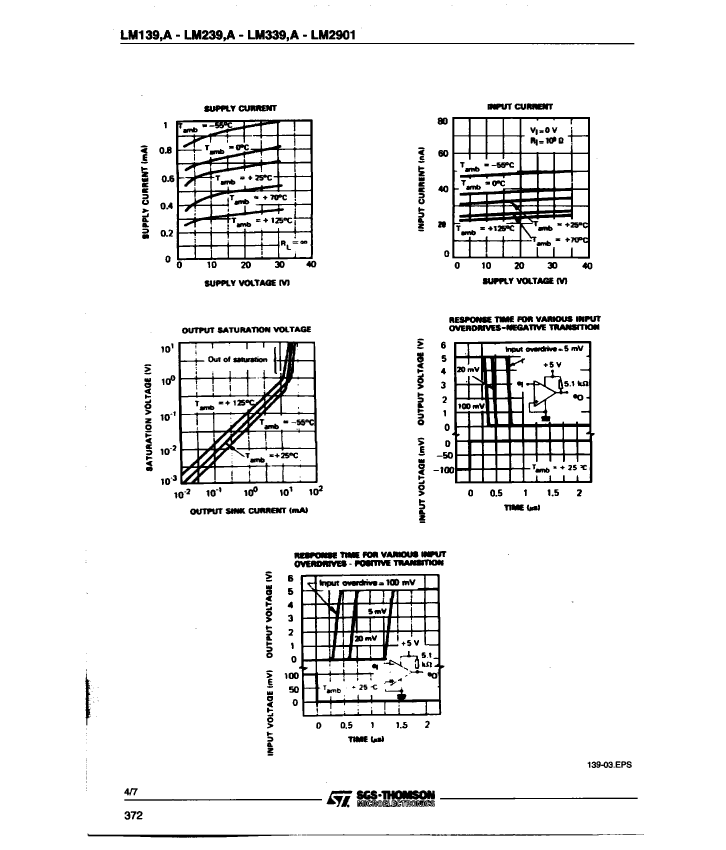

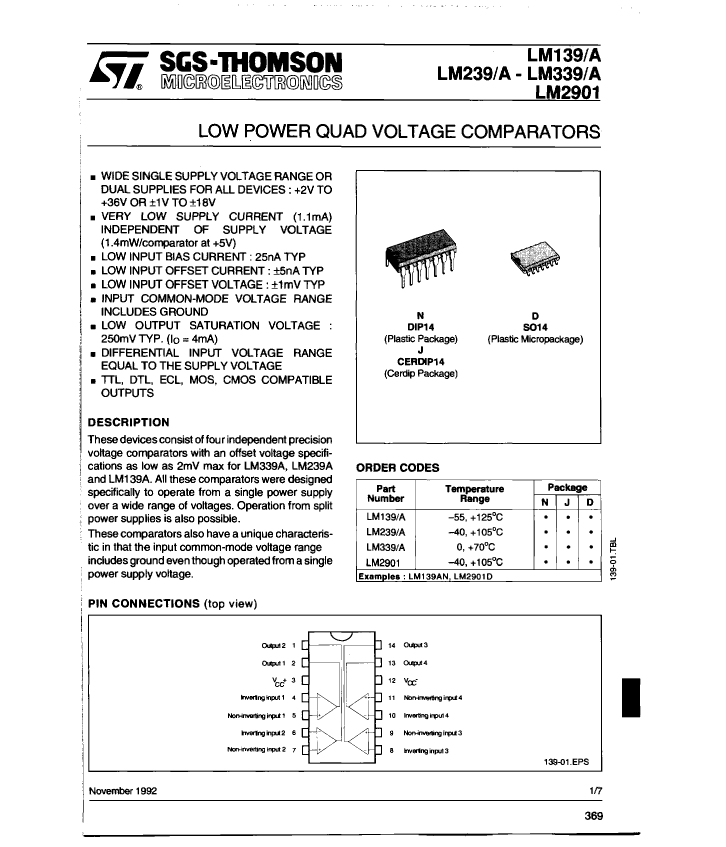

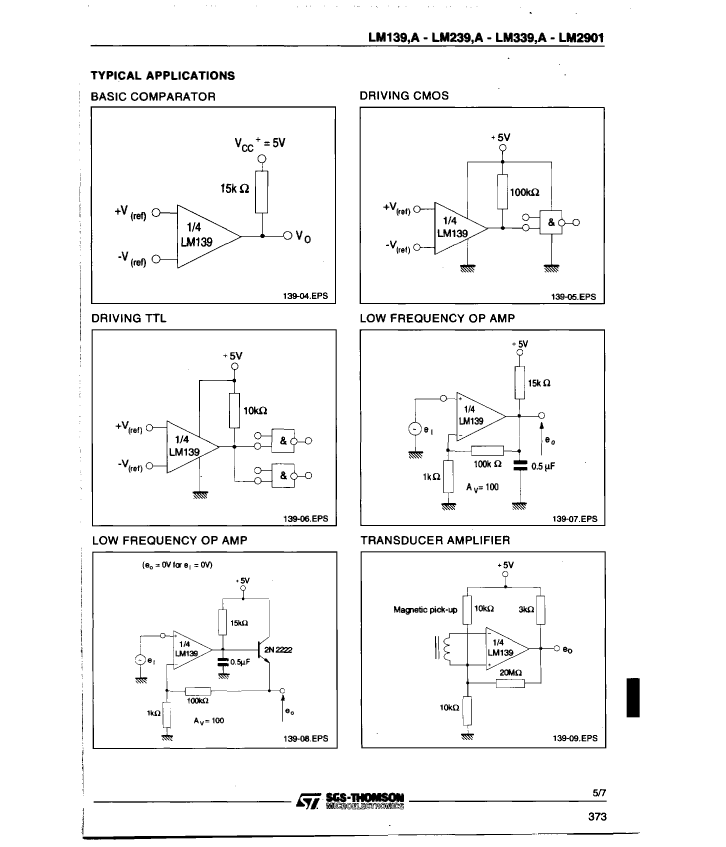

Preview

Download Datasheet

View All

LM239AJ Related Products

	LM239AJ	LM139J	LM239J	LM339J	LM139AJ	LM339AJ
Description	QUAD COMPARATOR, 4000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERDIP-14	QUAD COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERDIP-14	QUAD COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERDIP-14	QUAD COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERDIP-14	QUAD COMPARATOR, 4000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERDIP-14	QUAD COMPARATOR, 4000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERDIP-14
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Contacts	14	14	14	14	14	14
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	0.3 µA	0.4 µA	0.4 µA	0.4 µA	0.3 µA	0.3 µA
Maximum bias current (IIB) at 25C	0.1 µA	0.25 µA	0.25 µA	0.25 µA	0.1 µA	0.1 µA
Maximum input offset voltage	4000 µV	9000 µV	9000 µV	9000 µV	4000 µV	4000 µV
JESD-30 code	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of functions	4	4	4	4	4	4
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	105 °C	125 °C	105 °C	70 °C	125 °C	70 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-	-55 °C	-
Output type	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal response time	1300 ns	1300 ns	1300 ns	1300 ns	1300 ns	1300 ns
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Maximum slew rate	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA
Supply voltage upper limit	36 V	36 V	36 V	36 V	36 V	36 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL	COMMERCIAL	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
