LM324F datasheet, PDF - EEWORLD Datasheet

LM324F: DescriptionOperational Amplifier, 4 Func, 9000uV Offset-Max, BIPolar, CDIP14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size396KB，8 Pages; ManufacturerSignetics

Download Datasheet Parametric View All

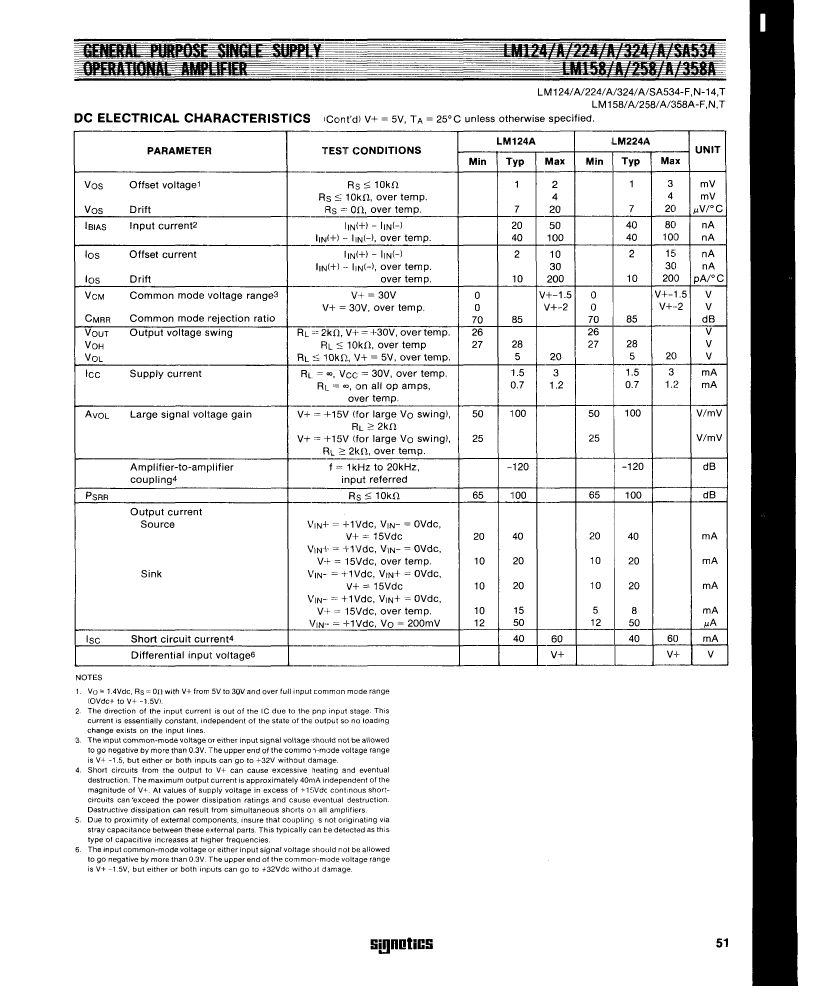

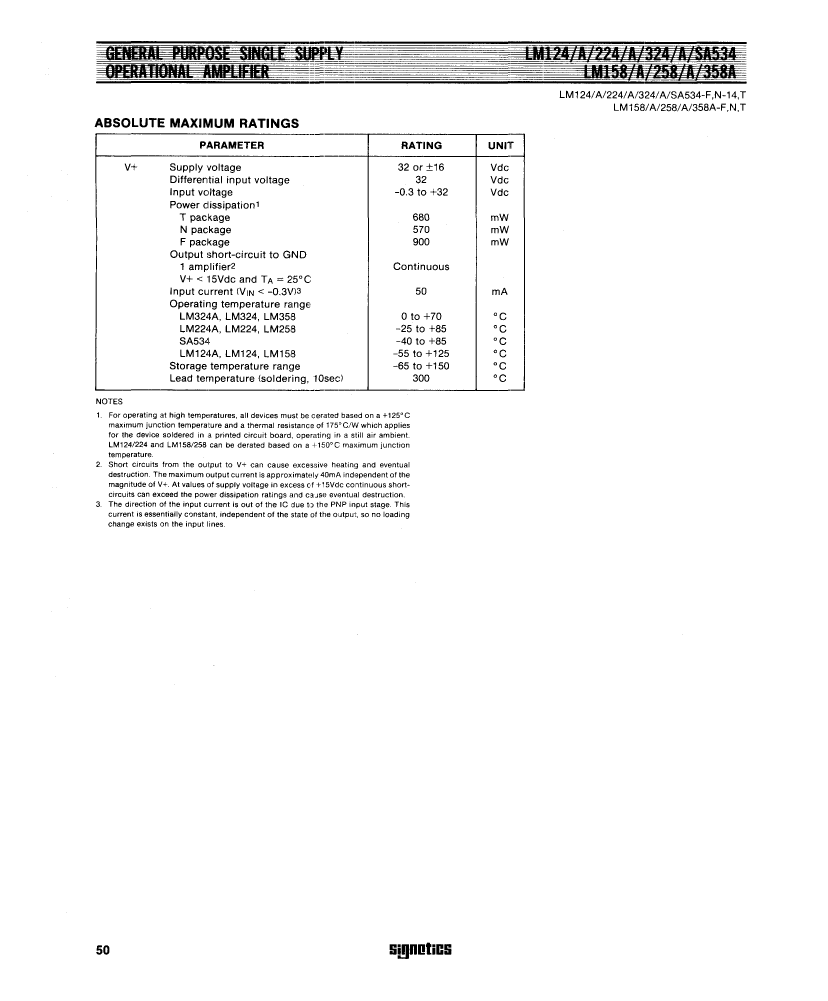

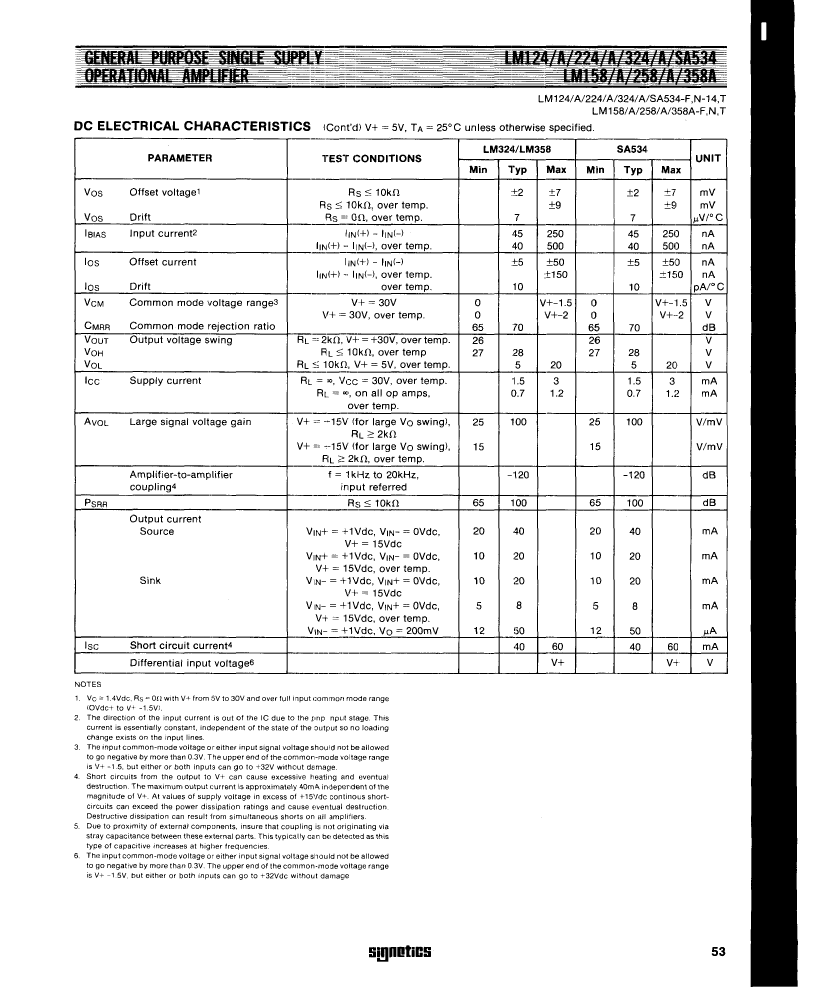

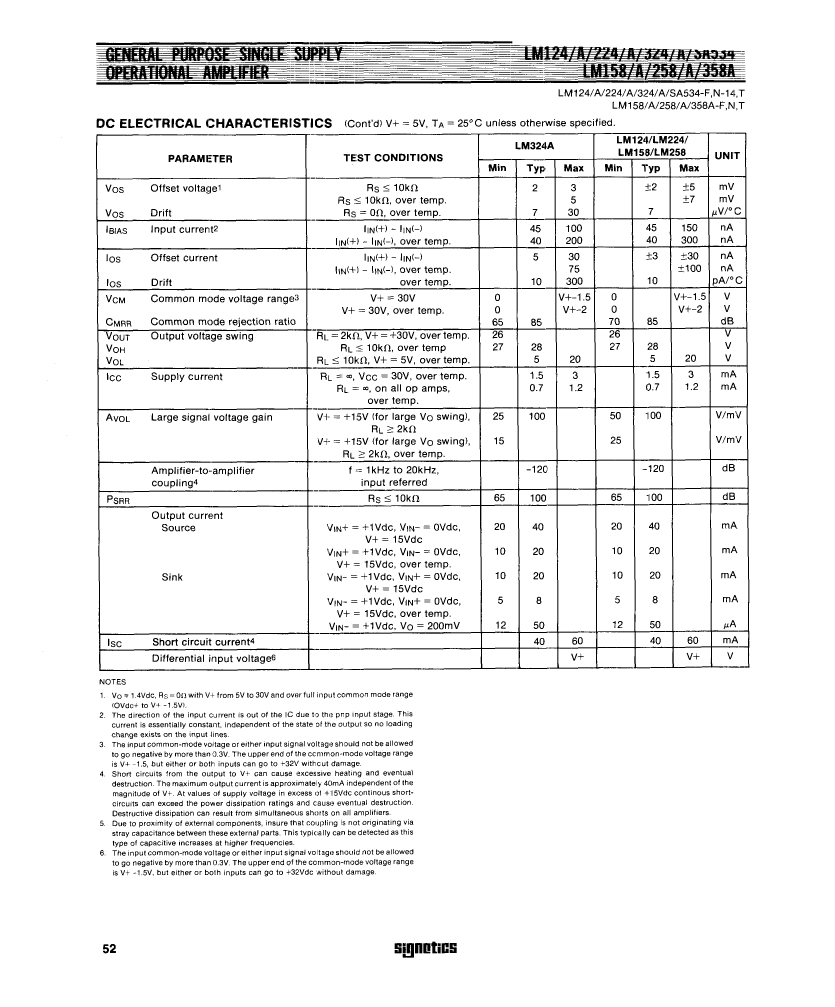

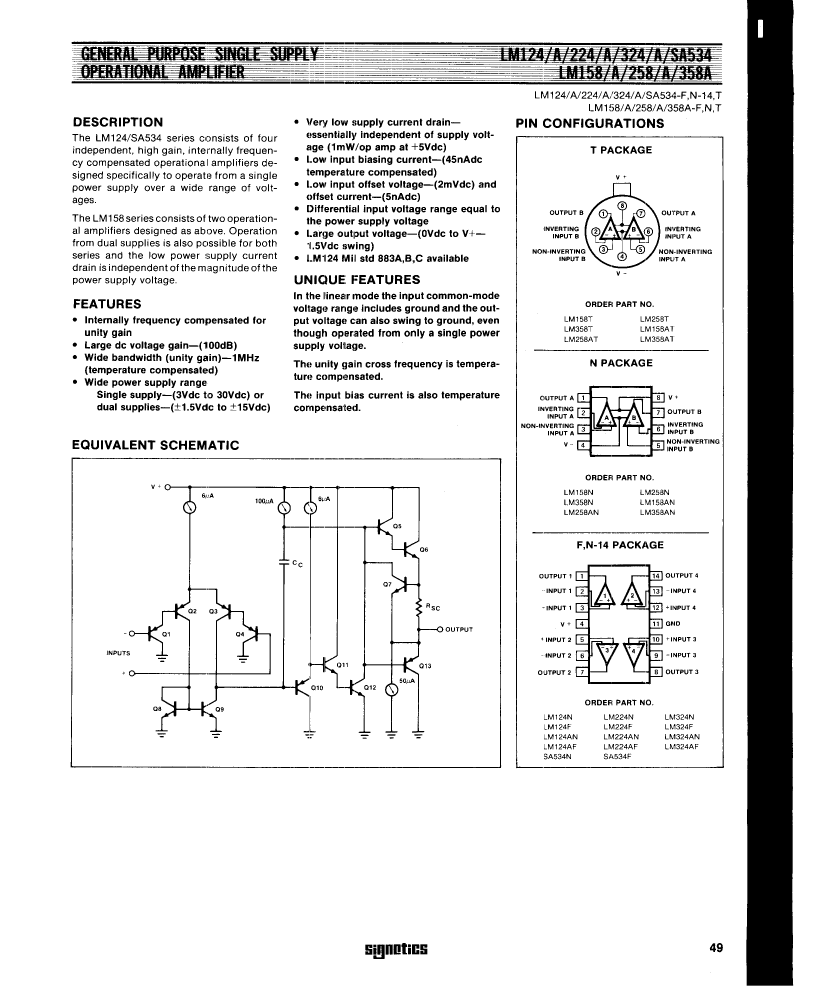

LM324F Overview

Operational Amplifier, 4 Func, 9000uV Offset-Max, BIPolar, CDIP14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Signetics
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.5 µA
Maximum bias current (IIB) at 25C	0.25 µA
Nominal Common Mode Rejection Ratio	85 dB
frequency compensation	YES
Maximum input offset voltage	9000 µV
JESD-30 code	R-CDIP-T14
JESD-609 code	e0
low-dissonance	NO
micropower	YES
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/30 V
Certification status	Not Qualified
Maximum slew rate	2 mA
Supply voltage upper limit	16 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	1000 kHz
Minimum voltage gain	15000
