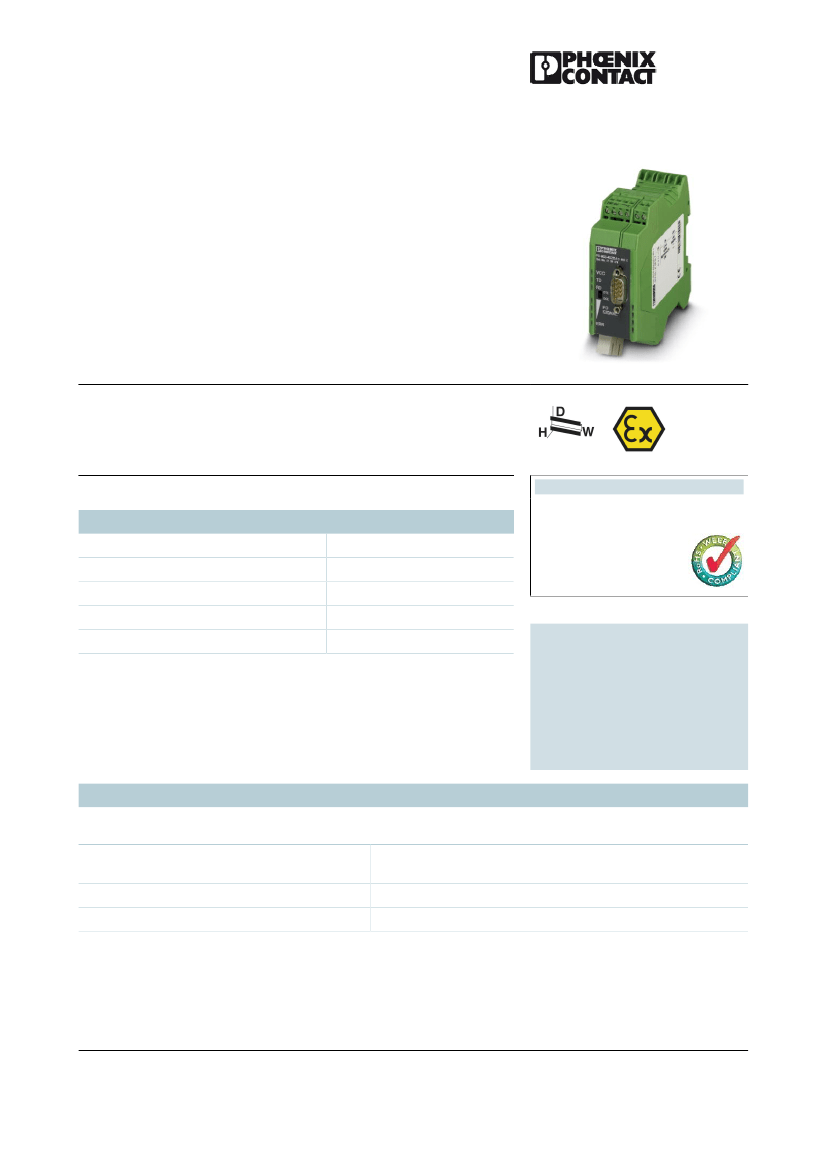

Extract from the online
catalog
PSI-MOS-RS232/FO1300 E
Order No.: 2708588
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2708588
Fiber optic converter with integrated optical diagnostics, alarm contact,
for RS-232 interfaces up to 115.2 kbps, termination device with one
fiber optic interface (SC duplex), 1300 nm, for glass fiber cable
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4046356176286
1 pcs.
85176200
0.2227 KG
Page 515 (IF-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
08/28/2007
Technical data
Serial interface
Interface 1
Data rate
Transmission length
RS-232 interface in acc. with ITU-T V.28, EIA/TIA-232, DIN
66259-1
115,2 kBit/s (NRZ)
15 m
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 1 / 4
Jul 12, 2009
PSI-MOS-RS232/FO1300 E
Order No.: 2708588
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2708588
Type of connection
Serial transmission rate
Optical interface FO
Wave length
Transmission length incl. 3 dB system reserve
Transmission protocol
Type of connection
Fault warning output
Maximum switching voltage
Limiting continuous current
Power supply
Nominal supply voltage
Range of supply voltages
Typical current consumption
Type of connection
General data
Transmission channels
Bit distortion, input
Bit distortion output
Width
Height
Depth
Ambient temperature (storage/transport)
Ambient temperature (operation)
Electrical isolation
Electromagnetic compatibility
Emitted interference
Immunity to interference
Degree of protection
Housing material
Color
D-SUB-9 male connector
115.2 kbps (NRZ)
1300 nm
25 km (With F-G 50/125 0.7 dB/km at 1300 nm)
45 km (With F-E 9/125 0,4 dB/km at 1300 nm)
Transparent to protocol for RS-232 interface
SC-DUPLEX
60 V DC
42 V AC
1A
24 V DC ± 25%
18 V DC ... 32 V DC
110 mA
Pluggable COMBICON screw terminal block
2 (1/1), RxD, TxD, full duplex
± 35 % (permitted)
< 6.25 %
35 mm
105 mm
99 mm
-40 °C ... 85 °C
-20 °C ... 60 °C
RS-232 // supply
Conformance with EMC directive 89/336/EEC
EN 55011
EN 61000-6-2:2005
IP20
PA V0, color green
green
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 2 / 4
Jul 12, 2009
PSI-MOS-RS232/FO1300 E
Order No.: 2708588
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2708588
ATEX approval
UL, USA / Canada
Accessories
Item
Designation
Ex II 3 G Ex nAC IIC T4 X
cUL 508 Recognized
Description
Cable/conductor
2319200
PSM-KAD-IL RS232/9SUB/
B/0,8M
Adapter cable to connect the IB IL RS232 and IB IL RS232-PRO
Inline communication terminals to the interface converter, e.g.
modem, Com server, Bluetooth or fiber optics.
Drawings

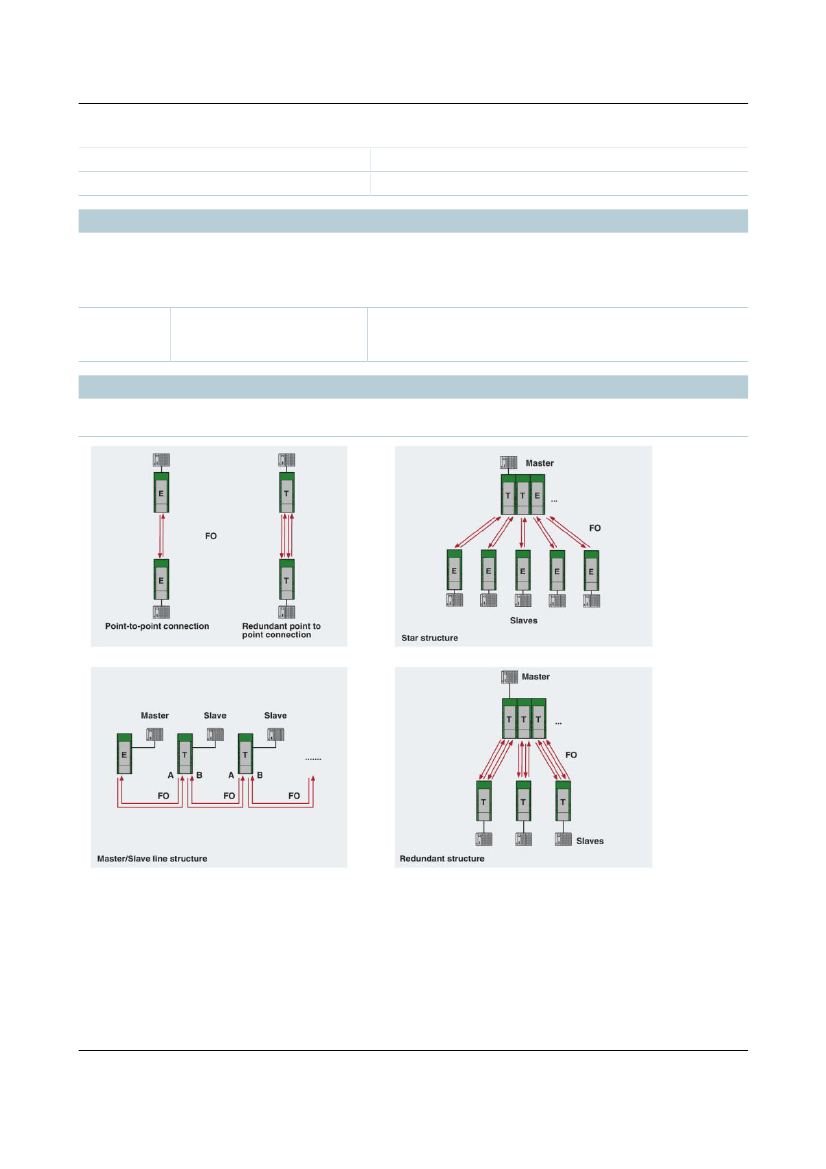

Application drawing
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.com
Page 3 / 4
Jul 12, 2009
PSI-MOS-RS232/FO1300 E
Order No.: 2708588
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=2708588
Address
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 00
Fax +49 5235 3 41200
http://www.phoenixcontact.com
© 2009 Phoenix Contact
Technical modifications reserved;
