The reference level for the relative attenuation arel of the TFS 77A is the minimum of the pass band attenuation amin. The minimum of the pass band
attenuation amin is defined as the insertion loss ae. The centre frequency fc is the arithmetic mean value of the upper and lower frequencies at the 1 dB
filter attenuation level relative to the insertion loss ae. The nominal frequency fN is fixed at 77,55 MHz without any tolerance. The given values for the
relative attenuation arel have to be achieved at the frequencies given below even if the centre frequency fc is shifted due to the temperature coefficient of
frequency TCf in the operating temperature range and due to a production tolerance for the centre frequency fc.
Data
Insertion loss
(reference level)
Nominal frequency
Centre frequency
Passband
Amplitude ripple
in PB
Relative attenuation
f
N
f
N
-
+
50
25
MHz ... f
N
MHz ... f
N
-
+
25
50
ae
f
N
f
C
PB
p-p
arel
MHz
MHz
typ. value
7,7
-
-
77,55
-
0,4
dB
MHz
f
C
dB
tolerance / limit
max.
10,0
77,55
-
± 12,5
1
kHz
dB
dB
MHz
max.
70
52
615
dB
dB
ns
ns
min.
min.
max.
max.
50
50
0,8
20
dB
dB
µs
ns
Absolute group delay
in PB
Group delay ripple
in PB
Operating temperature range
Storage temperature range
Temperature coefficient of frequency
TCf **
p-p
OTR
12
-
-
-22
-25 °C ... + 55 °C
-35 °C ... + 85 °C
ppm/K
-
*) The terminating impedances depend on parasitics and q-values of matching elements and the board used, and are to be understood as reference
values only. Should there be additional questions do not hesitate to ask for an application note or contact our design team.
**)
∆f
c(Hz) = TC
f
(ppm/K) x (T - T
o
) x f
To
(MHz).
Generated:
Checked / Approved:
Tele Filter GmbH
Potsdamer Straße 18
D 14 513 TELTOW / Germany
Tel: (+49) 3328 4784-0 / Fax: (+49) 3328 4784-30
E-Mail:
tft@telefilter.com
VI TELEFILTER reserves the right to make changes to the product(s) and/or information contained herein without notice. No liability is
assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information.
Filename: tfs 77a.doc
Version 1.1
22.11.2004
VI
TELEFILTER

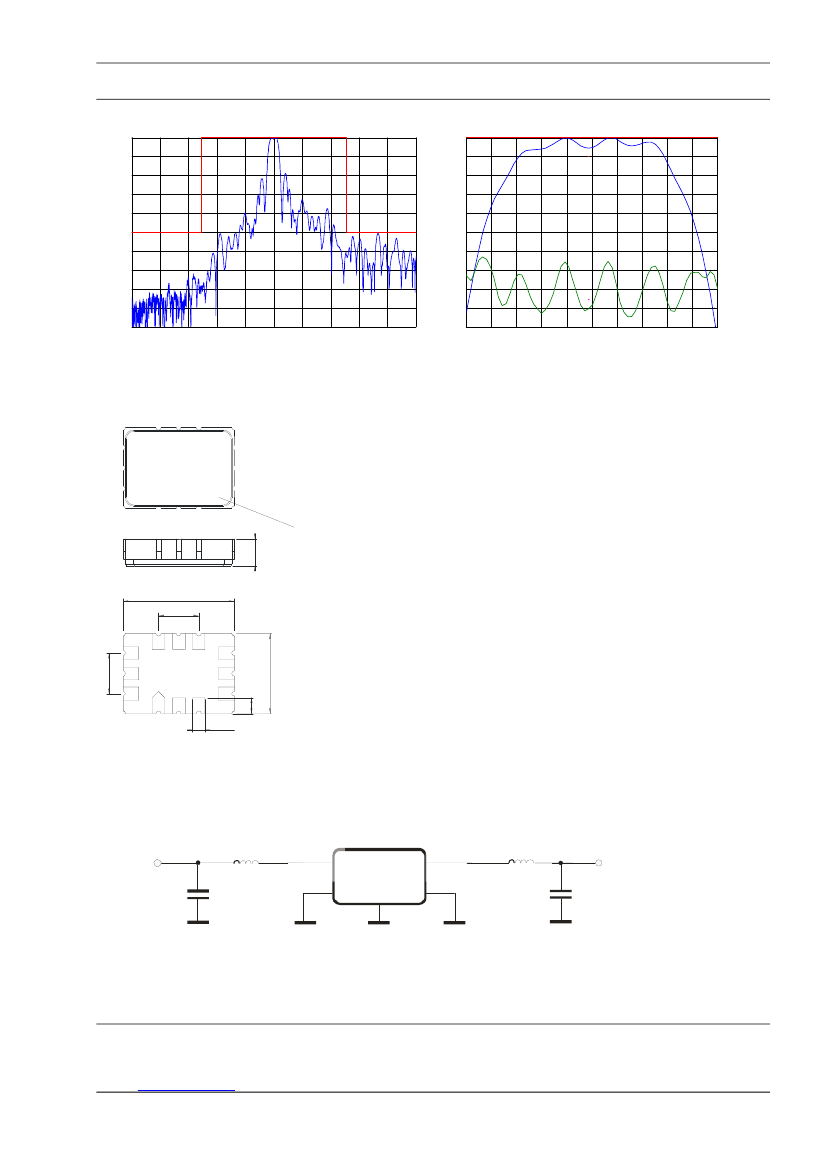

Filter characteristic
0
-10
-20
-30
Filter specification
TFS 77A
2/5
0
-1
-2
-3
magnitude in dB
-4
-5
-6
-7
-8
-9
38.4
48.2
58
67.8 77.6 87.4
frequency in MHz
97.2
107
116.8 126.6
-10
75.6
76
76.4 76.8
77.2 77.6 78
frequency in MHz
78.4 78.8
79.2
0.89
0.86
0.83
0.8
delay in µs
0.77
0.74
0.71
0.68
0.65
0.62
0.59
79.6
magnitude in dB
-40
-50
-60
-70
-80
-90
-100
28.6
Construction and pin connection
(All dimensions in mm)
S 77A
●
S48
1
3
2 Max.
Date code
7,2 Max.
2,54 ±0,2
1
2,54 ±0,2
5,2 Max.
1
2
3
4
5
6
7
8
9
10
11
12
Input
Input RF Return
Ground
Ground
Ground
Ground
Output
Output RF Return
Ground
Ground
Ground
Ground
Date code:
S
T
U
...
Year + week
2004
2005
2006
0,80
50 Ohm Test circuit
1
L1
1
2
7
L2
SAW
8
C2
C1
3, 4, 5, 6, 9, 10, 11, 12
Tele Filter GmbH
Potsdamer Straße 18
D 14 513 TELTOW / Germany
Tel: (+49) 3328 4784-0 / Fax: (+49) 3328 4784-30
E-Mail:
tft@telefilter.com
VI TELEFILTER reserves the right to make changes to the product(s) and/or information contained herein without notice. No liability is
assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information.
Filename: tfs 77a.doc
Version 1.1
22.11.2004
VI
TELEFILTER
Stability characteristics
Filter specification
TFS 77A
3/5
After the following tests the filter shall meet the whole specification:
1. Shock:
2. Vibration:
3. Change of
temperature:
4. Resistance to
solder heat (reflow):
500g, 18 ms, half sine wave, 3 shocks each plane;
DIN IEC 68 T2 - 27
10 Hz to 500 Hz, 0,35 mm or 5 g respectively, 1 octave per min, 10 cycles per plan, 3 plans;
DIN IEC 68 T2 - 6
-55 °C to 125°C / 30 min. each / 10 cycles
DIN IEC 68 part 2 – 14 Test N
reflow possible: twice max.;
for temperature conditions refer to the attached "Air reflow temperature conditions" on page 4;
Packing
Tape & Reel:
IEC 286 – 3, with exeption of value for N and minimum bending radius;
tape type II, embossed carrier tape with top cover tape on the upper side;
max. pieces of filters peer reel:
reel of empty components at start:
reel of empty components at start including leader:
trailer:
3000
min. 300 mm
min. 500 mm
min. 300 mm
Pull Off Direction
Tape (all dimensions in mm)
W
: 16,00 ± 0,3
Po
: 4,00 ± 0,1
Do
: 1,50 +0,1/-0
E
: 1,75 ± 0,1
F
: 7,50 ± 0,1
G(min)
: 0,60
P2
: 2,00 ± 0,1
P1
: 8,00 ± 0,1
D1(min)
: 1,50
Ao
: 5,50 ± 0,1
Bo
: 7,50 ± 0,1
Ct
: 13,5 ± 0,1
Date Code
P1
Po
P2
t
Do
G
Ct
Bo
F
Ko
Typ
PIN Marker
D1
Ao
W 2
C
A
N
W 1
E
G
W
Reel (all dimensions in mm)
A
: 330
W1
: 16,4 +2/-0
W2(max) : 22,4
N(min)
: 50
C
: 13,0 +0,5/-0,2
The minimum bending radius is 45 mm.
Tele Filter GmbH
Potsdamer Straße 18
D 14 513 TELTOW / Germany
Tel: (+49) 3328 4784-0 / Fax: (+49) 3328 4784-30
E-Mail:
tft@telefilter.com
VI TELEFILTER reserves the right to make changes to the product(s) and/or information contained herein without notice. No liability is
assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information.
Filename: tfs 77a.doc
Version 1.1
22.11.2004
VI
TELEFILTER
Air reflow temperature conditions
Filter specification
TFS 77A
4/5
Conditions
Average ramp-up rate (30°C to 217°C)
> 100°C
> 150°C
> 217°C
Peak temperature
Time within 5°C of actual peak temperature
Cool-down rate (Peak to 50°C)
Time from 30°C to Peak temperature
Exposure
less than 3°C/second
between 300 and 600 seconds
between 240 and 500 seconds
between 30 and 150 seconds
max. 260°C
between 10 and 30 seconds
less than 6°C/second
no greater than 300 seconds
Chip-mount air reflow profile
Temperature / °C
max. 260°C
217°C
max. 300 s
10 ... 30 s
30 ... 150 s
Time / s
Tele Filter GmbH
Potsdamer Straße 18
D 14 513 TELTOW / Germany
Tel: (+49) 3328 4784-0 / Fax: (+49) 3328 4784-30
E-Mail:
tft@telefilter.com
VI TELEFILTER reserves the right to make changes to the product(s) and/or information contained herein without notice. No liability is
assumed as a result of their use or application. No rights under any patent accompany the sale of any such product(s) or information.
Filename: tfs 77a.doc
Version 1.1
22.11.2004
VI
TELEFILTER
History
Version
1.0
1.1
Reason of Changes
Filter specification
TFS 77A
5/5
Name
Strehl
Date
24.08.2004
22.11.2004
- generated specification according to customer requirement
