Low Passive Intermodulation Jumpers
COST EFFECTIVE
LOW PIM SOLUTION
As a prime supplier to the Telecommunications industry, Radiall introduces an expanded range of
Low PIM cable jumpers. These cost competitive jumpers provide excellent electrical and mechanical
performance to support the demanding needs of the wireless installation marketplace.
Features:
• Excellent electrical and mechanical performance
• Low passive intermodulation (PIM)
• Low return loss
• High shielding effectiveness
• High flexibility and tight bending radius
• Waterproof - meets or exceeds IP67
• 100% tested for PIM, VSWR and IL
• Black LSZH PE Jacket
• ½’’ and 3/8’’ superflexible corrugated cable types (**)
• Available with 4.3-10, 7/16 and NEX10 connectors (**)
Specifications:
• 50Ω ±2Ω
• DC ~ 3GHz
• VSWR: 1.15 max.
• PIM3: ≤-160dBc @ 1800MHz 2x20W
Static & dynamic conditions (IEC 62037-2)
• Static bending radius: 27mm (1/2”) - 25mm (3/8”) cables
• Mechanical endurance: 100 Cycles
• Temperature range: -40 to +85°C
• RoHS Compliant
** Other connector and cable styles available upon request
www.radiall.com
D1C126TE
For Radiall support please contact:
info@radiall.com
Our Most Important Connection is with You.™

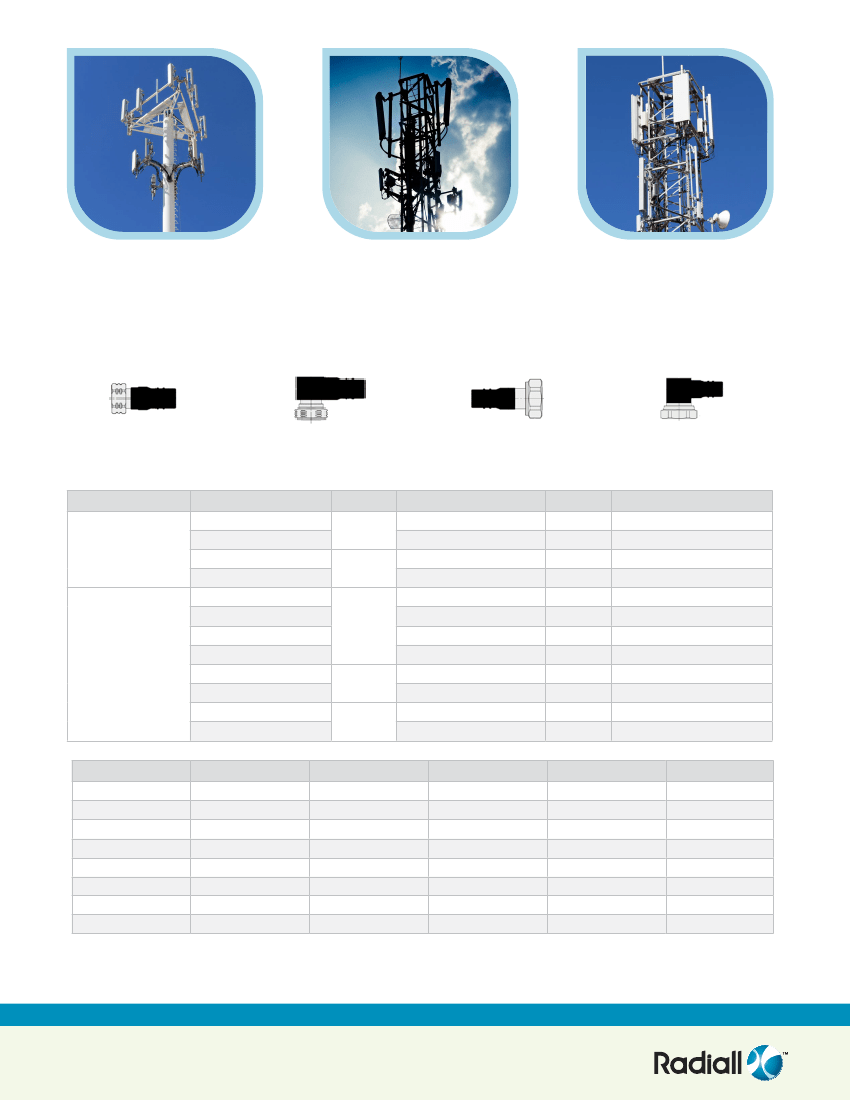

Cost Effective Low Pim Solution
Radiall’s low intermodulation cable jumper solutions for indoor or outdoor cabling to base stations
and antenna systems.
4.3-10 Straight
Fig. 1
4.3-10 Right Angle
Fig. 2
7/16 Straight
Fig. 3
7/16 Right Angle
Fig. 4
Cable Size
Connector 1
Fig.
Connector 2
Fig.
Part Number
4.3-10 Straight
1/2’’ S
4.3-10 Straight
7/16 Straight
7/16 Straight
4.3-10 Straight
4.3-10 Straight
4.3-10 Straight
3/8’’
Superflex
4.3-10 Straight
4.3-10 Right Angle
4.3-10 Right Angle
7/16 Straight
7/16 Straight
Length (m)
xxx
1
3
4.3-10 Straight
4.3-10 Right Angle
7/16 Straight
7/16 Right Angle
4.3-10 Straight
4.3-10 Right Angle
7/16 Straight
7/16 Right Angle
7/16 Straight
7/16 Right Angle
7/16 Straight
7/16 Right Angle
Length
1
2
3
4
1
2
3
4
3
4
3
4
xxx
R296 702 807 xxx
R296 702 808 xxx
R296 702 811 xxx
R296 702 812 xxx
R296 702 809 xxx
R296 702 810 xxx
R296 702 815 xxx
R296 702 816 xxx
R296 702 817 xxx
R296 702 818 xxx
R296 702 813 xxx
R296 702 814 xxx
IL
1
2
3
IL (Db)
0.5 ±0.01
1.0 ±0.02
1.5 ±0.03
2.0 ±0.04
2.5 ±0.05
3.0 ± 0.06
3.5 ± 0.07
4.0 ± 0.08
005
010
015
020
025
020
025
030
0.23
0.36
0.49
0.62
0.75
0.62
0.75
0.88
4.5 ±0.09
5.0 ±0.10
5.5 ±0.11
6.0 ±0.12
7.0 ±0.14
6.0 ±0.12
7.0 ±0.14
8.0 ±0.16
045
050
055
060
070
060
070
080
1.26
1.39
1.52
1.65
1.91
1.65
1.91
2.17
