Part Number

Search

AA-2222Z

Description
Flag InsulKrimp™ Quick Disconnect, Female, for 18-22 (0.80-0.35) Wire, Metal StripTab 4.75mm
CategoryThe connector    terminals
File Size80KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

AA-2222Z Overview

Flag InsulKrimp™ Quick Disconnect, Female, for 18-22 (0.80-0.35) Wire, Metal StripTab 4.75mm

AA-2222Z Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknow
ECCN codeEAR99
Factory Lead Time5 weeks
terminal genderFEMALE
Terminal and terminal strip typesPUSH-ON TERMINAL
Conductor cross section1 mm2
Wire gauge18 AWG

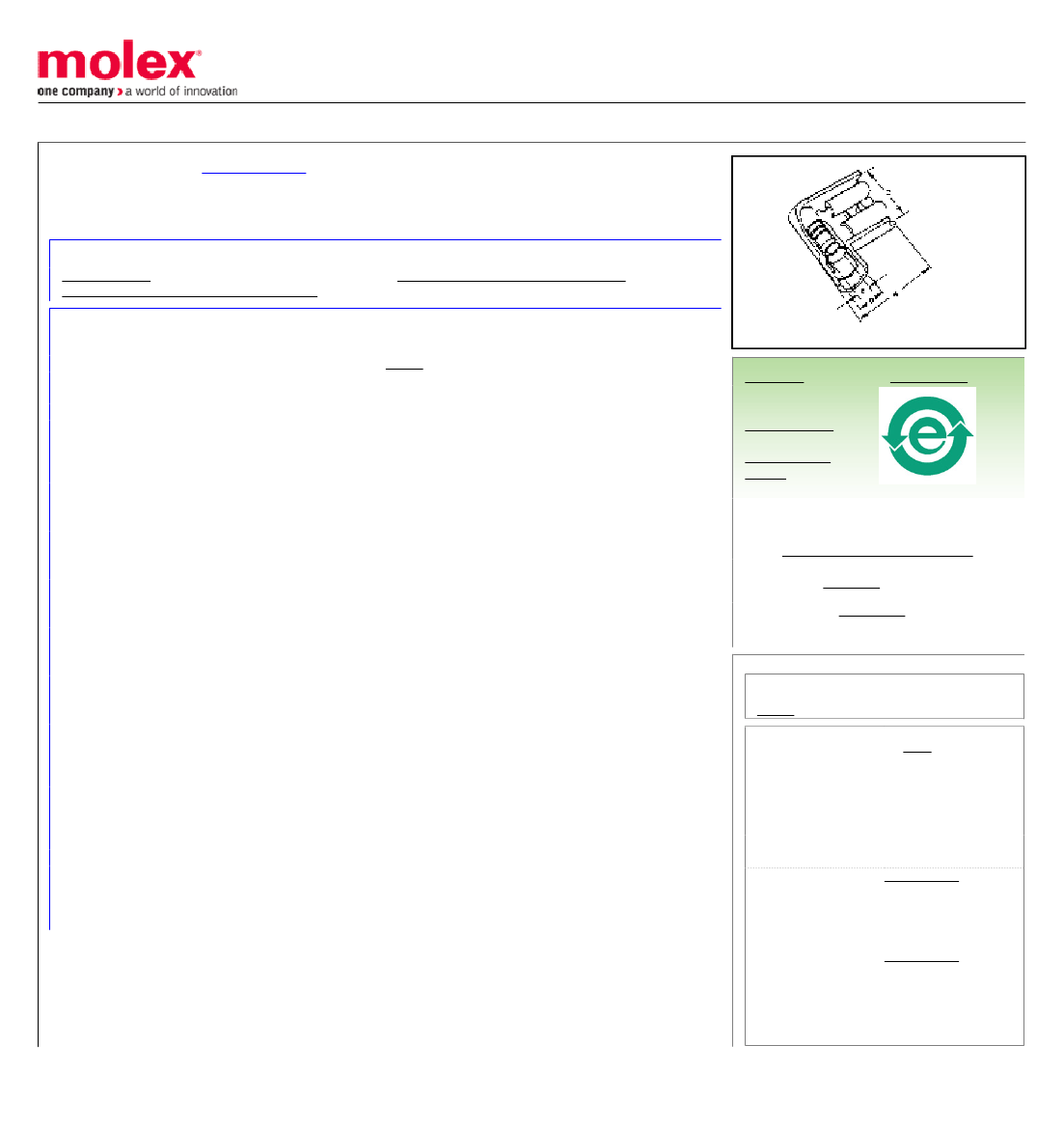

This document was generated on 03/04/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0190070014
Active
Flag InsulKrimp™ Quick Disconnect, Female, for 18-22 (0.80-0.35) Wire, Metal Strip,
Tab 4.75mm (.187") x 0.51mm (.0
Documents:
Drawing (PDF)
Product Specification PS-19902-008 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Crimp Quality Equipment
Product Name
Type
Quick Disconnects
19007
Yes
InsulKrimp™
Quick Disconnect
Series
image - Reference only
EU RoHS
China RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Halogen-Free
Status
Not Reviewed
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Barrel Type
Color - Resin
Flammability
Gender
Glow-Wire Compliant
Insulation
Lock to Mating Part
Material - Metal
Material - Resin
Orientation
Packaging Type
Polarized to Mating Part
Tab Thickness
Tab Width
Temperature Range - Operating
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Closed
Natural
94V-0
Female
No
Nylon (PA)
None
Brass
Nylon
Flag
Reel
No
0.51mm (.020")
4.75mm (.187")
-65°C to +105°C
4.44mm (.175") max.
18, 20, 22
0.35 - 0.80
Search Parts in this Series
19007Series
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
ASP Tool Kit,
0192870046
Perishable, Used in
ASP-101RF Press
that Processes Metal
Strip Product
Rear Feed Mini-Mac 0638026200
Applilcator for Flag
InsulKrimp™ Quick
Disconnect Female
Terminals, 18-22
AWG
Electrical
CSA
UL
Voltage - Maximum
LR18689
E79133
600V
Material Info
Old Part Number
AA-2222Z
Reference - Drawing Numbers
Product Specification

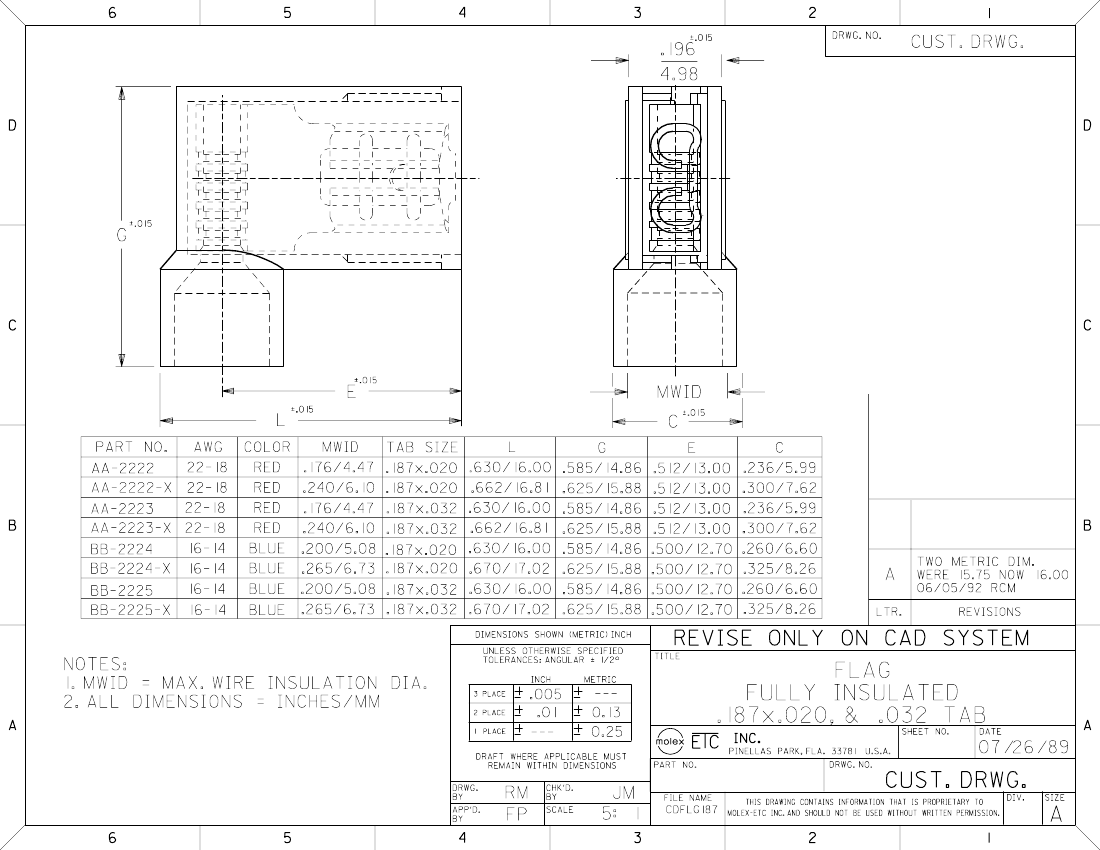

Sales Drawing
PS-19902-008
CDFLG187
